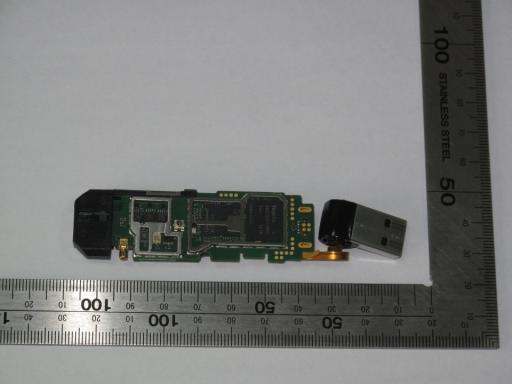

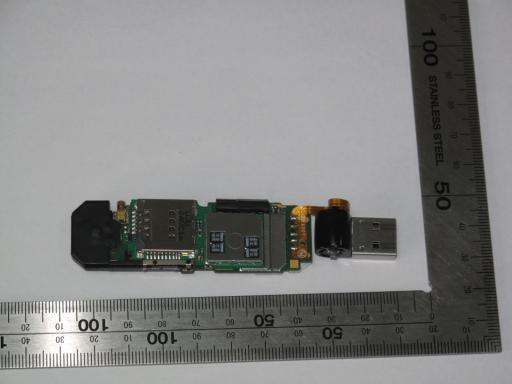

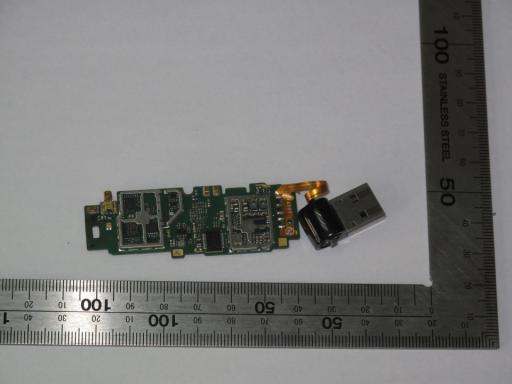

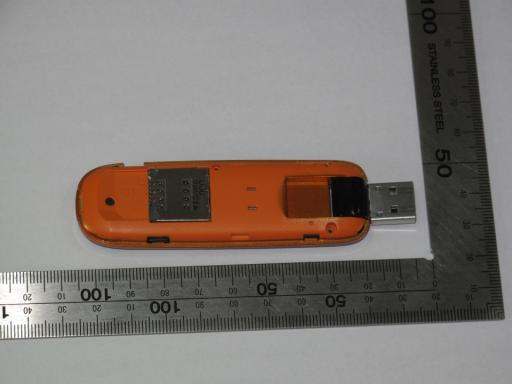

Q78-ZTEMF659USB Modem

ZTEMF659 USB Modem Quick Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Date: Jan 2011 Manual NO.:079584500000 Confidential and Proprietary Information of ZTE CORPORATION 1 C h a p t e r 1 Quick Guide Introduction The ZTE USB modem is a multi-mode USB modem, working in HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM networks. With USB interface connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile communication with Internet perfectly. It supports data and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere. Specification The following table shows the specification of your device. Interface Type USB 2.0 HIGH SPEED Systems supported Supports most types of laptop and desktop PC. Operating systems supported Windows XP, Vista, Windows 7 MAC 10.4, 10.5, 10.6 Linux Functions SMS service, Data service, Applications management, support microSD card, etc. Network Standards HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM Transmission speed (Max) HSUPA: 5.76 Mbps UL HSDPA: 14.4 Mbps DL Temperature Storage: -40 °C ~ +80 °C Operation:-10 °C ~ +55 °C Dimension 87.1 mm×27 mm×12 mm microSD capability Support up to 32GB microSD card Notes: microSD is a trademark of SD Card Association. Getting to know your device The following figure shows the appearance of the MF659. It is only for your reference. The actual product may be different. MF659 Quick Guide 2 Confidential and Proprietary Information of ZTE CORPORATION 1. Front Cover 2. USB Connector 3. SIM/USIM card slot 4. microSD card slot Hardware Installation 1. Put finger on the bottom finger grip, and then lift the front cover of the modem to release and remove. Notes: Do not open the front cover rudely so as to avoid the damage of the front cover. 2. Insert the SIM/USIM card into the SIM/USIM card slot. Insert the SIM/USIM card with the metal contact area facing downwards into the slot, and then push SIM/USIM card as far as possible, shown as the following picture. 1 2 3 4 MF659 Quick Guide Confidential and Proprietary Information of ZTE CORPORATION 3 3. Insert the microSD card into the microSD card slot. Notes: This modem only supports microSD card. Insert your microSD card into the microSD card slot, shown as the following picture. 4. Put the front cover of the modem flatly upon the body of modem. Direct the front cover towards the locking catches on the sides of the modem and push the front cover of the modem to lock the front cover into its place. 5. Connect the Modem to your laptop or desktop PC.
Plug the USB connector into your computer’s USB port and make sure that it is tightly inserted.
The OS automatically detects and recognizes new hardware and starts the installation wizard. MF659 Quick Guide 4 Confidential and Proprietary Information of ZTE CORPORATION Warning and Notice To the owner • Some electronic devices are susceptible to electromagnetic interference sent by modem if inadequately shielded, such as the electronic system of vehicles. Please consult the manufacturer of the device before using the modem if necessary. • Operating of laptop and desktop PCs and the modem may interfere with medical devices like hearing aids and pacemakers. Please always keep them more than 20 centimeters away from such medical devices when they are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the medical device before using the modem. • Be aware of the usage limitation when using a modem at places such as oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Turn off your modem if required. • The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals. Please observe and obey all warning signs and switch off your modem in these conditions. • Do not touch the inner antenna area if not necessary. Otherwise it will affect your modem’s performance. • Store the modem out of the reach of little children. The modem may cause injury if used as a toy. • Do not touch the metallic parts of the modem so as to avoid a burn, when the modem is working. Using your USB Modem • Please use original accessories or accessories that are authorized. Using any unauthorized accessories may affect your modem’s performance, and violate related national regulations about telecom terminals. • Avoid using the modem near or inside metallic structures or establishments that can emit electromagnetic waves. Otherwise it may influence signal reception. • The modem is not waterproof. Please keep it dry and store in a shady and cool place. • Do not use the modem immediately after a sudden temperature change. In such case, it will produce dew inside and outside the modem, so don’t use it until it becomes dry. • Handle the modem carefully. Do not drop, bend or strike it. Otherwise the modem will be damaged. • No dismantling by non-professionals and only qualified technicians can undertake repair work. • Operating temperature range of -10°C ~ +60°C and humidity range of 5% ~ 95% are recommended. Limited Warranty • This warranty does not apply to defects or errors in the Product caused by: i. Reasonable abrasion. ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures. iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage, servicing or operation of the Product. iv. Modificatio…

Text truncated - open the document above for the full version.

ZTE Corporation Zhongxing Bldg, Shenzhen Hi-tech Industrial Park Nanshan District, Shenzhen city, GuangDong Province, P.R.China 518057 Tel: 086-021-68895196 Fax: 086-021-50801070 Authorization Letter Date: March 14, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir or Madam: We, ZTE CORPORATION hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: USB Modem model name: MF659 FCC ID:Q78-MF659 We affirm that between SIEMIC and ZTE CORPORATION, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely Royce Wang Title: Product Certification Director

Date (14/03/2011) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Confidentiality Request FCC ID: Q78-ZTEMF659 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, ZTE Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List , Tune Up Procedure Block Diagrams Theory of Operation ZTE also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 90 Days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Authorised Signatory: Royce Wang Telephone Number: 029-88458594 Email: : < [email protected] >

China Telecommunication Technology Labs. ® TEST REPORT REPORT NUMBER: I10GC9112-FCC-SAR-2 ON Type of Equipment: USB MODEM Type of Designation: MF659 Manufacturer: ZTE CORPORATION ACCORDING TO FCC Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices, Oct-1-2009 FCC OET Bulletin 65 Supplement C (Edition 01-01): Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions China Telecommunication Technology Labs. Month date, year May 12, 2011 Signature He Guili Director - 2 - FCC Part 2.1093 (2009-10-1), FCC OET 65C (01-01) Equipment: MF659 REPORT NO.: I10GC9112-FCC-SAR-2 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 2 of 48 China Telecommunication Technology Labs. ® FCC ID: Q78-ZTEMF659 Report Date: 2011-05-12 Test Firm Name: China Telecommunication Technology Labs Registration Number: 840587 Statement The measurements shown in this report were made in accordance with the procedures described on test pages. All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 2.1093. The sample tested was found to comply with the requirements defined in the applied rules. - 3 - FCC Part 2.1093 (2009-10-1), FCC OET 65C (01-01) Equipment: MF659 REPORT NO.: I10GC9112-FCC-SAR-2 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 3 of 48 China Telecommunication Technology Labs. ® Table of Contents 1. General Information ....................................................................... 4 1.1 NOTES ............................................................................................... 4 1.2 TESTERS ............................................................................................. 5 1.3 TESTING LABORATORY INFORMATION ............................................................ 6 1.4 DETAILS OF APPLICANT OR MANUFACTURER ..................................................... 7 2 Test Item ......................................................................................... 8 2.1 GENERAL INFORMATION ........................................................................... 8 2.2 OUTLINE OF EUT ................................................................................... 8 2.3 MODIFICATIONS INCORPORATED IN EUT ........................................................ 8 2.4 EQUIPMENT CONFIGURATION ...................................................................... 8 2.5 OTHER INFORMATION .............................................................................. 8 2.6 EUT PHOTOGRAPHS ................................................................................ 9 2.7 REFERENCES ...................................................................................... 12 3 Measurement Systems ................................................................... 13 3.1 SAR MEASUREMENT SYSTEMS SETUP ......................................................... 13 3.2 E-FIELD PROBE ................................................................................... 14 3.3 PHANTOM .......................................................................................... 15 3.4 DEVICE HOLDER .................................................................................. 16 4 Test Results ................................................................................... 17 4.1 OPERATIONAL CONDITION ....................................................................... 17 4.2 TEST EQUIPMENT USED .......................................................................... 17 4.3 APPLICABLE LIMIT REGULATIONS ............................................................... 18 4.4 TEST RESULTS .................................................................................... 18 4.5 TEST SETUP AND PROCEDURES ................................................................. 18 4.6 TEST ENVIRONMENT AND LIQUID INFORMATION .............................................. 20 4.7 SYSTEM VALIDATION CHECK .................................................................... 21 4.8 MAXIMUM OUTPUT POWER MEASUREMENT .................................................... 23 4.9 TEST DATA ........................................................................................ 26 4.10 MEASUREMENT UNCERTAINTY .................................................................. 29 ANNEX A Photographs ...................................................................... 30 ANNEX B Graphical Results ............................................................... 34 ANNEX C System Performance Check Graphical Results ................... 35 ANNEX D Probes Calibration Certificates .......................................... 36 ANNEX E Deviations from Prescribed Test Methods .......................... 48 - 4 - FCC Part 2.1093 (2009-10-1), FCC OET 65C (01-01) Equipment: MF659 REPORT NO.: I10GC9112-FCC-SAR-2 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 4 of 48 China Telecommunication Technology Labs. ® 1. General Information 1.1 Notes All reported tests were carried out on a sample equipment to demonstrate limited compliance with the requirements of FCC CFR 47 Part 2.1093. The test results of this test report relate exclusively to the item(s) tested as specified in section 2. The following deviations from, additions to, or exclusions from the test specifications have been made. See Annex E. China Telecommunication Technology Labs.(CTTL) authorizes the applicant or manufacturer (see section 1.4) to reproduce this report provided, and the test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CTTL Mr. He Guili. Any use which a third party makes of this …

Text truncated - open the document above for the full version.

Validation Test Plots 1 / 10 Validation Test Plots Validation_Body_835MHz_20101226 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.956 mho/m; ε r = 56.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(5.93, 5.93, 5.93); Calibrated: 2010-5-20  Sensor-Surface: 3.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 d=15mm, Pin=24 dBm/Area Scan (31x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.66 mW/g d=15mm, Pin=24 dBm/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.7 V/m; Power Drift = 0.252 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.75 mW/g Validation Test Plots 2 / 10 0 dB = 2.75mW/g Validation Test Plots 3 / 10 Validation_Body_835MHz_20110110 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.928 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(5.93, 5.93, 5.93); Calibrated: 2010-5-20  Sensor-Surface: 3.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 d=15mm, Pin=24 dBm/Area Scan (31x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.51 mW/g d=15mm, Pin=24 dBm/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.5 V/m; Power Drift = 0.000412 dB Peak SAR (extrapolated) = 3.28 W/kg SAR(1 g) = 2.24 mW/g; SAR(10 g) = 1.48 mW/g Maximum value of SAR (measured) = 2.54 mW/g Validation Test Plots 4 / 10 0 dB = 2.54mW/g Validation Test Plots 5 / 10 Validation_Body_1800MHz_20110113 DUT: Dipole 1800 MHz; Type: D1800V2; Serial: D1800V2 - SN:xxx Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.45 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(4.81, 4.81, 4.81); Calibrated: 2010-5-20  Sensor-Surface: 3.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 d=10mm, Pin=24 dBm 2/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.1 mW/g d=10mm, Pin=24 dBm 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.2 V/m; Power Drift = -0.093 dB Peak SAR (extrapolated) = 17.8 W/kg SAR(1 g) = 9.45 mW/g; SAR(10 g) = 4.79 mW/g Maximum value of SAR (measured) = 11.6 mW/g Validation Test Plots 6 / 10 0 dB = 11.6mW/g Validation Test Plots 7 / 10 Validation_Body_1900MHz_20110112 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:xxx Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(4.58, 4.58, 4.58); Calibrated: 2010-5-20  Sensor-Surface: 3.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 d=10mm, Pin=24 dBm 2 2/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.6 mW/g d=10mm, Pin=24 dBm 2 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.4 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 9.41 mW/g; SAR(10 g) = 4.77 mW/g Maximum value of SAR (measured) = 11.5 mW/g Validation Test Plots 8 / 10 0 dB = 11.5mW/g Validation Test Plots 9 / 10 Validation_Body_1900MHz_20110113 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:xxx Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(4.58, 4.58, 4.58); Calibrated: 2010-5-20  Sensor-Surface: 3.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 d=10mm, Pin=24 dBm 2 2 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.4 V/m; Power Drift = -0.042 dB Peak SAR (extrapolated) = 18.1 W/kg SAR(1 g) = 9.81 mW/g; SAR(10 g) = 4.98 mW/g Maximum value of SAR (measured) = 12 mW/g d=10mm, Pin=24 dBm 2 2 2/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.1 mW/g Validation Test Plots 10 / 10 0 dB = 12.1mW/g

SAR Test Plots 1 / 94 SAR Test Plots GPRS850_2TS_SideC_Low DUT: USB Modem MF659; Type: MF659; Serial: -- Communication System: (E)GPRS850 2TS; Frequency: 824.2 MHz;Duty Cycle: 1:4.15 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.921 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(5.93, 5.93, 5.93); Calibrated: 2010-5-20  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 GPRS_Low_C/Area Scan (41x71x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.530 mW/g GPRS_Low_C/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = -0.361 dB Peak SAR (extrapolated) = 0.742 W/kg SAR(1 g) = 0.466 mW/g; SAR(10 g) = 0.295 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.505 mW/g SAR Test Plots 2 / 94 0 dB = 0.505mW/g SAR Test Plots 3 / 94 GPRS850_2TS_SideA_Middle DUT: USB Modem MF659; Type: MF659; Serial: -- Communication System: (E)GPRS850 2TS; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(5.93, 5.93, 5.93); Calibrated: 2010-5-20  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 GPRS_Mid_A/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.8 V/m; Power Drift = 0.071 dB Peak SAR (extrapolated) = 0.400 W/kg SAR(1 g) = 0.273 mW/g; SAR(10 g) = 0.181 mW/g Maximum value of SAR (measured) = 0.295 mW/g GPRS_Mid_A/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.298 mW/g SAR Test Plots 4 / 94 0 dB = 0.298mW/g SAR Test Plots 5 / 94 GPRS850_2TS_SideB_Middle DUT: USB Modem MF659; Type: MF659; Serial: -- Communication System: (E)GPRS850 2TS; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(5.93, 5.93, 5.93); Calibrated: 2010-5-20  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 GPRS_Mid_B/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.8 V/m; Power Drift = -0.194 dB Peak SAR (extrapolated) = 0.810 W/kg SAR(1 g) = 0.547 mW/g; SAR(10 g) = 0.360 mW/g Maximum value of SAR (measured) = 0.590 mW/g GPRS_Mid_B/Area Scan (41x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.615 mW/g SAR Test Plots 6 / 94 0 dB = 0.615mW/g SAR Test Plots 7 / 94 GPRS850_2TS_SideC_Middle DUT: USB Modem MF659; Type: MF659; Serial: -- Communication System: (E)GPRS850 2TS; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(5.93, 5.93, 5.93); Calibrated: 2010-5-20  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 GPRS_Mid_C/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.8 V/m; Power Drift = 0.043 dB Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.724 mW/g; SAR(10 g) = 0.419 mW/g Maximum value of SAR (measured) = 0.826 mW/g GPRS_Mid_C/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.822 mW/g SAR Test Plots 8 / 94 0 dB = 0.822mW/g SAR Test Plots 9 / 94 GPRS850_2TS_SideD_Middle DUT: USB Modem MF659; Type: MF659; Serial: -- Communication System: (E)GPRS850 2TS; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(5.93, 5.93, 5.93); Calibrated: 2010-5-20  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement SW: DASY5, V5.0 Build 119; SEMCAD X Version 13.2 Build 87 GPRS_Mid_D/Area Scan (41x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.494 mW/g GPRS_Mid_D/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.3 V/m; Power Drift = -0.097 dB Peak SAR (extrapolated) = 0.710 W/kg SAR(1 g) = 0.442 mW/g; SAR(10 g) = 0.276 mW/g Maximum value of SAR (measured) = 0.479 mW/g SAR Test Plots 10 / 94 0 dB = 0.479mW/g SAR Test Plots 11 / 94 GPRS850_2TS_SideE_Middle DUT: USB Modem MF659; Type: MF659; Serial: -- Communication System: (E)GPRS850 2TS; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC) DASY4 Configuration:  Probe: ES3DV3 - SN3158; ConvF(5.93, 5.93, 5.93); Calibrated: 2010-5-20  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn549; Calibrated: 2010-5-20  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  Measurement …

Text truncated - open the document above for the full version.

China Telecommunication Technology Labs. ® TEST REPORT REPORT NUMBER: I10GC9112-FCC-RF-1 ON Type of Equipment: USB MODEM Type of Designation: MF659 Manufacturer: ZTE CORPORATION ACCORDING TO FCC CFR Part 2, FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS, Oct 1, 2009 PART 22, PUBLIC MOBILE SERVICES, Oct 1, 2009 PART 24, PERSONAL COMMUNICATIONS SERVICES, Oct 1, 2009 Part 27, MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES, Oct 1, 2009 China Telecommunication Technology Labs. Month date, year Mar 15, 2011 Signature He Guili Director FCC Parts 2, 22, 24 and 27 Equipment: MF659 Report NO : I10GC9112-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 2 of 92 China Telecommunication Technology Labs. ® FCC ID: Q78-MF659 Report Date: 2011-03-15 Test Firm Name: China Telecommunication Technology Labs Registration Number: 840587 Statement The measurements shown in this report were made in accordance with the procedures described on test pages. All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Parts 2, 22, and 24. The sample tested was found to comply with the requirements defined in the applied rules. FCC Parts 2, 22, 24 and 27 Equipment: MF659 Report NO : I10GC9112-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 3 of 92 China Telecommunication Technology Labs. ® CONTENTS 1 GENERAL INFORMATION ................................................................ 4 1.1 NOTES ......................................................................................... 4 1.2 TESTERS ....................................................................................... 5 1.3 TESTING LABORATORY INFORMATION ...................................................... 6 1.4 DETAILS OF APPLICANT OR MANUFACTURER ............................................... 7 2 TEST ITEM ...................................................................................... 8 2.1 GENERAL INFORMATION ..................................................................... 8 2.2 OUTLINE OF EUT ............................................................................. 8 2.3 MODIFICATIONS INCORPORATED IN EUT .................................................. 8 2.4 EQUIPMENT CONFIGURATION ............................................................... 8 2.5 OTHER INFORMATION ........................................................................ 8 3 SUMMARY OF TEST RESULTS .......................................................... 9 4 TEST RESULTS OF MODE ............................................................... 11 4.1 RADIATED SPURIOUS EMISSION ........................................................... 11 4.2 RADIATED RF POWER OUTPUT AND ERP ................................................. 34 4.3 OCCUPIED BANDWIDTH ..................................................................... 38 4.4 FREQUENCY STABILITY OVER TEMPERATURE VARIATION ................................ 56 4.5 FREQUENCY STABILITY OVER VOLTAGE VARIATION ...................................... 61 4.6 CONDUCTED RF POWER OUTPUT .......................................................... 64 4.7 CONDUCTED SPURIOUS EMISSION ........................................................ 68 4.8 BAND EDGE .................................................................................. 75 ANNEX A EXTERNAL PHOTOS ........................................................... 89 ANNEX B INTERNAL PHOTOS ........................................................... 91 ANNEX C DEVIATIONS FROM PRESCRIBED TEST METHODS .............. 92 FCC Parts 2, 22, 24 and 27 Equipment: MF659 Report NO : I10GC9112-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 4 of 92 China Telecommunication Technology Labs. ® 1 General Information 1.1 Notes All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Parts 2, 22, 24 and 27. The test results of this test report relate exclusively to the item(s) tested as specified in section 2. The following deviation from, additions to, or exclusions from the test specifications have been made. See Annex C. China Telecommunication Technology Labs.(CTTL) authorizes the applicant or manufacturer (see section 1.4) to reproduce …

Text truncated - open the document above for the full version.
