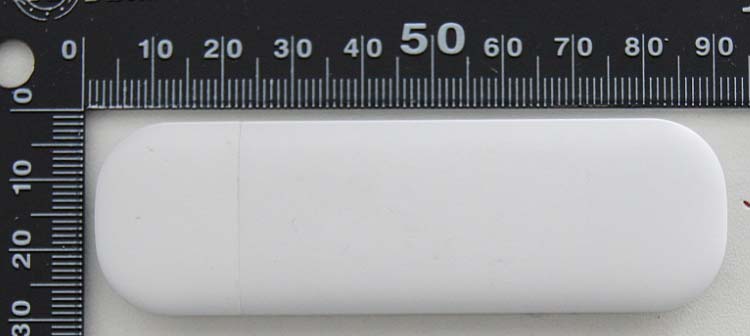

Q78-ZTEMF667HSPA+ USB Modem

MF667 USB Modem User manual ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: (86) 755 26779999 URL: http://www.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2010 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : Manual No. : Contents Quick Guide .......................................................................................................................... 1 Introduction ....................................................................................................................... 1 Specification...................................................................................................................... 1 Getting to know your device ............................................................................................. 2 Hardware Installation ........................................................................................................ 3 LED Lights ........................................................................................................................ 5 Radio Frequency (RF) Energy .......................................................................................... 5 FCC Compliance ............................................................................................................... 6 How to get help ................................................................................................................. 6 Warning and Notice .............................................................................................................. 7 To the owner ..................................................................................................................... 7 Using your USB Modem .................................................................................................. 7 Limited Warranty .............................................................................................................. 8 Limitation of Liability ....................................................................................................... 9 Management Software ........................................................................................................ 10 System Requirements ...................................................................................................... 10 Access the management software ................................................................................... 10 Interface Introduction .......................................................................................................... 13 Main Interface ................................................................................................................. 13 System information Icons ............................................................................................... 13 Access mobile network ....................................................................................................... 15 Set the Band Selection Mode .......................................................................................... 15 View the 3G and system information ............................................................................. 15 Surfing on the Internet ........................................................................................................ 17 Set APN parameters ........................................................................................................ 17 Set WAN Connection Mode ........................................................................................... 18 Connect to the Internet .................................................................................................... 19 View the Statistics ........................................................................................................... 19 SMS ..................................................................................................................................... 21 Set SMS parameters ........................................................................................................ 21 Send a new message ........................................................................................................ 22 Read Short Message ........................................................................................................ 22 SMS Operation Guide ..................................................................................................... 23 Phonebook ........................................................................................................................... 25 Add a new contact ........................................................................................................... 25 Edit a contact ................................................................................................................... 25 Delete contacts ................................................................................................................ 26 Others .................................................................................................................................. 27 View Network Status ...................................................................................................... 27 Restore Factory Defaults ................................................................................................. 27 Enabling PIN Code ......................................................................................................... 28 Modifying PIN Code …

Text truncated - open the document above for the full version.

秘密▲ MF667 HSPA+ USB Modem antenna specification 1. MF667 antenna matching： C706=8.2nH,C705=4.7pf,C704=5.6Nh,C703=8.2nH ,C702=0ohm ,C700=15NH, C701=5.6PF. 2.Antenna efficiency： 3．MF667 antenna OTA performance channel 传导功 率 TRP154# channel TIS-154# W850 4132 22.4 17.27 4357 -102.10 4182 17.83 4407 -103.05 4232 17.12 4457 102.13 W1900 9262 21.8 16.28 9662 105.23 9400 16.56 9800 106.47 9538 16.85 9938 105.69 channel channel GSM850 128 32.5 27.02 128 -102.15 190 27.23 190 -103.20 秘密▲ 251 27.23 251 102.41 GSM900 1 32.6 28.06 1 -103.20 62 28.52 62 -102.30 124 28.98 124 101.27 DCS1800 512 29.3 22.83 512 -103.50 698 23.47 698 -103.80 885 23.26 885 103.28 PCS1900 512 29 23.50 512 -103.40 661 23.40 661 -103.20 810 23.41 810 104.16 4. MF667 antenna SAR 0.427 CH94001.0300.564 0.563 0.631 1.020 Down Down W1900 Down CH9262 CH9400 CH9538 2012.02.22 1# 样机 笔记本带电测试 0.582CH9538 CH92620.816 1.090 0.379 1.170 0.698 W1900 Up Up Up Test PositionChannel1g Average10g Average Test Case of HeadResult(W/Kg) Band

内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: 2012.04.22 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-ZTEMF667 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Royce Wang ZTE CORPORATION Tel：0755-26770345 Fax：0755-26770347 E-Mail：[email protected]

内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: 2012.04.22 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Tejet is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel：0755-26770345 Fax：0755-26770347 E-Mail：[email protected]

Report No. 2012SAR152 Page 2 of 118 V3.0 General Information Product Name HSPA+ USB Modem Model Name MF667 Applicant ZTE CORPORATION Manufacturer ZTE CORPORATION Applicable Standard ANSI/IEEE C95.1-2005 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields. 3 kHz to 300 GHz ANSI/IEEE C95.3-2002 Recommended Practice For Measurements and Computations of Radio Frequency Electromagnetic Fields with Respect to Human Exposure to such Fields. 100 kHz-300 GHz IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques OET Bulletin 65-(Edition 97-01) Supplement C（edition01-01） Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields---Additional Supplement C (Edition 01-01)Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions Test Results Pass Report No. 2012SAR152 Page 3 of 118 V3.0 Change History Version Change Contents Author Date V1.0 First edition Yin xiaoming 2012-04-17 V2.0 Page 8 ，add “EDGE Multislot Class” Page25-26,Update the output power of GPRS/DEGE Page30-31， add“timeslot of GPRS and EDGE which tested for SAR” Yin xiaoming 2012-04-27 V3.0 Retest GSM850/1900. Yin xiaoming 2012-05-23 Report No. 2012SAR152 Page 4 of 118 V3.0 CONTENTS: CHANGE HISTORY ............................................................................................................ 3 1. TEST LABORATORY ...................................................................................................... 6 1.1 TESTING LOCATION: ....................................................................................................................... 6 1.2 LABORATORY ENVIRONMENT ......................................................................................................... 6 1.3 TESTING DATE ................................................................................................................................ 6 2. CLIENT INFORMATION .................................................................................................. 7 2.1 APPLICANT INFORMATION .............................................................................................................. 7 2.2 MANUFACTURER INFORMATION ..................................................................................................... 7 3.EQUIPMENT UNDER TEST (EUT) AND ACCESSORY EQUIPMENT (AE) ............... 8 3.1 INFORMATION OF EUT ................................................................................................................... 8 3.2 INFORMATION OF AE ..................................................................................................................... 9 4. CHARACTERISTICS OF THE TEST ............................................................................ 11 4.1. APPLICABLE LIMIT REGULATIONS ............................................................................................... 11 4.2. APPLICABLE MEASUREMENT STANDARDS ................................................................................. 11 4.3. REFERENCE STANDARDS/DOCUMENTATIONS ............................................................................. 11 5．OPERATIONAL CONDITIONS DURING TEST .......................................................... 12 5.1 GENERAL DESCRIPTION OF TEST PROCEDURES .......................................................................... 12 5.2 GSM TEST CONFIGURATION ....................................................................................................... 12 5.3 WCDMA TEST CONFIGURATION ................................................................................................. 12 6. SAR MEASUREMENTS SYSTEM CONFIGURATION ................................................ 15 6.1 SAR MEASUREMENT SET-UP .................................................................................................... 15 6.2. DASY5 E-FIELD PROBE SYSTEM .............................................................................................. 16 6.2.1. Ex3DV3 Probe Specification ........................................................................................... 16 6.2.2. E-field Probe Calibration ................................................................................................. 17 6.3. OTHER TEST EQUIPMENT ........................................................................................................... 18 6.3.1. Device Holder for Transmitters ....................................................................................... 18 6.3.2. Phantom ............................................................................................................................. 18 6.4. SCANNING PROCEDURE .............................................................................................................. 19 6.5. DATA STORAGE AND EVALUATION .............................................................................................. 21 6.5.1. Data Storage ..................................................................................................................... 21 6.5.2. Data Evaluation by SEMCAD ......................................................................................... 21 6.6. SYSTEM CHECK ........................................................................................................................... 23 6.7. EQUIVALENT TISSUES ................................................................................................................. 24 7. CONDUCTED OUTPUT POWER MEASUREMENT .................................................... 25 7.1. SUMMARY ................................................................................................................................... 25 7.2. CONDUCTED POWER RESULTS .............................…

Text truncated - open the document above for the full version.

No.2012TAR169 Page1 of 74 TEST REPORT No. 2012TAR169 for ZTE CORPORATION HSPA+ USB Modem Model Name: MF667 FCC ID: Q78-ZTEMF667 with Hardware Version: MF667-1.0.0 Software Version: EN_ZTE_HDMF667V1.0.0B03 Issued Date: May 23, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR169 Page2 of 74 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. GENERAL DESCRIPTION ............................................................................................................ 5 4. REFERENCE DOCUMENTS ............................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 6 5. LABORATORY ENVIRONMENT ..................................................................................................... 7 6. SUMMARY OF TEST RESULTS ....................................................................................................... 8 7. TEST EQUIPMENTS UTILIZED ...................................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 10 A.1 OUTPUT POWER ........................................................................................................................... 10 A.2 EMISSION LIMT ............................................................................................................................ 16 A.3 FREQUENCY STABILITY ............................................................................................................ 22 A.4 OCCUPIED BANDWIDTH .............................................................................................................. 24 A.5 EMISSION BANDWIDTH................................................................................................................ 36 A.6 BAND EDGE COMPLIANCE .......................................................................................................... 48 A.7 CONDUCTED SPURIOUS EMISSION ........................................................................................... 54 No.2012TAR169 Page3 of 74 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Mar 05, 2012 Testing End Date: May 23, 2012 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2012TAR169 Page4 of 74 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2012TAR169 Page5 of 74 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSPA+ USB Modem Model Name MF667 FCC ID Q78-ZTEMF667 Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band II; WCDMA Band V Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 31.57 dBm maximum ERP measured for PCS1900 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of…

Text truncated - open the document above for the full version.

No.2012TAR170 Page1 of 52 TEST REPORT No. 2012TAR170 for ZTE CORPORATION HSPA+ USB Modem Model Name: MF667 FCC ID: Q78-ZTEMF667 with Hardware Version: MF667-1.0.0 Software Version: EN_ZTE_HDMF667V1.0.0B03 Issued Date: Apr 13, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR170 Page2 of 52 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. GENERAL DESCRIPTION ............................................................................................................ 5 4. REFERENCE DOCUMENTS ............................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 6 5. LABORATORY ENVIRONMENT ..................................................................................................... 7 6. SUMMARY OF TEST RESULTS ....................................................................................................... 8 7. TEST EQUIPMENTS UTILIZED ...................................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 10 A.1 OUTPUT POWER ........................................................................................................................... 10 A.2 EMISSION LIMT ............................................................................................................................ 14 A.3 FREQUENCY STABILITY ............................................................................................................ 20 A.4 OCCUPIED BANDWIDTH ............................................................................................................ 22 A.5 EMISSION BANDWIDTH ............................................................................................................. 26 A.6 BAND EDGE COMPLIANCE ........................................................................................................ 30 A.7 CONDUCTED SPURIOUS EMISSION .......................................................................................... 32 No.2012TAR170 Page3 of 52 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Mar 05, 2012 Testing End Date: Apr 13, 2012 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2012TAR170 Page4 of 52 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2012TAR170 Page5 of 52 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSPA+ USB Modem Model Name MF667 FCC ID Q78-ZTEMF667 Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band II; WCDMA Band V Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 24.41dBm maximum EIRP measured for WCDMA Band II Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of …

Text truncated - open the document above for the full version.
