Q78-ZTEMF683T-Mobile Rocket 3.0

1. Health and Safety Information General Guidelines Some electronic devices may be susceptible to electromag- netic interference. Locate the device away from TV set, radio and other electronic equipment to avoid electromagnetic interference. The device may interfere with medical devices like hearing aids and pacemakers. Consult a physician or the manufacturer of the medical device before using the device. Please keep yourself at least 20 centimeters away from the device. Do not use your device in dangerous environments such as oil terminals or chemical factories where there are explosive gases or explosive products being processed. Please use original accessories or accessories that are autho- rized by ZTE. Unauthorized accessories may affect the device performance, damage the device or cause danger to you. Do not attempt to dismantle the device. There are no user serviceable parts. Do not allow the device or accessories to come into contact with liquid or moisture at any time. Do not immerse the device in any liquid. Do not place objects on top of the device. This may lead to overheating of the device. The device must be used in ventilated environment. Do not expose the device to direct sunlight or store it in hot areas. High temperature can shorten the life of electronic devices. T-Mobile Rocket 3.0 USB Laptop Stick Product Safety and Warranty Information User Manual Copyright © 2011 by ZTE Corporation All rights reserved No part of this publication may be excerpted, reproduced, translated, or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation operates a policy of continuous development. ZTE Corporation reserves the right to make changes and improve- ments to any of the products described in this document without prior notice. Release: V1.0 Manual No: 079584502653 Contents 1. Health and Safety Information .......................................... 4 General Guidelines............................................................. 4 Aircraft Safety..................................................................... 5 Hospital Safety .................................................................... 5 Road Safety........................................................................ 5 Vehicles Equipped with an Airbag ....................................... 6 Third Party Equipment ........................................................ 6 Efficient Use ........................................................................ 7 Radio Frequency (RF) Exposure ........................................ 7 FCC Compliance ................................................................. 7 Radio Frequency (RF) Energy ............................................ 8 2. Consumer Limited Warranty ............................................. 9 Do not allow children to play with the device. Use an antistatic cloth to clean the device. Do not use chemical or abrasive cleanser as these could damage the plastic case. Use the device within the temperature range of -10 ° C ~ +55 ° C, and the storage temperature range is -20 ° C ~ +65 ° C. The hu- midity range is 5%~95%. Do not use your device during a thunderstorm. Do not take out your (U)SIM card unnecessarily. The (U)SIM card may be easily lost or it can be damaged by static electricity. Do not place the device alongside computer disks, credit cards, travel cards or other magnetic media. The information con- tained on the disks or cards may be affected by the device. Do not paint the device. Do not drop, throw, or subject the device to rough treatment. Remember to recycle: The cardboard packing supplied with this device is ideal for recycling. Aircraft Safety Do not use your device before the airplane takes off. In order to protect airplane’s communication system from interference, it is never allowed to use the device when in flight. Get aircrew’s permission if you want to use the device prior to take-off. Hospital Safety Follow the instructions given by any respective medical facility regarding the use of Wireless devices on their premises. Road Safety You must exercise proper control of your vehicle at all times. Give your full attention to driving. Observe all of the recommendations contained in your local traffic safety documentation. Please check if local laws and/or regulations restrict the use of wireless devices while driving. Do not use your device at a refueling point, such as a gas station, even if you are not refueling your own car. Do not store or carry flammable or explosive materials in the same compartment as the device. Electronic systems in a vehicle, such as anti-lock brakes, speed control and fuel injection systems are not normally affected by radio transmissions. The manufacturer of such equipment may advise if it is adequately shielded from radio transmissions. If you suspect vehicle problems caused by the radio transmitter in the device, consult your dealer and do not use the device until your device has been checked by a qualified technician. Vehicles Equipped with an Airbag An airbag inflates with great force. Do not place objects, including either installed or portable wireless equipment, in the area over the airbag or in the airbag deployment area. If in-vehicle wireless equipment is improperly installed and the airbag inflates, serious injury could result. Third Party Equipment The use of third party equipment, cables or accessories, not made or authorized by ZTE, may invalidate the warranty of the device and also adversely affect the device’s operation. 123456 Efficient Use For optimum performance with minimum power consumption, do not cover the device with anything. Covering the device may cause the device to operate at higher power levels than needed. Radio Frequency (RF) Exposure Your device contains a transmitter and a receiver. When it is working, it receives and transmits …

Text truncated - open the document above for the full version.

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Oct 12,2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pur suant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel：0755-26770345 Fa x：0755-26770347 E- Mail：[email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Feb. 16, 2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-ZTEMF683 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

内部公开Internal Use Only▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE 第1页 ZTE CORPORATION 2011-2-15 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: Q78-ZTEMF683 To Whom It May Concern, We attests that none of the products certified under FCC ID: Q78-ZTEMF683 has been marketed in the U.S. and acknowledges that the requested exhibits for SHORT-TERM Confidentiality Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User’s Manual The applicant also acknowledges that they will also provide appropriate notice to ATCB should either of the following occur: a) if the applicant requires additional 180 day extension periods they will notify ATCB with a new request letter at least 7 days prior to the short-term confidentiality expiration date - [Note: up to a maximum of 3 extensions only are allowed], or b) immediately notify ATCB in the event the information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Royce Wang Certification Manager ZTE CORPORATION

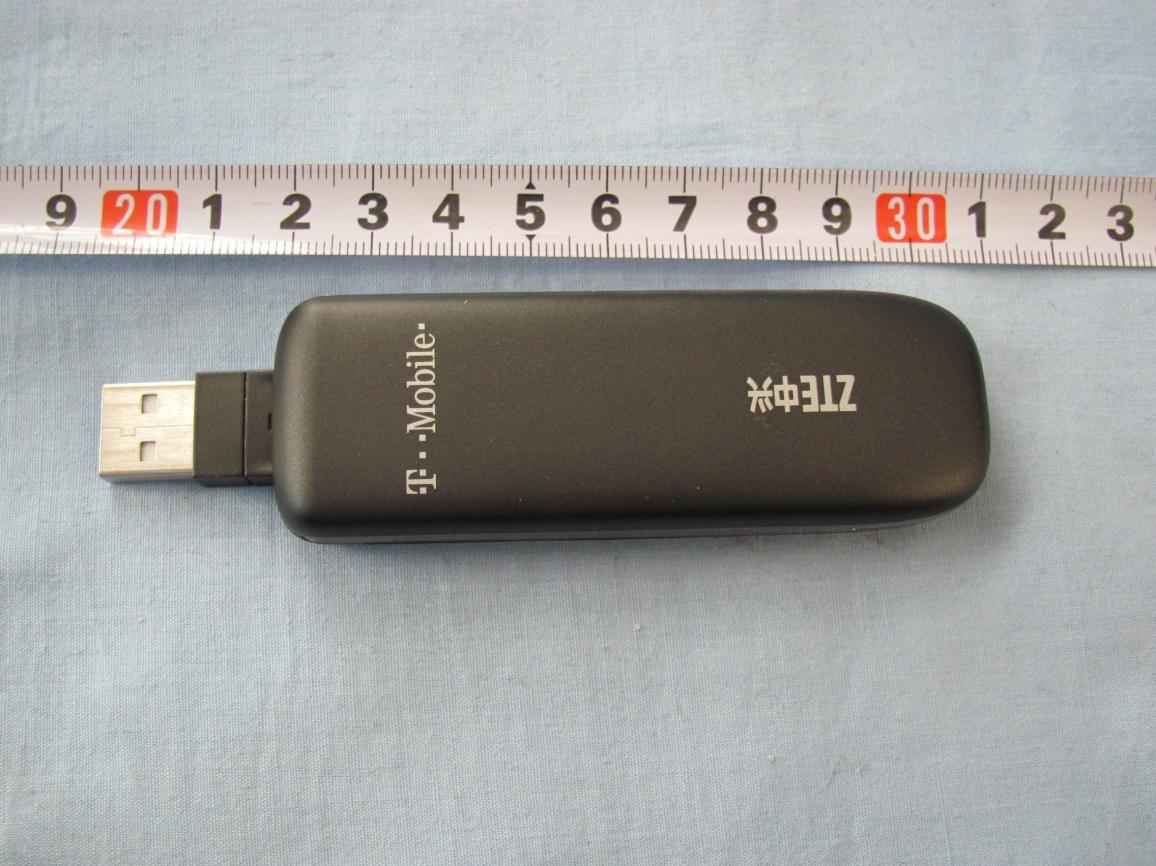

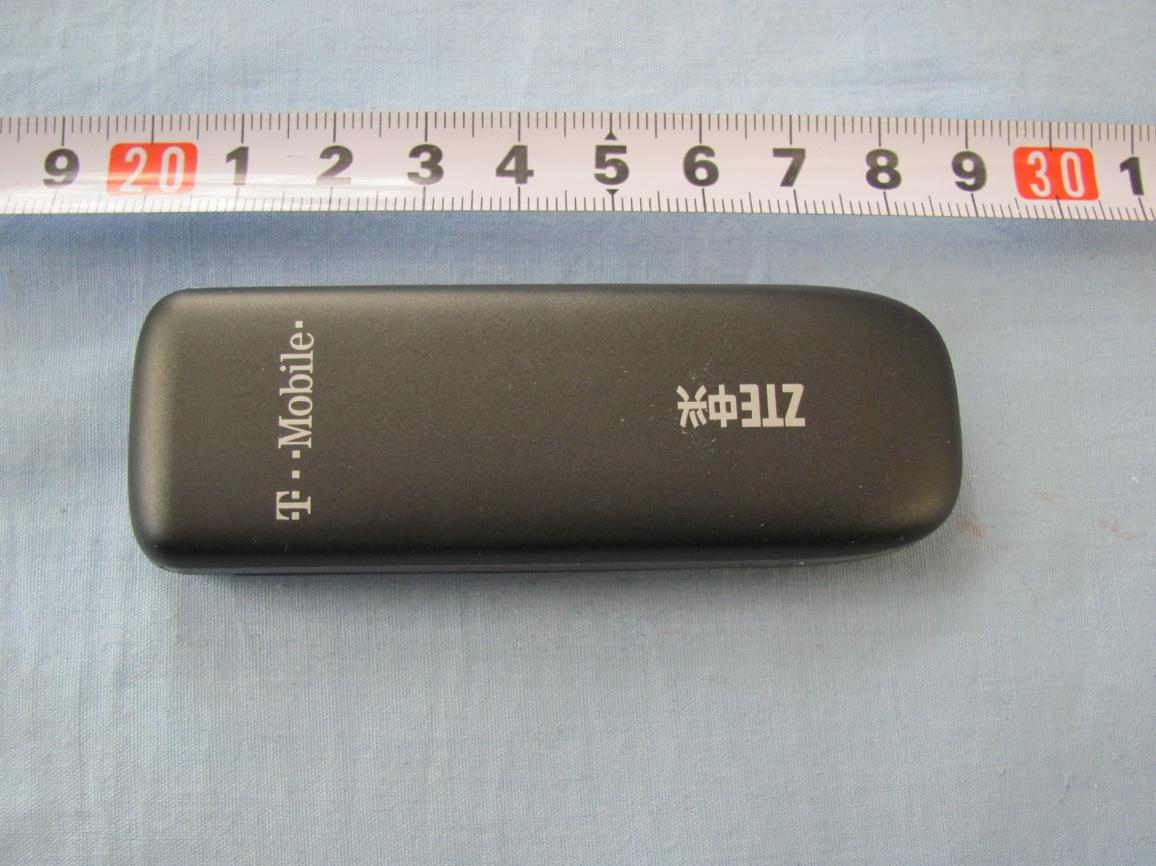

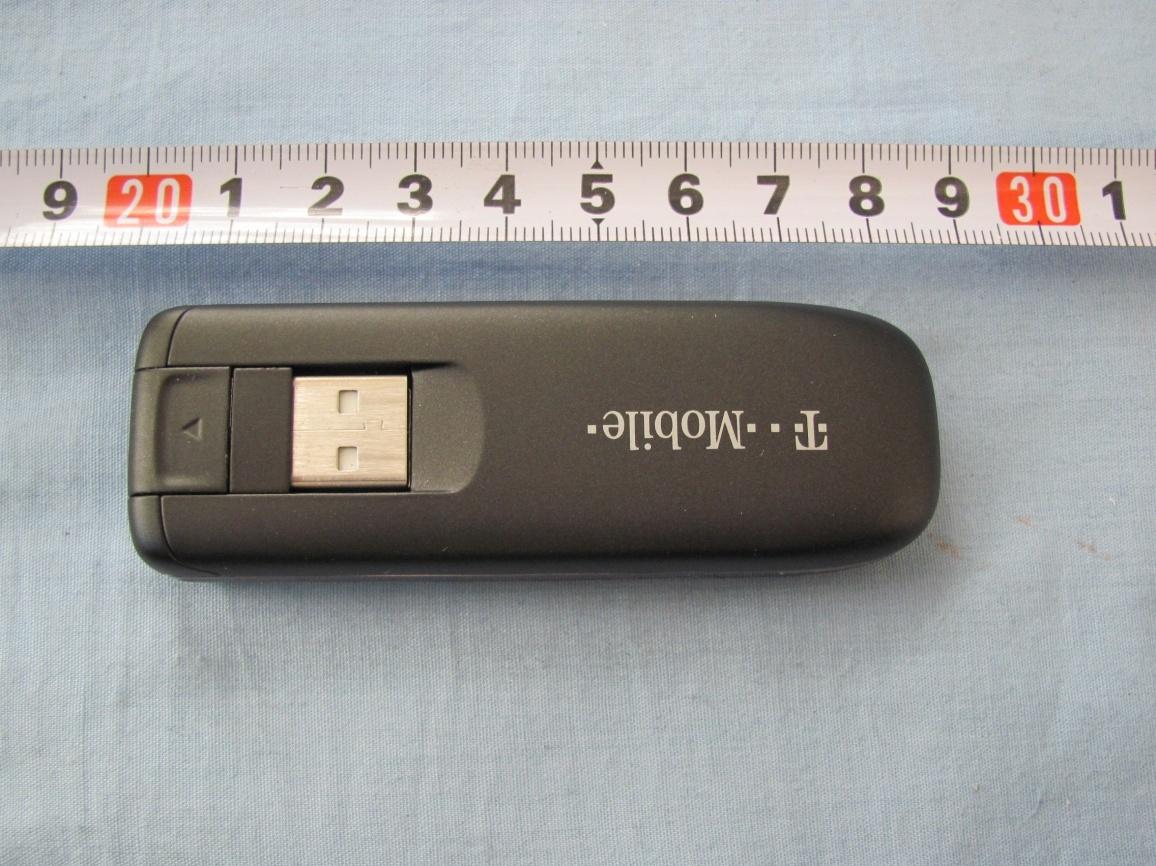

External Photos:

Internal Photos:

©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2011TAR049 for ZTE Corporation T-Mobile Rocket 3.0 Model Name: MF683 FCC ID : Q78-ZTEMF683 with Hardware Version: dj9B Software Version: TMO_US_MF683V1.0.1B01 Issued Date: 2011-01-30 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633 , Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No.2011TAR049 Page 2 of 14 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 6 5. LABORATORY ENVIRONMENT .............................................................................................. 7 6. SUMMARY OF TEST RESULTS .............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 10 No.2011TAR049 Page 3 of 14 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304633 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jan 24, 2011 Testing End Date: Jan 29, 2011 1.4. Signature Qu Pengfei (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2011TAR049 Page 4 of 14 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: +86-21-68897541 Fax: +86-21-50801070 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: +86-21-68897541 Fax: +86-21-50801070 No.2011TAR049 Page 5 of 14 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description T-Mobile Rocket 3.0 Model Name MF683 FCC ID Q78-ZTEMF683 Extreme vol. Limits 4.8VDC to 5.2VDC (nominal: 5.0VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N13 355537040000053 dj9B TMO_US_MF683V1.0.1B01 *EUT ID: is used to identify the test sample in the lab internally. No.2011TAR049 Page 6 of 14 ©Copyright. All rights reserved by TMC Beijing. 4. Reference Documents 4.1. Reference Documents for testing The following documents listed in this section are referred for testing. Reference Title Version FCC Part 15, Subpart B Radio frequency devices July 10, 2008 Edition ANSI C63.4 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 2003 No.2011TAR049 Page 7 of 14 ©Copyright. All rights reserved by TMC Beijing. 5. LABORATORY ENVIRONMENT Semi-anechoic chamber (23 meters×17meters×10meters) did not exceed following limits along the EMC testing: Temperature Min. = 15 °C, Max. = 30 °C Relative humidity Min. = 30 %, Max. = 60 % Shielding effectiveness > 110 dB Electrical insulation > 10 k Ground system resistance < 0.5  Normalised site attenuation (NSA) < ±3.2 dB, 10 m distance, from 30 to 1000 MHz Uniformity of field strength Between 0 and 6 dB, from 80 to 2000 MHz Control …

Text truncated - open the document above for the full version.

ZTE-M683Test set up photos: FCC ID:Q78-ZTEMF683 Part22/24/27 Radiated Spurious Emission Par15B Conducted Emission Par15B Radiated Emission
