Q78-ZTEUV960Android Phone (SmartPhone)

1 ZTE-U V960 WCDMA/GSM Mobile Phone User Manual 2 LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute a warranty of any kind, expressed or implied. The Bluetooth ® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE Corporation is under license. Other trademarks and trade names are the property of their respective owners. Version No.: R1.0 Edition Time : 201107 Manual No.: 3 Contents For Your Safety ............................................................................ 10 General Safety ........................................................................................ 10 Distraction ............................................................................................... 11 Driving ............................................................................................... 11 Operating Machinery ......................................................................... 11 Product Handling .................................................................................... 11 General Statement on Handling and Use .......................................... 11 Small Children ................................................................................... 12 Demagnetization ............................................................................... 13 Electrostatic Discharge (ESD) ........................................................... 13 Antenna ............................................................................................. 13 Normal Use Position .......................................................................... 13 Air Bags ............................................................................................. 14 Seizures/ Blackouts ........................................................................... 14 Repetitive Motion Injuries .................................................................. 14 Emergency Calls ............................................................................... 15 Loud Noise ........................................................................................ 15 Phone Heating ................................................................................... 15 Electrical Safety ...................................................................................... 15 Accessories ....................................................................................... 15 Connection to a Car .......................................................................... 15 Faulty and Damaged Products .......................................................... 16 Interference ............................................................................................. 16 General Statement on Interface ........................................................ 16 Pacemakers ...................................................................................... 16 4 Hearing Aids ......................................................................................16 Medical Devices .................................................................................17 Hospitals ............................................................................................17 Aircraft ................................................................................................17 Interference in Cars ...........................................................................17 Explosive Environments ..........................................................................18 Petrol Stations and Explosive Atmospheres ......................................18 Blasting Caps and Areas ...................................................................18 Getting Started ............................................................................. 22 Overview .................................................................................................22 Keys Explained ........................................................................................23 Starting up ...............................................................................................24 Installing the SIM/microSD Card and Battery ....................................24 Removing the Battery and SIM/microSD Card ..................................26 Charging the Battery ..........................................................................26 Switching Your Phone On/Off .................................................................27 Setting Up Your Phone for the First Time ..........................................27 Switching to Sleep Mode ...................................................................28 Waking up Your Phone ......................................................................28 Getting Around ........................................................................................28 Touch Control ....................................................................................28 Home Screen .....................................................................................29 Status and Notification Icons .............................................................32 Using the Notification Panel ...............................................................34 Applications and Settings Preview .....................................................35 5 Phone Calls .....................................…

Text truncated - open the document above for the full version.

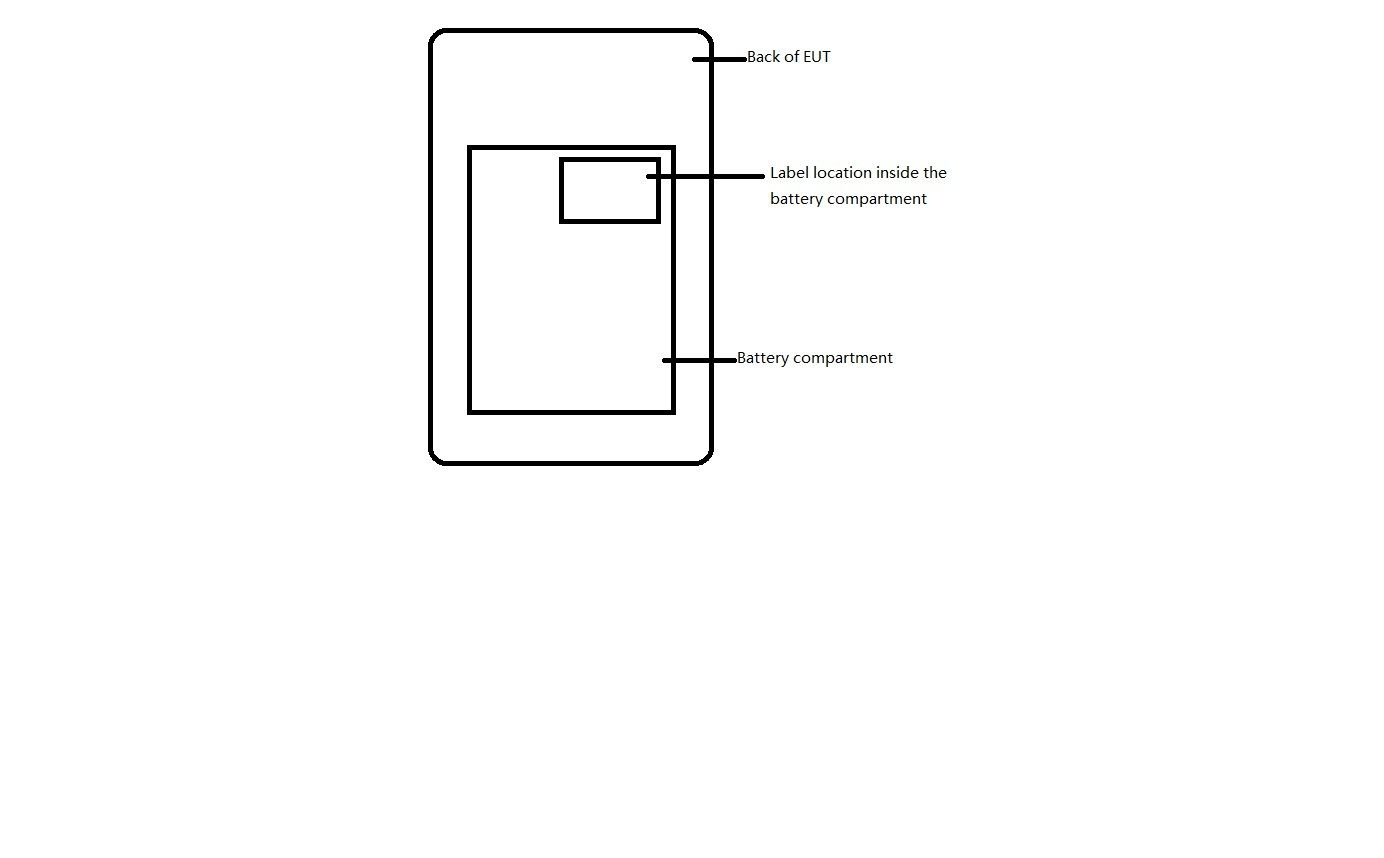

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-21-68896840 ; Fax: +86-21-68896835 Date: October 8, 2011 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-ZTEUV960, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Zhang Min

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: October 8, 2011 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Michael Lin in Sporton International Inc. and Zhang Min in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. and Zhang Min in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-ZTEUV960 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-21-68896840 ; Fax: +86-21-68896835 Date: October 8, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-ZTEUV960 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: ZTE-U V960_Schem.pdf) Block Diagram (file: ZTE-U V960_BlkDia.pdf) Parts List (file: ZTE-U V960_PartsLst.pdf) Operation Description (file: ZTE-U V960_OpDes.pdf) Tune up Procedure (file: ZTE-U V960_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Zhang Min

1/1 ZTE CORPORATION Date: October 8, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-ZTEUV960 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Zhang Min Company: ZTE CORPORATION Tel : +86-21-68896840 Fax : +86-21-68896835 Email : [email protected]

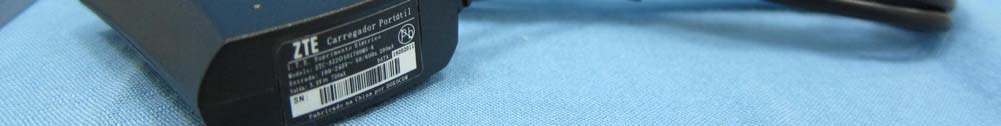

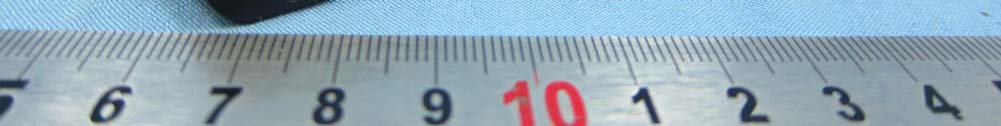

Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 1. External Photograph of EUT Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O501700M5-A Battery Brand Name ZTE 中兴 Model Name Li3714T42P3h853448 Earphone Type 1.67m non-shielded without core USB Cable Type 1.21m shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960

ZTE-SKATE k k Q78-ZTEUV960 IMEI : XXXXXXXXXXXXX ZTE-U V960 S/N : FCC ID: ZTE CORPORATION size:31*19mm device label Q78-ZTEUV960 IMEI : XXXXXXXXXXXXX S/N : FCC ID: ZTE CORPORATION

Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 3. Internal Photograph of EUT Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 WWAN Antenna Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 GPS Antenna Photographs of EUT Report No.: EP192604 Brand Name: ZTE / Model Name: ZTE-U V960, ZTE-SKATE SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 33 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 WIFI / Bluetooth Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 39 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 FCC SAR Test Report Report No. : FA192604 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : Andriod Phone (SmartPhone) BRAND NAME : ZTE MODEL NAME : ZTE-U V960, ZTE-SKATE FCC ID : Q78-ZTEUV960 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Sep. 20, 2011 and completely tested on Sep. 28, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 39 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 FCC SAR Test Report Report No. : FA192604 Table of Contents Revision History .................................................................................................................................................................3 1. Statement of Compliance ...........................................................................................................................................4 2 Administration Data ....................................................................................................................................................5 2.1 Testing Laboratory .............................................................................................................................................5 2.2 Applicant ............................................................................................................................................................5 2.3 Manufacturer .....................................................................................................................................................5 2.4 Application Details .............................................................................................................................................5 3 General Information ....................................................................................................................................................6 3.1 Description of Device Under Test (DUT) ............................................................................................................6 3.2 Product Photos ..................................................................................................................................................6 3.3 Applied Standards .............................................................................................................................................7 3.4 Device Category and SAR Limits ......................................................................................................................7 3.5 Test Conditions ..................................................................................................................................................7 3.5.1 Ambient Condition ...................................................................................................................................7 3.5.2 Test Configuration ....................................................................................................................................7 4 Specific Absorption Rate (SAR) .................................................................................................................................8 4.1 Introduction ........................................................................................................................................................8 4.2 SAR Definition ...................................................................................................................................................8 5 SAR Measurement System .........................................................................................................................................9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 Data Stora…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTEUV960 FCC SAR Test Report Report No. : FA192604 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-21 System Check_Head_835MHz_110921 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110921 Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 41.806; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 2011-6-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.412 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.210 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.390 W/kg SAR(1 g) = 2.25 mW/g; SAR(10 g) = 1.47 mW/g Maximum value of SAR (measured) = 2.428 mW/g 0 dB = 2.430mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-25 System Check_Body_835MHz_110925 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110925 Medium parameters used: f = 835 MHz; σ = 0.976 mho/m; ε r = 54.382; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.719 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.908 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 3.744 W/kg SAR(1 g) = 2.49 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.722 mW/g 0 dB = 2.720mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-21 System Check_Head_1900MHz_110921 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110921 Medium parameters used: f = 1900 MHz; σ = 1.427 mho/m; ε r = 41.191; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(7.26, 7.26, 7.26); Calibrated: 2011-6-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.441 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.202 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 18.463 W/kg SAR(1 g) = 9.9 mW/g; SAR(10 g) = 5.15 mW/g Maximum value of SAR (measured) = 11.089 mW/g 0 dB = 11.090mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-25 System Check_Body_1900MHz_110925 DUT: Dipole 1900 MHz Communication System: CW; Frequen…

Text truncated - open the document above for the full version.
