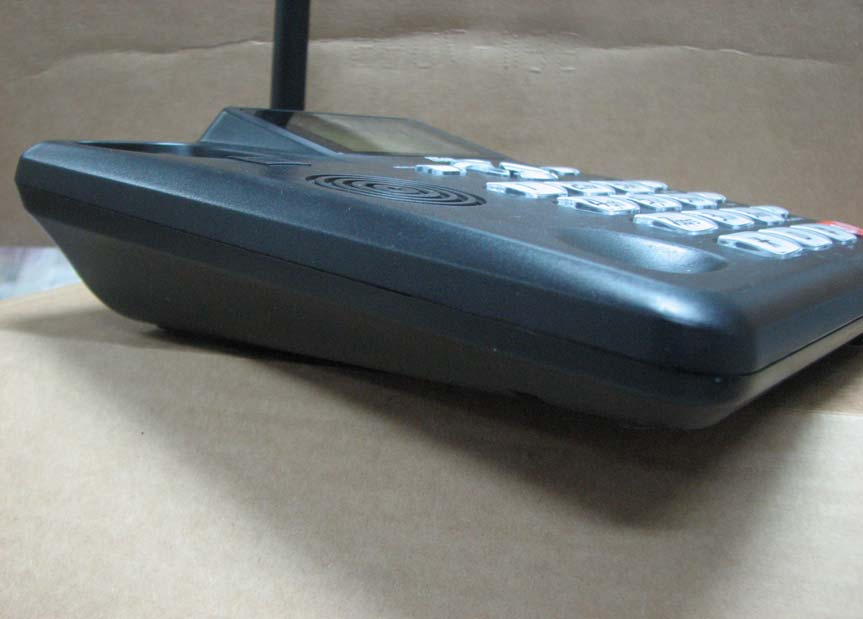

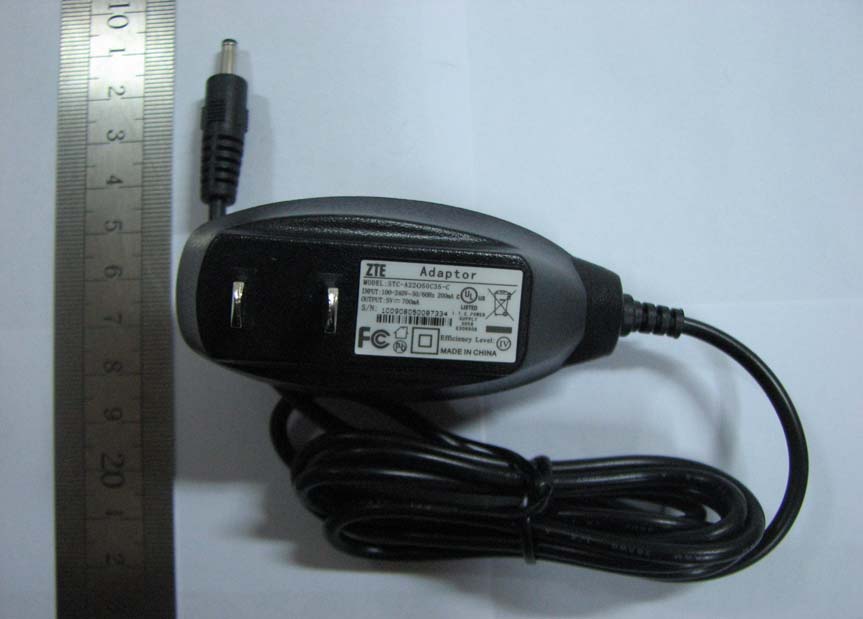

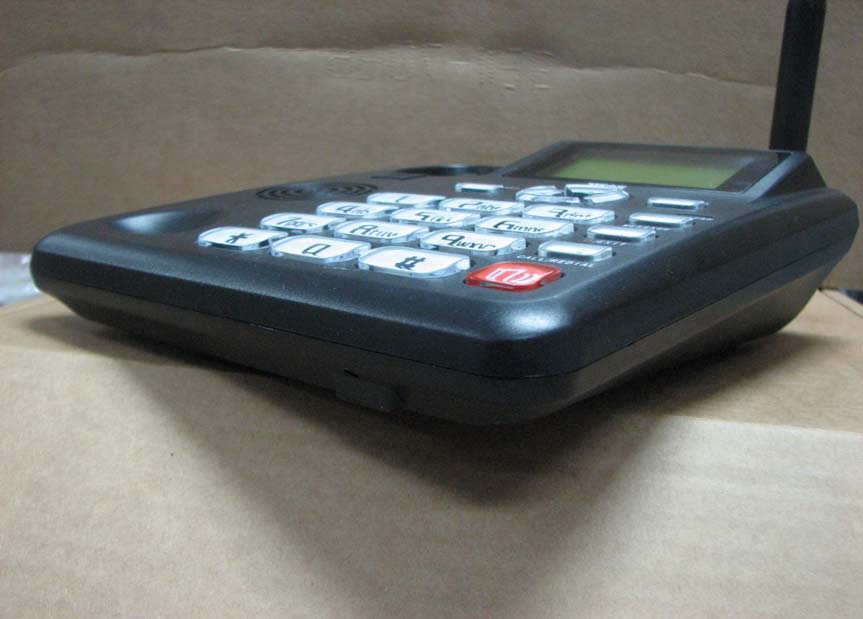

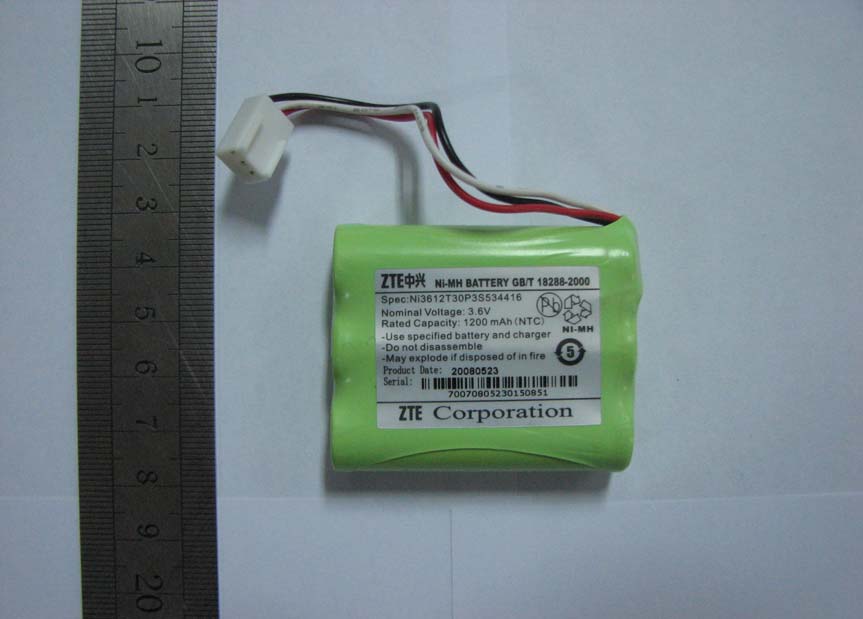

Q78-ZTEWP623RGSM Digital Fixed Wireless Phone

1 ZTE WP623R GSM Wireless Phone User Guide Copyright © 2009 by ZTE Corporation All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. The information on the package is only for your reference. Images are for you reference only. ZTE Plaza, Keji Road South, Hi-tech Industrial Park, Nanshan District, Shenzhen, P.R.China Zip Code: 518057 Http://www.zte.com.cn Service Hotline: +86-755-26779999 2 Know your Phone Key Instruction MENU/SELECT key It is used to enter main Menu, select or confirm options in Menu, or confirm the character chosen in condition of character input. NAMES/CLR/BACK Key It is used to erase input information, or cancel operating, exit to previous Key Description CALL/REDIAL MENU/SELECT HANDFREE LCD Screen Scrolling key NAMES/ CLR/BACK MESSAGE # key * key Number key EXIT EXT PWR 3 pop-up window interface. MESSAGE key This is the shortcut key to enter message menu. Number key Use the number keys to enter numbers and characters. # key, * key It differs in different mode, option or function menu. Scrolling key Press these keys to scroll cursor to the left, right, up or down when inputting characters or selecting items. Or default functions in standby mode are set in Settings menu. EXIT Key It is used to power on/power off or exit from any window interface to standby mode CALL/REDIAL key Press this key to make a call after having entered the telephone number intended for calling or entered the last called 4 telephone number. HANDFREE key If you use the handset to make a call and put conversation on the speakerphone, press “Hands-free” key and hand down the handset to put conversation on the speakerphone. Interface Icons Signal strength New Message (flop when memory if full) Mute Call Forwarding Bar Blacklist Bar All Friend Only Power Indicator Installation 1. Handset Connect phone set and receiver with the handset cord. 2. Antenna Install the antenna to antenna connector ANT. Hold the plastic stick Icon Description Icon Description 5 of the antenna and rotate the metal screw cap in clockwise direction to fix it up. Do not rotate antenna directly. 3. External power adapter Plug the external power adapter to the external AC socket 100V ～ 240V . How to power on/off ‹ Turn on the power toggle switch to “∣” side which located at the phone’s back. ‹ Press the key for about 3 seconds, the phone will then automatically test whether the SIM card is inserted and valid. ‹ In standby state, besides making and answering calls, you can do also: ¾ Press MESSAGE key to enter Messages menu. ¾ Press MENU/SELECT key to enter main Menu. ¾ Press NAMES/CLR/BACK key to enter Contacts list. ‹ In state of power-on, press and hold button key, LCD screen closes or turn off the power toggle switch directly. How to Make a Call ‹ Pick up the handset or press the HANDFREE key. ‹ Enter the telephone number by using the Number keys (add area code 6 when making a long distance call) or select from phone book. ‹ Press the CALL/REDIAL Key to make the call. How to access GPRS If your phone supports GPRS service, connect the data cable to computer and phone’s DATA interface (do not insert or remove data cable when power is on). Then you can access GPRS by “ZTE Dial-Up (GSM) software” on the CD which may be offered with the phone. If you use the USB port, first install the “USB Driver” on the CD. Text Input Operation Method Input Letters Multitap Input—“ABC” or “abc”, press corresponding letter key till the letter appears. Input Words eZiText Input—“Eng”, press any key once to key in any word. Input Digits Numbers Input—“123”, press digit key once. Input Symbol Symbols Input —press * key and press Left/Right key and Up/Down key to select corresponding symbol. ABC/abc Input — press “1” key till the symbol (common symbols) appears. Input Space Press “0” key, except for being in numbers mode. Erase Character Press NAMES/CLR/BACK key. Erase all the characters Hold NAMES/CLR/BACK key till all the characters to be erased. 7 1. Short Messages 1.1 New message 1.2 Inbox 1.3 Outbox 1.4 Draftbox 1.5 Msg settings 1.6 Voicemail 2. Call Menu 2.1 Calls 2.2 Diverts 3. Settings 3.1 Phone settings 3.2 Display settings 3.3 Audio settings 3.4 Clock settings 3.5 Call settings 3.6 Network settings 3.7 Security settings 4. Tools 4.1 Alarm clock 4.2 Calculator 5. STK Voice Mail Before using Voicemail, please consult with service provider to confirm that the voice mailbox has been activated. The system automatically sends a message to your phone informing a new voice message. Read the message and then dial voice mail box number to listen to your voice message. To read your voice mail, please hold “1” key to dial voice mail box number in standby mode. Message 1. Select Short Messages in Menu. 2. Select New message to write and edit message text. 3. Select Options to send or save the message. ¾ Select Inbox to view messages received. ¾ Select Outbox to view the sent messages. ¾ Select Draftbox to view draft messages. ¾ Select Msg settings to make some necessary short message settings. Move cursor left or right Press Left/Right key. Change input mode Press # key to change text input mode. Capitalization Press # key to “ABC” and “abc” input mode to switch between capitalization and lowercase. Menu Tree 8 Menu Function Hereinafter are brief instructions on menu functions of the phone. pp →Add new contact Search contact Search for a contact entry Contacts→ Options →Search Used space View the number of saved entries Contacts→ Options →Used space and maximum number of entries capacity in phone and SIM Templates Some common used messages Menu→ Short Messages message preformatted → Msg settings →Templates Voice…
