Q78-ZTEWP651GSM Wireless Phone

1 ZTE WP651 GSM Wireless Phone User Guide Copyright © 2009 by ZTE Corporation All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. The information on the package is only for your reference. Images are for you reference only. Please check the product model before purchasing. ------------------------------------------------------------------------------------------------------------------------- ZTE Plaza, Keji Road South, Hi-tech Industrial Park, Nanshan District, Shenzhen, P.R.China Zip Code: 518057 Service Hotline: +86-755-26779999 E-mail: [email protected] Http://www.zte.com.cn 2 Know Your Phone Key Instruction Key Description Menu/Select key „ Enter main Menu. „ Select or confirm options in Menu. „ Confirm the character chosen in condition of character input. Call key „ Make a call or answer an incoming call. „ In standby mode, press Call key to enter recent calls list. Clear key „ Enter right bottom submenu such as Contacts on the display. „ Press this key to erase character(s) while editing or 3 dialing. Exit Key „ End an active call or reject calls. „ Power on/power off. SMS (message) key „ This is the shortcut key to enter message menu. Up/Down/Left/Right key(Scrolling key) „ Press these keys to scroll cursor to the left, right, up or down when inputting characters or selecting items. „ Default functions in standby state are set in Settings menu. Number key „ Use the number keys to input numbers and characters. # key, * key „ It differs in different mode, option or function menu. „ Long press for silent mode. Note： “Press the key” in manual means pressing certain key once, “Hold the key” means pressing key for 2 or 3 seconds. Interface Icons Icon DescriptionIconDescription Signal strength New Message(flop when memory is full) New voicemail Mute Divert always Power Indicator Alarm clock Keypad Lock Installation 4 1. Charge the battery z Connect the lead of the charger to the power jack at the back of phone. z Connect the charger to a standard AC socket. z Meanwhile, power indicator in up-right corner of the display flops cyclically, indicating the charging is going. In power-off mode while charging, the display only shows the charging indicator. If the battery is completely flat in storage or used up, it may take for a while before the power indicator appears on the display or any calls can be made. z When the power indicator on the screen stops flopping, the charging is completed. The charging takes usually up to 4 hours. In the process of charging, it is a normal phenomenon that the battery, phone and charger get into hot accordingly. z After the completion of charging, disconnect the charger from the phone and AC socket. 5 Note ： „ When it is in charge, place the phone on condition of good ventilation and temperature between -10 °C～＋55°C. Ensure to use the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the phone and the guarantee article. „ When the phone is automatically switched off or indicates the alarm information of power shortage, charge the battery in time. „ The duration time of the standby status or conversation of the phone is 6 based on ideal working environment. In practice, the working time of battery varies with network condition, working environment and application methods. „ Please install the battery firstly before charge or use it. 2. SIM Card z Power off the phone and remove other external power. z Press and push the back-cover of the phone down to release and remove it. z Insert SIM card into SIM card slot in the phone or pull out SIM card out of slot, as shown in picture hereinafter. z Direct the back cover towards the locking catches on the both sides of 7 the phone and push the back-cover of the phone upward to lock the cover into its place. How to Power on/off ‹ Hold the Exit key to power on the phone. ‹ In state of power-on, hold the Exit key to power off the phone. How to Make a Call ‹ Enter telephone number. Add the international prefix, country code and area code (without the leading 0) before the number when making an international call. ‹ Press the Call Key to make the call, or wait for seconds to send the call automatically. Note: If required, press the * key twice for the international prefix “+”, or input international prefix e.g. “00” directly. Press # key twice for the pause symbol “P”. Voice Mail Before using voice mail, please consult with service provider to confirm that the voice mailbox has been activated. The system automatically sends a message to your phone informing a new voice message. Read the message and then dial voice mail box number to listen to your voice message. To send voice mail or read your new voice mail, hold “1” key to dial voice mail box number in standby state. Message 8 Select Short Messages in Menu. ¾ Select New message to write message text (hold * key to select message template), select Options to send or save the message. ¾ Select Inbox to view messages received. ¾ Select Outbox to view the sent messages. ¾ Select Draftbox to view draft messages. ¾ Select Msg settings to make some necessary short message settings. ¾ Select Voicemail to Get voicemail, or set the Voicemail No.. Phone code Phone code could prevent your phone from illegal use. The default phone code is 1234. Change it to your own phone password as soon as possible. PIN1 Code and PUK Code ‹ PIN1 Code (SIM password): PIN1 Code could prevent your SIM Card from illegal use. When SIM password is on, you should enter the PIN1 code when opening the phone again. Change the default PIN1 code password to your own PIN1 Code password as soon as possible.…

Text truncated - open the document above for the full version.

Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: GSM Wireless Phone Product Model: ZTE WP651 FCC ID: Q78-ZTEWP651 The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Royce Wang Title: Product Certification Director ZTE Corporation Zhongxing Bldg, Shenzhen Hi-tech Industrial Park Nanshan District, Shenzhen city, GuangDong Province, P.R.China 518057 Tel: 086-021-68895196 Fax: 086-021-50801070

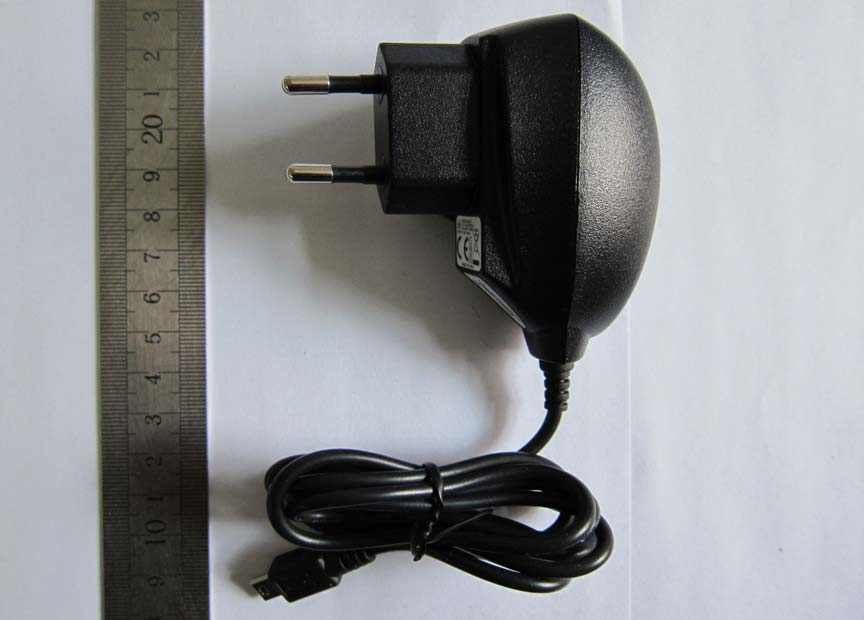

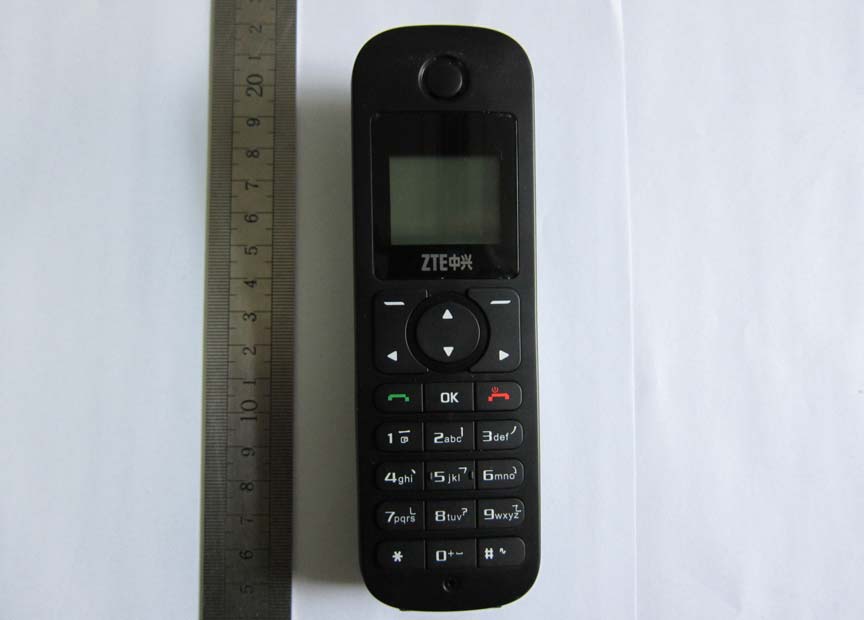

Q78-ZTEWP651 External Photo

Q78-ZTEWP651 Internal Photo

Project BOM NO. WP650 129522551004ABB BOM Name PCB Version WP650 MB(850/1900) 090702(f87B) NO. Material Number Material Name 1* 002010500020 audio amplifier Style SGM4895YMS8/TR//TPA6201A1DGNRG Unit QTY Location/Remark 1 D5 2* 003010200148 Low Dropout Linear Regulator RP100N331B-TR-F//S-1135D33-M5T PCS 1 D2 3* 004020200012 Overvoltage Protectors CESDLC3V0L4//PESD3V3V4UW PCS 3 FV1,FV3,FV5 4* 006030200099 32M TSOP nor flash MX29LV320DTTI-70G//S29GL032N90 PCS 1 D8 5* 012090100038 GSM Voice Only Single Chip PMB 7880 V1.3G-G PCS 1 D3 6* 013020100005 Scotty diode MBRM120ET3G//UPS120E －E3 PCS 1 VD1 7* 013040100009 Side View White LED 8* 013040100031 Amber chip LED 9* 014010100032 NPN transistor 10* 014010100077 NPN transistor 11* 014010100113 PNP switching transistor 01.JT.ZB001ZA-B//01.JT.ZB001ZA PCS 2 HL1,HL2 01.JH.CAEB2KA-B//BL-HKC36G-AV- PCS 10 HL3-HL12 KTN2222U_AU//MMBT2222AWT1G(无 PCS 2 VT2,VT3 LMBT3904LT1G//MMBT3904LT1G(无 PCS 1 VT6 CJ10P20DE6//MBT35200MT1G(无铅) PCS 1 D4 12* 015010200266 Dual-Band GSM850/PCS Transmit RF7167TR13 PCS 1 D6 13* 030012000043 SMD Crystal Resonator 14* 030012000047 SMD CRYSTAL OSCILLATOR 15* 035040300048 4011front SMT Mic MC-146 32.768000KHZ 12.5 +20.0 PCS 1 G1 26MHZ NX3225SA EXS00A-CS00030/ PCS 1 G2 B4013AM423-11//C4011OSM42R-102 PCS 1 MIC1 16* 036010100215 GSM850/PCS Dual Band SAW Filt B39202B9310G110//EFCH8819TCQD/ PCS 1 Z1 17 040030400198 WP650 MB-PCB f87B PCS 1 18* 042081000062 2.0mm Wafer SMT 2.00mm Wafer SMT//SD W2001-3A PCS 1 X6 19* 042120200027 2.0 height sim card connector 1.013A0-006-1R0//C70710M006154 PCS 1 X4 20* 042120300022 Dip type 5 pin MINI-USB 0031026010801307101//3.036A0-0 PCS 1 X5 21* 042120700001 RF test jacks （socket） 818000001//MM8430-2610RB3//MRF PCS 1 X1 22* 045020100107 Chip-Resistor 23* 045020100115 Chip-Resistor 232270672213L 232270673321L PCS 1 R66 PCS 10 R48,R50-R58 24* 045020100118 Chip-Resistor 232270674753L//WR04X4752FTL PCS 1 R20 25* 045020100120 Chip-Resistor 26* 045020100172 Chip-Resistor 27* 045020100180 Chip-Resistor 28* 045020100182 Chip-Resistor 232270674752L 232270671102L 232270671002L 232270672002L PCS 3 R2,R21,R82 PCS 4 R70,R83-R85 PCS 1 R30 PCS 1 R92 29* 045020100224 Chip-Resistor 30* 045020100232 Chip-Resistor 31* 045020100252 Chip-Resistor 32* 045020100257 Chip-Resistor 33* 045020100259 Chip-Resistor 232270570105L//WR04X105 JTL PCS 1 R36 232270591001L//RK73Z1ETTP//WR0 PCS 2 R60,R62 232270570752L//WR04X752 JTL PCS 1 R26 232270570104L//WR04X104 JTL PCS 3 R31,R63,R71 232270570109L//WR04X100 JTL PCS 4 R25,R28,R34,R35 34* 045020100262 Chip-Resistor 232270671804L PCS 1 R68 35* 045020100273 Chip-Resistor 36* 045020100280 Chip-Resistor 37* 045020100296 Chip-Resistor 232270570101L//WR04X101 JTL PCS 3 R17,R33,R37 232270570681L//RC0402JR-07680R PCS 1 R86 MCR01MZPF1002//RC-02W103FT//RC PCS 12 Remark 01 ZTE Corporation Copyright Reserved,No Spreading Abroad unless Permitted. Page 1 of 3 Project BOM NO. WP650 129522551004ABB BOM Name PCB Version WP650 MB(850/1900) 090702(f87B) NO. Material Number Material Name 38* 045020400055 Chip-Resistor Style 232271191032L//RS-06000JT Unit QTY Location/Remark PCS 4 R1,R7,R90,R110 39* 045080200003 SMD Varistor 40* 045080200007 MULTILAYER CHIP VARISTOR SDV1608E180C101NPTF//VRS0603SR PCS 1 R39 AVL 14K 02200//VRS0402KR140161 PCS 1 VD4 41* 046050200013 Multilayer Ceramic Chip Capac 0402B472K250CT//CC0402KRX7R8BB PCS 2 C48,C49 42* 046050200014 Multilayer Ceramic Chip Capac 0402X105K6R3CT//CC0402KRX5R5BB PCS 20 Remark 02 43* 046050200037 Multilayer Ceramic Chip Capac 0402B473K100CT//C1005X7R1A473K PCS 1 C50 44* 046050200038 Multilayer Ceramic Chip Capac 0402X224K6R3CT//C1005X5R0J224K PCS 6 C14,C15,C17,C95,C142,C143 45* 046050200067 Multilayer Ceramic Chip Capac 0402N220J500CT//CC0402JRNPO9BN PCS 4 C60,C67,C72,C98 46* 046050200071 Multilayer Ceramic Chip Capac 0402N180J500CT//CC0402JRNPO9BN PCS 4 C21,C23,C96,C97 47* 046050200095 Multilayer Ceramic Chip Capac 0402N470J500CT//CC0402JRNPO9BN PCS 18 Remark 03 48* 046050200096 Multilayer Ceramic Chip Capac 0402B682K160CT//CC0402KRX7R7BB PCS 1 C81 49* 046050200097 Multilayer Ceramic Chip Capac 0402B103K160CT//CC0402KRX7R7BB PCS 1 C32 50* 046050200108 Multilayer Ceramic Chip Capac 0402N330J500CT//CC0402JRNPO9BN PCS 21 Remark 04 51* 046050200112 Multilayer Ceramic Chip Capac 0402N560J500CT//C1005C0G1H560J PCS 1 C59 52* 046050200122 Multilayer Ceramic Chip Capac 0402N270J500CT//CC0402JRNPO9BN PCS 4 C52-C54,C57 53* 046050200123 Multilayer Ceramic Chip Capac 0402X105K100CT//C0402C104K8PAC PCS 19 Remark 05 54* 046050200136 Multilayer Ceramic Chip Capac 0402N3R0C500LT//C0402C309C5GAC PCS 4 C62-C65 55* 046050300004 Multilayer Ceramic Chip Capac 0603X475K6R3CT//C0603C475K9PAC PCS 2 C116,C117 56* 046050300015 Multilayer Ceramic Chip Capac 0603X106M6R3CT//C0603C106M9PAC PCS 1 C20 57* 046050300043 Multilayer Ceramic Chip Capac 0603X105K160CT//C0603C105K4PAC PCS 1 C31 58* 046050300044 Multilayer Ceramic Chip Capac 0603X225K6R3CT//C0603C225K9PAC PCS 1 C33 59* 046050300198 Multilayer Ceramic Chip Capac CL10A226MQ8NRNC//GRM188R60J226 1 C61 60* 046050400019 Multilayer Ceramic Chip Capac 0805F475Z100CT//C0805C475Z8VAC PCS 1 C124 61* 046050400034 Multilayer Ceramic Chip Capac 0805X226M6R3CT//C0805C226M9PAC PCS 2 C79,C83 62* 047020100046 Chip Inductor 63* 047020100063 Chip Inductor 64* 047020100068 Chip Inductor 65* 047020100069 Chip Inductor 66* 047020100071 Chip Inductor 67* 047020200046 Chip Inductor 68* 047020900035 Chip Beads LQG15HS5N6S02//SDCL1005C5N6STD PCS 1 L9 LQG15HS82NJ02D//SDCL1005C82NJT PCS 8 Remark 06 LQG15HS18NJ02//SDCL1005C18NJTD PCS 1 L8 ELJRF27NJFB//LQG15HS27NJ02D//S PCS 1 L10 LQG15HS4N7S02//SDCL1005C4N7STD PCS 2 L6,L7 PCS 3 L3-L5 BK1005HS121-T//CBG100505U121T/ PCS 1 L16 69 080402100018 U112 keyboard arch film 70 080405500305 WP650 shield frame 2 71 080405500306 WP650 shield cover 2 Remark 01:R10-R13,R27,R32,R59,R67,R75,R77,R78,R80 ZX677.57JA-01/02 V1.0 ZX952.25JA-01/07 V1.0 ZX952.25JA-01/06 V1.0 PCS 1 PCS 1 PCS 1 Remark 02:C43-C46,C51,C55,C76-C78,C80,C82,C85…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 CNAS L0447 Registration No.910917 TEST REPORT Report No.: SRTC2010-H024-E0043 Product Name: GSM Wireless Phone Product Model: ZTE WP651 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: FCC Part15B (Certification) (October 1, 2009 edition) FCC ID: Q78-ZTEWP651 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2010-H024-E0043 FCC ID: Q78-ZTEWP651 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 13 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC CONTENTS 1. General information .................................................................................. 3 1.1 Notes of the test report...................................................................................................3 1.2 Information about the testing laboratory.......................................................................3 1.3 Applicant’s details............................................................................................................3 1.4 Manufacturer’s details.....................................................................................................3 1.5 Application details............................................................................................................4 1.6 Reference specification...................................................................................................4 1.7 Information of EUT..........................................................................................................4 1.7.1 General information..............................................................................................4 1.7.2 EUT details............................................................................................................5 1.7.3 Auxiliary equipment details..................................................................................5 2. Test information ........................................................................................ 6 2.1 Summary of the test results............................................................................................6 2.2 Test result..........................................................................................................................7 2.2.1 Conducted Emissions-FCC Part15.107............................................................7 2.2.2 Radiated Emissions-FCC Part15.109...............................................................9 2.3. List of test equipments.................................................................................................12 Appendix .................................................................................................... 13 No.: SRTC2010-H024-E0043 FCC ID: Q78-ZTEWP651 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 13 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1. General information 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: No.80 Beilishi Road, Xicheng District, Beijing China City: Beijing Country or Region: China Contacted person: Wang Junfeng Tel: +86 10 68009181 +86 10 68009202 Fax: +86 10 68009195 +86 10 68009205 Email: [email protected] / [email protected] 1.3 Applicant’s details Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, 518057 City: Shenzhen Country or Region: P.R.China Grantee Code: Q78 Contacted person: Min Zhang Tel: +86-021-68897541 Fax: +86-021-50801070 Email: [email protected] 1.4 Manufacturer’s details Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, 518057 City: Shenzhen Country or Region: P.R.China Contacted person: Min Zhang Tel: +86-021-68897541 Fax: +86-021-50801070 Email: [email protected] No.: SRTC2010-H024-E0043 FCC ID: Q78-ZTEWP651 The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 13 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1.5 Application details Date of reception of test sample: 5 th January 2010 Date of test: 5 th January 2010 to 8 th March 2010 1.6 Reference specification FCC Part 15B October 1, 2009 (Certification) 1.7 Information of EUT 1.7.1 General information Name of EUT GSM Wireless Phone FCC ID Q78-ZTEWP651 Frequency range GSM850: Tx:824~849MHz Rx:869~894MHz PCS1900: Tx:1850~1910MHz Rx:1930~1990MHz Rated output power GSM850:33.0dBm PCS1900:30.0dBm E.R.P. & E.I.R.P. E.R.P.: 31.0dBm E.I.R.P.: 26.8dBm Modulation type GMSK Emission Designator 300KGXW Duplex mode FDD Equipment Class Class B Duplex spacing GSM850:45MHz PCS1900:80MHz Antenna type Integral Power Supply Battery or charger Rated Power Supply Voltage 3.60V Extreme Temperature Lowest: -30°C Highest: +50°C Extreme Voltage Minimum: 3.40V Maximum: 4.35V HW Version f87B SW Version IS_WP650PV1.0.0B01 No.: SRTC2010-H024-E0043 FCC ID: Q78-ZTEWP651 The State Radio_monitoring_center Testing Center (SRTC) Page number: 5 of 13 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1.7.2 EUT details Name Model IMEI GSM Wireless Phone ZTE WP651 863725000000677 1.7.3 Auxiliary equipment details Equipment Charger Manufacturer ZTE Corporation Model Number STC-A22○50U5-A Equipment Battery Manufacturer BYD Co., Ltd Model Number Ni3607T30P3S473211 Capacity 700mAh Rated Voltage 3.6V No.: SRTC2010-H024-E0043 FCC ID: Q78-ZTEWP651 The State Radio_monitoring_center Testing Center …

Text truncated - open the document above for the full version.

DAT-P-174/04-00 CNAS L0447 Registration No.910917 Appendix1 TEST SETUP Report No.: SRTC2010-H024-E0043 Product Name: GSM Wireless Phone Product Model: ZTE WP651 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: FCC Part15B (Certification) (October 1, 2009 edition) FCC ID: Q78-ZTEWP651 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2010-H024-E0043 FCC ID: Q78-ZTEWP651 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 2 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC Appendix1 Test Setup Radiated Emissions Test Setup Conducted Emissions Test Setup
