Q78-ZXHNH168NWHome Gateway

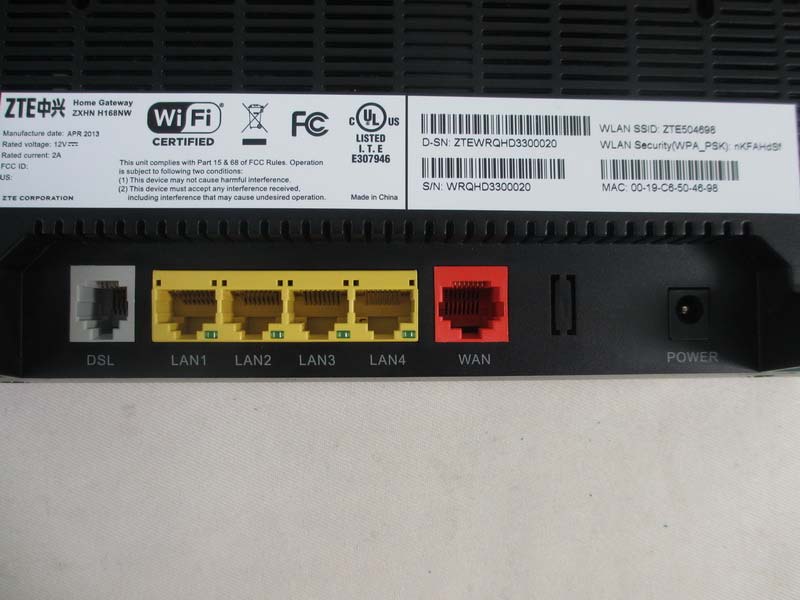

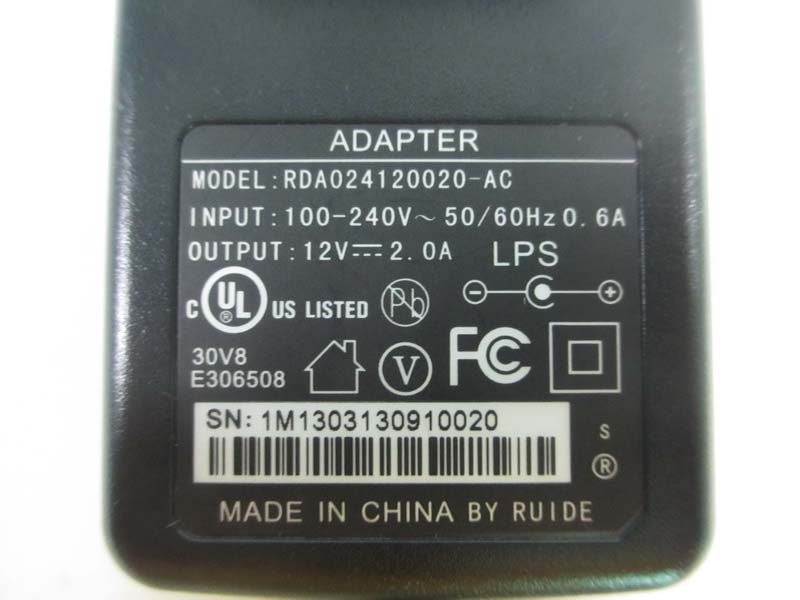

User Manual ZXHN H168NW ZXHN H168NW User Manual Document Version: 20130327-R1.2 Copyright © 2013 ZTE Corporation All rights reserved. No part of this documentation may be excerpted, reproduced, translated, annotated or duplicated, in any form or by any means without the prior written permission of ZTE Corporation. ZTE CORPORATION reserves the right to modify this manual for product upgrade or other causes without notifying users in advance. i Limited warranty ZTE warrants that, for one year from the date of delivery by ZTE to purchaser's designated carrier, the Equipment will remain free from defects in design, material and workmanship under normal use and service and will conform in all material respects to the applicable specifications set forth in purchase order or agreement; ZTE does not warrant that operation of the Equipment will be error-free or uninterrupted. In accordance with ZTE's standard, warranty terms, ZTE shall, at its option, repair or replace any defective or nonconforming item, provided that (a) purchaser/End User gives ZTE written notice of the defect or nonconformity within the warranty period specified above promptly after Reseller is notified by the End User of the same; and (b) End User returns the defective item at its expense to ZTE’s nominated Customer Service Department in accordance with ZTE’s standard parts exchange procedures. This warranty does not apply to defects or errors in the Equipment caused by:(a) reasonable abrasion of equipments; (b)End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures; (c) End User’s mishandling, misuse, negligence, or improper installation, deinstallation, storage, servicing or operation of the Equipment; (d) modifications or repairs not made by ZTE or a ZTE-cert ified individual;(e) power failures, surges, fire, flood, accident, actions of third parties or other events outside ZTE’s reasonable control. (f) usage of products of third Parties, or usage conjunction with ZXHN H168NW User Manual ii third parties provided that such defects is due to the conjunction;(g) any other cause beyond the range of normal usage for equipments. End User shall assure that Equipment is installed and maintained by ZTE or ZTE-certified individuals in accordance with ZTE’s certification procedures; provided that if End User causes or permits services to be provided by individuals who are not ZTE-certified, the Warranty shall be void as to all Equipment serviced in breach of this sentence. End User shall have no right to reject, return, or receive a refund for any Equipment from ZTE. Any item repaired or replaced by ZTE shall continue to be warranted for the longer of the remainder of the original warranty period or 90 days from the date the repaired or replaced part is delivered to the carrier. THIS WARRANTY (1) IS END USER'S SOLE REMEDY AND ZTE’S SOLE LIABILITY FOR DEFECTIVE OR NONCONFORMING ITEMS , AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, UNLESS OTHERWISE REQUIRED UNDER THE MANDATORY PROVISIONS OF THE CHINESE LAW, AND (2) IS BETWEEN ZTE AND END USER (AS THE ORIGINAL PURCHASER FOR END USE) AND MAY NOT BE TRANSFERRED OR ASSIGNED, BY OPERATION OF LAW OR OTHERWISE, WITHOUT ZTE’S PRIOR WRITTEN CONSENT. Limitation of Liability ZXHN H168NW User Manual iii ZTE SHALL NOT BE LIABLE FOR ANY LOSS OF PROFITS OR INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM OR ARISING OUT OF OR IN CONNECTION WITH USING OF THIS PRODUCT, WHETHER OR NOT ZTE HAD BEEN ADVISED, KNEW OR SHOULD HAVE KNOWN OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, COST OF CAPITAL, COST OF SUBSTITUTE FACILITIES OR EQUIPMENT, ANY DOWNTIME COSTS OR CLAIMS OF END USERS. THE LIABILITY OF EACH PARTY UNDER THIS AGREEMENT, WHETHER ARISING OUT OF BREACH OF CONTRACT (INCLUDING BUT NOT LIMITED TO BREACH OF WARRANTY) OR TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE AND STRICT LIABILITY) OR UNDER AN INDEMNIFICATION PROVISION SHALL IN NO EVENT EXCEED THE AGGREGATE AMOUNT BENIFITED BY ZTE IN THE PRODUCTS FROM WHICH SUCH LOSS OR DAMAGE DIRECTLY AROSE. Confidentiality End User agrees that End User will receive confidential or proprietary information (“Confidential Information”) in connection with the purchase and deployment of ZTE Equipment. End User will not disclose ZTE’s Confidential Information, will use it only for purposes for which it was disclosed, and must treat it with the same degree of care as it does its own similar information, but with no less than reasonable care. End User agrees that the ZXHN H168NW User Manual iv terms herein, the Equipment and all ZTE documentation is ZTE Confidential Information. Contents Chapter 1 Safety Instructions........................................................... 1 1.1 Safety Checklist .................................................................. 1 1.2 Safety Instructions............................................................... 1 Chapter 2 Overview .......................................................................... 3 2.1 Features ............................................................................. 3 2.2 Product Specifications ......................................................... 3 2.3 Packing List ........................................................................ 4 2.4 System Requirements ......................................................... 4 Chapter 3 Installation Preparations ................................................. 6 3.1 Hardware Description .......................................................... 6 3.2 Hardware Connections ...................................................... 11 Appendix A FAQs ........................................................................... 14 1 Chapter 1 Safety Instructions 1.1 Safety Checklist Check the following items before installing …

Text truncated - open the document above for the full version.

内部公开Internal Use Only▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE 第1页 Declaration of Authorization We Name: ZTE Corporation Address: ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R.China Declare that: Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s): Product description: VDSL CPE Type designation: ZXHN H168NW Trademark: ZTE中兴; ZTE on our behalf. Date: 2013-8-28 City: Shenzhen Name: Royce Wang Function: Product Certification Manager Signature:

内部公开Internal Use Only▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE 第1页 2013-8-28 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-ZXHNH168NW Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------- Royce Wang Product Certification Manager 0086-755-26770345

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE-1-1306C032 Date of Issue: Jun. 27, 2013 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment VDSL CPE Model Name ZXHN H168NW Brand Name ZTE 中兴; ZTE Applicant ZTE Corporation Address ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R. China Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 -2009 The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE-1-1306C032) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

Neutron Engineering Inc. Project No.: 1306C032 Page 2 of 11 Neutron Engineering Inc. Project No.: 1306C032 Page 3 of 11 Neutron Engineering Inc. Project No.: 1306C032 Page 4 of 11

Neutron Engineering Inc. Project No.: 1306C032 Page 5 of 11 Neutron Engineering Inc. Project No.: 1306C032 Page 6 of 11 Neutron Engineering Inc. Project No.: 1306C032 Page 7 of 11 Neutron Engineering Inc. Project No.: 1306C032 Page 8 of 11 Neutron Engineering Inc. Project No.: 1306C032 Page 9 of 11 Neutron Engineering Inc. Project No.: 1306C032 Page 10 of 11 Neutron Engineering Inc. Project No.: 1306C032 Page 11 of 11

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: Q78- ZXHNH168NW Project No. : 1306C032 Equipment : VDSL CPE Model : ZXHN H168NW Applicant : ZTE Corporation Address : ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R. China According: : FCC Guidelines for Human Exposure IEEE C95.1 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna ANT Brand name Model NameAntenna Type Connector Gain (dBi) 1 Airgain N2430GNS Integral N/A 3.1 2 Airgain N2430GNS Integral N/A 1.8 TEST RESULTS EUT： VDSL CPE Model Name ： ZXHN H168NW Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.1 2.0417 27.36 544.5027 0.221284181 Complies 3.1 2.0417 26.52 448.7454 0.182368731 Complies 3.1 2.0417 26.69 466.6594 0.189648921 Complies Neutron Engineering Inc. EUT： VDSL CPE Model Name ： ZXHN H168NW Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.1 2.0417 29.8 954.9926 0.388106011 Complies 3.1 2.0417 29.76 946.2372 0.384547831 Complies 3.1 2.0417 29.51 893.3055 0.363036561 Complies EUT： VDSL CPE Model Name ： ZXHN H168NW Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.1 2.0417 29.73 939.7233 0.381900631 Complies 3.1 2.0417 29.83 961.6123 0.390796231 Complies 3.1 2.0417 29.36 862.9785 0.350711791 Complies EUT： VDSL CPE Model Name ： ZXHN H168NW Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.1 2.0417 29.6 912.0108 0.370638361 Complies 3.1 2.0417 29.79 952.7962 0.387213391 Complies 3.1 2.0417 29.85 966.0509 0.392600071 Complies Note: the calculation distance is 20cm.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 1 of 146 FCC Radio Test Report FCC ID: Q78-ZXHNH168NW This report concerns (check one): Original Grant Class II Change Issued Date : Jun. 27, 2013 Project No. : 1306C032 Equipment : VDSL CPE Model Name : ZXHN H168NW Applicant : ZTE Corporation Address : ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jun. 04, 2013 Date of Test: Jun. 04, 2013 ~ Jun. 26, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 2 of 146 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 3 of 146 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 20 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BELOW 30MHZ) 24 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 80 5.1 APPLIED PROCEDURES / LIMIT 80 5.1.1 MEASUREMENT INSTRUMENTS LIST 80 5.1.2 TEST PROCEDURE 80 5.1.3 DEVIATION FROM STANDARD 80 5.1.4 TEST SETUP 80 5.1.5 EUT OPERATION CONDITIONS 80 5.1.6 TEST RESULTS 81 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 4 of 146 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 93 6.1 APPLIED PROCEDURES / LIMIT 93 6.1.1 MEASUREMENT INSTRUMENTS LIST 93 6.1.2 TEST PROCEDURE 93 6.1.3 DEVIATION FROM STANDARD 93 6.1.4 TEST SETUP 93 6.1.5 EUT OPERATION CONDITIONS 93 6.1.6 TEST RESULTS 94 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 97 7.1 APPLIED PROCEDURES / LIMIT 97 7.1.1 MEASUREMENT INSTRUMENTS LIST 97 7.1.2 TEST PROCEDURE 97 7.1.3 DEVIATION FROM STANDARD 97 7.1.4 TEST SETUP 97 7.1.5 EUT OPERATION CONDITIONS 97 7.1.6 TEST RESULTS 98 8 . POWER SPECTRAL DENSITY TEST 128 8.1 APPLIED PROCEDURES / LIMIT 128 8.1.1 MEASUREMENT INSTRUMENTS LIST 128 8.1.2 TEST PROCEDURE 128 8.1.3 DEVIATION FROM STANDARD 128 8.1.4 TEST SETUP 128 8.1.5 EUT OPERATION CONDITIONS 128 8.1.6 TEST RESULTS 129 9 . EUT TEST PHOTO 143 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 5 of 146 1. CERTIFICATION Equipment : VDSL CPE Brand Name : ZTE 中兴; ZTE Model Name : ZXHN H168NW Applicant : ZTE Corporation Manufacturer : ZTE Corporation Address : ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R. China Factory : ZTE Corporation Address : ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R. China Date of Test : Jun. 04, 2013 ~ Jun. 26, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15(2012）, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1306C032) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 6 of 146 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emission PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 143 of 146 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 144 of 146 Radiated Measurement Photos 9K-30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 145 of 146 Radiated Measurement Photos 30-1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C032 Page 146 of 146 Radiated Measurement Photos Above 1GHz
