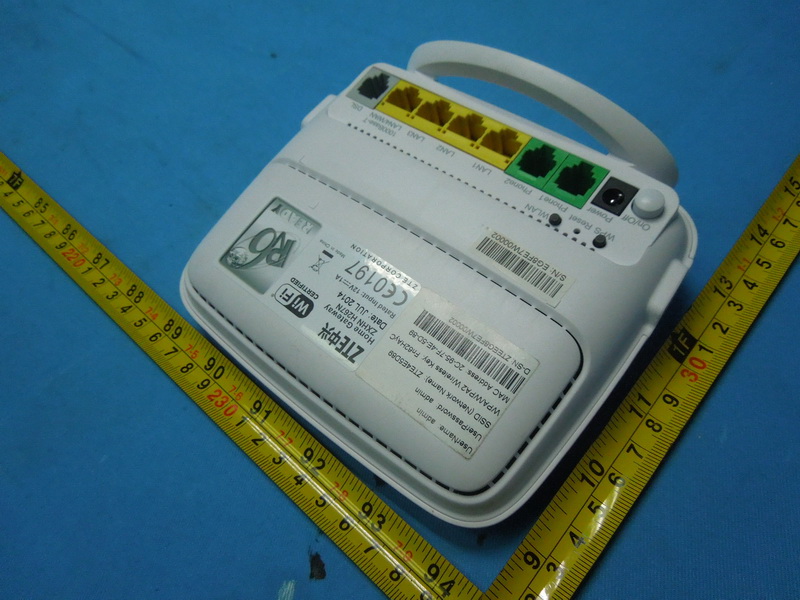

Q78-ZXHNH267NHome Gateway

ZXHN H267N Home Gateway User Manual ZXHN H267N Home Gateway User Manual Manual No: SJ-20140702105807-001 Edition Time: 2014-07-09 (R1.0) LEGAL INFORMATION 0197 Copyright © 2014 ZTE CORPORATION. The contents of this document are protected by copyright laws and international treaties. Any reproduction or distribution of this document or any portion of this document, in any form by any means, without the prior written consent of ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners. This document is provided “as is”, and all express, implied, or statutory warranties, representations or conditions are disclaimed, including without limitation any implied warranty of merchantability, fitness for a particular purpose, title or non-infringement. ZTE CORPORATION and its licensors shall not be liable for damages resulting from the use of or reliance on the information contained herein. ZTE CORPORATION or its licensors may have current or pending intellectual property rights or applications covering the subject matter of this document. Except as expressly provided in any written license between ZTE CORPORATION and its licensee, the user of this document shall not acquire any license to the subject matter herein. ZTE CORPORATION reserves the right to upgrade or make technical change to this product without further notice. Users may visit ZTE technical support website http://sup- port.zte.com.cn to inquire related information. Hereby, ZTE Corporation, declares that this Radio LAN device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The ultimate right to interpret this product resides in ZTE CORPO- RATION. 1 Safety Precautions Warning! Before using the device, read the following safety precautions. ZTE bears no liability to the consequences incurred by violation of the safety instructions. Usage Cautions � Read all the safety cautions carefully before using the device. � Only use the accessories included in the package, such as power supply adapter and battery. � Do not extend the power cord, otherwise the device will not work. � The power supply voltage must meet the requirements of the device input voltage (The voltage fluctuation range is less than 10%). � Keep the power plug clean and dry to prevent any risk of electric shock or other dangers. � Disconnect all the cables during a lightning storm to prevent the device from damage. � Power off and unplug the power plug when the device is not in use for a long time. � Do not attempt to open the covers of the device. It is dangerous to do so when the device is powered ON. � Do not directly stare at the optical interface to prevent any eye injuries. � Power off and stop using the device under the conditions such as, abnormal sound, smoke, and strange smell. Contact the service provider for mainte- nance if the device is faulty. Environment Requirements � Ensure proper ventilation to the device. Place the device away from direct sunlight. � Keep the device ventilated and dry. Never spill any liquid on the device. � Do not place any object on the device to prevent any deformation or damage to the device. � Do not place the device near any source of heat or water. � Keep the device away from any household appliances with strong magnetic or electric fields, such as microwave oven and refrigerator. Cleaning Requirements � Before cleaning, power off the device, and unplug all the cables connected to the device, such as power cable, optical fiber, and Ethernet cable. � Do not use any liquid or spray to clean the device. Use a soft dry cloth. Environment Protection � Do not dispose the device or battery improperly. � Observe the local regulations about the equipment disposal or treatment. Environmental Information The equipment you purchased has required the extraction and use of natural resources for its production. It may contain substances that are hazardous to people’s health and to the environment. To avoid putting such substances into our environment and to reduce pressure on our natural resources, we ask that you reuse or recycle your end-of-life equipment by using an accredited electronics take-back system. The symbols below indicate that this product should be reused or recycled and not simply discarded. Please locate and use an appropriate reuse and recycling site. If you need more information on collection, reuse and recycling systems, con- tact your local or regional waste administration. You may also contact your equipment provider for more information on the environmental performances of these products. FCC - PART 68 This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US: ZTEDL01BHNH267N. If requested, this number must be provided to the telephone company. This equipment uses the following USOC jacks: RJ-11. REN (RINGER EQUIVALENT NUMBERS) ：0.12B STATEMENT Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. ATTACHMENT LIMITATIONS STATEMENT Notice: This equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). This is confirmed by marking the equipment with the Industry Canada certification number. The Department does not guarantee the equipment will operate to the user…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Home Gateway Model Name ZXHN H267N Brand Name ZTE 中兴, ZTE Applicant ZTE Corporation Address ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R.China Standard(s) FCC Part 15, Subpart B: 2013 ANSI C63.4-2009 Report(s) BTL-FCCE-1-1410C211 The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No. 37, Lane 365, Yang-Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX:+886-2-2657-3331

ZTE Corporation Date: 2014-10-31 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-ZXHNH267N Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------- Grantee Contact’s Signature Royce Wang Printed name

RF_160, Issue 02 Declaration of Authorization We Name: ZTE Corporation Address: ZTE Plaza, Hi-tech Park, Nanshan District, City: Shenzhen, Guangdong Country: China Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dongguan Country: China is authorized to apply for Certification of the following product(s), including the signing of 731 form: Product description: Home Gateway Type designation: ZXHN H267N Trademark: ZTE 中兴, ZTE on our behalf. Date: 2014-10-31 City: Shenzhen, Guangdong Name: Royce Wang Function: Product Certification Manager Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Project No.: 1410C211 Page 2 of 13 Project No.: 1410C211 Page 3 of 13 Project No.: 1410C211 Page 4 of 13 Project No.: 1410C211 Page 5 of 13 Project No.: 1410C211 Page 6 of 13 Project No.: 1410C211 Page 7 of 13 Project No.: 1410C211 Page 8 of 13 Project No.: 1410C211 Page 9 of 13

Project No.: 1410C211 Page 10 of 13 Project No.: 1410C211 Page 11 of 13 Project No.: 1410C211 Page 12 of 13 Project No.: 1410C211 Page 13 of 13

FCC RF EXPOSURE REPORT FCC ID: ZXHNH267N Project No. : 1410C211 Equipment : Home Gateway Model : ZXHN H267N Applicant : ZTE Corporation Address : ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R.China According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A W2G4-S01-ZPIFA N/A 2 TX/RX 2 N/A N/A PIFA N/A 3 TX/RX TEST RESULTS EUT： Home Gateway Model Name : ZXHN H267N Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 24.23 264.8500 0.105184171 Complies 3 1.9953 24.03 252.9298 0.100450101 Complies 3 1.9953 22.6 181.9701 0.072268721 Complies EUT： Home Gateway Model Name : ZXHN H267N Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 22.5 177.8279 0.070623681 Complies 3 1.9953 22.66 184.5015 0.073274081 Complies 3 1.9953 22 158.4893 0.062943421 Complies EUT： Home Gateway Model Name : ZXHN H267N Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 25.85 384.5918 0.152739151 Complies 3 1.9953 25.64 366.4376 0.145529281 Complies 3 1.9953 23.15 206.5380 0.082025781 Complies EUT： Home Gateway Model Name : ZXHN H267N Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 26.71 468.8134 0.186187441 Complies 3 1.9953 25.99 397.1915 0.157743101 Complies 3 1.9953 25.14 326.5878 0.129703101 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1410C211 Page 1 of 158 FCC Radio Test Report FCC ID: Q78-ZXHNH267N This report concerns (check one): Original Grant Class II Change Project No. : 1410C211 Equipment : Home Gateway Model Name : ZXHN H267N Applicant : ZTE Corporation Address : ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R.China Date of Receipt : Oct. 28, 2014 Date of Test : Oct. 28, 2014 ~ Nov. 24, 2014 Issued Date : Nov. 25, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1410C211 Page 2 of 158 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or an y agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1410C211 Page 3 of 158 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: BTL-FCCP-1-1410C211 Page 4 of 158 Table of Contents Page 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - BANDWIDTH 91 ATTACHMENT F – MAXIMUM PEAK CONDUCTED OUTPUT POWER 100 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 105 ATTACHMENT H - POWER SPECTRAL DENSITY 138 Report No.: BTL-FCCP-1-1410C211 Page 5 of 158 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1410C211 Original Issue. Nov. 25, 2014 Report No.: BTL-FCCP-1-1410C211 Page 6 of 158 1. CERTIFICATION Equipment : Home Gateway Brand Name : ZTE 中兴, ZTE Model Name : ZXHN H267N Applicant : ZTE Corporation Manufacturer : ZTE Corporation Address : ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R.China Factory : ZTE Corporation Address : ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R.China Date of Test : Oct. 28, 2014 ~ Nov. 24, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1410C211) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1410C211 Page 7 of 158 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2013 Standard(s) Section Test Item Judgmen…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1410C211 Page 26 of 158 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1410C211 Page 27 of 158 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1410C211 Page 28 of 158 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1410C211 Page 29 of 158 Radiated Measurement Photos Above 1000MHz
