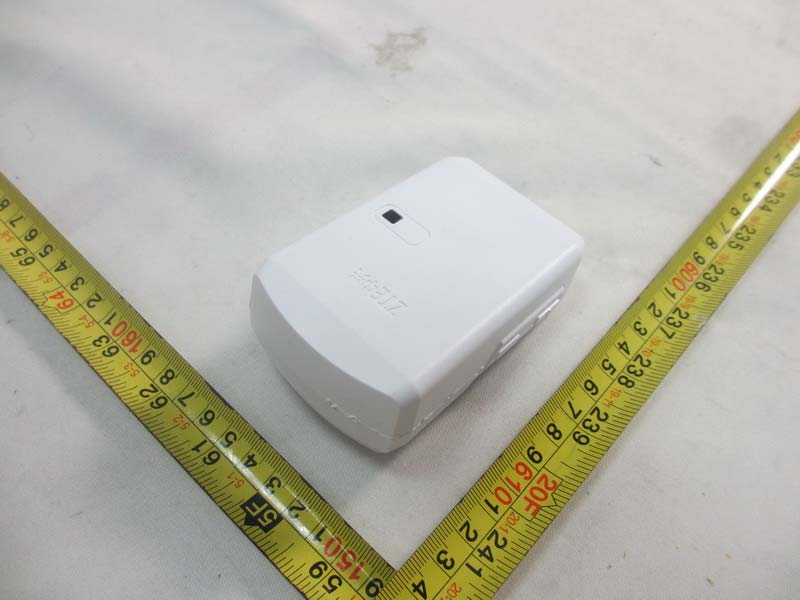

Q78-ZXHNH560NMini Wireless Router

- 1 - H560N Quick Start Guide Wireless Router Package Contents: ZXHN H560N Wireless Router, Power Adapter, Quick Start Guide, Warranty Card This product is a low Low-power product mainly used to extend the Wi-Fi signal, This product is targeted to provide 24 hours continuous service. - 2 - 1 Connecting the Equipment Figure 1-1 Connecting the Equipment After the connections, check the LED indicators of your H560N. 2 LED indicator ZXHN H560N uses a 2-color LED, red and green, to indicate the status as follow. Color Direction RED ON: The device is booting or hardware error. Flashing: In Extender mode, H560N doesn’t associate any wireless router. Green ON: Device runs normally no wireless data transmitted Random Flashing: Data is being transmitted. 5Hz Flashing: In WPS mode 3 Buttons ZXHN H560N buttons show as follow. Button Direction WPS Users can easily push the WPS button for quick and safe WLAN configuration with other WLAN devices. - 3 - Reset Reset to factory default setting. 4 Safety Precautions  Keep away from heat and keep good ventilation.  Power off your H560N and remove all cable connections on thundery or rainy days.  Only use the power adapter that is provided with the H560N.  Keep your H560N dry during the storage, transportation, and operation. 5 Configuring the Computer For a computer connecting to your H560N with cables, perform the following steps to set the IP address: Windows 7/Vista 1. Select Start → Control Panel. The Control Panel window is displayed. 2. Click Network and Internet. The Network and Internet window is displayed. 3. Click Network and Sharing Center. The Network and Sharing Center window is displayed. 4. Click Change adapter settings. The Network Connections window is displayed. 5. Right-click Local Area Connection and then select Properties from the shortcut menu. The Local Area Connection Properties dialog box is displayed, Double-click Internet Protocol Version 4 (TCP/IPv4). . - 4 - 6. Click the Obtain an IP address automatically and Obtain DNS server address automatically option buttons, and then click OK. - 5 - 7. On the Local Area Connection Properties dialog box, click OK. Windows XP/2000 1. Right-click My Network and then select Properties from the shortcut menu. The Network Connections window is displayed. 2. Right-click Local Area Connection and then select Properties from the shortcut menu. The Local Area Connection Properties dialog box is displayed, Double-click Internet Protocol (TCP/IP): - 6 - 3. Click the Obtain an IP address automatically and Obtain DNS server address automatically option buttons, and then click OK: - 7 - 4. On the Local Area Connection Properties dialog box, click OK. 6 Accessing Radio Network To access a radio network, you must ensure that a wireless network adapter is installed in your computer. Windows 7 1. In the notification area of the computer desktop, click icon. Select the radio network and then click Connect. - 8 - 2. Input security key and click OK. There is no security key setting by default. You can access it without input security key. If the security key is set, you must enter the correct key and click OK.. 3. Then the status of the wireless connection will be changed into Connected, your E5501/E5502 is successfully accessed. Win 1. R dows XP Right-click the The Wireless Net w click Connect. icon, and then sele work Connection di - 9 - ect View Available W ialog box is displayed Wireless Networks fr d, Select the SSID of from the shortcut men f your H560N, and th nu. hen - 10 - 2. Input security key and click Connect. There is no security key setting by default. You can access it without input security key. If the security key is set, you must enter the correct key and click Connect. 4. Then the status of the wireless connection will be changed into Connected, your H560N is successfully accessed. 7 Configuring the AP/Router 1. Set the slide switch on side to AP mode 2. Start a web browser, enter 192.168.1.253 in the address bar, then enter the username and password, and click log in. (The default username and password are admin). Please note, In this mode, Ethernet port only can be used as WAN port, You only can use wireless terminal to access H560N. In default mode the DHCP is off, Please set a static IP 192.168.1.x to your computer. 3. The router web configuration widow is displayed, click Enter wizard for Quick Setup. - 11 - 4. Select Bridge or Router Mode，then click Next. If you select bridge mode，you will directly skip to STEP 7. 5. If you select router mode, Please select Internet connection type (PPPoE e.g.) and click Next. - 12 - 6. Then input the username and password for connecting to the Internet, click Next. 7. Input the SSID Name and Password to set the wireless network, and then click Next. Note: To ensure wireless network security, WPA/WPA2-PSK-TKIP/AES are default configuration. - 13 - 8. Click Finish. The web configuration for your H560N is completed. 8 Configuring the Extender 1. Set the slide switch on side to Extender mode，The Led indicator should be red at first, This means H560N doesn’t associated to any wireless router. 2. You can press the WPS buttons both of the H560N and the associated wireless router within 2 minutes, if the lights become green and first flash in 5Hz and then random blinking which shows the configuration is successful. The extender mode can be used now. 3. If the associated wireless routers haven’t WPS button or the lights RED flash (Means association - 14 - failed), you can access H560N through web configuration(address is 192.168.1.253) to “Networking”->”Wireless Extender” item to configure it manually. 9 Environmental Requirements Working temperature: 0 ~ 40 °C Storage temperature: -40 °C ~ 60 °C Working Humidity: 20% ~ 90% (non-condensing) Storage Humidity: 5% ~ 95% (non-condensing) 10 Frequently Asked Questions Q. Why can’t I connect my computer to H560N by Ethernet port? In AP mode(Both Router and Bridge), Ethernet port only can be used as WAN port. Onl…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: ZTE Corporation Address: ZTE Plaza, Hi-tech Park, Nanshan District, City: Shenzhen, Guangdong Country: China Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dongguan Country: China is authorized to apply for Certification of the following product(s), including the signing of 731 form: Product description: Mini Wireless Router Type designation: H560N Trademark: ZTE中兴，ZTE on our behalf. Date: 2014-07-01 City: Shenzhen Name: Royce Wang Function: Product Certification Manager Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

内部公开Internal Use Only▲ ZTE Corporation <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE Date: 2014-5-12 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-ZXHNH560N Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------- Grantee Contact’s Signature Royce Wang Printed name

RV-0000000 Project No.: 1405C045 Page 2 of 10 RV-0000000 Project No.: 1405C045 Page 3 of 10

BARCODE : CODE 128 N / A Made in China Device IP: 192.168.1.253 User Name/Password: admin/admin Wi-Fi Name(SSID): ZTE-XXXXXX MAC: XXXXXXXXXXXX Date: MMM YYYY Product: Mini Wireless Router Model: H560N Input: 100-240V~50/60Hz 0.4A Output: 5V 1A FCC ID: Q78-ZXHNH560N Wi-Fi Name(SSID): ZTE-XXXXXX ( 后六位为首 MAC 地址的后六位 ) 生产日期格式英文月份的单词的前三个字母大写，然后空格， 位阿拉伯数字年份 如： 由中兴提供，指设备的首 或见生产信息发布流程 共位 ： 前四位，由中兴提供或见中兴工艺单序列号前四位内容； ：年份，从 年开始，依次取字母 不能使用 ：月份， 月为 ：日期，取值范围是 ；如 代表 日 不能使用 ：为生产流水号 MMM YYYY () 4 FEB 2009 MAC ： XXXXXXXXXXXX MAC SN ： XXXXYMDXXXXX 12 XXXX SN Y 2010 A~Y, I/O/S/Z M 1~9, 10~12 A,B,C D 1~9,A~Y 8 8 , I/O/S/Z XXXXX ,00001~99999 / H560N 铭牌标贴 2014.06.30 3174207 CONFORMS TO ANSI/UL STD. 60950-1 CERTIFIED TO CAN/CSA STD. C22.2 NO. 60950-1 2.4 mm 2.4 mm 49.8 mm 29.8 mm Made in China 3174207 CONFORMS TO ANSI/UL STD. 60950-1 CERTIFIED TO CAN/CSA STD. C22.2 NO. 60950-1 ODEHOORFDWLRQ

RV-0000000 Project No.: 1405C045 Page 4 of 10 RV-0000000 Project No.: 1405C045 Page 5 of 10 RV-0000000 Project No.: 1405C045 Page 6 of 10 RV-0000000 Project No.: 1405C045 Page 7 of 10 RV-0000000 Project No.: 1405C045 Page 8 of 10 RV-0000000 Project No.: 1405C045 Page 9 of 10 RV-0000000 Project No.: 1405C045 Page 10 of 10

Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: Q78-ZXHNH560N Project No. : 1405C045 Equipment : Mini Wireless Router Model : H560N Applicant : ZTE Corporation Address : ZTE Plaza,Hi-Teck Park,Nanshan District, Shenzhen,Guangdong, P.R. China According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Page 2 of 4 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Manufacturer Model Name Antenna TypeConnector Gain (dBi) 1 N/A N/A Internal N/A 1.6 2 N/A N/A Internal N/A 1.6 Note: (1 The EUT incorporates a MIMO function. Physically, the EUT provides two completed two transmitters and two receivers (2T2R). Operating Mode TX Mode 1TX 2TX 802.11b V (ANT 1 or ANT 2)- 802.11g V (ANT 1 or ANT 2)- 802.11n(20MHz) - V (ANT 1 + ANT 2) 802.11n(40MHz) - V (ANT 1 + ANT 2) Page 3 of 4 TEST RESULTS EUT： Mini Wireless Router Model Name ： H560N Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.6 1.4454 17.25 53.0884 0.015273911 Complies 1.6 1.4454 17.07 50.9331 0.014653801 Complies 1.6 1.4454 17.1 51.2861 0.014755381 Complies EUT： Mini Wireless Router Model Name ： H560N Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.6 1.4454 17.58 57.2796 0.016479741 Complies 1.6 1.4454 19.27 84.5279 0.024319261 Complies 1.6 1.4454 19.21 83.3681 0.023985591 Complies Page 4 of 4 EUT： Mini Wireless Router Model Name ： H560N Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.6 1.4454 26.09 406.4433 0.116936571 Complies 1.6 1.4454 25.49 353.9973 0.101847501 Complies 1.6 1.4454 22.95 197.2423 0.056747981 Complies EUT： Mini Wireless Router Model Name ： H560N Temperature： 25 °C Relative Humidity： 60 % Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.6 1.4454 23.97 249.4595 0.071771231 Complies 1.6 1.4454 25.28 337.2873 0.097039911 Complies 1.6 1.4454 21.97 157.3983 0.045284581 Complies Note: the calculated distance is 20 cm.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 1 of 148 FCC Radio Test Report FCC ID: Q78-ZXHNH560N This report concerns (check one): Original Grant Class II Change Project No. : 1405C045 Equipment : Mini Wireless Router Model Name : H560N Applicant : ZTE Corporation Address : ZTE Plaza,Hi-Teck Park,Nanshan District, Shenzhen,Guangdong, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: May. 08, 2014 Date of Test: May. 08, 2014 ~ Jun. 20, 2014 Issued Date: Jun. 20, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 2 of 148 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 3 of 148 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 4 of 148 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 ATTACHMENT A - CONDUCTED EMISSION 31 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 105 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 109 ATTACHMENT H - POWER SPECTRAL DENSITY 134 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 5 of 148 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1405C045 Original Issue. Jun. 20, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 6 of 148 1. CERTIFICATION Equipment : Mini Wireless Router Brand Name : ZTE 中兴;ZTE Model Name : H560N Applicant : ZTE Corporation Manufacturer : ZTE Corporation Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen,China.518052 Date of Test : May. 08, 2014 ~ Jun. 20, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1405C045) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 7 of 148 2. SUMMARY OF TEST RESULTS Test procedures …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 27 of 148 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 28 of 148 Radiated Measurement Photos 9KHz to 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 29 of 148 Radiated Measurement Photos 30MHz to 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C045 Page 30 of 148 Radiated Measurement Photos Above 1000MHz
