Q78-ZXMBW-RA25Agile 2.5G Remote Radio Frequency Unit

ZXMBW RA25 Agile 2.5G Remote Radio Frequency Unit Installation Manual Version 2.00 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P. R. China 518057 Tel: (86) 755 26771900 800-9830-9830 Fax: (86) 755 26772236 URL: http://support.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2006 ZTE CORPORATION. The contents of this document are protected by copyright laws and international treaties. Any reproduction or distribution of this document or any portion of this document, in any form by any means, without the prior written consent of ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners. This document is provided “as is”, and all express, implied, or statutory warranties, representations or conditions are disclaimed, including without limitation any implied warranty of merchantability, fitness for a particular purpose, title or non-infringement. ZTE CORPORATION and its licensors shall not be liable for damages resulting from the use of or reliance on the information contained herein. ZTE CORPORATION or its licensors may have current or pending intellectual property rights or applications covering the subject matter of this document. Except as expressly provided in any written license between ZTE CORPORATION and its licensee, the user of this document shall not acquire any license to the subject matter herein. The contents of this document and all policies of ZTE CORPORATION, including without limitation policies related to support or training are subject to change without notice. Revision History Date Revision No. Serial No. Reason for Revision 09/27/2006 R1.0 Sjzl20061645 First edition ZTE CORPORATION Values Your Comments & Suggestions! Your opinion is of great value and will help us improve the quality of our product documentation and offer better services to our customers. Please fax to: (86) 755-26772236; or mail to Documentation R&D Department, ZTE CORPORATION, ZTE Plaza, A Wing, Keji Road South, Hi-Tech Industrial Park, Shenzhen, P. R. China 518057. Thank you for your cooperation! Document Name ZXMBW RA25 Agile 2.5G Remote Radio Frequency Unit Installation Manual Product Version V2.00 Document Revision Number R1.0 Equipment Installation Date Presentation: (Introductions, Procedures, Illustrations, Completeness, Level of Detail, Organization, Appearance) £ Good £ Fair £ Average £ Poor £ Bad £ N/A Accessibility: (Contents, Index, Headings, Numbering, Glossary) £ Good £ Fair £ Average £ Poor £ Bad £ N/A Your evaluation of this documentation Intelligibility: (Language, Vocabulary, Readability & Clarity, Technical Accuracy, Content) £ Good £ Fair £ Average £ Poor £ Bad £ N/A Your suggestions for improvement of this documentation Please check the suggestions which you feel can improve this documentation: £ Improve the overview/introduction £ Make it more concise/brief £ Improve the Contents £ Add more step-by-step procedures/tutorials £ Improve the organization £ Add more troubleshooting information £ Include more figures £ Make it less technical £ Add more examples £ Add more/better quick reference aids £ Add more detail £ Improve the index £ Other suggestions __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ # Please feel free to write any comments on an attached sheet. If you wish to be contacted regarding your comments, please complete the following: Name Company Postcode Address Telephone E-mail This page is intentionally blank. Contents About this Manual............................................................i Purpose.................................................................................i Intended Audience..................................................................i Prerequisite Skill and Knowledge...............................................i What is in This Manual.............................................................i Related Documentation...........................................................ii Conventions..........................................................................iii How to Get in Touch...............................................................iv Chapter 1.........................................................................1 Overview.........................................................................1 Installation Flow..............................................................2 Installation Components.........................................................2 Hardware Installation Flow......................................................4 Installation Precautions....................................................5 Chapter 2.........................................................................7 Installation Preparations................................................7 Installation Environment Check.........................................8 Installation Location Check......................................................8 Temperature/Humidity Check..................................................8 Power Supply Check...............................................................9 Grounding Check...................................................................9 Other Checks........................................................................9 Tools and Instruments Preparation...................................10 Technical Documents Preparation....................................12 Unpacking Inspection....…

Text truncated - open the document above for the full version.

Add Tel86-755-2677000086-755-2677999 Postcode518057 http// www.zte.com.cn [email protected] Date: 2006-09-01 American Telecommunications Certification Body Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (Q78--ZXMBW-RA25) . Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: (Parts List, Schematics, Block Diagram, Operational Description, Tune-up procedure) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Typed or Printed Name: Royce Wang Title: Product Certification Director Company Name: ZTE Corporation

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 21, 2006 RE: ZTE Corporation FCC ID: Q78-ZXMBW-RA25 This is a preliminary review of this filing from an administrative view. It does not include any findings relevant to either the RF Exposure or EMC reports. Kindly understand that depending on your responses, there may be additional comments. 1.) There are no Schematics included with this device application. A BOM is not the same as a schematic diagram of the RF circuitry. Please provide schematic diagrams. 2.) The Block Diagram does not include any relevant details about the transmitter. Pages 2 and 3 do not even display properly. Please provide a more complete and detailed block diagram. 3.) The External Photographs are poor and provide very little information about this device. Please provide larger, clearer External Photographs showing all ports and all controls. It is recommended that standard orthographic projection techniques be used showing all sides of the device. 4.) In general, only very specific types of Exhibits can be held Confidential. These include Parts List, Tune-Up Specifications, Block Diagram, Schematics and Operational Description. No other documents can be held Confidential without great justification. Please review your Confidential Request letter and correct. 5.) The Form 731 is signed by Royce Wang, but the printed name is that of Zihui Wang. Who is the individual responsible for this Application? If it is to be someone other that Royce Wang then we will need some notice that authorizes Zihui Wang to speak on behalf of ZTE Corporation. 6.) The Internal Photos are not satisfactory. Please provide larger, clearer photos, top and bottom, of all relevant construction details and all circuit boards / daughter boards. Be sure that all RF shielding is removed for photographs. 7.) The Label exhibit is satisfactory. However, the FCC logo is not appropriate for this device and should be removed. 8.) It appears that the Parts List may not include all the active devices as required by FCC rules. Kindly double-check and provide as necessary. 9.) The Tune Up procedure provided is not satisfactory. Ideally it should include a description of how power and frequency are set for these devices as they leave the factory floor. Please include target tune-up values and their tolerance in the tune-up procedure. 10.) FYI: Please understand that this only deals with the administrative portion of this filing. Additional comments on the MPE and EMC reports will be forthcoming William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. z Page 2 November 21, 2006 Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 22, 2006 RE: ZTE Corporation FCC ID: Q87-ZXMBW-RA25 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. Test Report 1.) Please review the Effective Radiated Power test on page 9. You have two limits shown – 500W and 2000W. Which is correct? 2.) The effective radiated power test is confused with conducted power. Conducted power should be done on three channels – low, medium and high. Radiated power should be done on a test range using the substitution method described in TIA/EIA 603. Please be aware that radiated power tests where a simple field strength reading from a spectrum analyzer is converted to radiated power readings is not suitable. Be sure to show your work and calculations in your Test Report. 3.) What is the purpose of the plot on Page 19? What are you trying top illustrate? 4.) With the radiated spurious emissions, only the substitution method is allowed for Licensed devices. Your radiated emissions test is not suitable. Your test equipment list includes only one antenna and no signal generators or amplifiers. How is it possible to do substitution without two antennas, and two cables, and a signal source? 5.) Who is Donald Duck and why is he doing a fast method of compliance testing? 6.) Your spurious emissions at antenna terminals plots on page 22 indicate an uncalibrated setting was chosen. This is never appropriate for FCC compliance work. Please review and correct. 7.) Your frequency stability references to Part 22 are not appropriate. See 27.54. Prove that for all instances of expected environmental conditions this broadband device will stay within the permitted band. Also, in the opinion of this Reviewer, 20 minutes is far to short a time to allow for device stabilization. No less than 2 hours for this base station in a power off state is necessary for this device. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 November 22, 2006 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 27, 2006 RE: ZTE Corporation FCC ID: Q87-ZXMBW-RA25 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) FYI: For the future, kindly work on improving your internal photographs. The exposure settings and angle of the camera relative to the subject make it difficult to review. May I suggest using a tripod and not attempting to photograph with a flash? Properly illuminated and diffused lighting will go a long way to improving this Exhibit. 2.) You have selected the wrong 15.19 label statements. Please refer to 15.19(a)(1) and not 15.19(a)(3). The label should read: “This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.” 3.) The updated Tune Up description has a statement which does not seem to make sense. “If it is 30.2dBm of channel power in Agilent 89600, attenuation will be reduced 0.5dB/step until the channel power achieves 34.7dBm.” Is this correct? Do you start actually start at ~1 watt (30.2dBm) and reduce power until you find ~5 watts (34.7dBm)? 4.) Your RF Exposure exhibit (Test Report page 8) should be provided as a separate Exhibit – for clarity not placed inside the Test Report. In addition, you correctly quote the limit table as 1mw/square cm, but at the bottom of the page use 5mw/square cm. Please review and correct. 5.) Page 9 of the Test Report talks about ERP. This is a radiated measurement. How can you connect the output of the EUT to a spectrum analyzer and get a radiated value? 6.) Please further identify the measured values and limits shown at the top of page 11. What is it? 7.) Could you please provide for me the isotropic gain of the substitution antennas used in the radiated spurious emissions test? William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RESPONSE to RA25 Ask： Answer： We have submitted them. Answer： We have revised and submitted. Answer：We have revised it. Answer：We have revised and submitted. Answer：We have revised and submitted. Answer：We have Revised and submitted. All our parts are shown in the Pictures. But some parts in the RA25 are brought from other companies. We can only give you a surface view. Answer：We have revised it. Answer：We have revised and submitted. Answer：We have revised it.

RESPONSE to RA25 EMC REPORT Answer: We have corrected it on page22. 2000W is correct. Answer: We have corrected it on Page 22. Answer: We have corrected it for adding the test information. Please see page 19. Answer: We have corrected it for adding the test equipments. Please see page 16. Answer: We had revived and submitted. Please see it on page 16. Donald Duck is his English name. We have changed it to his Chinese name. Answer: We have corrected it and submitted. Please see page 26-27. Answer: We have corrected it.

1. Requirements and Recommendations for WiMAX Forum Mobility Profiles, WiMAX Service Providers Working Group Answer: We have already submitted them. WiMAX Service Providers Working Group please refer to IEEE802.16e protocol. 2. Recommendations and Requirements for Networks Based on WiMAX Forum Certified Products. Answer： TP25I is the SS. RA25 is the part of ASN. Please see the below block. For more information please refer to IEEE802.16e. • R1－Reference Point R1 consists of the protocols and procedures between MS and ASN as per the air interface (PHY and MAC) specifications (IEEE P802.16－2005 ，and IEEE P802.16-2004). Reference point R1 may include additional protocols related to the management plane。 • R2－Reference Point R2 consists of protocols and procedures between the MS and CSN associated with Authentication, Services Authorization and IP Host Configuration management. This reference point is logical in that it does not reflect a direct protocol interface between MS and CSN. • R3－Reference Point R3 consists of the set of control plane protocols between the ASN and the CSN to support AAA, policy enforcement and mobility management capabilities. • R4－Reference Point R4 consists of the set of Control and Bearer plane protocols originating/terminating in various functional entities of an ASN that coordinate MS mobility between ASNs and ASN-GWs. 3.WiMAX devices are capable of operating in highly dynamic conditions with various combinations of operating configurations to optimize throughput and performance. Because many of these highly optimized dynamic configurations normally do not provide stable conditions for compliance testing, standard test mode configurations for product conformance evaluation should be specified. ASN Gateway & Decision Enforcement Points ASN BS R3 R4 R6 R6 R8 BS R1 R1 Based on the design requirements of each wireless technology and provided the output power is not higher, tests may not be required for all combinations operating configurations. Like the FCC 3G procedures, for example info about using output power as a pre-screening tool among a larger subset of the available device configurations, would be useful. The output conditions of the test device should be closely monitored with applicable equipment, communication test set, analyzers or power meters, to ensure the required operating conditions are satisfied during the compliance measurements. The device se! tup and operating parameters should be fully documented in the test report to enable the tests to be repeated easily and with sufficient accuracy. Answer: For ZTE RD engineer working experience, we use the modulation mode of QPSK and data rate is the largest. Under this condition, RA25 can output the max power. The max power is cared by FCC and users. In general, ZTE have finished all the tests is in this condition. ZTE is one of 13 board members of WiMAX Forum. The setup photo is in the report. You can get more information in our report and setup photos. EUT Setup: This photo is used for Conducted POWER, Modulation characteristic, Spurious Emissions AT Antenna Terminals, Occupied Bandwidth, Band Edge tests. signer： Date (Month, Day, Year)：2006-12-20 Typed/printed name of authorized signer：Royce Wang Title of authorized signer: Product Certification Director

William Graff From: Generic Office of Engineering Technology [[email protected]] Sent: Friday, December 22, 2006 11:16 PM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 428336) 12/26/2006 Inquiry: Gentlemen - We are seeking ''''Permit But Ask'''' guidance for FCC ID: Q78-ZXMBW-RA25. The device is a Part 27 base station with a total channel power of 5W feeding up to an 18dBi antenna, and operating in the frequency range of 2540-2552 MHz. Proposed emission designator for this WiMax device is 10M0G9W. An MPE report is provided. Guidance the Commission can provide for specific operational modes to be tested would be appreciated. ---Reply from Customer on 11/23/2006--- Attached please find the technical manual used for this base station. You can also us this technical description for the other ZTE device (PCMCIA card) you have under Trackin number: 714375. ---Reply from Customer on 11/29/2006--- Applicant response is detailed in the following Exhibits. ---Reply from Customer on 12/09/2006--- Gentlemen, All Exhibits have been uploaded to the EAS system under TC318875. We respectfully await your decision. Best Regards, Bill Graff AmericanTCB ---Reply from Customer on 12/12/2006--- Gentlemen, Attached please find the the 10 question document you requested. It is also being uploaded to the FCC EAS site. I believe it will answer both your questions. Please find it under Operational Description. Bill ---Reply from Customer on 12/18/2006--- Kindly review the attached responses from the Applicant. ---Reply from Customer on 12/20/2006--- Kindly review the following documents provided by the Applicant. A complete softcopy of the IEEE standard is also available, but the size (5MB) precludes the use of the KNB to provide this document. If desired, please provide an alternate procedure for sending you this standard. ---Reply from Customer on 12/21/2006--- Additional response are provided (attached). ---Reply from Customer on 12/21/2006--- Gentlemen - Understood. I will revise the Exhibits and superceed as necessary. At the conclusion am I able to issue the Grant for this Part 27 base station? Response: As I understand the PBA requests TCB to notify within KDB when application is fully ready to grant, then final approve-to-grant ! is given by FCC to TCB in KDB reply. For case at hand, given that after 12pm US eastern time 12/22/06 another KDB response may not be possible until 12/27/06 soonest, if TCB believes various key items among these KDB attachments will be appropriately captured and clearly reflected within TC318875, then TCB may issue grant. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 12/26/2006

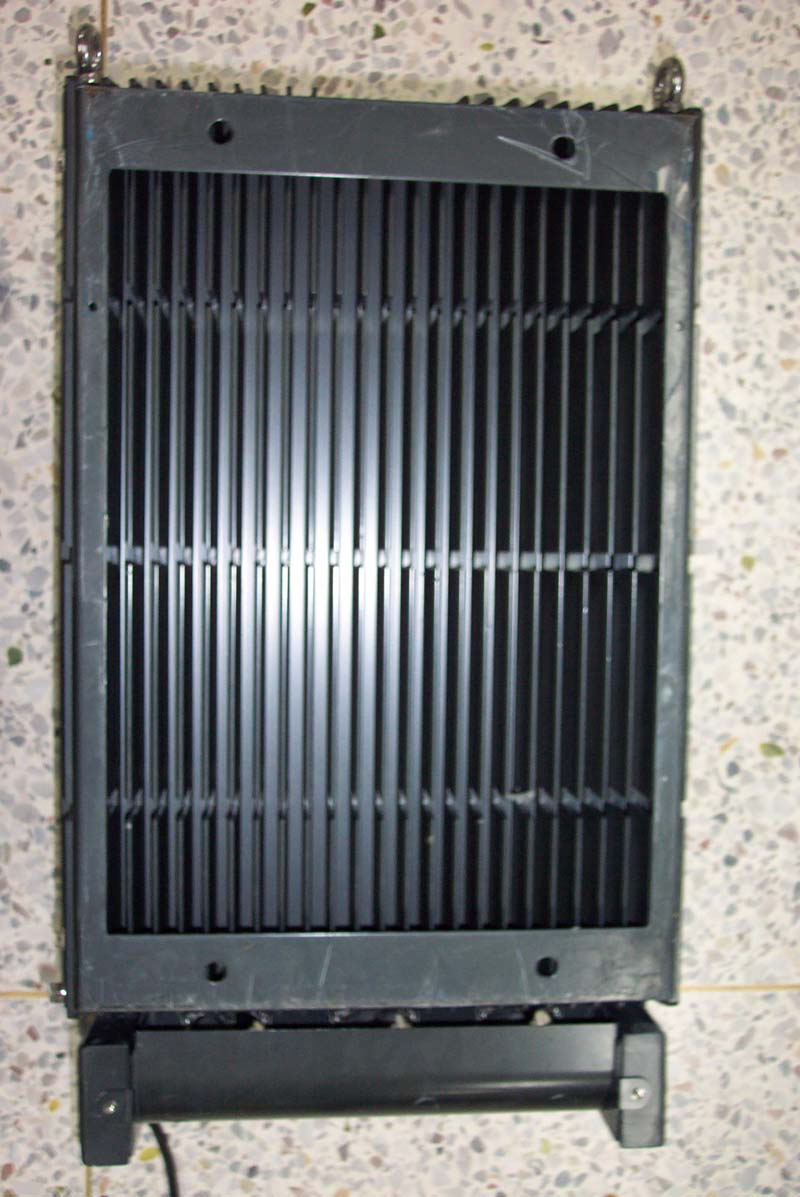

EUT: EXTERNAL PHOTOES EUT Front View Back View Top View Bottom View Side View

RA25 Label and Location Label Location:

RA25 Internal Photo EUT Front Open View: Power Board: RPWA2_1 RPWA2_2 RF Board: RATR: Top View Back View RDIF Top View Back View

RF EXPOSURE LIMIT According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissible Exposure (MPE) f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance. Equation from page 18 of OET Bulletin 65, Edition 97-01. S = PG/4лR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna . Maximum peak output power at antenna input terminal: 37 (dBm ) Maximum peak output power at antenna input terminal: 5 (W) Prediction distance: 300 (cm) Predication frequency: 2546 (MHz) Antenna Gain (typical): 18 (dBi) Power density at predication frequency at 300 cm: 0.0796 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1(mW/cm 2 ) Test Result: Pass

ZTE Corporation FCC ID: Q78-ZXMBW-RA25 Report #RSZ06111000 FCC PART 27 TYPE APPROVAL Report 1 ZTE Corporation FCC ID: Q78-ZXMBW-RA25 FCC PART 27 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China FCC ID: Q78-ZXMBW-RA25 November 20, 2006 This Report Concerns: Original Report Equipment Type: ZXMBW RA25 Test Engineer: Liu Rui Report No.: RSZ06111000 Test Date: October 08-Novemeber 16, 2006 Reviewed By: Hu Qinghua Prepared By: ZTE Corporation. ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057, P.R.China Tel: +86-755-26770000 Fax: +86-755-26771999 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of ZTE Corporation. This report must not be used by the client to claim product certification approval or endorsement by any agency of the US Government. ZTE Corporation FCC ID: Q78-ZXMBW-RA25 Report #RSZ06111000 FCC PART 27 TYPE APPROVAL Report 2 TABLE OF CONTENTS GENERAL INFORMATION ........................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................4 OBJECTIVE ................................................................................................................ 4 RELATED SUBMITTAL(S)/GRANT(S)....................................................................4 TEST METHODOLOGY... .......................................................................................... 4 TEST FACILITY........................................................................................................................... 4 EXTERNAL I/O CABLE ............................................................................................................... 4 SYSTEM TEST CONFIGURATION ............................................................................................5 DESCRIPTION OF TEST CONFIGURATION ............................................................................ 5 EQUIPMENT MODIFICATIONS ................................................................................................. 5 CONFIGURATION OF TEST SETUP .......................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP.......................................................................................... 6 SUMMARY OF TEST RESULTS ................................................................................7 §2.1046, §27.50(h) -Conducted POWER ................................................................................8 APPLICABLE STANDARD ........................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS..................................................................................8 TEST PROCEDURE ..................................................................................................................... 9 TEST DATA .................................................................................................................................. 9 §2.1047-MODULATION CHARACTERISTIC ............................................................................9 APPLICABLE STANDARD.......................................................................................................... 9 TEST EQUIPMENT LIST AND DETAILS.................................................................................. 9 TEST PROCEDURE...................................................................................................................... 9 TEST DATA................................................................................................................................... 9 §15.109(a)-RADIATED EMISSION ...............................................................................................10 MEASUREMENT UNCERTAINTY ........................................................................................... 10 EUT SETUP................................................................................................................................... 10 EMI TEST RECEIVER SETUP....................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.................................................................................11 TEST PROCEDURE .....................................................................................................................12 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................... 12 TEST RESULTS SUMMARY ....................................................................................................13 TEST DATA................................................................................................................................. 13 PLOT(S) OF TEST DATA........................................................................................................... 14 §2.1053-SPURIOUSRADIATED EMISSIONS............................................................................15 APPLICABLE STANDARD....................................................................................................... 16 TEST EQUIPMENT LIST AND DETAILS................................................................................…

Text truncated - open the document above for the full version.
