Q78-ZXV10B760ERichMedia Box

1 ZXV10 B760E RichMedia Box User Guide ZTE CORPORATION NO.55,Hi-techRoadSouth,ShenZhen,P.R.China Postcode:518057 Tel: (86) 755 26771900 800-9830-9830 Fax: (86) 755 26772236 URL: http://support.zte.com.cn E-mail: [email protected] 2 LEGAL INFORMATION Copyright © 2012 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. History Revision Revision No. Revision Date Revision Reason R1.0 2014–05–22 First Serial No.: SJ-20140522095238-001 3 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 4 Content Chapter 1 Safety Instructions ............................................... 1 Chapter 2 Packing List ...................................................... 2 Chapter 3 Panels ............................................................... 3 3.1 Front Panel .......................................................................................... 3 3.2 Rear Panel ........................................................................................... 3 3.3 Side Panel ........................................................................................... 4 Chapter 4 Connecting Up................................................... 4 4.1 Connecting Network ............................................................................ 4 4.2 Video and Audio Connections ............................................................. 5 4.2.1 Connecting Standard Definition Interface ................ 5 4.2.2 Connecting High Definition Interface ........................ 6 4.2.3 Connecting Digital Audio .......................................... 7 4.3 Power ON ............................................................................................ 8 4.4 Upgrade ............................................................................................... 8 Chapter 5 Remote Control ................................................. 9 5.1 STB Remote Control ............................................................................ 9 5.2 Key Customization ............................................................................. 10 Chapter 6 Operation Guide .............................................. 11 6.1 Standby/Working Status .................................................................... 11 6.2 EPG Operations................................................................................. 11 6.3 Common Operations During Watching Programs .............................. 12 6.4Controlling Program Playing ............................................................... 13 6.5 Watching TSTV Program ................................................................... 14 Chapter 7 Troubleshooting ............................................... 15 Chapter 8 Technical Specification .................................... 17 1 Chapter 1 Safety Instructions Special Note • Remove the plastic covering before using the Set-Top Box to provide normal ventilation. • Use the power adapter provided with the Set-Top Box. Important Safety Instructions • Ensure that the electric voltage meets the device requirements. Check the cables periodically, replace any damaged cables immediately. • To prevent electric shock, do not remove cover. There are no user serviceable parts inside. Refer servicing to qualified service. • Do not use this apparatus near water. • Clean with only dry cloth. • Place the device on a flat surface. Do not place any heavy objects on the device. • Do not block any ventilation openings. Install according to the manufacturer’s instructions. • Do not install near any heat sources, suc…

Text truncated - open the document above for the full version.

内部公开Internal Use Only▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE 第1页 Declaration of Authorization We Name: ZTE Corporation Address: ZTE Plaza, Hi-tech Park, Nanshan District, City: Shenzhen, Guangdong Country: China Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dongguan Country: China is authorized to apply for Certification of the following product(s), including the signing of 731 form: Product description: RichMedia Box Type designation: ZXV10 B760E Trademark: ZTE中兴，ZTE on our behalf. Date: 2014-4-22 City: Shenzhen Name: Royce Wang Function: Product Certification Manager Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

内部公开Internal Use Only▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE 第1页 Date: 2014-4-22 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-ZXV10B760E Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------- Grantee Contact’s Signature Royce Wang Printed name

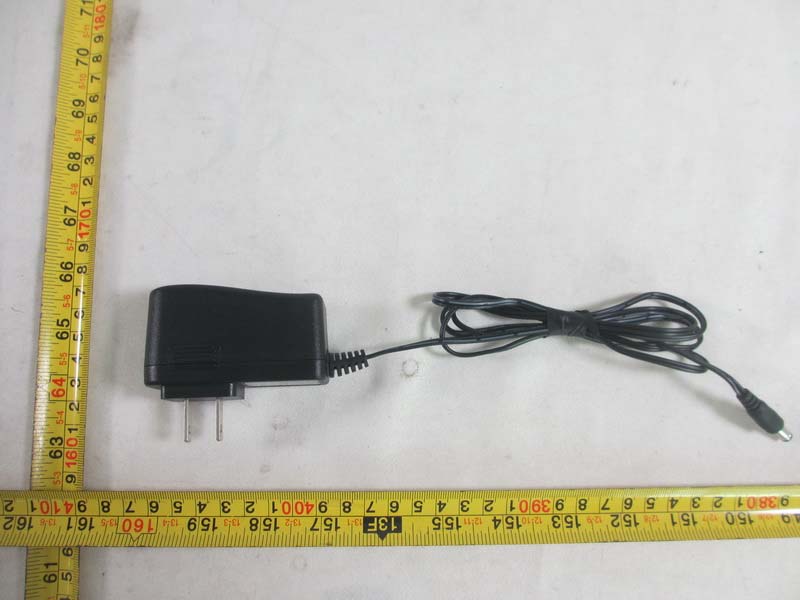

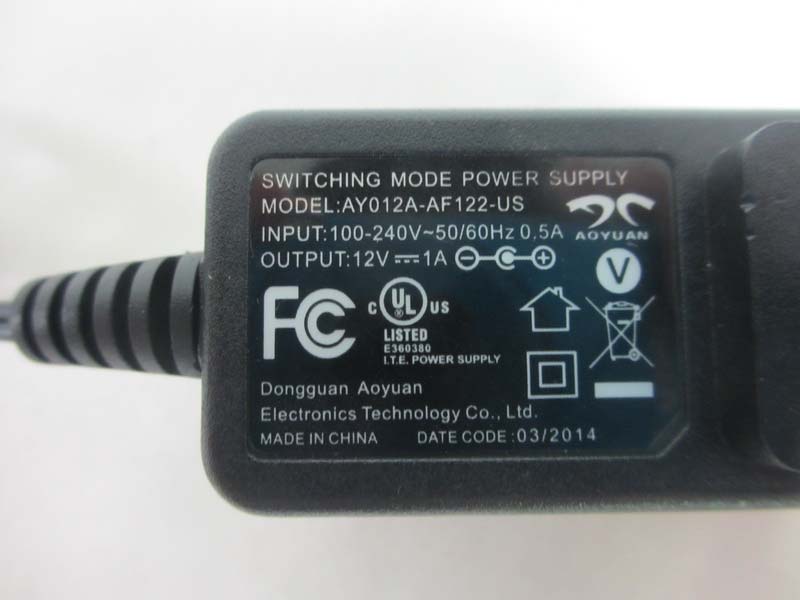

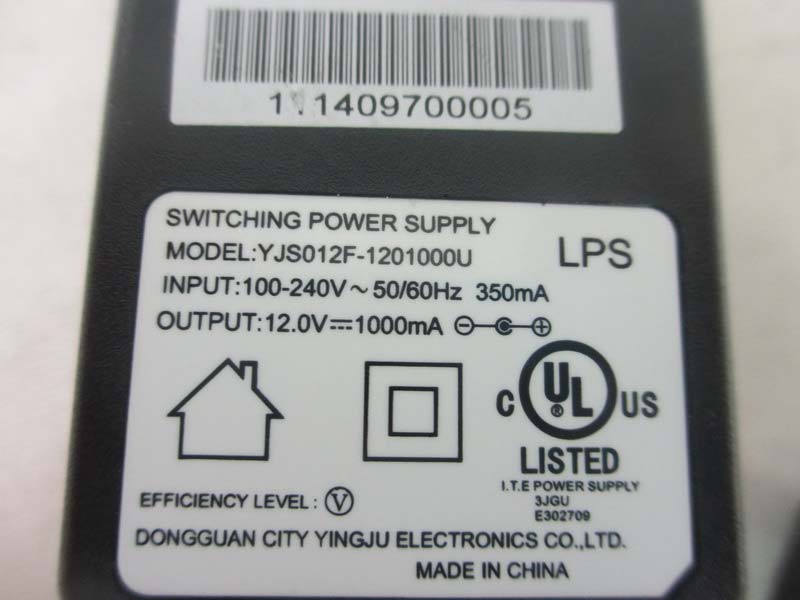

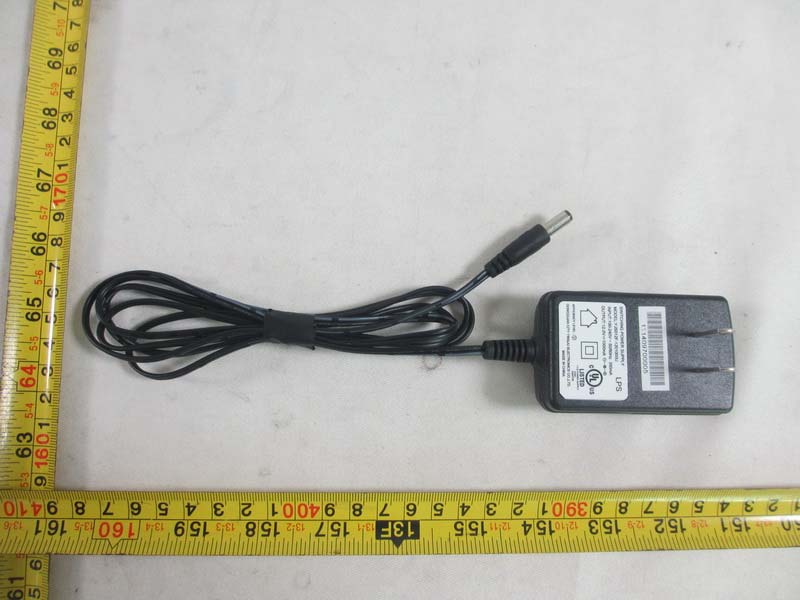

RV-0000000 Project No.: 1404C148 Page 2 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 3 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 4 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 5 of 12 Neutron Engineering Inc.

ODEHOORFDWLRQ

RV-0000000 Project No.: 1404C148 Page 6 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 7 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 8 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 9 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 10 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 11 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1404C148 Page 12 of 12 Neutron Engineering Inc.

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: Q78-ZXV10B760E Project No. : 1404C148 Equipment : RichMedia Box Model : ZXV10 B760E Applicant : ZTE Corporation Address : ZTE Plaz a, Hi-T eck Park, Nanshan District, Shenzhen, Guangdong, P.R. China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) 1 N/A PW-MN427 34I 3.0 Internal N/A 3 Neutron Engineering Inc. TEST RESULTS EUT： RichMedia Box Model Name ： ZXV10 B760E Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 15.14 32.6588 0.012970311 Complies 3 1.9953 15.16 32.8095 0.013030181 Complies 3 1.9953 15.02 31.7687 0.012616831 Complies EUT： RichMedia Box Model Name ： ZXV10 B760E Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 21.48 140.6048 0.055840641 Complies 3 1.9953 21.47 140.2814 0.055712211 Complies 3 1.9953 20.97 125.0259 0.049653561 Complies Neutron Engineering Inc. EUT： RichMedia Box Model Name ： ZXV10 B760E Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 19.33 85.7038 0.034036931 Complies 3 1.9953 19.36 86.2979 0.034272861 Complies 3 1.9953 19.19 82.9851 0.032957201 Complies EUT： RichMedia Box Model Name ： ZXV10 B760E Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 19.98 99.5405 0.039532141 Complies 3 1.9953 20.13 103.0386 0.040921391 Complies 3 1.9953 20.16 103.7528 0.041205041 Complies Note: the calculation distance is 20cm.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C148 Page 1 of 133 FCC Radio Test Report FCC ID: Q78-ZXV10B760E This report concerns (check one): Original Grant Class II Change Project No. : 1404C148 Equipment : RichMedia Box Model Name : ZXV10 B760E Applicant : ZTE Corporation Address : ZTE Plaza, Hi-Teck Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Apr. 18, 2014 Date of Test: Apr. 18, 2014 ~ May. 15, 2014 Issued Date: May. 16, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C148 Page 2 of 133 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C148 Page 3 of 133 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C148 Page 4 of 133 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 ATTACHMENT A - CONDUCTED EMISSION 31 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 102 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 104 ATTACHMENT H - POWER SPECTRAL DENSITY 125 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C148 Page 5 of 133 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1404C148 Original Issue. May. 16, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C148 Page 6 of 133 1. CERTIFICATION Equipment : RichMedia Box Brand Name : ZTE Model Name : ZXV10 B760E Applicant : ZTE Corporation Manufacturer : ZTE Corporation Address : ZTE Plaza, Hi-Teck Park, Nanshan District, Shenzhen, Guangdong, P.R. China Factory : ZTE Corporation Address : ZTE Plaza, Hi-Teck Park, Nanshan District, Shenzhen, Guangdong, P.R. China Date of Test : Apr. 18, 2014 ~ May. 15, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1404C148) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc.…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C148 Page 27 of 133 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C148 Page 28 of 133 Radiated Measurement Photos 9KHz to 30MHz
