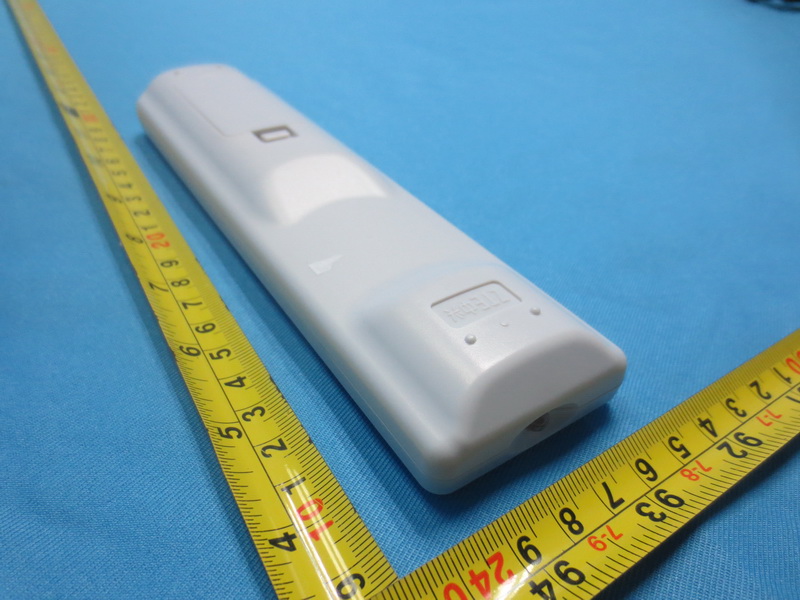

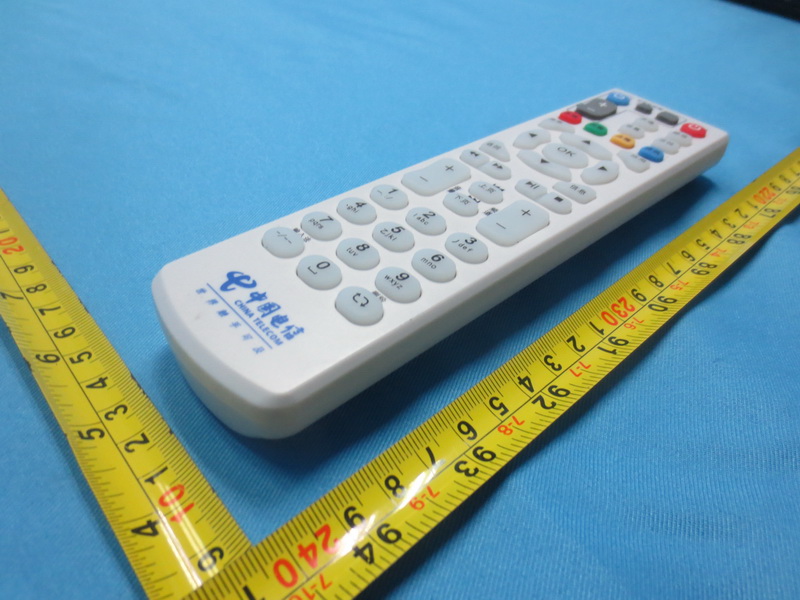

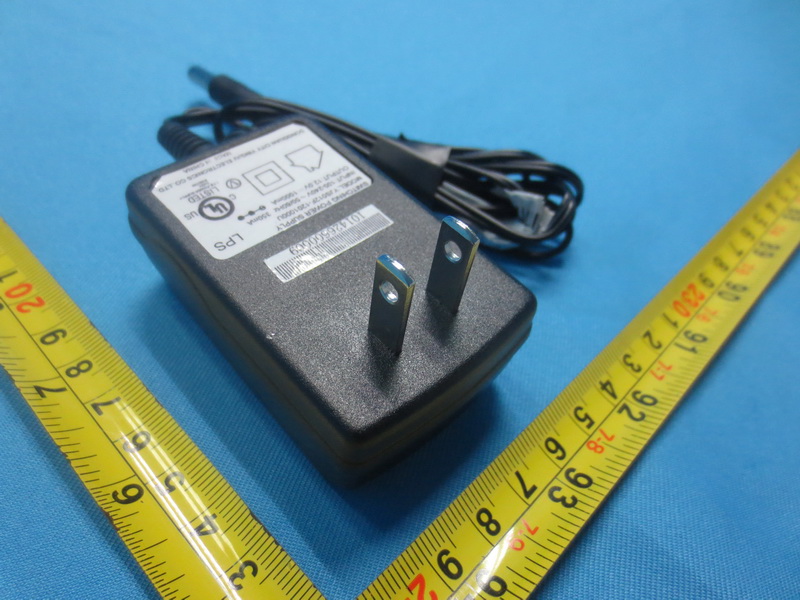

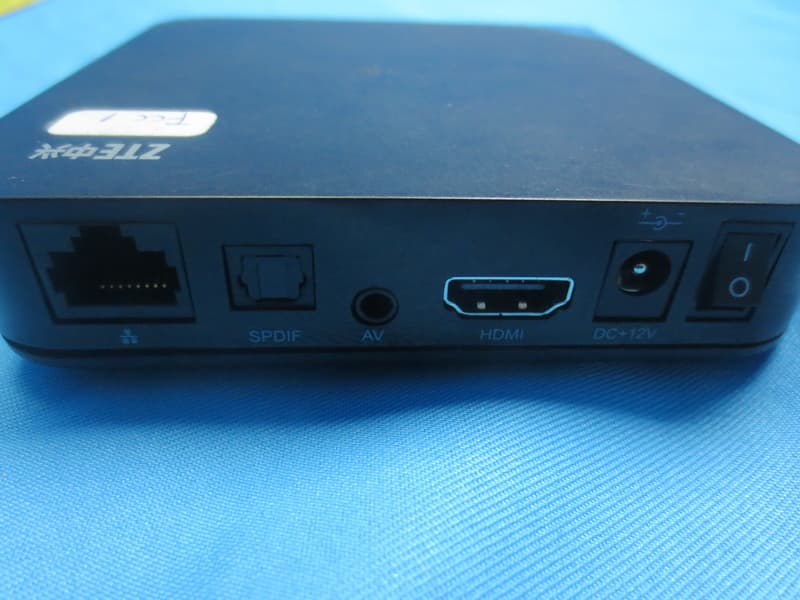

Q78-ZXV10B760HRichMedia Box

ZXV10 B760H ZXV10 B760E RichMedia Box User Guide ZTE CORPORATION NO.55,Hi-techRoadSouth,ShenZhen,P.R.China Postcode:518057 Tel: (86) 755 26771900 800-9830-9830 Fax: (86) 755 26772236 URL: http://support.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2012 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. History Revision Revision No. Revision Date Revision Reason R1.0 2015–03–11 First Serial No.: SJ-20150311144934-001 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Content Chapter 1 Safety Instructions ............................................... 1 Chapter 2 Packing List ......................................................... 2 Chapter 3 Panels ................................................................. 3 3.1 Front Panel .......................................................................................... 3 3.2 Rear Panel ........................................................................................... 3 3.3 Side Panel ........................................................................................... 4 Chapter 4 Connecting Up .................................................... 4 4.1 Connecting Network ............................................................................ 4 4.2 Video and Audio Connections ............................................................. 5 4.2.1 Connecting Standard Definition Interface ................ 5 4.2.2 Connecting High Definition Interface ........................ 6 4.2.3 Connecting Digital Audio .......................................... 7 4.3 Power ON ............................................................................................ 8 4.4 Upgrade ............................................................................................... 8 Chapter 5 Remote Control ................................................... 9 5.1 STB Remote Control ............................................................................ 9 5.2 Key Customization ............................................................................. 10 Chapter 6 Operation Guide ................................................ 11 6.1 Standby/Working Status .................................................................... 11 6.2 EPG Operations................................................................................. 11 6.3 Common Operations During Watching Programs .............................. 12 6.4Controlling Program Playing ............................................................... 13 6.5 Watching TSTV Program ................................................................... 14 Chapter 7 Troubleshooting ................................................ 15 Chapter 8 Technical Specification ..................................... 17 1 Chapter 1 Safety Instructions Special Note • Remove the plastic covering before using the Set-Top Box to provide normal ventilation. • Use the power adapter provided with the Set-Top Box. Important Safety Instructions • Ensure that the electric voltage meets the device requirements. Check the cables periodically, replace any damaged cables immediately. • To prevent electric shock, do not remove cover. There are no user serviceable parts inside. Refer servicing to qualified service. • Do not use this apparatus near water. • Clean with only dry cloth. • Place the device on a flat surface. Do not place any heavy objects on the device. • Do not block any ventilation openings. Install according to the manufacturer’s instructions. • Do not install near any …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: ZTE Corporation Address: ZTE Plaza, Hi-tech Park, Nanshan District, City: Shenzhen, Guangdong Country: China Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: RichMedia Box Type designation: ZXV10 B760H ; ZXV10 B760E Trademark: ZTE 中兴，ZTE on our behalf. Date: 2015-02-07 City: Shenzhen, Guangdong Name: Royce Wang Function: Product Certification Manager Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: ZTE Corporation Address :ZTE Plaza, Hi-tech Park, Nanshan District, City: Shenzhen, Guangdong Country: China To: Telefication B.V.,Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject:Request for confidentiality FCC ID: Q78-ZXV10B760H Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicanthereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date:2015-02-07 Name and signature of applicant: Royce Wang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment RichMedia Box Model Name ZXV10 B760H; ZXV10 B760E Brand Name ZTE中兴,ZTE Applicant ZTE Corporation Address ZTE Plaza,Hi-Teck Park,Nanshan District,Shenzhen,Guangdong,P.R.China Standard(s) FCC Part 15, Subpart B: 2013 ANSI C63.4-2009 Report(s) BTL-FCCE-1-1501C044 The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No. 37, Lane 365, Yang-Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX:+886-2-2657-3331

Project No.: 1501C044 Page 2 of 12 Project No.: 1501C044 Page 3 of 12 Project No.: 1501C044 Page 4 of 12 Project No.: 1501C044 Page 5 of 12 Project No.: 1501C044 Page 6 of 12 Project No.: 1501C044 Page 7 of 12

Project No.: 1501C044 Page 8 of 12 Project No.: 1501C044 Page 9 of 12 Project No.: 1501C044 Page 10 of 12 Project No.: 1501C044 Page 11 of 12 Project No.: 1501C044 Page 12 of 12

FCC RF EXPOSURE REPORT FCC ID: Q78-ZXV10B760H Project No. : 1501C044 Equipment : RichMedia Box Model : ZXV10 B760H; ZXV10 B760E Applicant : ZTE Corporation Address : ZTE Plaza,Hi-Teck Park,Nanshan District, Shenzhen,Guangdong,P.R.China According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 Maglavers MSA-3810-25GC1-A8-EVInternal N/A 3.00 TX/RX TEST RESULTS 2.4G EUT： RichMedia Box Model Name : ZXV10 B760H Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 16.57 45.3942 0.018028121 Complies 3.00 1.9953 16.52 44.8745 0.017821751 Complies 3.00 1.9953 16.53 44.9780 0.017862831 Complies EUT： RichMedia Box Model Name : ZXV10 B760H Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 16.74 47.2063 0.018747801 Complies 3.00 1.9953 16.68 46.5586 0.018490571 Complies 3.00 1.9953 16.79 47.7529 0.018964891 Complies EUT： RichMedia Box Model Name : ZXV10 B760H Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 16.70 46.7735 0.018575921 Complies 3.00 1.9953 16.72 46.9894 0.018661661 Complies 3.00 1.9953 16.80 47.8630 0.019008611 Complies EUT： RichMedia Box Model Name : ZXV10 B760H Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 16.72 46.9894 0.018661661 Complies 3.00 1.9953 16.57 45.3942 0.018028121 Complies 3.00 1.9953 16.70 46.7735 0.018575921 Complies 5G Band 1 EUT： RichMedia Box Model Name : ZXV10 B760H Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX A MODE /CH36, CH40, CH48 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 9.31 8.5310 0.003388051 Complies 3.00 1.9953 9.29 8.4918 0.003372491 Complies 3.00 1.9953 8.98 7.9068 0.003140151 Complies EUT： RichMedia Box Model Name : ZXV10 B760H Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH36, CH40, CH48 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 9.14 8.2035 0.003257991 Complies 3.00 1.9953 9.13 8.1846 0.003250501 Complies 3.00 1.9953 9.05 8.0353 0.003191171 Complies EUT： RichMedia Box Model Name : ZXV10 B760H Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH38, CH46 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 9.43 8.7700 0.003482981 Complies 3 1.9953 9.31 8.5310 0.003388051 Complies 5G Band 4 EUT： RichMedia Box Model Name : ZXV10 B760H Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX A MODE /CH149, CH157, CH165 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 9.49 8.8920 0.003531431 Complies 3.00 1.9953 9.19 8.2985 0.003295721 Complies 3.00 1.9953 9.69 9.3111 0.003697861 Complies EUT： RichMedia Box Model Name : ZXV10 B760H Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE / CH149, CH157, CH165 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 9.49 8.8920 0.003531431 Complies 3.00 1.9953 9.11 8.1470 0.003235571 Complies 3.00 1.9953 9.60 9.1201 0.003622021 Complies EUT： RichMedia Box Model Name : ZXV10 B760H Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH38, CH46 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.00 1.9953 9.48 8.8716 0.003523311 Complies 3.00 1.9953 9.50 8.9125 0.003539571 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1501C044 Page 1 of 127 FCC Radio Test Report FCC ID: Q78-ZXV10B760H This report concerns (check one): Original Grant Class II Change Project No. : 1501C044 Equipment : RichMedia Box Model Name : ZXV10 B760H; ZXV10 B760E Applicant : ZTE Corporation Address : ZTE Plaza,Hi-Teck Park,Nanshan District,Shenzhen,Guangdong,P.R.China Date of Receipt : Jan. 06, 2015 Date of Test : Jan. 06, 2015 ~ Jan. 26, 2015 Issued Date : Jan. 27, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1501C044 Page 2 of 127 Declaration BTL represents to the client that testing i s done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. Thi s report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s )/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1501C044 Page 3 of 127 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: BTL-FCCP-1-1501C044 Page 4 of 127 Table of Contents Page 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - BANDWIDTH 91 ATTACHMENT F – MAXIMUM PEAK CONDUCTED OUTPUT POWER 100 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 102 ATTACHMENT H - POWER SPECTRAL DENSITY 119 Report No.: BTL-FCCP-1-1501C044 Page 5 of 127 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1501C044 Original Issue. Jan. 27, 2015 Report No.: BTL-FCCP-1-1501C044 Page 6 of 127 1. CERTIFICATION Equipment : RichMedia Box Brand Name : ZTE中兴,ZTE Model Name : ZXV10 B760H; ZXV10 B760E Applicant : ZTE Corporation Manufacturer : ZTE Corporation Address : ZTE Plaza,Hi-Teck Park,Nanshan District,Shenzhen,Guangdong,P.R.China Factory : ZTE Corporation Address : ZTE Plaza,Hi-Teck Park,Nanshan District,Shenzhen,Guangdong,P.R.China Date of Test : Jan. 06, 2015 ~ Jan. 26, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1501C044) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1501C044 Page 7 of 127 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2013 Standard(s) Section T…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1501C044 Page 26 of 127 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1501C044 Page 27 of 127 Radiated Measurement Photos 9kHz to 30MHz Report No.: BTL-FCCP-1-1501C044 Page 28 of 127 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1501C044 Page 29 of 127 Radiated Measurement Photos Above 1000MHz
