ZXV10W812NV2 IndoorWirelessAccessPoint UserManual ZTECORPORATION NO.55,Hi-techRoadSouth,ShenZhen,P.R.China Postcode:518057 Tel:+86-755-26771900 Fax:+86-755-26770801 URL:http://ensupport.zte.com.cn E-mail:[email protected] LEGALINFORMATION Copyright©2012ZTECORPORATION. Thecontentsofthisdocumentareprotectedbycopyrightlawsandinternationaltreaties.Anyreproductionor distributionofthisdocumentoranyportionofthisdocument,inanyformbyanymeans,withoutthepriorwritten consentofZTECORPORATIONisprohibited.Additionally,thecontentsofthisdocumentareprotectedby contractualconfidentialityobligations. Allcompany,brandandproductnamesaretradeorservicemarks,orregisteredtradeorservicemarks,ofZTE CORPORATIONoroftheirrespectiveowners. Thisdocumentisprovided“asis”,andallexpress,implied,orstatutorywarranties,representationsorconditions aredisclaimed,includingwithoutlimitationanyimpliedwarrantyofmerchantability,fitnessforaparticularpurpose, titleornon-infringement.ZTECORPORATIONanditslicensorsshallnotbeliablefordamagesresultingfromthe useoforrelianceontheinformationcontainedherein. ZTECORPORATIONoritslicensorsmayhavecurrentorpendingintellectualpropertyrightsorapplications coveringthesubjectmatterofthisdocument.ExceptasexpresslyprovidedinanywrittenlicensebetweenZTE CORPORATIONanditslicensee,theuserofthisdocumentshallnotacquireanylicensetothesubjectmatter herein. ZTECORPORATIONreservestherighttoupgradeormaketechnicalchangetothisproductwithoutfurthernotice. UsersmayvisitZTEtechnicalsupportwebsitehttp://ensupport.zte.com.cntoinquirerelatedinformation. TheultimaterighttointerpretthisproductresidesinZTECORPORATION. RevisionHistory Revision.RevisionDateRevisionReason R1.02012–11–26FirstEdition SerialNumber:SJ-20121126100147-001 PublishingDate:2012-11-26（R1.0） SJ-20121126100147-001|2012-11-26（R1.0）ZTEProprietaryandConfidential Contents Chapter1SafetyPrecautions....................................................................1-1 Chapter2ProductIntroduction................................................................2-1 2.1ProductIntroduction...........................................................................................2-1 2.2TypicalApplication..............................................................................................2-1 2.3IndicatorsStatusDescription............................................................................... 2-2 2.4InterfaceDescription...........................................................................................2-3 Chapter3ProductInstallation..................................................................3-1 3.1InstallationRequirements.................................................................................... 3-1 3.2HardwareInstallation.......................................................................................... 3-1 3.3ComputerConfiguration......................................................................................3-2 3.3.1CheckingComputerConfiguration.............................................................3-2 3.3.2SettingTCP/IP......................................................................................... 3-3 Chapter4ConfigurationPreparation.......................................................4-1 4.1DefaultSettings..................................................................................................4-1 4.2RequirementsBeforeConfiguration..................................................................... 4-1 4.3LoggingintotheSystem.................................................................................... 4-2 Chapter5DeviceStatus............................................................................ 5-1 5.1CheckingDeviceInformation............................................................................... 5-1 5.2CheckingInformationofNetworkInterfaces......................................................... 5-1 5.2.1CheckingEthernetInterfaceInformation.................................................... 5-1 5.2.2CheckingNetworkConnectionInformation.................................................5-2 5.3CheckingWLANInterfaceInformation.................................................................5-3 Chapter6NetworkConfiguration.............................................................6-1 6.1BroadbandConnectionConfiguration..................................................................6-1 6.1.1ConfiguringBroadbandConnection(FitAP)............................................... 6-1 6.1.2ConfiguringBroadbandConnection(FatAP)..............................................6-3 6.2WLANConfiguration...........................................................................................6-4 6.2.1SettingBasicInformation.......................................................................... 6-4 6.2.2ConfiguringSSID.....................................................................................6-9 6.2.3SettingSecurityInformation....................................................................6-10 6.2.4SettingRateLimits.................................................................................6-16 6.2.5SettinganAccessControlList................................................................. 6-17 6.2.6CheckingAssociatedDevices.................................................................6-18 I SJ-20121126100147-001|2012-11-26（R1.0）ZTEProprietaryandConfidential 6.2.7ScanninganAccessPoint......................................................................6-18 6.2.8ConfiguringWDS...................................................................................6-19 6.2.9ConfiguringSTAWMM...........................................................................6-20 6.2.10ConfiguringAPWMM........................................................................... 6-21 6.2.11SettingChannelAuto-Switch.................................................................6-22 6.2.12SettingWirelessMode........................................................................…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: ZTE Corporation Address: ZTE Plaza, Hi-tech Park, Nanshan District, City: Shenzhen, Guangdong Country: China Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dongguan Country: China is authorized to apply for Certification of the following product(s): Product description: Indoor Wireless AP Type designation: ZXV10 W812N V2 Trademark: ZTE on our behalf. Date: 2013-3-19 City: Shenzhen, Guangdong Name: Royce Wang Function: Product Certification Manager Signature: ¼¼¼¼¼¼¼¼¼¼. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-AUG-09 RF_501, Issue 5 Page 1 of 1 Company Name: ZTE Corporation Address: ZTE Plaza, Hi-tech Park, Nanshan District, City: Shenzhen, Guangdong Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: Q78- ZXW3512C Reference number: ZXV10 W812N V2 Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2013-03-19 Name and signature of applicant: Royce Wang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE-1-1202C182A Date of Issue: Mar. 18, 2013 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Indoor Wireless AP Model Name ZXV10 W812N V2 Brand Name ; ZTE Applicant ZTE Corporation Address ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen,Guangdong,P.R.China Measurement FCC Part 15, Subpart B:2011 Method ANSI C63.4-2009 The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE-1-1202C182A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

Neutron Engineering Inc. Project No.: 1202C182A Page 2 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 3 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 4 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 5 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 6 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 7 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 8 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 9 of 19

此图纸仅供打样

Neutron Engineering Inc. Project No.: 1202C182A Page 10 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 11 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 12 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 13 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 14 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 15 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 16 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 17 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 18 of 19 Neutron Engineering Inc. Project No.: 1202C182A Page 19 of 19

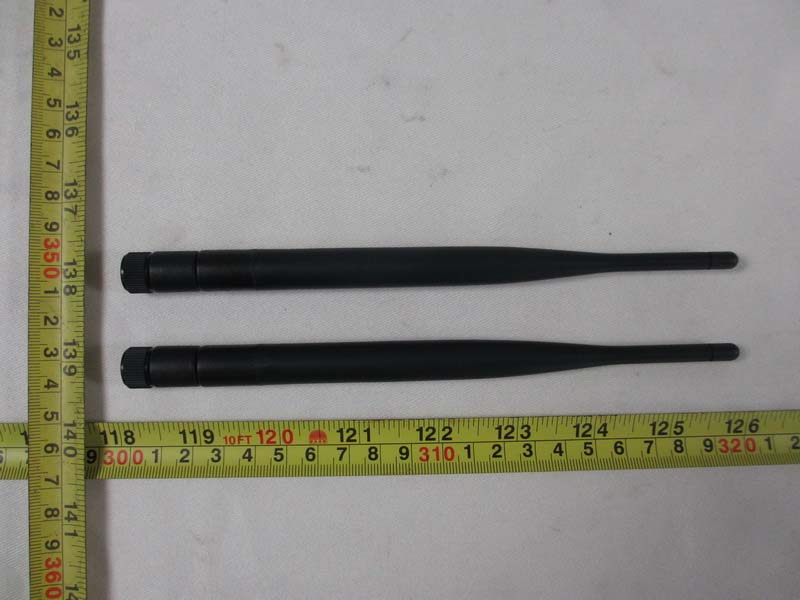

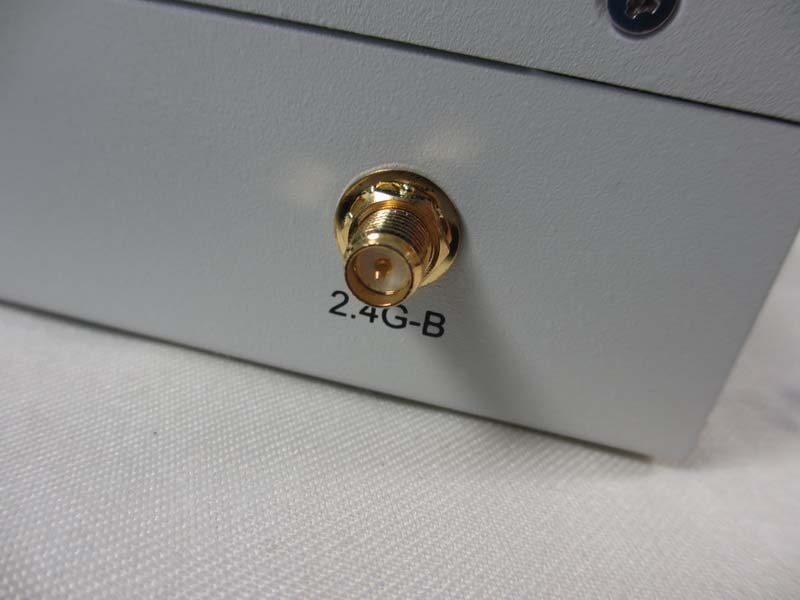

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: Q78-ZXW3512C Project No. : 1202C182A Equipment : Indoor Wireless AP Model : ZXV10 W812N V2 Applicant : ZTE Corporation Address : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 1 MAGLAYERS EDA-1713-2G4R2-A9Dipole R-SMA 5 2.4G 2 MAGLAYERS EDA-1713-2G4R2-A9Dipole R-SMA 5 2.4G Note: The antenna of EUT could be rotated, but the Antenna Polarity vertical is max. (2) The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R), all transmit signals are completely uncorrelated, then, Direction gain = GANT, that is Directional gain=5. Operating Mode TX Mode 2TX 802.11b V (ANT B & ANT A) 802.11g V (ANT B & ANT A) 802.11n(20MHz) V (ANT B & ANT A) 802.11n(40MHz) V (ANT B & ANT A) Neutron Engineering Inc. TEST RESULTS EUT： Indoor Wireless AP Model Name ： ZXV10 W812N V2 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 17.29 53.5797 0.033724881 Complies 5 3.1623 17.29 53.5797 0.033724881 Complies 5 3.1623 17.19 52.3600 0.032957201 Complies EUT： Indoor Wireless AP Model Name ： ZXV10 W812N V2 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 19.88 97.2747 0.061228041 Complies 5 3.1623 19.90 97.7237 0.061510661 Complies 5 3.1623 19.93 98.4011 0.061937031 Complies Neutron Engineering Inc. EUT： Indoor Wireless AP Model Name ： ZXV10 W812N V2 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 20.18 104.2317 0.065607031 Complies 5 3.1623 20.27 106.4143 0.066980811 Complies 5 3.1623 20.13 103.0386 0.064856031 Complies EUT： Indoor Wireless AP Model Name ： ZXV10 W812N V2 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 19.67 92.6830 0.058337841 Complies 5 3.1623 19.74 94.1890 0.059285761 Complies 5 3.1623 19.62 91.6220 0.057670061 Complies

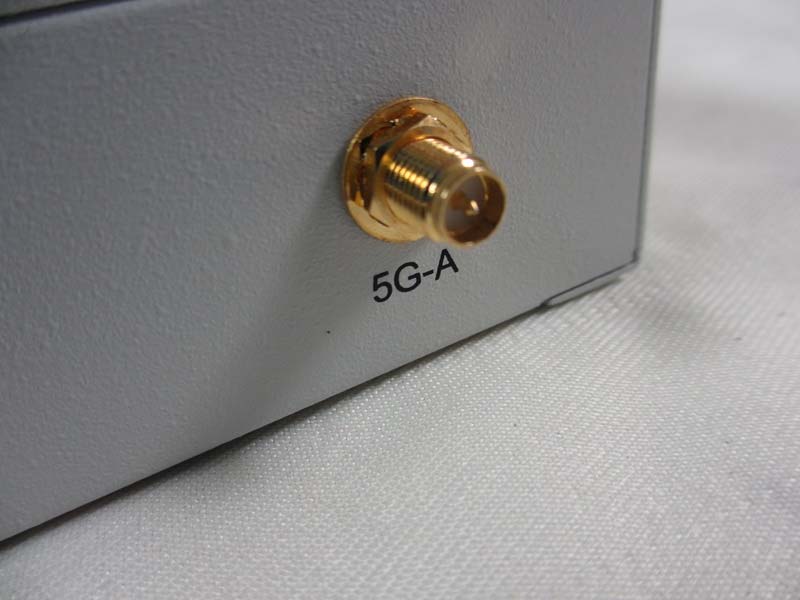

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: Q78-ZXW3512C Project No. : 1202C182A Equipment : Indoor Wireless AP Model : ZXV10 W812N V2 Applicant : ZTE Corporation Address : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note A MAGLAYERS EDA-1513-5G0R2-A1Dipole R-SMA 3 5G B MAGLAYERS EDA-1513-5G0R2-A1Dipole R-SMA 3 5G Note: The antenna of EUT could be rotated, but the Antenna Polarity vertical is max. (2) The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R), all transmit signals are completely uncorrelated, then, Direction gain = GANT, that is Directional gain=3. Operating Mode TX Mode 2TX 802.11a - 802.11n(20MHz) V (ANT A & ANT B) 802.11n(40MHz) V (ANT A & ANT B) Neutron Engineering Inc. TEST RESULTS EUT： Indoor Wireless AP Model Name ： ZXV10 W812N V2 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/ TX A Mode /CH149, CH157, CH165 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 26.48 444.6313 0.176583601 Complies 3 1.9953 26.44 440.5549 0.174964671 Complies 3 1.9953 26.38 434.5102 0.172564071 Complies EUT： Indoor Wireless AP Model Name ： ZXV10 W812N V2 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/ TX N20 Mode /CH149, CH157, CH165 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 27.35 543.2503 0.215749781 Complies 3 1.9953 27.44 554.6257 0.220267471 Complies 3 1.9953 27.48 559.7576 0.222305581 Complies EUT： Indoor Wireless AP Model Name ： ZXV10 W812N V2 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/ TX N40 Mode /CH151, CH159 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 26.88 487.5285 0.193620071 Complies 3 1.9953 26.92 492.0395 0.195411611 Complies

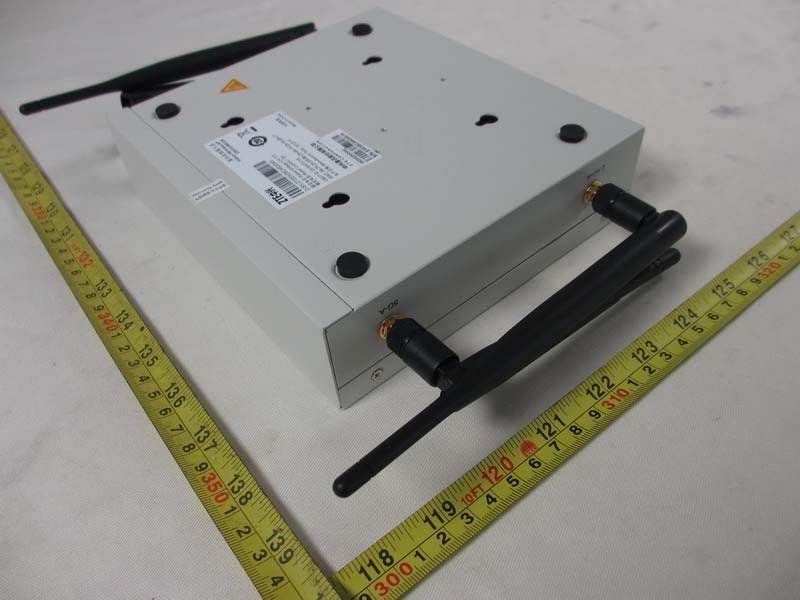

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C182A Page 1 of 160 FCC Radio Test Report FCC ID: Q78-ZXW3512C This report concerns (check one) : Original Grant Class II Change Issued Date : Mar. 18, 2013 Project No. : 1202C182A Equipment : Indoor Wireless AP Model Name : ZXV10 W812N V2 Applicant : ZTE Corporation Address : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China Manufacturer : ZTE Corporation Address : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 29, 2012 Date of Test: Nov. 29, 2012 ~ Mar. 15, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C182A Page 2 of 160 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C182A Page 3 of 160 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 20 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 27 5 . BANDWIDTH TEST 75 5.1 APPLIED PROCEDURES / LIMIT 75 5.1.1 MEASUREMENT INSTRUMENTS LIST 75 5.1.2 TEST PROCEDURE 75 5.1.3 DEVIATION FROM STANDARD 75 5.1.4 TEST SETUP 75 5.1.5 EUT OPERATION CONDITIONS 75 5.1.6 TEST RESULTS 76 6 . MAXIMUM OUTPUT POWER TEST 92 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C182A Page 4 of 160 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 92 6.1.1 MEASUREMENT INSTRUMENTS LIST 92 6.1.2 TEST PROCEDURE 92 6.1.3 DEVIATION FROM STANDARD 92 6.1.4 TEST SETUP 92 6.1.5 EUT OPERATION CONDITIONS 92 6.1.6 TEST RESULTS 93 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 97 7.1 APPLIED PROCEDURES / LIMIT 97 7.1.1 MEASUREMENT INSTRUMENTS LIST 97 7.1.2 TEST PROCEDURE 97 7.1.3 DEVIATION FROM STANDARD 97 7.1.4 TEST SETUP 97 7.1.5 EUT OPERATION CONDITIONS 97 7.1.6 TEST RESULTS 98 8 . POWER SPECTRAL DENSITY TEST 138 8.1 APPLIED PROCEDURES / LIMIT 138 8.1.1 MEASUREMENT INSTRUMENTS LIST 138 8.1.2 TEST PROCEDURE 138 8.1.3 DEVIATION FROM STANDARD 138 8.1.4 TEST SETUP 138 8.1.5 EUT OPERATION CONDITIONS 138 8.1.6 TEST RESULTS 139 9 . EUT TEST PHOTO 159 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C182A Page 5 of 160 1. CERTIFICATION Equipment : Indoor Wireless AP Brand Name : ; ZTE Model Name : ZXV10 W812N V2 Applicant : ZTE Corporation Factory : ZTE Corporation Address : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China Date of Test : Nov. 29, 2012 ~ Mar. 15, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1202C182A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included in this report is only for the 802.11b/g/n20/n40 MHz part of the product. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C182A Page 6 of 160 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-2-1202C182A Page 1 of 118 D FCC Radio Test Report FCC ID: Q78-ZXW3512C This report concerns (check one): Original Grant Class I Change Issued Date : Mar. 18, 2013 Project No. : 1202C182A Equipment : Indoor Wireless AP Model Name : ZXV10 W812N V2 Applicant : ZTE Corporation Address : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China Manufacturer : ZTE Corporation Address : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 29, 2012 Date of Test: Nov. 29, 2012 ~ Mar. 15, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1202C182A Page 2 of 118 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1202C182A Page 3 of 118 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 20 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 27 5 . BANDWIDTH TEST 59 5.1 APPLIED PROCEDURES / LIMIT 59 5.1.1 MEASUREMENT INSTRUMENTS LIST 59 5.1.2 TEST PROCEDURE 59 5.1.3 DEVIATION FROM STANDARD 59 5.1.4 TEST SETUP 59 5.1.5 EUT OPERATION CONDITIONS 59 5.1.6 TEST RESULTS 60 6 . MAXIMUM OUTPUT POWER TEST 72 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1202C182A Page 4 of 118 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 72 6.1.1 MEASUREMENT INSTRUMENTS LIST 72 6.1.2 TEST PROCEDURE 72 6.1.3 DEVIATION FROM STANDARD 72 6.1.4 TEST SETUP 72 6.1.5 EUT OPERATION CONDITIONS 72 6.1.6 TEST RESULTS 73 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 76 7.1 APPLIED PROCEDURES / LIMIT 76 7.1.1 MEASUREMENT INSTRUMENTS LIST 76 7.1.2 TEST PROCEDURE 76 7.1.3 DEVIATION FROM STANDARD 76 7.1.4 TEST SETUP 76 7.1.5 EUT OPERATION CONDITIONS 76 7.1.6 TEST RESULTS 77 8 . POWER SPECTRAL DENSITY TEST 105 8.1 APPLIED PROCEDURES / LIMIT 105 8.1.1 MEASUREMENT INSTRUMENTS LIST 105 8.1.2 TEST PROCEDURE 105 8.1.3 DEVIATION FROM STANDARD 105 8.1.4 TEST SETUP 105 8.1.5 EUT OPERATION CONDITIONS 105 8.1.6 TEST RESULTS 106 9 . EUT TEST PHOTO 117 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1202C182A Page 5 of 118 1. CERTIFICATION Equipment : Indoor Wireless AP; Brand Name : ;ZTE Model Name : ZXV10 W812N V2 Applicant : ZTE Corporation Factory : ZTE Corporation Address : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China Date of Test : Nov. 29, 2012 ~ Mar. 15, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-2-1202C182A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included in this report is only for the 5745~5825MHz part of the product. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1202C182A Page 6 of 118 2. SUMMARY OF TEST RESULTS FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (d) Antenna conducted Spurious EmissionPASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (e) P…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C182A Page 159 of 160 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C182A Page 160 of 160 Radiated Measurement Photos
