Q78AD8000Mobile Internet Device

1 Precautions z Do not subject the device to severe impact or drop it from high position. z Do not use the player in extreme hot or cold, dusty or damp field. Do not expose it to direct sunshine. z Excessive sound pressure from earphones and headphones can cause hearing loss. z Avoid using the player in strong magnetic field. z Keep the device away from water or other liquids. In the event that water or other liquids enter the device, power off the product immediately, and clean the device. z Do not use chemical solution to clean the device in order to avoid corrosion. Clean it with a dry cloth. z We are not responsible for the damages or lost data caused by malfunction, misusing, repairing the device or battery replacement. z Do not attempt to disassemble, repair or modify the product. This will invalidate guarantee. z When not using the device for an extended period of time, please charge the battery at least once per month to extend the battery life. z Do not use the device in extremely hot, cold, dusty or damp environments. z Avoid dropping or striking the unit .This may cause external and internal physical damage to the player. z Charge the battery if: a) The battery level icon displays (An empty battery) b) The device powers off automatically and off again when restarted. c) No response when pressing keys with keys unlocked and battery installed. z To prevent damage from static shock, never use the device in very dry conditions. z When the device is being formatted or transferring a file, do not interrupt the connection. Otherwise, data may be corrupt of lost. z When the device is used as a portable HD, please use only per instructions. Otherwise, permanent data loss could occur. z This manual may not reflect the actual device’s operation since it is subject to change without prior notification. Please comply with your actual device’s operations always. 2 Table of Content Introduction.......................................................................................................... 3 Feature Summary................................................................................................ 3 Package Content ................................................................................................. 3 Buttons & Ports.................................................................................................... 3 Charging Battery.................................................................................................. 4 Installing Memory card ........................................................................................ 4 Transferring Files................................................................................................. 5 Turning On/Off ..................................................................................................... 5 Home Screen....................................................................................................... 6 Using the Touch Screen ...................................................................................... 8 Using the Virtual Keyboard.................................................................................. 9 Access Internet.................................................................................................... 9 Playing Music .................................................................................................... 12 Playing Video..................................................................................................... 16 Viewing Photos.................................................................................................. 17 Using the Camcorder......................................................................................... 18 Using the Camera.............................................................................................. 19 File Explorer ...................................................................................................... 19 E-mail ................................................................................................................ 20 Manage Applications ......................................................................................... 22 System Settings................................................................................................. 23 Troubleshooting ................................................................................................. 24 Specifications .................................................................................................... 25 Listening Cautions ............................................................................................. 27 3 Introduction MID is a mobile device that gives you an amazing Internet experience -- allowing you to communicate with others, enjoy your favorite entertainment, and access information on the Internet at anytime and anywhere. This latest generation of small, powerful, highly portable Internet-connected devices combines many great capabilities with the convenience of a pocket-sized solution for your life on-the-go. Feature Summary z Built-in Android Operating System With the built-in Android OS, your MID supports most of popular applications. You can install or uninstall applications such as MSN, YouTube, g-email etc. on your MID. z Wi-Fi / 3G Connectivity With the latest Wi-Fi and 3G technology, your MID can connect you to the Internet wherever you are. z 7-inch Touch Screen Touch or slide your finger in the screen, the screen responds instantly. z Entertainment Allows you to enjoy music, movie or pictures any time and any where. Package Content z Main Unit z Stereo earphones z USB cable Buttons & Ports Front View z AC Adaptor z User Manual z Warranty Card a b c d e f a. LCD Display b. Camera Lens c. Home: Go to the Home Screen. d. Menu: Display an overlay menu. e. SCROLL button: roll in all ways to make selection; press to confirm selection. f. ESC: Return 4 Top View Bo…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of DIAGRAM V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A3 17 Monday, September 06, 2010 TitleSize Document Number Rev Date: Sheet of DIAGRAM V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A3 17 Monday, September 06, 2010 TitleSize Document Number Rev Date: Sheet of DIAGRAM V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A3 17 Monday, September 06, 2010 RK2818 DDRII 64x16 DDRII 64x16 NAND FLASH 7.0' LCD PANAL 3G Audio CODEC HDMI WiFi Touch_Screen POWER Camera SWL-2480 WM8988 Power AMP. PT5326 ANX71500 CS7146 PAO1001 CORE 1.3VVCCIO 3.1VDDR 1.8VAVCC 3.3VWIFI 1.8VWIFI 3.3V 3G 3.3VUSB HOST 5.0V LED DRIVERAVDD 10VVGH & VGL USB OTG TF CARD 800*480 24bit RGB 24MHz

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 ZTE Corporation. 2010-10-20 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZTE Corporation. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Mobile Internet Device, AD8000) We affirm that between SIEMIC and ZTE Corporation. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Royce Wang / Product Certification Manager E-mail: : [email protected] Phone: 0086-755-26770345 Fax: 0086-755-26770347 Address : ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0

Date: 2010-10-20 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: Q78-AD8000 To Whom It May Concern: This letter is to ascertain that ZTE Corporation. Tablet has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Signature Royce Wang / Product Certification Manager E-mail: : [email protected] Phone: 0086-755-26770345 Fax: 0086-755-26770347 Address : ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China

FCC ID Label FCC ID: Q78-AD8000 Model Number: AD8000 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Label Location Proposed Label Location on EUT

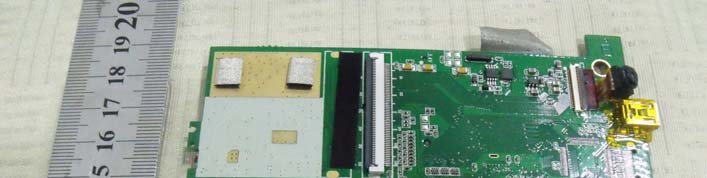

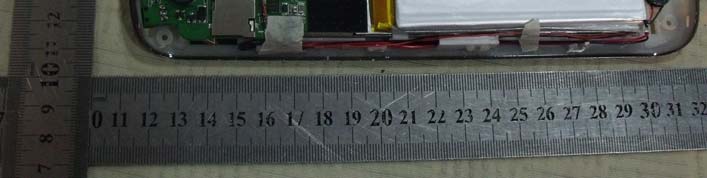

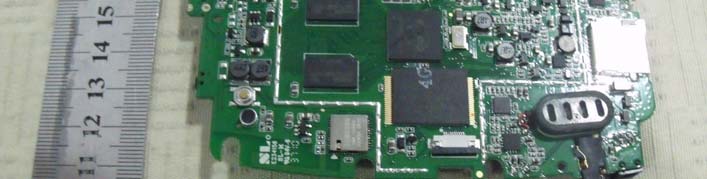

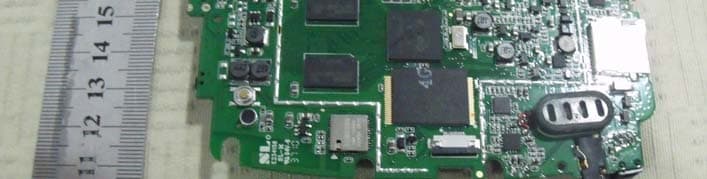

Internal of EUT WIFI Module Antenna Module

Product Diagram Information 1． Product function introduce AD8000 is a Mobile Internet Device device with touch screen. It has function of visiting internet with WiFi, playing audio and video in NAND flash or TF card, audio recorder, alarm clock, calendar, real-time clock and so on. 2． Structure 2.1 Structure Introduce The system is consist of SOC（Rockchip RK2818），one piece of NAND Flash, two pieces of DDR2, 7” TFT panel(HSD HSD070IDW1-A), WiFi module(Samsung SWL2480), TF socket and some power conversions IC. 2.2 Description When you stir the switch of power to the left and stick about 3 seconds, the system is powered on. When you choose any icon in the GUI of Android using your finger or others, RK2818 first judge what happened and then give it to the ARM or DSP in the core of RK2818 proceeding. 2.3 Power It can use adaptor of 5V*2A when the system display the battery remain a little of power or exhaust.

(2010-10-22) Re: RF Exposure Attestation for Mobile Internet Device- Model Number AD8000 /FCC ID: Q78-AD8000 Gentlemen: On behalf of ZTE Corporation we attest that above mentioned device complies with the RF exposure requirements as mandated by 47 CFR Part 15.247 and OET Bulletin 65. The maximum source-based time-averaged output power was directly measured with a power meter on the, normally not accessible, antenna port of the device. To find the maximum power level all different modulation modes(802.11b,802.11g) have been tested on the lowest, middle and highest frequency. The maximum measured source-based time-averaged output power was +12.94dBm (19.76mW). Due to the fact that the maximum source-based time-averaged output power level is lower than 20mW, no SAR measurement has to be executed, Sincerely, Signature Royce Wang / Product Certification Manager E-mail: : [email protected] Phone: 0086-755-26770345 Fax: 0086-755-26770347 Address : ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of DIAGRAM V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A3 17 Monday, September 06, 2010 TitleSize Document Number Rev Date: Sheet of DIAGRAM V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A3 17 Monday, September 06, 2010 TitleSize Document Number Rev Date: Sheet of DIAGRAM V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A3 17 Monday, September 06, 2010 RK2818 DDRII 64x16 DDRII 64x16 NAND FLASH 7.0' LCD PANAL 3G Audio CODEC HDMI WiFi Touch_Screen POWER Camera SWL-2480 WM8988 Power AMP. PT5326 ANX71500 CS7146 PAO1001 CORE 1.3VVCCIO 3.1VDDR 1.8VAVCC 3.3VWIFI 1.8VWIFI 3.3V 3G 3.3VUSB HOST 5.0V LED DRIVERAVDD 10VVGH & VGL USB OTG TF CARD 55 44 33 22 11 D D C C B B A A TR_SW_N TR_SW_N WIFI_CLK WIFI_D2 1V8OUT GNDCMDATA2CMDATA5 CMCLK CMDATA1 SENSOR_PWDN CMDATA6C_AVDD CMPCLK CMDATA3 SENSOR_RST 1V8OUTC_DOVDDCMVREFCMDATA0 GND 2V8OUT 2V8OUT I2C1_SDA I2C1_SCL CMHREF CMDATA4 CMDATA7 WIFI_D3 WIFI_D1 WIFI_CMD WIFI_D0 UART1_RXUART1_TX USB11_DMUSB11_DP TOUCH_SCREEN_INT KEY1OUTDC5V_DETBAT_DET SPK_CTL VBUS_DET USB_DM OTG_DRVVBUS LED_PWM0 PLAY_ON_IDLEI2C1_SDAI2C1_SCL USB_DP NPOR SENSOR_PWDN GSENSOR_INTCMDATA6CMDATA5CMDATA4CMDATA3CMDATA2CMDATA1CMDATA0 RECOVER CMCLKCMPCLKCMHREFCMVREFPWM3LCD_BL_ENPWR_ONCMDATA7 UART1_TX UART1_RX BAT_DETDC5V_DETKEY1OUT PLAY_ON_IDLEPLAY_ON_IDLEPLAY_ON_IDLE JOG_RIGHTJOG_LEFTJOG_DOWNJOG_UPWAKEUP_INTKEY-LEDCHG_OK NPOR C_AVDD 2V8OUT C_DOVDD W18 W18 W12 W18 W33 W33 W18 W18W33W33 W18 W18 W33 W33 VCCIO W33 VB VB VDD12 VCCIO VDD12 VCCIO USBV25 AVCC VCCIO VCCDR VCCIO VDD12 VDD12 USBV25 VCCIO VCCIO VDD12 VDD12VCCIO VCCIO VDD12 VCCIO VCCIO WIFI_CMD 5 WIFI_RST 7 WIFI_D1 5 WIFI_D2 5 WIFI_D3 5 WIFI_PWN 7 WIFI_CLK 5 WIFI_D0 5 SENSOR_PWDN PWR_EN1 6 I2C1_SCL 4,5,7 I2C1_SDA 4,5,7 PLAY_ON_IDLE LED_PWM0 SPK_CTL TOUCH_SCREEN_INT VBUS_DET USB11_DP OTG_DRVVBUS USB11_DM I2C1_SCLI2C1_SDA USB_DP USB_DM USB_ID LCD_BL_EN PWR_ON RECOVER GSENSOR_INT PWM3 DC5V_DET KEY1OUTBAT_DET 6 PLAY_ON 6 CHG_OK 6 JOG_UP 4,7 JOG_LEFT 4,7 JOG_DOWN 4,7 JOG_RIGHT 4,7 WAKEUP_INT KEY-LED 6 TitleSize Document Number Rev Date: Sheet of SENSOR &WIFI V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A2 27 Monday, September 06, 2010 TitleSize Document Number Rev Date: Sheet of SENSOR &WIFI V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A2 27 Monday, September 06, 2010 TitleSize Document Number Rev Date: Sheet of SENSOR &WIFI V1.0 M7U SHENZHEN YIFANG DIGITAL TECHNOLOGY CO.,LTD. A2 27 Monday, September 06, 2010 50 ohm trace WIFI WIFI Power Using internal Reg:46pin pull down.Using external Reg:46pin floating Core1.2V Using internal Reg Sensor RK2808 IO ASSIGMENT RK2808 POWER PINS Uart1 调试 晶振负载电容要与实际采用的匹配 RESET 2.63V 复位阀门电压： Sensor Power C163 18P C163 18P L2NCL2NC R206 10K R206 10K R17 4K7 R17 4K7 GND 1 /Reset 2 Vcc 3 U11 MAX809RD U11 MAX809RD C26103C26103 R8 4.7K R8 4.7K R7 NC R7 NC R110 4.7K R110 4.7K C34105C34105 C266 106 C266 106 C13 103 C13 103 C40106C40106 C23105C23105 R133KR133K VDDCORE J5 VDDCORE K5 VDDCORE G7 VDDCORE G8 VDDCORE J10 VDDCORE K10 VDDCORE M7 VCCIO G9 VCCIO H10 VCCIO H11 VCCIO J11 VCC_LCD_1 F10 VCC_LCD_2 E7 VCC_NAND R9 MEM_VDDQ0 F6 MEM_VDDQ2 J4 MEM_VDDQ1 H5 MEM_VDDQ3 N5 MEM_VDDQ5 P8 GND L6 GND L9 GND L8 GND L7 GND K6 GND K9 GND K8 GND K7 GND J6 GND J9 GND J8 MEM_VSSQ5 N6 MEM_VSSQ4 M6 MEM_VSSQ0 E5 MEM_VSSQ1 G6 MEM_VSSQ2 K4 MEM_VSSQ3 M5 VDDA_DSPPLL F18 VDDA_ARMPLL E18 VDDA_CODECPLL D18 VSSA_DSPPLL F17 VSSA_ARMPLL E17 VSSA_CODECPLL D17 USBPHY_DVDD R11 USBPHY_AVDD25 T11 USBPHY_AVDD33 T12 VDDA_SARADC R13 RTC_AVDD A17 USBPHY_DVSS P11 USBPHY_AVSS1 N11 USBPHY_AVSS0 V12 MEM_VDDQ4 P5 VSSA_SARADC V14 RTC_DVDD33 A16 VCC_VIP_1 B18 VCC_VIP_2 C12 VCCIO K11 VCCIO L10 GND J7 GND H7 GND H8 GND H9 GND H6 VDDCORE M8 USB11_DVDD A14 USB11_DVSS B14 U1A RK2818 U1A RK2818 R20744.2R20744.2 R23 10K R23 10K C36104C36104 C29105C29105 R41 47R R41 47R 1 2 C28106C28106 C204103C204103 C41103C41103 HSAD_I_D0 H18 HSAD_I_D1 H16 HSAD_I_D2 J18 HSAD_I_D3 J16 HSAD_I_D4 L18 HSAD_I_D5 J14 HSAD_I_D6 L16 HSAD_I_D7 K15 HSADC_I_D8 M13 HSADC_I_D9 K16 GPS_CLK/HSAD_CLK L14 VIP_DIN7 D12 VIP_DIN6 B12 VIP_DIN5 E12 VIP_DIN4 D13 VIP_DIN3 E11 VIP_DIN2 E13 VIP_DIN1 F11 VIP_DIN0 F12 PF6/VIP_CLKOUT B13 VIP_CLKI A18 VIP_HREF G12 VIP_VSYNC C13 HOST_ADDR1 F16 HOST_ADDR0 F14 HOST_WRN P18 HOST_RDN K13 HOST_CSN L17 AP2BB_INT E16 HSADC_Q_D7/HOST_D15 K12 HSADC_Q_D6/HOST_D14 M17 HSADC_Q_D5/HOST_D13 J17 HSADC_Q_D4/HOST_D12 J15 HSADC_Q_D3/HOST_D11 K18 HSADC_Q_D2/HOST_D10 J13 HSADC_Q_D1/HOST_D9 H17 HSADC_Q_D0/HOST_D8 J12 HOST_D7 F15 HOST_D6 E15 HOST_D5 H12 HOST_D4 D16 HOST_D3 G13 HOST_D2 E14 HOST_D1 F13 HOST_D0 D15 PA1/HOST_D17 N17 PA0/HOST_D16 M14 HSADC_Q_D8/SM_WEN K17 PE0/VIP_LD0 C16 PF5/PWM3/VIP_LD1 C15 PH6/VIP_LD2 D14 PH7/VIP_LD3 C14 HSADC_Q_D9/SM_OEN K14 U1E RK2818 U1E RK2818 P1 PAD PAD120 P1 PAD PAD120 C32105C32105 C22104C22104 L39600R/100ML39600R/100M R15 4K7 R15 4K7 R2114.7KR2114.7K C49 105 C49 105 D221N4148D221N4148 C16 18P C16 18P C95103C95103 1 2 C37104C37104 C10 106 C10 106 P2 PAD PAD120 P2 PAD PAD120 C24103C24103 R18 100K R18 100K C15 18P C15 18P C42103C42103 C14 103 C14 103 L40600R/100ML40600R/100M P15 PAD P15 PAD 1 1 2 2 3 3 4 4 Reset SW1Reset SW1 R2124.7KR2124.7K C27103C27103 C20 106 C20 106 PWR_GOOD B17 RTCINT_OUT B16 XIN32K C17 XOUT32K C18 VBUS R12 ID P12 RKELVIN U12 OTG_DRVVBUS T15 DP U11 DM V11 XIN24M N18 XOUT24M M18 NPOR G15 TEST G18 EXTCLK H13 BTMODE H15 OPMODE0 E9 OPMODE1 C10 EWAKEUP_POWER H14 EWAKEUP_STOP G17 VGATE_EFUSE U14 FSOURCE_EFUSE T14 TCK B10 TRST_N E10 TDI C11 TMS D10 TDO A10 RTCK D9 PF1/UART1_TX/CX_T1_PWM M15 PF0/UART1_RX/CX_T0_PWM L13 I2C0_SDA/PE4 R15 I2C0_SCL/PE5 P13 PWM0/PF2 G11 PE3/SPI_RXD/FLASH_CS6 N7 PF7/SPI_TXD/FLASH_CS7 R8 PE2/SPI_SSIN/FLASH_CS5 N8 PE1/SPI_CLKI/FLASH_CS4 P6 PE6/UART1_SIR_IN/I2C1_SDA L12 PE7/UART1_SIR_OUT/I2C1_SCL R18 PB2/UART0_CTS T18 PB3/UART0_RTS L15 USB11_DM A15 USB11_DP B15 PA2 A12 PA3 A11 SARADC_AIN0 T13 SARADC_AIN1 U13 SARADC_AIN2 V13 U1D RK2818 U1D RK2818 IN 1 GND 2 SHDN 3 BP 4 FB/OUT 5 U6RT9167-33PBSOT23-5U6RT9167-33PBSOT…

Text truncated - open the document above for the full version.

SHENZHEN EMTEK CO., LTD. REPORT NO: ES100927128F FCC ID: Q78-AD8000 DATE: 10/18/2010 Page 1 of 51 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Mobile Internet Device MODEL No.: AD8000 FCC ID: Q78-AD8000 REPORT NO: ES100927128F ISSUE DATE: October 18, 2010 Prepared for ZTE Corporation ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nan0shan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES100927128F FCC ID: Q78-AD8000 DATE: 10/18/2010 Page 2 of 51 VERIFICATION OF COMPLIANCE Applicant: ZTE Corporation ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Manufacturer: ZTE Corporation ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Product Description: Mobile Internet Device Brand Name: ZTE Model Number: AD8000 Serial Number: N/A File Number: ES100927128F Date of Test: 10/10/2010 to October 15, 2010 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By David Lee / Q.A. Manager SHENZHEN EMTEK CO., LTD. SHENZHEN EMTEK CO., LTD. REPORT NO: ES100927128F FCC ID: Q78-AD8000 DATE: 10/18/2010 Page 3 of 51 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ........................................................................................................... 5 1.1 PRODUCT DESCRIPTION................................................................................................................................5 1.2 RELATED SUBMITTAL(S) / GRANT (S) .......................................................................................................... 5 1.3 TEST METHODOLOGY................................................................................................................................... 5 1.4 SPECIAL ACCESSORIES................................................................................................................................. 6 1.5 EQUIPMENT MODIFICATIONS....................................................................................................................... 6 1.6 TEST FACILITY............................................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION .............................................................................................. 7 2.1 EUT CONFIGURATION.................................................................................................................................. 7 2.2 EUT EXERCISE............................................................................................................................................. 7 2.3 TEST PROCEDURE......................................................................................................................................... 7 2.4 CONFIGURATION OF TESTED SYSTEM.......................................................................................................... 7 3. DESCRIPTION OF TEST MODES................................................................................................. 9 4. CONDUCTED EMISSIONS TEST ............................................................................................... 10 4.1 MEASUREMENT PROCEDURE:..................................................................................................................... 10 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................................ 10 4.3 MEASUREMENT EQUIPMENT USED: ........................................................................................................... 10 4.4 CONDUCTED EMISSION LIMIT.................................................................................................................... 10 4.5 MEASUREMENT RESULT:............................................................................................................................ 11 4.6 CONDUCTED MEASUREMENT PHOTOS: ...................................................................................................... 12 5. RADIATED EMISSION TEST ...................................................................................................... 13 5.1 MEASUREMENT PROCEDURE...................................................................................................................... 13 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................................ 13 5.3 MEASUREMENT EQUIPMENT USED: ........................................................................................................... 14 5.4 RADIATED EMISSION LIMIT......................................................................................................................... 14 5.5 MEASUREMENT RESULT............................................................................................................................. 15 5.6 RADIATED MEASUREMENT PHOTOS: ......................................................................................................... 27 6. OCCUPIED BANDWIDTH TEST................................................................................................. 28 6.1 MEASUREMENT PROCEDURE.......................................................................…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST CONDUCTED EMISSION TEST
