Q7M-IGPS-BTIIBluetooth GPS

iGPS-BT II User Manual 1 FCC Notices This device complies with Part 15(b and c) of the FCC Rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Class B FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. • FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter. CE Notices This device has been tested and found to comply with CE marking according to the R&TTE Directive, 99/5/EEC. The test standards are listed below: CE/LVD EN60950: 1992+A1+A2+A3+A4+A11 CE/EMC EN301 489-17 V 1.1.1: 09-2000 EN301 489-1 V 1.3.1: 09-2001 Radio Spectrum EN300 328-1 V 1.3.1: 12-2001 EN300 328-2 V 1.2.1: 12-2001 2 I. iGPS-500 Receiver and Bluetooth Dock DC Jack - Plug either the Car charger or 5V AC adapter for your PDA into the DC Jack to charge the battery. Refer to III. Battery charging instructions. - iGPS-BT II will need to be charged for approximately 3 hours before initial use. On/Off Switch - Turns the iGPS-BT II on or off. Blue LED’s will light up when powered. Bluetooth Status Indicator (Internal Blue LED) - Blinking: Searching for Bluetooth signal. - Steady: Bluetooth communication established, ready to use. Battery charging Indicator (Orange/Green LED) - Orange: Battery is being charged. - Green: Battery is fully charged. On/Off Switch DC Jack for charging Bluetooth Status Indicator (Internal Blue LED) iGPS-500 Receiver iGPS-BT II Dock Battery charging indicator (Orange/Green LED) 3 II. iGPS-BT II Setup (see walkthrough guides at the end of this section) 1. The iGPS-BT II will need to be charged for two to three hours before initial use. 2. Turn on the iGPS-BT II. The status indicator will blink as it searches for a Bluetooth connection. 3. Launch the Bluetooth configuration software on your mobile device. (This should be provided by the manufacturer of your Bluetooth device) 4. Have the Bluetooth configuration software search for any Bluetooth devices present. It should detect the iGPS-BT II and list it as an available device (a “Pharos iGPS-BT II” icon should be displayed). 5. Select the “Pharos iGPS-BT II” device. Depending on your Bluetooth software, this should bring up a screen that will ask for a PIN Code or Security PIN. Enter the following PIN code: IMPORTANT PIN Code: 12345678 (Please memorize this code for future use) 6. After the PIN number is entered, a connection between your mobile device and the iGPS-BT II should be established. The blue LED on the iGPS-BT II II dock will change from blinking to a steady glow. 7. Once a connection is established, check the properties of the iGPS-BT II in the Bluetooth configuration software and make a note as to which number COM port is assigned to it. The navigation software that will be used will require this COM port number. Or check the COM port setting for your Pocket PC in the Quick Start Guide . For more information regarding the iGPS-BT II setup, please visit our Support Æ Product Support Æ Bluetooth Setup page at www.pharosgps.com . Hints & Tips • GPS receiver must have a direct view to the sky. GPS receiver does not work well indoors. • If possible, make sure the GPS is stationary when getting the initial satellite position lock. Allow 1-2 minutes at initial start-up for the GPS receiver to acquire a satellite lock for tracking. • Make sure that the communication (COM) port is configured correctly in the navigation software being used to ensure proper functioning of the GPS system. 4 Walkthrough Guides 1. iGPS-BT II Setup for Pocket PCs with built-in Bluetooth Technology running the Windows Mobile Pocket PC OS (the following screen shots show the device as “Pharos iGPS-BT”, it may be shown as “Pharos BT GPS II” on your Pocket PC.) Steps 1 – 10: How to Pair the iGPS-BT II with your Pocket PC’s Bluetooth Manager Steps 11 – 15: Establishing a Bluetooth Connection using Ostia 1. Make sure that the iGPS-BT II is turned on (the blue light will be flashing). Tap the Bluetooth icon in the lower right-hand corner and select “Bluetooth Manager” 2. To create a shortcut, tap on “ New ”, “Connect” (For some devices, you may not need to select “Connect” before proceeding to the next step) 3. Select “ Explore a Bluetooth device ”, and tap on “Next” 4. To create the connection to the Pharos iGPS-BT, select: “Ta p here to choose a 5 device” 6 5. Provided that your iGPS-BT II is turned on and fully charged, it will be discovered. Tap on the “Pharos iGPS-BT II” icon to select it 6. …

Text truncated - open the document above for the full version.

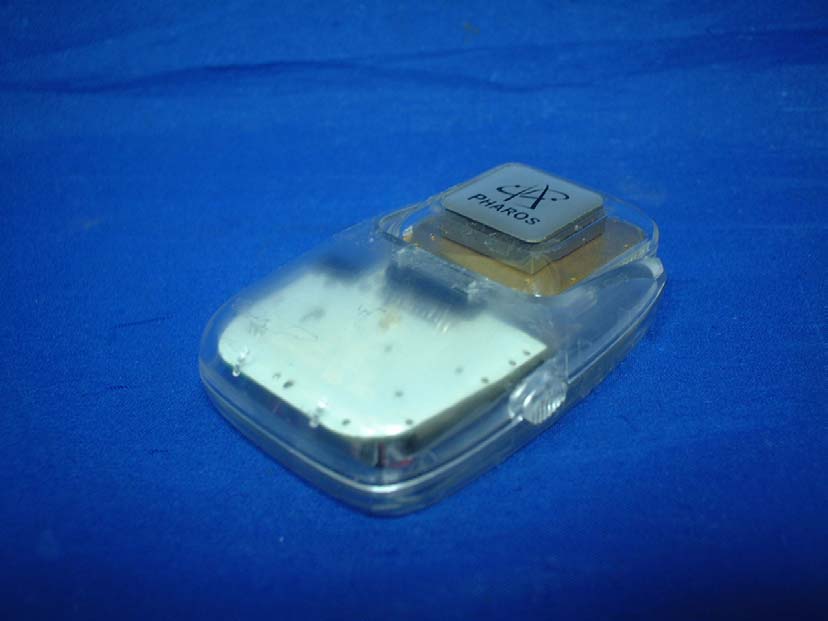

Report No.: 065L117-RF-US-P06V01 Page : 1 of 10 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Pharos Science & Applications, Inc. FCC ID.: Q7M-IGPS-BTII 411 Amapola Avenue, Torrance, CA90501, U.S.A. . Tel : +310-212-7088 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 065L117-RF-US-P06V01 Page : 2 of 10 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 065L117-RF-US-P06V01 Page : 3 of 10 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 065L117-RF-US-P06V01 Page : 4 of 10 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 065L117-RF-US-P06V01 Page : 5 of 10 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 065L117-RF-US-P06V01 Page : 6 of 10 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 065L117-RF-US-P06V01 Page : 7 of 10 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 065L117-RF-US-P06V01 Page : 8 of 10 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 065L117-RF-US-P06V01 Page : 9 of 10 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 065L117-RF-US-P06V01 Page : 10 of 10 Version:1.0 (19) EUT Photo

Report No. 065L117-RF-US-P06V01 Page: 7 of 43 Version:1.0 1.2. Operational Description The EUT is a Bluetooth GPS with a built-in 2.4GHz transceiver. The signals are modulated by frequency hopping spread spectrum technology over 79 channels. This device provides wireless technology that revolutionizes personal connectivity. It is the solution for the seamless integration of Bluetooth technology into personal computer enabling short-range wireless connections between desktop/laptop computers, Bluetooth-enabled peripherals, and portable handheld devices.

Report No. 065L117-RF-US-P06V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Bluetooth GPS Model No. : iGPS-BT II FCC ID Q7M-IGPS-BTII Applicant : Pharos Science & Applications, Inc. Address : No. 69, Li-De St., Jung-He City, Taipei Hsien, Taiwan, R.O.C. Date of Receipt : May 18, 2006 Date of Declaration: June 06, 2006 Report No. : 065L117-RF-US-P06V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 065L117-RF-US-P06V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 065L117-RF-US-P06V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation The maximum RF power of the EUT is 1.786mW (2.52dBm). It is below the limit 60mW/f(GHz)= 24mW at 2.45GHz and therefore no SAR evaluation is needed.

Report No. 065L117-RF-US-P06V01 Page: 1 of 43 Version:1.0 Test Report Product Name Bluetooth GPS Model No. iGPS-BT II FCC ID. Q7M-IGPS-BTII Applicant Pharos Science & Applications, Inc. Address 411 Amapola Avenue, Torrance, CA90501, U.S.A. Date of Receipt May 18, 2006 Issued Date June 06, 2006 Report No. 065L117-RF-US-P06V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 065L117-RF-US-P06V01 Page: 2 of 43 Version:1.0 Test Report Certification Issued Date: June 06, 2006 Report No.: 065L117-RF-US-P06V01 Product Name Bluetooth GPS Applicant Pharos Science & Applications, Inc. Address 411 Amapola Avenue, Torrance, CA90501, U.S.A. Manufacturer LOGITECH ELECTRONICS(CHINA) LTD. Model No. iGPS-BT II FCC ID. Q7M-IGPS-BTII Rated Voltage AC 120V/60Hz Working Voltage DC 5V Trade Name PHAROS Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2005 ANSI C63.4: 2003 CISPR 22: 2005 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Rita Huang ) Tested By : ( Tim Sung ) Approved By : ( Gene Chang ) 0914 Report No. 065L117-RF-US-P06V01 Page: 3 of 43 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit ......................................................................................................................................................14 3.4. Uncertainty ............................................................................................................................................14 3.5. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................16 4.1. Test Equipment ......................................................................................................................................16 4.2. Test Setup ..............................................................................................................................................17 4.3. Limits.....................................................................................................................................................17 4.4. Test Procedure .......................................................................................................................................18 4.5. Uncertainty ............................................................................................................................................18 4.6. Test Result of Radiated Emission ..........................................................................................................19 5. BAND EDGE .......................................................................................................................................23 5.1. Test Equipment .....................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 063L106-RF-US-P06V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 063L106-RF-US-P06V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 063L106-RF-US-P06V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
