Q7O-0004802.11 a/b/g Mini-PCI Card

525 Metro Place North, Suite 100 Dublin, OH 43017 Office: 614-822-5275 Fax: 614-822-0024 www.karlnet.com KarlNet Letter Of Agency Apr 01, 2004 Karlnet Inc. 525 Metro Place N. Suite 100 Dublin, OH 43017 To whom it may concern : Please be advised that KarlNet, Inc. authorizes CCS Labs to act on our behalf, until otherwise notified, for applications submitted to FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Doug Karl, CEO KarlNet, Inc. 525 Metro Place North, Suite 100 Dublin, OH 43017 Office: 614-822-5275 Fax: 614-822-0024 www.karlnet.com KarlNet Manufacturer’s Letter Apr 01, 2004 Karlnet Inc. 525 Metro Place N. Suite 100 Dublin, OH 43017 RE : Certification Application FCC ID : Q7O-0004 To whom it may concern : Please be advised that KarlNet, Inc. will ensure that the above referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Sincerely, Doug Karl, CEO KarlNet, Inc.

525 Metro Place North, Suite 100 Dublin, OH 43017 Office: 614-822-5275 Fax: 614-822-0024 www.karlnet.com KarlNet Request for Confidentiality Apr 01, 2004 Karlnet Inc. 525 Metro Place N. Suite 100 Dublin, OH 43017 RE : Certification Application FCC ID : Q7O-0004 To whom it may concern : Please be advised that the following exhibits are to be held confidential on behalf of KarlNet, Inc. : • Schematics • Block Diagram(s) • Theory of Operation and User's Manual The application contains technical information that KarlNet, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the marketplace. Thank you for your attention to this matter. Sincerely, Doug Karl, CEO KarlNet, Inc.

Chris Harvey From: Claire Hoque Sent: Thursday, May 06, 2004 6:44 PM To: Chris Harvey Cc: Mike Kuo; Michael Heckrotte; Kathy Yao Subject: RE: Additional Information needed AN04T3869 FCC ID: Q7O-0004 Page 1 of 2 5/10/2004 Hi Chris, Here are answers. 1. Although the Modular Approval letter states that this device meets the requirements of FCC 15.203, the Modular Approval guidelines from the FCC prohibits compliance with this provision by utilizing the 'professional installation' clause in 15.203. Therefore, this application can be processed as a Limited Modular Approval, which will be conditioned with the following clause (or very similar): Limited Modular Approval (LMA). Power Output Listed is Conducted. Approval is limited to installation by the grantee using the mini-PCI card and antennas specified in this filing. The antenna used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 2 meters from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Final Products into which this device is installed that utilize 'standard connectors' must be professionally installed. <KarlNet>LMA is OK. 2. The Modular Approval exhibit indicates that there will be a second label to be placed on the outside of the device into which this mini-PCI card is installed. Please provide this additional label as an exhibit. <Claire>There were two labels in this submission, pls see page 2 of "FCC Label. PDF". 3. The letter of authorization states that the authorization applies for applications for which ATCB is the Certifying organization. Please have this revised to remove that reference. <KarlNet>pls see revised letter as attached. 4. The Antenna Selection Matrix in the Manual is not specific to the antennas that are approved for use with this EUT. For example, there is a listing for PtP operation at 2.4GHz using a maximum 31dBi gain antenna. There is no such antenna in this application. Please revise this portion of the manual to be specific to the antennas that are in the application. <KarlNet>the user's manual has been revised based on TCB reviewer's comments. -----Original Message----- From: Chris Harvey Sent: Thursday, April 29, 2004 4:56 AM To: Michael Heckrotte Cc: Mike Kuo; Chris Harvey Subject: Additional Information needed AN04T3869 FCC ID: Q7O-0004 Michael, The application referenced above has been reviewed and the following items need to be addressed before processing can continue: 1. Although the Modular Approval letter states that this device meets the requirements of FCC 15.203, the Modular Approval guidelines from the FCC prohibits compliance with this provision by utilizing the 'professional installation' clause in 15.203. Therefore, this application can be processed as a Limited Modular Approval, which will be conditioned with the following clause (or very similar): Limited Modular Approval (LMA). Power Output Listed is Conducted. Approval is limited to installation by the grantee using the mini- PCI card and antennas specified in this filing. The antenna used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 2 meters from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Final Products into which this device is installed that utilize 'standard connectors' must be professionally installed. 2. The Modular Approval exhibit indicates that there will be a second label to be placed on the outside of the device into which this mini-PCI card is installed. Please provide this additional label as an exhibit. 3. The letter of authorization states that the authorization applies for applications for which ATCB is the Certifying organization. Please have this revised to remove that reference. 4. The Antenna Selection Matrix in the Manual is not specific to the antennas that are approved for use with this EUT. For example, there is a listing for PtP operation at 2.4GHz using a maximum 31dBi gain antenna. There is no such antenna in this application. Please revise this portion of the manual to be specific to the antennas that are in the application. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Please contact me if there are any questions or comments. Best regards, Chris Harvey [email protected] Page 2 of 2 5/10/2004

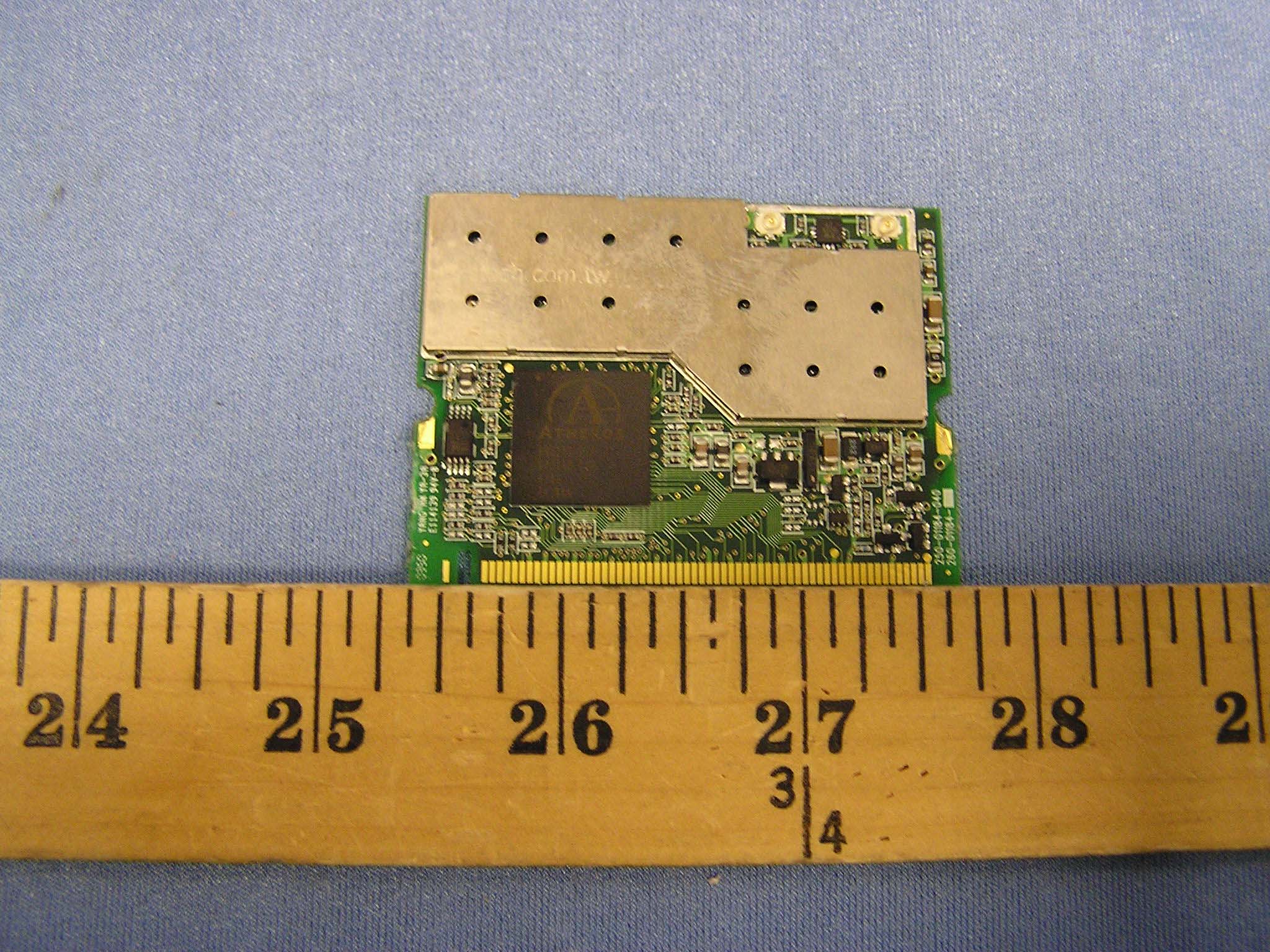

KarlNet, Inc. FCC ID: Q7O-0004 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Radio module is equipped with Metal shielding to cover RF section. See external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Radio module is supplied with filtered 3.3V (See Power to PRA-0009 diagram) Additionally, Radio module adds additional filtering for input power (see schematic) 4 Meet the antenna requirements of Section 15.203 EUT has a N-Female connector and guidelines in the User Manual. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing EUT was tested outside any enclosure and interface/power lines were connected during test. See setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Please see FCC ID label location and format file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. See “User’s Guide”. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). RF Exposure statement is outlined in the “User’s Guide”.

FCC Label location Printed Label location - On top of the Radio module P/N :PRA-0009 FCC ID : Q7O-0004 MCCMCC MCCMCC MCCMCC MCCMCC MCCMCC TurboCell Unit FOR HOME OR OFFICE USE Assy P/N :ASY-xxxx-xx Contains FCC ID :Q7O-0004 Tested To Comply With FCC Standard S/N :

Change region: Login Credit Reference Products A - Z New Customers Advanced Search List price: Lo g in/Call Manuf. Part # WRFP.5-5-18 Winncom Part # WRFP.5-5-18 USA Prices. International prices may vary. Contact our sales office for reseller and quantity discounts. \ Antennas \ 5.15 - 5.85 GHz Band \ Directional Antennas 18dBi Flat Panel Antenna Panel, 6" Diameter, 5.1-5.8 GHz Frequency Band, Ideal For Use with MP.11a products This Flat Panel Antenna specially built for point -to-point and point to-multi point terrestrial microwave applications ( Proxim Tsunami MP 11a Product Line ) . It's designed to be lightweight, easy to install, aligned and durable for years of reliable service. This antenna is ideal for concealment in many architectural environments. Antenna Features: z Flat panel design is aesthetically pleasing z Lightweight and rugged design z Low windload z Easily installed z RF Connector Interface: Type “N” female z Plane Polarized z Superior sidelobe performance z Standard mount accommodates a 1" - 2.5" pipe mast Electrical Specifications Frequency, GHz Polarization Gain, dBi (nominal) Beamwidth ° , -3dB X-Pol. Rejection, dB F/B Ratio, dB VSWR, Max, (R.L., dB) 5.25 - 5.85 Single 18.0 18 25 30 1.5:1 (14.0) Dimensions Pa g e 1 of 2 Low Distribution Price. 18dBi Flat Panel An tenna Panel, 6" Diameter, 5.1-5.8 GHz Fre q uenc y Band, Ideal For Use with MP.11a p ro d ... 4/7/2004 htt p ://www.winncom.com/moreinfo/it em/WRFP.5-5-18%20%20%20%20/index.html A B C D E 6.0 (15.2) 0.5 (1.3) 5.0 (12.7) 4.7 (12.0) 3.0 (7.6) Copyright © 2000, 2001, 2002 Winncom Techno logies Corp. - ALL RIGHTS RESERVED Pa g e 2 of 2 Low Distribution Price. 18dBi Flat Panel An tenna Panel, 6" Diameter, 5.1-5.8 GHz Fre q uenc y Band, Ideal For Use with MP.11a p ro d ... 4/7/2004 htt p ://www.winncom.com/moreinfo/it em/WRFP.5-5-18%20%20%20%20/index.html

General Description This antenna was designed for WLAN and WISP applications for frequencies of 2400 MHz to 2500 MHz. The antenna has a beamwidth of 18 degrees with a gain of 18 dBi when measured at the standard MC-Card or U.FL coax connector. This antenna's mounting bracket features a +10, 0, or -10 degree down tilt adjustment. It is designed to mount to a round mast. SPECIFICATIONS Electrical: Frequency..................................................................................................................................2400-2500 MHz VSWR................................................................................................................nominal 1.5:1, maximum 2.0:1 Nominal Impedance...............................................................................................................................50 ohms Nominal Gain............................................................................................................................................18 dBi Half-power E-Plane Beamwidth (Azimuth).......................................................................................18 degrees Half-power H-Plane Beamwidth (Elevation).....................................................................................18 degrees Front-to-Back Ratio...............................................................................................................greater than 20 dB Polarization.......................................................................................................................Vertical or Horizontal Maximum Power....................................................................................................................................10 watts Mechanical: Size (without mount).........................................................................14 3/8" wide x 15 5/8" long x 1 3/4" deep Mounting method..................adjustable bracket (+10, 0, or -10 degrees) with SS U-bolts, 2.0 inch O.D. max. Connector.......................................................................................................................U.FL or MC-Card Plug Wind survival (per EIA-222-F at 100' height).......................................................................................125 mph Ice, snow................................................................................................................................0.5" ice @ 65 mph Temperature range..............................................................................................................-40 to +60 degrees C Humidity.................................................................................................................5% - 95% (non-condensing) Since it is the intent of TELEX COMMUNICATIONS, INC. to continually improve its products, Telex reserves the right to make specification and design changes without notice. Telex ® Technical Data WLAN / WISP 18 dBi Flat Panel Antenna 2.4 - 2.5 GHz Order No. 2474KN-1 (MC-Card Plug) 2474KN-2 (U.FL Plug)

5.8 GHz ISM / UNII Band 24 dBi Parabolic Dish Antenna HyperGain ® HG5824D Features Superior Performance The HyperG ain® HG5824D is a high-p erforman ce Compact Parabolic Dish Antenna that provides 24 dBi gain with a 9° beam-width for directional 5.8 GHz ISM and UNII band applications. This antenna can be oriented for either vertical or horizontal polarization. Rugged and Weatherproof This antenna features a high quality aluminum reflector dish for superior strength. The dish is coated in a light gray UV-inhibited polymer for dura bility and aesth etics. The small diameter of the dish helps minimize wind loading. The HG5822G antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. Specifications Electrical Specifications Frequency 5725-5850 MHz Gain 24 dBi Horizontal Beam Width 9° Polarization Horizontal or Vertical Front to Back Ratio 30 dB Impedance 50 Ohm Max. Input Power 100 Watts VSWR < 1.5:1 avg. Connector N Female Mechanical Specifications Weight 6.6 lbs. (3 kg) Diameter 17.2" (436.8 mm) Mounting 2 in. (50.8 mm) diameter mast max. Elevation Angle 0 to +15° Operating Temperature -45° C to +85° C Guaranteed Quality This product is backed by Hyperlink's Limited Warranty e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487

Antenna Performance Frequency2.45 GHz (center) Gain19 dBi Antenna design Sixteen patch PolarizationLinear Bandwidth 1.5:1 VSWR100 MHz Horizontal beamwidth18° Vertical bandwidth18° F/B Ratio>30 dB Cross polarization>30 dB Maximum power input100 watt Lighting protectionDirect ground Physical Characteristics Dimensions15.5 x 15.5 x 1.125 in (39.4 x 39.4 x 2.8 cm) Case colorGray, other colors available on customer order ConnectorN type female Case materialHigh impact UV stabilized plastic, ultrasonically welded Wind/ice loading area - in² (cm²)240 (1552) Lateral thrust @ 100 mph-lbs (kg)15 (33) Torsional moment @ 100 mph with standard mounting - ft/lbs (m/kg) 0.4 (0.88) Page 1 of 1Low Distribution Price. 19 dBi Directional Panel Antenna with Adjustable Mount, 2.400-... 2/16/2004http://www.winncom.com/moreinfo/item/WRP2400-18/index.html

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11 A/B/G RADIO CARD MODEL NUMBER: PRA-0009 FCC ID: Q7O-0004 REPORT NUMBER: 04U2601-2 ISSUE DATE: APRIL 13, 2004 Prepared for KARLNET INC. 525 METRO PLACE N., SUITE 100 DUBLIN, OHIO 43017 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 2 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 5 4. FACILITIES AND ACCREDITATION .......................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 7 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 8 7. APPLICABLE RULES AND TEST RESULTS ............................................................................ 10 7.1. 6 dB BANDWIDTH ..................................................................................................................... 10 7.2. 99% BANDWIDTH ..................................................................................................................... 21 7.3. PEAK OUTPUT POWER............................................................................................................ 32 7.4. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 43 7.5. AVERAGE POWER..................................................................................................................... 46 7.6. PEAK POWER SPECTRAL DENSITY ....................................................................................... 48 7.7. CONDUCTED SPURIOUS EMISSIONS.................................................................................... 59 7.8. RADIATED EMISSIONS.............................................................................................................78 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 78 7.8.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ .......................................... 81 7.8.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ........................................... 100 7.9. POWERLINE CONDUCTED EMISSIONS .............................................................................. 104 8. SETUP PHOTOS ............................................................................................................................ 107 REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 3 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: KARLNET INC. 525 METRO PLACE N., SUITE 100 DUBLIN, OHIO 43017 USA EUT DESCRIPTION: 802.11a/b/g radio card MODEL: PRA-0009 DATE TESTED: MARCH 22 – 31, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MICHAEL HECKROTTE FRANK IBRAHIM ENGINEERING MANAGER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 4 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an 802.11a/b/g transceiver radio module. It is intended to be installed in an outdoor base station or a…

Text truncated - open the document above for the full version.

REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 107 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 108 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO / INTEGRATED 18 dBi PANEL ANTENNA REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 109 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO / INTEGRATED 18 dBi PANEL ANTENNA REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 110 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED FRONT PHOTO / 19 dBi PATCH ANTENNA REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 111 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO / 19 dBi PATCH ANTENNA REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 112 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED FRONT PHOTO / 18 dBi PANEL ANTENNA REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 113 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO / 18 dBi PANEL ANTENNA REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 114 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED FRONT PHOTO / 24 dBi DISH ANTENNA REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 115 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO / 24 dBi DISH ANTENNA REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 116 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 04U2601-2 APRIL 13, 2004 EUT: 802.11a/b/g radio card FCC ID: Q7O-0004 Page 117 of 117 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
