Q9JEZMP-4200PMP3 Player

Copyright © 2005 EZMAX. Al l rights reserved. Advance permission of EZMAX is required to use User’s Guide, photos, the related documents and software of the product. Any violation may follow t he legal measures. The contents of the User’s Guide are subject to change without prior notice for further improvement of t he product. EZMAX http://www.ezmax.co.kr 1 Table of Contents Before Use Product & Accessories ............................. 2 PC System Requirements ....................... 3 Safety Precautions .................................. 4 F eatures .................................................. 5 Designation of Parts F ront/Rear View of the Product ................ 7 Side View of the Product ......................... 8 F unction Icons in Display .......................... 9 Preparation In stalling USB Driver ................................10 Connecting Player to PC ........................12 Manually Insta llin g USB Driver .. ...............13 Using Removable Disk .............................16 Disconnecting USB Cable ........................19 Upgrading Firmware.................................21 In stalling LDB M anager ..........................23 Using LDB Manager ...............................24 Basic Functions Basic Operation ......................................29 Power On/Off .........................................32 Playback Music File ................................33 Using Navigation .................................. 36 Voice Recording/Listening .................... 37 MP3 Encoding/Listening ................... 38 Listening to FM Radio .......................... 41 Recording/Playback FM Radio ............. 45 Function Menu Menu Setting ........................................ 46 Music File Playback ............................. 47 Managing F ile .................................... 48 Detailed Menu Setting .......................... 51 Playback Mode Setting ........................ 52 Sound Setting ...................................... 53 Display Setting ..................................... 55 Timer Setting ....................................... 57 Encoding Setting .................................. 59 Setting ................................................. 60 Others About Battery ....................................... 63 HOLD Setting Method .......................... 64 Troubleshooting ................................... 65 Specifications ....................................... 67 Service (A/S) ........................................ 68 War ranty .............................................. 69 2 !N OT E : Accessories are subject to change without a pri or notice for further improvements in of this product. Products & Accessories 3 Basic requirements s hould be satisfied to use this player on yo ur PC. Make sure to c heck the follo wing recommendatio ns before its use: „ Pentium 200MHZ or above „ Windows 98SE / ME / 2000 / XP (Windows 98SE - Install Drive r) „ Mac OS 9.0 / 10.0 „ USB Port (2.0 s upported) (Requires PC with a capacity of more than Pentium III 1GHZ. Couldn’t be supported depending on a mainboard. Is n’t supported witho ut S ervice Pack 1 under Windo ws XP.) „ CD-ROM Drive „ Hard Disc Space 20MB or above (an additional capacity may be requi red to save the music files .) „ 64MB RAM or above !N OT E : Memory spaces available may be less than those i ndicated above since the firm ware uses so me po rtions o f the me mory a vaila b le to your PC fo r the operation by its s ystem . PC System Requirements 4 Listening Cautions... The output of the product guarantees the best sounds at i ts proper volume. As li steni ng with a volume set at a high position for a long time may damage your sense of hearing, make sure to listen to the musi c at a proper volume. Avoid Strong Impact or Vibration Be careful in handli ng the product and its accessories since their falling on the floor or givi ng an impact on them may result in their se rious damages. Storage Avoid the places exposed to heat, humidit y or magnetic field Cleaning Wiping the pla yer wi th chemicals may result i n discolorations or damages on its surface. Wipe out the p layer with a soft cloth. Using the Battery... If you do not use the P layer for a lo ng time, do not i nser t a battery in the Player. !N OT E : Ne ver try to d issemb le, rep air or remode l it. Safety Precautions 5 Multi-Codec Playe r Multi-codec pla yer supporting MP3, WMA, ASF(a udio), OGG, WAV format. FM Transmitter Function(My FM Station) If you select the embedded FM Transmitter mode, you can e njoy a high se nsitivi ty of music wireless through de vice with FM radio(ex. Car audio, home audio, ordinar y FM radi o). High Quality 3D Sound, MEX (Magic EXpande r) Experience a profound sound due to an i ntroduction of MEX which allows you to feel 3D expansion effects with richness while keeping the original and stable sound of the player. 3D Sound MEX is a new 3D effect that does not make you feel tired e ve n if you liste n to it fo r a lo ng time . EL Display With its i ntroduction of Blue/Yellow 2 Color EL Screen Graphic Display, the player can com mand more luxurious and fancy images. Firmware Upgrade Upgrade Firmware to add/change/i mprove functi ons and performance of the Playe r. Always enjoy t he music with its latest version of performance. Voice Recording A functi on of high quality voice recording allows a clear recording for conferences and lect ures. Features 6 FM Radio Conveniently enjoy the FM radio wit h a variety of functions such as the manual/automa tic frequency searc h, automatic tune to the radio station, and the station p reset. Easy Navigation Tree structure allows you to manage and search a specific song more conve niently. Lyric Display(LDB) You can easily edit, save a nd display the lyrics of a song in 3 lines on t he large display. 6 Preset Equalizer You ca n produce your own sound quality with the 5-ba nd User EQ and 5 recommend EQs i ncludi ng Normal, Classi c, Pop, Rock a nd Ja zz. Remov abl…

Text truncated - open the document above for the full version.

Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 5 MP3 Player Appendix 5. Block Diagram 24 MHz

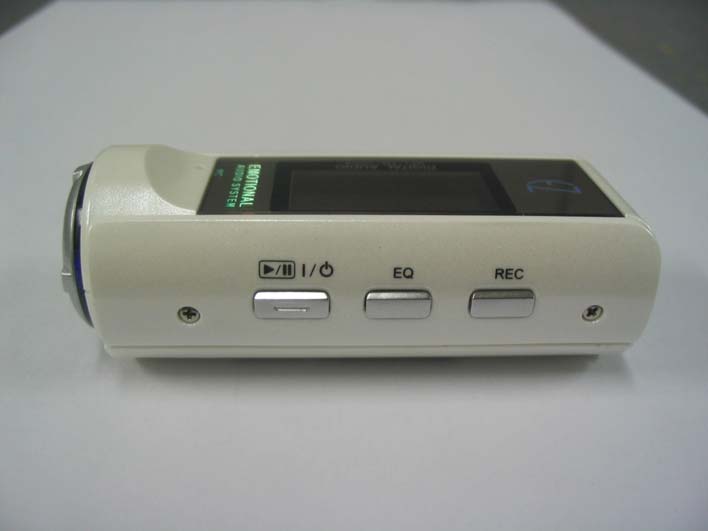

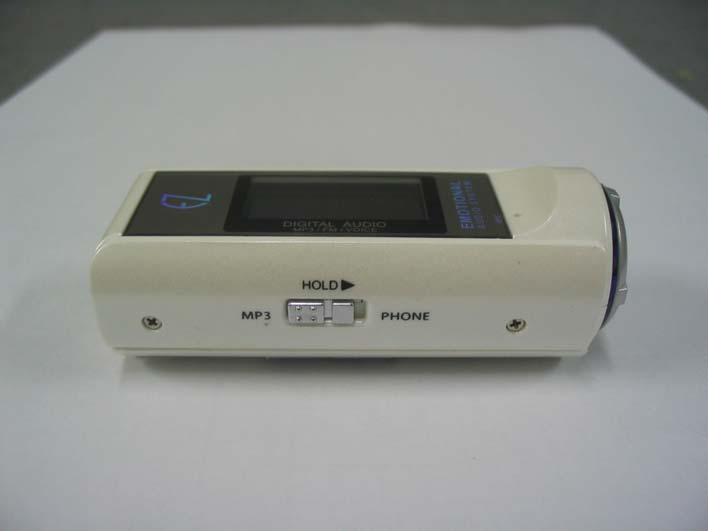

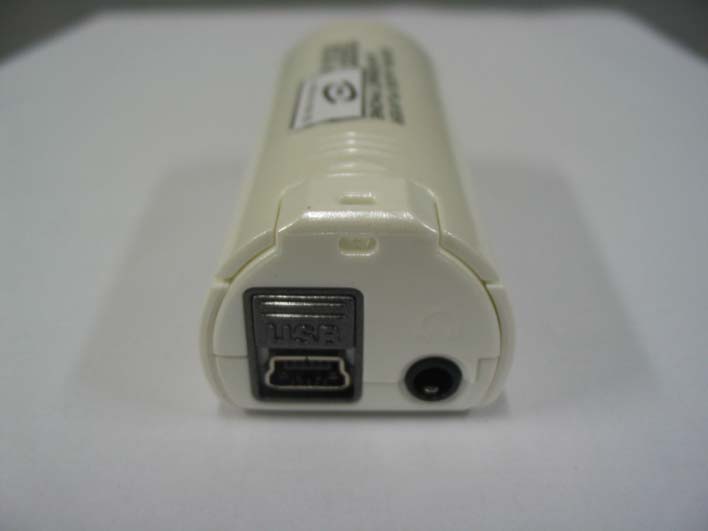

Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 3 MP3 Player Appendix 3. Photographs of EUT Front of EUT Rear of EUT Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 3 MP3 Player Left of EUT Right of EUT

Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 2 MP3 Player Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC Label This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : EZMP-4200P FCC ID : Q9JEZMP-4200P EZMAX Co., Ltd. Made in Korea

Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 4 MP3 Player Appendix 4. Internal Photographs of EUT Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 4 MP3 Player Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 4 MP3 Player Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 4 MP3 Player

Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 This report only respoe and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Page 1 of 16 Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : MP3 Player MODEL/TYPE NO : EZMP-4200P FCC ID : Q9JEZMP-4200P TRADE NAME : EZMAX APPLICANT : EZMAX Co., Ltd. #504, Hanlim Human Tower, B/D, 1-40 Geumjeong-Dong, Gunpo-City, Kyunggi-Do 435-050, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : April 16, 2005 DATES OF ISSUE : April 20, 2005 TEST REPORT No. : BWS-05-EF-0010 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This MP3 Player has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. April 20, 2005 (Date) Nam, Tae-Hyun Chief Engineer Laboratory Division BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Page 2 of 16 MP3 Player TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Page 3 of 16 MP3 Player FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Information Manufacturer Information Company Name : EZMAX Co., Ltd. Company Address : #504, Hanlim Human Tower, B/D, 1-40 Geumjeong-Dong, Gunpo-City, Kyunggi-Do 435-050, Korea Phone/Fax : Phone : +82-31-479-7186 / Fax : +82-31-479-7188 Company Name : EZMAX Co., Ltd. Company Address : #504, Hanlim Human Tower, B/D, 1-40 Geumjeong-Dong, Gunpo-City, Kyunggi-Do 435-050, Korea Phone/Fax : Phone : +82-31-479-7186 / Fax : +82-31-479-7188 z EUT Type : MP3 Player z Model Number : EZMP-4200P z FCC Identifier : Q9JEZMP-4200P z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2003 z Date of Tests : April 16, 2005 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea TEL: +82-31-762-0124 FAX: +82-31-762-0126 z Test Report No. : BWS-05-EF-0010 Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Page 4 of 16 MP3 Player 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2003) was used in determining radiated and conducted emissions from the EZMAX Co., Ltd. MP3 Player Model : EZMP-4200P . Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Page 5 of 16 MP3 Player 3. Product Information 3.1 Equipment Description Specification 3.2 Variations covered by this report Model Difference : N/A Technical Deviation : This product base memory is 256MB that was tested. 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc. Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Page 6 of 16 MP3 Player 4. Description of Tests 4.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-2003. The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50Ω/50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity …

Text truncated - open the document above for the full version.

Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 1 MP3 Player Appendix 1. Test Setup Photographs Conducted Emission Test Setup Report No: BWS-05-EF-0010 FCC ID : Q9JEZMP-4200P Date of Test : April 16, 2005 EZMAX Co., Ltd. Appendix 1 MP3 Player Radiated Emission Test Setup
