Q9JEZMP-5000MP3 Player

Copyright © 2005 EZMAX. All rights reserved. Advance permission of EZMAX is required to use User’s Guide, photos, the related documents and software of the product. Any violation may follow the legal measures. The contents of the User’s Guide are subject to change without prior notice for further improvement of the product. EZMAX http://www.ezmax.co.kr FCC Compliance Statements 1 Table of Contents Before Use Product & Accessories ................................... 2 PC System Requirements ............................. 3 Safety Precautions .......................................... 4 Features ......................................................... 5 Designation of Parts Front/Rear View of the Product ..................... 8 Side View of the Product ............................... 9 Function Icons in Display .............................10 Preparation Connecting Player to PC ...............................11 Installing USB Driver......................................12 Using as a Removable Disk Unit...................21 Disconnecting USB Cable.............................24 Installing Transcoder......................................26 Using Transcoder ..........................................27 Upgrading Firmware......................................31 Basic Functions Basic Operation ...........................................34 Power On/Off ...............................................37 Playback Music File .....................................38 Using Navigation ..........................................39 Playback Bookmark List ..............................42 View Image File ......................................... 43 View Text File ............................................. 44 Playback Motion Picture ............................ 45 Recording/Playback Voice ......................... 46 Encoding/Playback MP3 ........................... 47 Listening to the FM Radio ......................... 51 Recording/Playback FM Radio ................. 54 Function Menu Main Menu ................................................. 55 Play Mode ................................................... 56 Sound Mode................................................ 58 Display Mode.............................................. 60 Record Mode............................................... 62 Timer Mode ................................................. 60 Delete Mode................................................ 67 System Mode ............................................ 68 Playback Mode............................................ 72 Others Charging Built-In Battery ........................... 74 HOLD Mode .............................................. 75 Troubleshooting ......................................... 76 Product Specification ................................. 78 2 Products & Accessories !NOTE: Accessories are subject to change without a prior notice for further improvement of the product performance and quality. 3 PC System Requirements Basic requirements should be satisfied to use this Player on your PC. Make sure to check the following recommendations before its use: „ Pentium 200MHZ or above „ Windows 98SE / ME / 2000 / XP (Windows 98SE - Install Driver) „ Mac OS 9.0 / 10.0 „ USB 2.0 Port (Requires Pentium III 1GHZ or above. Not supported by some mainboard. Windows XP Service Pack 1 must be installed.) „ CD-ROM Drive „ Hard Disk Space 20MB or above (An additional capacity may be required to save the music files.) „ 64MB RAM or above !NOTE: Memory spaces available may be less than those indicated above since the firmware uses some portions of the memory available to your PC for the operation by its system. 4 Safety Precautions Listening to Music... The output class of the product guarantees the best possible sound of the mid-size volume. As the high volume for a long time may damage the hearing, listen to music in moderate volume. Do not exposure to the strong shock or vibration Please take good care of handling the product and accessories. Dropping on the floor or giving a shock may result in a serious damage of the product Storing the Product... Avoid storing in the extreme change of temperature, high humidity and the strong magnetic field. Cleaning the Product... The chemical may discolor or damage the surface of the Player. Use the soft cloth to gently clean the Player. Warning: The Player uses a rechargeable built-in battery that may have a risk of heat, fire and explosion. - Do not place the Player near a fire, flame or heating devices. - Do not replace the battery. (Contact the dealer or the maker, if necessary.) Warranty period of the battery is 6 months from the date of purchase. !NOTE: Do not dissemble, repair or remodel the product. 5 Features Introducing a 260,000-Color Organic EL Display 260,000-color large organic EL graphic display provides a sound color vision. Multi-Codec Player Compatible with MP3, WMA, ASF (Audio), OGG (incl. Q10) and WAV formats. Compatible with the Motion Picture (Option) Complete with the MPEG 4 Player with motion picture support Image and Text Viewer A function of an electronic photo album and an electronic book to view an image file (.jpg or .bmp) or a text file (.txt) on the display FM Radio Conveniently enjoy the FM radio with a variety of functions such as a manual/automatic frequency search, automatic tune to the radio station, and the station preset. Voice Recording The superior sound quality voice recording function allows the clear recording in the conferences and lectures. 6 Features Direct Encoding Convert the external sound and the FM radio broadcasting into the audio file. Compatible with the Removable Disk Unit Upon connection to the PC, it is recognized as a removable disk unit to upload or download files without using a separate Manager program. Introducing a High Sound Quality 3D Sound MEX (Magic Expander) Enjoy the dynamic 3D sound diffusion that does not tire your ears even after a long listening. Alarm Clock Complete with a digital cl…

Text truncated - open the document above for the full version.

Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 5 MP3 Player Appendix 5. Block Diagram

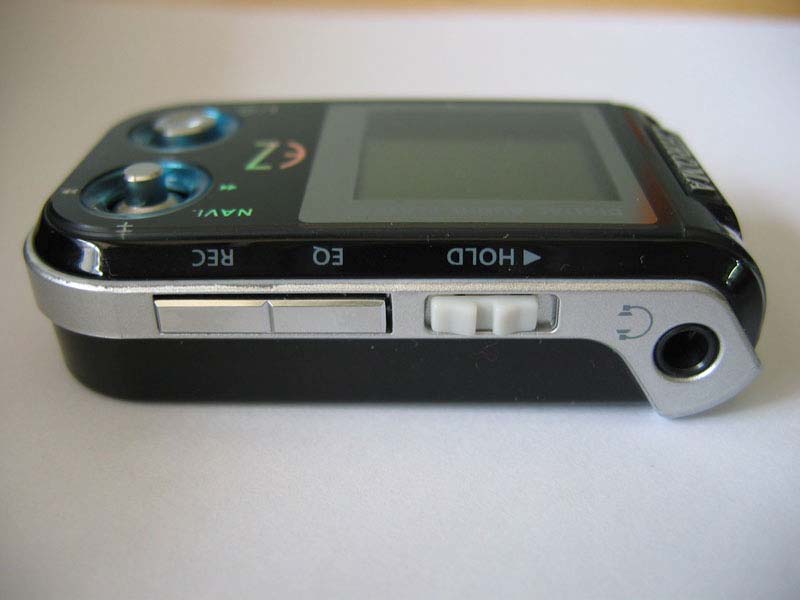

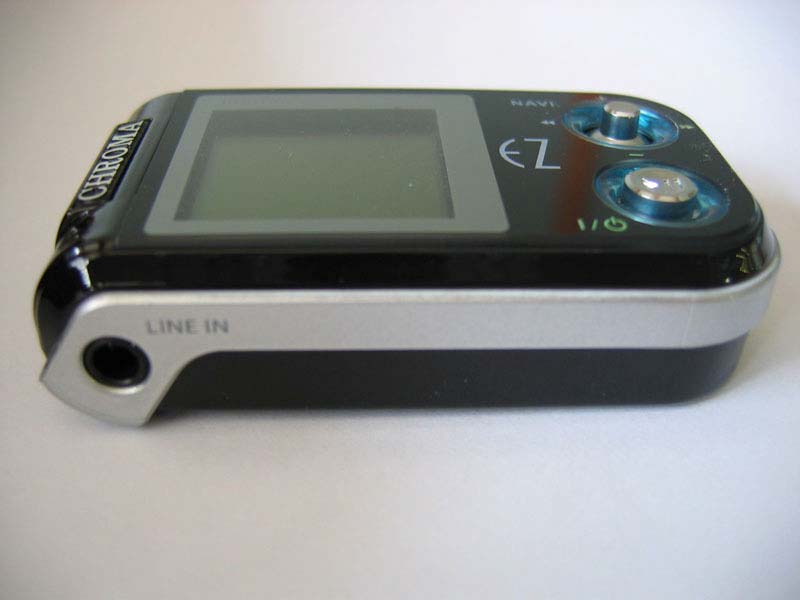

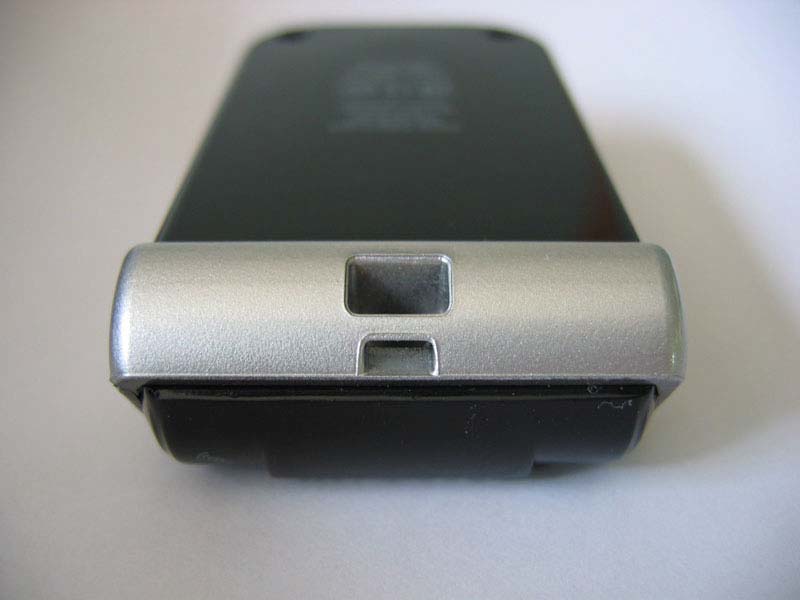

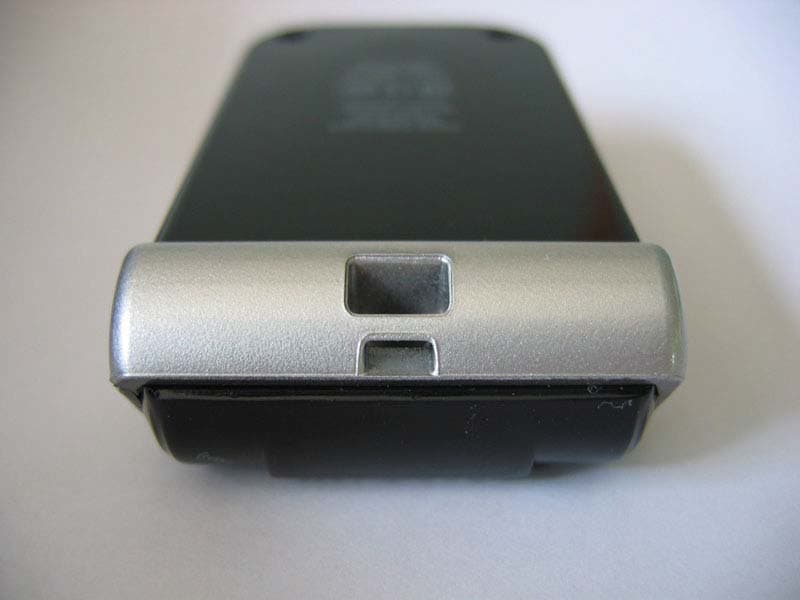

Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 3 MP3 Player Appendix 3. Photographs of EUT Front of EUT Rear of EUT Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 3 MP3 Player Left of EUT Right of EUT

Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 2 MP3 Player Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : EZMP-5000 FCC ID : Q9JEZMP-5000 EZMAX Co., Ltd. Made in Korea

Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 4 MP3 Player Appendix 4. Internal Photographs of EUT Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 4 MP3 Player Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 4 MP3 Player Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 4 MP3 Player

Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 This report only respoe and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Page 1 of 16 Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : MP3 Player MODEL/TYPE NO : EZMP-5000 FCC ID : Q9JEZMP-5000 TRADE NAME : EZMAX APPLICANT : EZMAX Co., Ltd. #504, Hanlim Human Tower, B/D, 1-40 Geumjeong-Dong, Gunpo-City, Kyunggi-Do 435-050, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : July 19, 2005 DATES OF ISSUE : July 28, 2005 TEST REPORT No. : BWS-05-EF-0025 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This MP3 Player has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. July 28, 2005 (Date) Nam, Tae-Hyun Chief Engineer Laboratory Division BWS TECH Inc. www.bws.co.kr 2611-1, Maesan-ri, Mohyeon-myeon, Yongin-si, Gyeonggi-do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Page 2 of 16 MP3 Player TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Page 3 of 16 MP3 Player FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Information Manufacturer Information Company Name : EZMAX Co., Ltd. Company Address : #504, Hanlim Human Tower, B/D, 1-40 Geumjeong-Dong, Gunpo-City, Kyunggi-Do 435-050, Korea Phone/Fax : Phone : +82-31-479-7185 / Fax : +82-31-479-7188 Company Name : EZMAX Co., Ltd. Company Address : #504, Hanlim Human Tower, B/D, 1-40 Geumjeong-Dong, Gunpo-City, Kyunggi-Do 435-050, Korea Phone/Fax : Phone : +82-31-479-7185 / Fax : +82-31-479-7188 z EUT Type : MP3 Player z Model Number : EZMP-5000 z FCC Identifier : Q9JEZMP-5000 z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2003 z Date of Tests : July 19, 2005 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 611-1, Maesan-ri, Mohyeon-myeon, Yongin-si, Gyeonggi-do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 z Test Report No. : BWS-05-EF-0025 Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Page 4 of 16 MP3 Player 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 611-1, Maesan-ri, Mohyeon-myeon, Yongin-si, Gyeonggi-do 449-853, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2003) was used in determining radiated and conducted emissions from the EZMAX Co., Ltd. MP3 Player Model : EZMP-5000 . Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Page 5 of 16 MP3 Player 3. Product Information 3.1 Equipment Description Specification 3.2 Variations covered by this report Model Difference : N/A Technical Deviation : This product base memory is 256MB that was tested. 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc. Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Page 6 of 16 MP3 Player 4. Description of Tests 4.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-2003. The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50Ω/50uH LISN as the input transducer to a Spectrum Analyz…

Text truncated - open the document above for the full version.

Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 1 MP3 Player Appendix 1. Test Setup Photographs Conducted Emission Test Setup Report No: BWS-05-EF-0025 FCC ID : Q9JEZMP-5000 Date of Test : July 19, 2005 EZMAX Co., Ltd. Appendix 1 MP3 Player Radiated Emission Test Setup
