Q9JMF-FE465MP3 PLAYER

Copyright  2004 LGE. All rights reserved. Advance permission of LGE is required to use User’s Guide, photos, the related documents and software of the product. Any violation may follow the legal measures. The contents of the User’s Guide are subject to change without prior notice for further improvement of the product. LGE http://www.lge.com 1 Table of Contents Before Use 1. Product & Accessories...... .2 2. PC System Requirement .. .3 3. Safety Precaution .......... .4 4. Features of Product.............5 Designation of Product 1. Front/Rear View...................7 2. Side View...............................8 3. Display.......................... .9 Preparation 1. Connecting Player to PC.... 10 2. Installing USB Driver ....... 11 3. Running Basic Functions. . 20 4. Installing Logo Editor & Applying Logo to Player .........23 Basic Functions 1. Basic Operation .............. 27 2. Power ON/OFF................ 30 3. Mode Menu ................... 31 4. Upgrade .............................38 Function Menus 1. PLAYBACK .................. 41 2. EQUALIZER ................ 42 3. SRS .......................... 43 4. DELETE ...................... 45 5. ENCODE .................... 47 6. SETTING .................... 48 7. DISPLAY .................... 52 Others 1. About Battery... ............ 53 2. How to set HOLD .......... 54 3. Trouble Shooting... ........ 55 4. Product Specification..... 57 5. Customer Service. ........ 58 6. Warranty Certificate ...... 59 2 !NOTE: Accessories are subject to change without prior notice for further improvement of the product performance and quality. 1. Product & Accessories 1 3 The followings are the basic requirements of the PC to use the MP3 Player. Please carefully read and confirm the requirements. „ Pentium 200MHZ or above „ Windows 98SE / ME / 2000 / XP (Windows 98SE – Install Driver) „ Mac OS 9.0 / 10.0 „ USB (Universal Serial Bus) Port „ CD-ROM Drive „ Hard Disc Space 20MB or above (Additional capacity is required to save the music file.) „ 64MB RAM or above !NOTE: Actually available built-in memory in this player is less than the nominal capacity of the product because the FirmWare uses a part of the capacity to drive the system. 2. PC System Requirements 1 4 Listening to Music... The output class of the product guarantees the best possible sound of the mid-size volume. As the high volume for a long time may damage the hearing, listen to music in moderate volume. Do not exposure to the strong shock or vibration. Please take good care of handling the product and accessories. Dropping on the floor or giving a shock may result in a serious damage of the product. Storing the Product... Avoid storing in the extreme change of temperature, high humidity and the strong magnetic field. Cleaning the Product... The chemical may discolor or damage the surface of the player. Use the soft cloth to gently clean the player. Using the Battery... If you do not use the Player for a long time, do not insert a battery in the Player. !NOTE: Do not disassemble, repair or reconstruct the product. 3. Safety Precaution 1 5 Multi-Codec Player Compatible with MP3, WMA and ASF (Audio) formats Superior Sound Quality SRS (Sound Retrieval System) WOW The introduction of the SRS allows the 3D surround effect, and the user to define its own unique sound effect. Enjoy a new variety of the 3D surround effects. Organic EL Display A Graphic display with blue EL4 line enhances the high-class image. FirmWare Upgrading Upgrade FirmWare to add/change/improve functions and performance of the Player. Always enjoy the music in the latest version of performance. Voice Recording The superior sound quality voice recording function allows the clear recording in the conferences and lectures. FM Radio Conveniently enjoy the FM radio with a variety of functions such as the manual/automatic frequency search, automatic tune to the radio station, and the station preset. 4. Features of the Product (1) 1 6 Simple and Fancy Design Reflects the 2004 new design trend. 6 Preset Equalizer You can produce your own sound quality with the 5-band User EQ and 5 recommend EQs including Normal, Classic, Pop, Rock and Jazz. Easy Navigation A tree configuration allows the easy search and control. Caption the Text of the Song The text of the song is shown in two lines on the display during the playback. Compatible with the Removable Disk Unit It is recognized as a removable disk unit if connecting to the PC to upload or download files without Manager program. Direct Encoding Use the LINE IN on the player to convert the external sound into the audio file. Also use the FM radio to convert the radio broadcasting into the audio file while listening to the FM radio. 4. Features of the Product (2) 1 7 1. Front/Rear View of the Product 2 8 2. Side View of the Product 2 9 3. Display 2 10 To download music files (MP3/WMA/ASF) from the PC, use USB cable to connect MP3 Player to the USB port of the PC. (Make sure to only use the USB cable supplied with the MP3 Player.) Connect ‘A’ (large) to the USB port of the PC. Connect ‘B’ (small) to the USB port found when opening USB port plug on the Player. 1. Connecting Player to PC 3 11 If you insert the USB cable into the player, its display shows the following screen “WAIT”. Î before installing driver after installing driver 1. Follow the instruction below for the PC of which OS is one of the Windows ME, Windows 2000 and Windows XP. A screen appears with a message saying, “New hardware is found” on the PC as shown below. Follow the instruction to install the driver. The installation may automatically be completed without showing the installation screen depending on the PC environment. An example here is for the WINDOWS 2000. 1) A message saying, “Found New Hardware” automatically appears. 2. Installing USB Driver (1) 3 12 2) The “Found New Hardware Wizard” is automatically started on the PC. Click ‘Next’. 3) If “Hardware device driver installation” is shown, check in “Search driver suitab…

Text truncated - open the document above for the full version.

Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 5 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 Appendix 5. Block Diagram

Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 3 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT

Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 2 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : MF-FE465 FCC ID : Q9JMF-FE465 EZMAX Co., Ltd. Made in Korea FCC Label

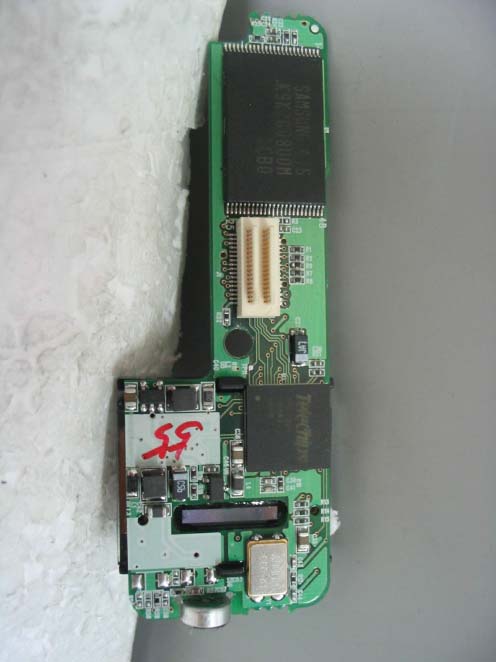

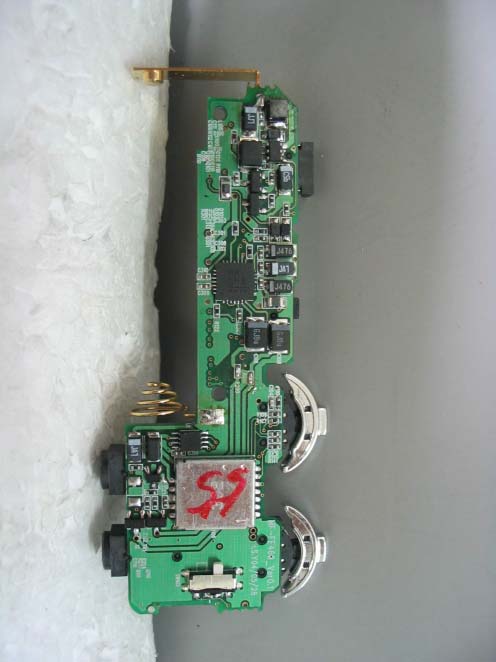

Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 Appendix 4. Internal Photographs of EUT Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465

57 Memory Built-in Memory 128MB/256MB/512MB DISPLAY 80x48 OLED Type Blue Color Backlight MP3 Encoding MPEG 1/2/2.5 Layer3 Compatible File Format MPEG 1/2/2.5 Layer3, WMA, ASF (Audio only) Compatible File Bit Rate 8 Kbps ~ 320 Kbps (WMA/ASF: 32 ~ 192 Kbps) Frequency 20 Hz ~ 20 KHz Headphone Output 6.5 mW + 6.5 mW (16 ohm) Audio S/N Ratio > 85 dB FM Frequency 87.5 MHz ~ 108 MHz 76.0MHz ~ 108MHz(JAPAN only) Headphone Output 5 mW + 5 mW (16 ohm) S/N Ratio > 55 dB FM Radio Antenna Earphone Antenna Language Multi-Language USB USB 1.1(5 Mbps) Maximum Playback Time Approx. 13 hours (Company standard) Distortion Rate < 0.1% Size 31.0(W) x 81.0(L) x 14.5(H) mm Battery 1 x AAA size Weight 29g * The specification and exterior of the product are subject to change without prior notice for further improvement of the performance. 4. Product Specification 6

Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : MP3 PLAYER MODEL/TYPE NO : MF-FE461, MF-FE462, MF-FE465 FCC ID : Q9JMF-FE465 TRADE NAME : EZMAX APPLICANT : EZMAX Co.,Ltd. #302 Kumbong technovalley B/D, Dangjung-Dong, Gunpo, Kyunggi-Do 435-030, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : June 25, 2004 DATES OF ISSUE : June 25, 2004 TEST REPORT No. : BWS-04-EF-0043 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Portable Digital Audio Player(MP3&Voice Recoder) has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. June 25, 2004 (Date) Tae-hyun Nam Chief Engineer Laboratory Division BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Information Manufacturer Information Company Name : EZMAX Co.,Ltd. Company Address : #302 Kumbong technovalley B/D, Dangjung-Dong, Gunpo, Kyunggi-Do 435-030, Korea Phone/Fax : Phone : +82-31-457-9185 / Fax : +82-31-457-9187 Company Name : EZMAX Co.,Ltd. Company Address : #302 Kumbong technovalley B/D, Dangjung-Dong, Gunpo, Kyunggi-Do 435-030, Korea Phone/Fax : Phone : +82-31-457-9185 / Fax : +82-31-457-9187 z EUT Type : MP3 PLAYER z Model Number : MF-FE461, MF-FE462, MF-FE465 z FCC Identifier : Q9JMF-FE465 z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2000 z Date of Tests : June 25, 2004 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. : BWS-04-EF-0043 Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the EZMAX Co.,Ltd. MP3 PLAYER Model : MF-FE461, MF-FE462, MF-FE465. Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 3. Product Information 3.1 Equipment Description Specification Memory Built-in Memory 128MB/256MB/512MB DISPLAY 80x48 OLED Type Blue Color Backlight MP3 Encoding MPEG 1/2/2.5 Layer3 Compatible File Format MPEG 1/2/2.5 Layer3, WMA, ASF (Audio only) Compatible File Bit Rate 8 Kbps ~ 320 Kbps (WMA/ASF: 32 ~ 192 Kbps) Frequency 20 Hz ~ 20 KHz Headphone Output 6.5 mW + 6.5 mW (16 ohm) Audio S/N Ratio > 85 dB FM Frequency 87.5 MHz ~ 108 MHz 76.0MHz ~ 108MHz(JAPAN only) Headphone Output 5 mW + 5 mW (16 ohm) S/N Ratio > 55 dB FM Radio Antenna Earphone Antenna Language Multi-Language USB USB 1.1(5 Mbps) Maximum Playback Time Approx. 13 hours (Company standard) Distortion Rate < 0.1% Size 31.0(W) x 81.0(L) x 14.5(H) mm Battery 1 x AAA size Weight 29g * The specification and exterior of the product are subject to change without prior notice for further improve…

Text truncated - open the document above for the full version.

Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 1 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 Appendix 1. Test Setup Photographs Conducted Emission Test Setup Report No: BWS-04-EF-0043 FCC ID : Q9JMF-FE465 Date of Test : June 25, 2004 EZMAX Co.,Ltd. Appendix 1 MP3 PLAYER MF-FE461, MF-FE462, MF-FE465 Radiated Emission Test Setup
