Q9K-PC20-01Remote Control Transmitter

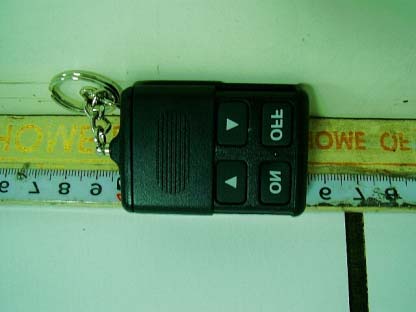

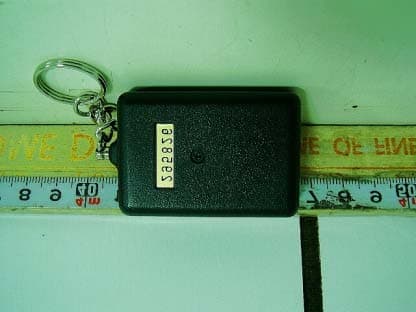

Report Number: 03E1061-D July 3, 2003 Page 12 Rev. 00 External of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: GRAND HALL ENTERPRISE CO., LTD. FCC ID: Q9K-PC20-01 FCC ID: Q9K-PC20-01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Report Number: 03E1061-D July 3, 2003 Page 13 Rev. 00 Internal of EUT Report Number: 03E1061-D July 3, 2003 Page 14 Rev. 00

Report Number: 03E1061-D July 3, 2003 Page 1 of 15 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Automatic gas ignition system FCC ID Number : Q9K-PC20-01 Trade Name : N/A Model Number : HC-SR-001 Agency Series : N/A Report Number : 03E1061-D Date : July 3, 2003 Prepared for GRAND HALL ENTERPRISE CO., LTD. 8Fl., NO. 298, Rueiguang Rd., Neihu, Taipei, Taiwan 114, R.O.C. Prepared by C&C LABORATORY CO., LTD. No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of C&C Laboratory Co., Ltd. Lab. Code: 200617-0 Report Number: 03E1061-D July 3, 2003 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................... 3 2. PRODUCT DESCRIPTION................................................................................. 4 3. TEST FACILITY ................................................................................................... 4 4. MEASUREMENT STANDARDS ....................................................................... 4 5. TEST METHODLOGY ........................................................................................ 4 6. MEASUREMENT EQUIPMENT USED ........................................................... 5 7. POWERLINE RFI LIMIT.................................................................................... 5 8. RADIATED EMISSION LIMITS ....................................................................... 6 9. SYSTEM TEST CONFIGURATION ................................................................. 6 10. TEST PROCEDURE ............................................................................................. 8 11. EQUIPMENT MODIFICATIONS...................................................................... 9 12. TEST RESULT ..................................................................................................... 10 12.1. MAXIMUM MODULATION PERCENTAGE(M%)................................ 10 12.2. THE EMISSIONS BANDWIDTH ................................................................. 10 APPENDIX 1 PHOTOGRAPHS OF EUT .............................................................. 11 APPENDIX 2 TEST DATA ....................................................................................... 15 Report Number: 03E1061-D July 3, 2003 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : GRAND HALL ENTERPRISE CO., LTD. 8Fl., NO. 298, Rueiguang Rd., Neihu, Taipei, Taiwan 114, R.O.C. CONTACT PERSON : David Kim / R&D Manager TELEPHONE NO. : 866-2-2659-1119 EUT DESCRIPTION : Automatic gas ignition system MODEL NAME/NUMBER : HC-SR-001 FCC ID : Q9K-PC20-01 DATE TESTED : June 11, 2003 REPORT NUMBER : 03E1061-D TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 340 MHz Automatic gas ignition system MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by C&C Laboratory Co., Ltd. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Engineering Services, Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by C&C Laboratory Co., Ltd. will constitute fraud and shall nullify the document. Vince Chiang / Supervisor C&C Laboratory Co., Ltd. Report Number: 03E1061-D July 3, 2003 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 340 MHz Power Source 12V Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: RC-SR-001 (DoC) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165 & No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Report Number: 03E1061-D July 3, 2003 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date R&S ESVS30 MEASURE RECEIVER 09/13/03 ADVANTEST R3132 SPECTRUM ANALYZER 09/11/03 SCHAFFNER CBL 6112B ANTENNA 11/11/03 BELDEN 9913 CABLE 10/13/03 SCHAFFNER CPA9231A PRE-AMPLIFIER 10/30/03 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. Report Number: 03E1061-D July 3, 2003 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up (Transmitter Mode) Report Number: 03E1061-D July 3, 2003 Page 7 Rev. 00 Report N…

Text truncated - open the document above for the full version.

Report Number: 03E1061-D July 3, 2003 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up (Transmitter Mode) Report Number: 03E1061-D July 3, 2003 Page 7 Rev. 00
