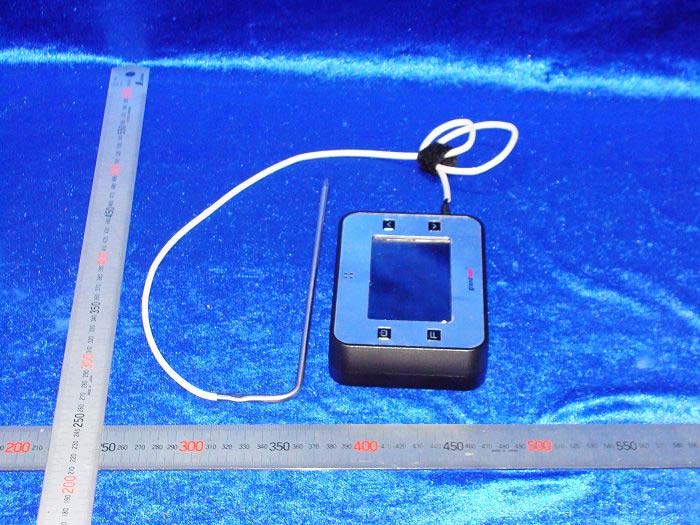

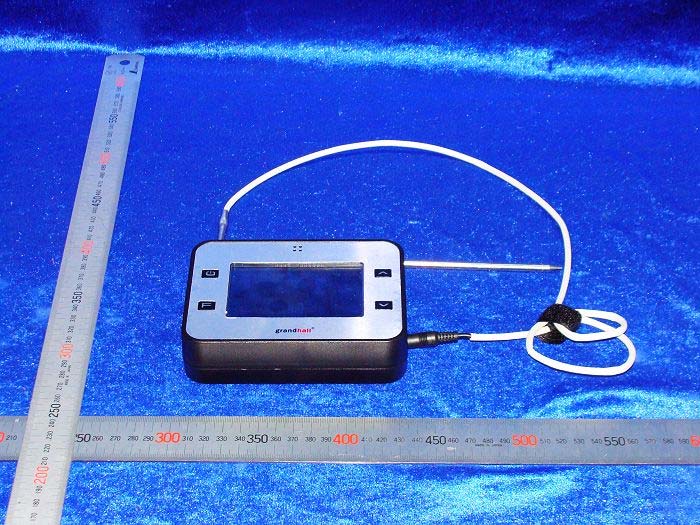

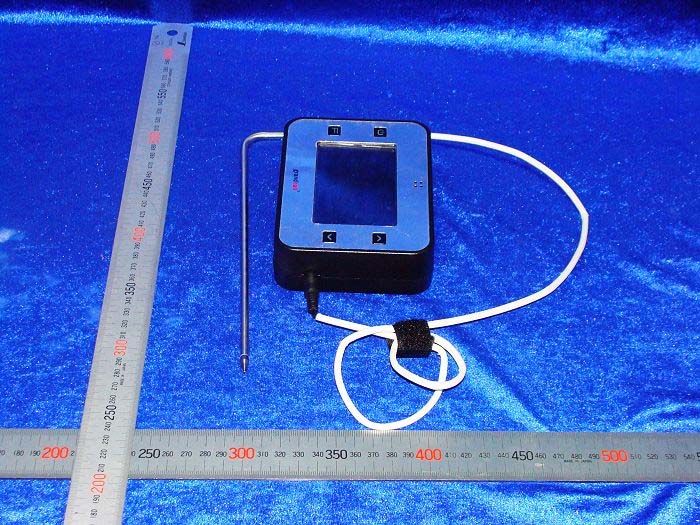

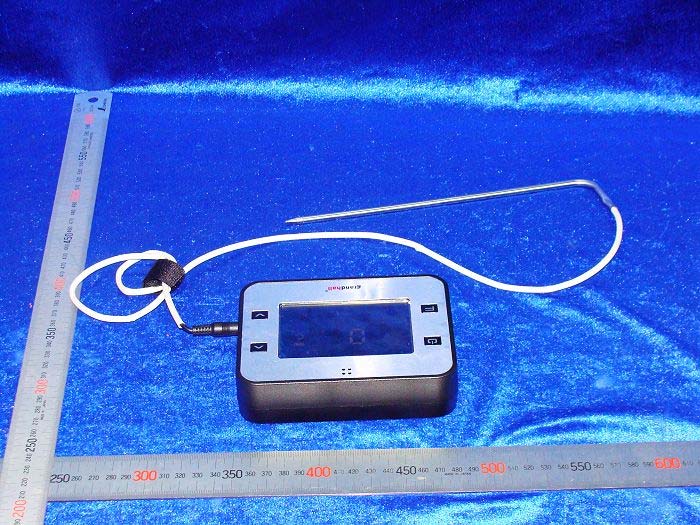

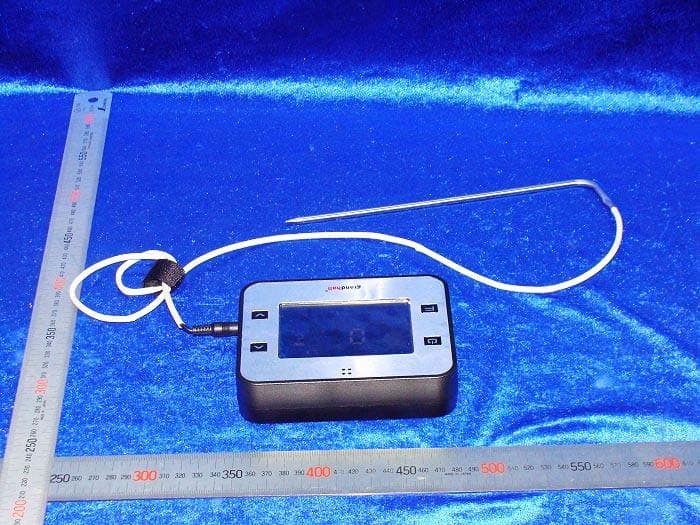

Q9KWB10AWireless BBQ Probe &Timer

Centigrade or Fahrenheit Selection Doneness Selection Power IconUp Arrow Battery Icon Function IconDown Arrow Timer Icon Temperature or Time Display Meat Selection Operating LCD Display and Probe Press power button [ ] to turn on display. COUNT-DOWN TIMER Press function button [ ] until timer icon [ ] is selected. Use the up [ ] and down [ ] arrows to set the desired time. Maximum 150 minutes. The countdown will start immediately. The alarm will beep on display and receiver (if turned on) when zero is reached. Press any key on LCD and Receiver to deactivate beep. PROBE Plug the probe into the LCD display unit. Using the function button [ ] select Fahrenheit [ ] or Centigrade [ ]. The display will detect the temperature at the probe tip. When the detected temperature is equal or less than 45°C / 113°F (≤45°C / ≤113°F) the LCD screen and buttons lights will remain off until any key is touched. Select meat type using the down arrow [ ] options are: Beef, Lamb, Pork, Chicken and Turkey. Select doneness using the up arrow [ ] options are: Rare, Med Rare, Medium and Well Done. Insert probe into meat. The temperature reading will display on LCD Display unit. When the temperature exceeds the doneness setting (e.g. Medium) the alarm will beep on display and receiver (if turned on). Press any key on LCD and Receiver to deactivate beep. The Probe can remain in food if more cooking is required and the alarm will sound when required temperature is reached. Operating Receiver Press button to turn receiver on. The indicator light will turn red for 1-2 seconds. When receiver is in use the green indicator light will fl ash every 5 seconds. When the alarm is activated the receiver will beep. Press the receiver button to deactivate alarm. When indicator light turns red the battery is low, please replace battery. Wireless BBQ Probe & Timer Instruction Manual RECOMMENDED TEMPERATURES BeefLambPorkPoultry Well Done 78°C173°F78°C173°F78°C173°F83°C182°F Medium 71°C-77°C160°F-172°F71°C-77°C160°F-172°F71°F-77°C160°F-172°F Medium Rare 63°C-70°C146°F-159°F63°C-70°C146°F-159°F Rare 60°C-62°C140°F-145°F60°C-62°C140°F-145°F SPECIFICATIONS Temperate Reading 0°C - 150°C / 32°F - 302°F Maximum Receiver Operating Distance 30 meters / 100 feet Maximum Timer Setting 150 minutes LCD Display Unit Batteries 4 x AAA batteries (1.5V) Receiver Batteries 1 x 12V Alkaline battery (23A or 23AE) STANDBY AND AUTO SHUT OFF StandbyShut off LCD Display Unit 20 seconds30 minutes Receiver Unit 100 minutes LCD Display Unit Probe Receiver Manual # P80134006A - Date: 2010/03/26 Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. LCD UNIT: FCC ID: Q9KWB10A • Model No. WB10A RECEIVER: FCC ID: Q9KWB10B • Model No. WB10B

FCCIDLabel Location

Inside View Modular

LCD Display Operation Description: 1. The powered is supplied by 4 PCS 1.5V batteries, Type: AAA/1.5V. 2. Using 433MHz FSK modulation. 3. Antenna is common wire, Power Amplifier of 0dBm 4. Insert the battery, press the "④ Button" to switch LCD Display unit, the temperature and figure will appear on the "⑤ LCD Display". 5. Press "④ Button" to set the countdown timer, the countdown will start immediately after the completion of the setting, when zero is reached, the alarm will beep by "③ Buzzer" and at the same time the signal will be sent out from "① LCD Display Module". 6. Press "④ Button" to set desired temperature, the temperature will be detected by "② Temperature Sensor," the alarm will sound by "③ Buzzer" when required temperature is reached and at the same time the signal will be sent out from "① LCD Display Module". 7. The LCD Display unit includes: MCU processor, RF module, Temperature Sensor, Buzzer, Alarm circuits, LCD display circuit, Power circuit; RF modules includes: Filter, Crystal and PLL LCD Display launch systems and Antenna ; MCU processor including IO port, LCD drivers, A / D conversion. 8. Press the Button and power supply circuit to turn on LCD Display unit, MCU will be processed by each button in functional and appear reading on LCD display, the temperature detection will be process by temperature sensor, when LCD display in alarm state, it alarms and sends alarm signal to receiver by RF module. The RF module sends output signal 433.92Mhz per 5 seconds which is modulated by FSK.

ISO/IEC17025 Accredited Lab. Report No: FCC 1003004 File reference No: 2010-03-30 Applicant: Grand Hall Enterprise Co., Ltd. Product: Test thermostat Model No: N/A Trademark: grandhall Test Standards: FCC Part 15 Subpart C, Paragraph 15.231 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.231 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: March 30,2010 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1003044 Page 2 of 34 Date: 2010-03-30 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-01. Report No: 1003044 Page 3 of 34 Date: 2010-03-30 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition..........................................…
