Q9KWB10BWireless BBQ Probe & Timer

Centigrade or Fahrenheit Selection Doneness Selection Power IconUp Arrow Battery Icon Function IconDown Arrow Timer Icon Temperature or Time Display Meat Selection Operating LCD Display and Probe Press power button [ ] to turn on display. COUNT-DOWN TIMER Press function button [ ] until timer icon [ ] is selected. Use the up [ ] and down [ ] arrows to set the desired time. Maximum 150 minutes. The countdown will start immediately. The alarm will beep on display and receiver (if turned on) when zero is reached. Press any key on LCD and Receiver to deactivate beep. PROBE Plug the probe into the LCD display unit. Using the function button [ ] select Fahrenheit [ ] or Centigrade [ ]. The display will detect the temperature at the probe tip. When the detected temperature is equal or less than 45°C / 113°F (≤45°C / ≤113°F) the LCD screen and buttons lights will remain off until any key is touched. Select meat type using the down arrow [ ] options are: Beef, Lamb, Pork, Chicken and Turkey. Select doneness using the up arrow [ ] options are: Rare, Med Rare, Medium and Well Done. Insert probe into meat. The temperature reading will display on LCD Display unit. When the temperature exceeds the doneness setting (e.g. Medium) the alarm will beep on display and receiver (if turned on). Press any key on LCD and Receiver to deactivate beep. The Probe can remain in food if more cooking is required and the alarm will sound when required temperature is reached. Operating Receiver Press button to turn receiver on. The indicator light will turn red for 1-2 seconds. When receiver is in use the green indicator light will fl ash every 5 seconds. When the alarm is activated the receiver will beep. Press the receiver button to deactivate alarm. When indicator light turns red the battery is low, please replace battery. Wireless BBQ Probe & Timer Instruction Manual RECOMMENDED TEMPERATURES BeefLambPorkPoultry Well Done 78°C173°F78°C173°F78°C173°F83°C182°F Medium 71°C-77°C160°F-172°F71°C-77°C160°F-172°F71°F-77°C160°F-172°F Medium Rare 63°C-70°C146°F-159°F63°C-70°C146°F-159°F Rare 60°C-62°C140°F-145°F60°C-62°C140°F-145°F SPECIFICATIONS Temperate Reading 0°C - 150°C / 32°F - 302°F Maximum Receiver Operating Distance 30 meters / 100 feet Maximum Timer Setting 150 minutes LCD Display Unit Batteries 4 x AAA batteries (1.5V) Receiver Batteries 1 x 12V Alkaline battery (23A or 23AE) STANDBY AND AUTO SHUT OFF StandbyShut off LCD Display Unit 20 seconds30 minutes Receiver Unit 100 minutes LCD Display Unit Probe Receiver Manual # P80134006A - Date: 2010/03/26 Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. LCD UNIT: FCC ID: Q9KWB10A • Model No. WB10A RECEIVER: FCC ID: Q9KWB10B • Model No. WB10B

"The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate."

FCC IDLabel Location

"The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate."

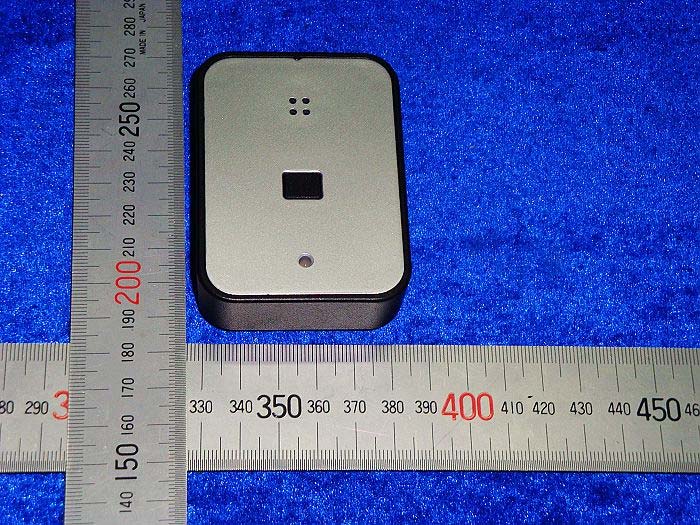

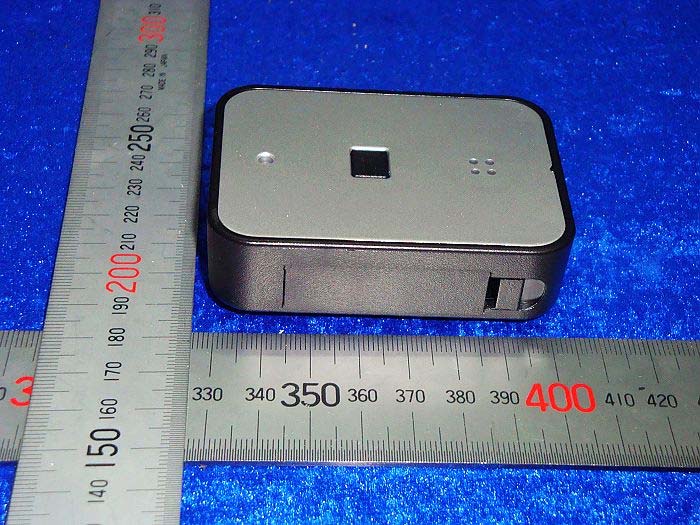

Receiver Operation Description: 1. The power is supplied by a 12V Alkaline battery, Type: 23A-12V. 2. Insert the battery, press the "② Button" to switch receiver. 3. When receiver is in use the "④ Indicator Light" (green) will flash. 4. MCU through the "① Receiver module” to receive the signal, the receiver will beep by "③ Buzzer" when the alarm is activated. 5. Press the receiver "② Button" to deactivate alarm. 6. The Receiver includes: MCU processor, RF Receiver module (RF01), Buzzer, Alarm circuit, LED indicator light, Power supply circuit. RF module include: Filter, Crystal and PLL receiver and Antenna. 7. Press the Button and power supply circuit to turn on Receiver, MCU will turn on RF receiver module (RF01) in every 200ms and waiting for to receiving the signal, when received signal, MCU read RF information provided and determine if it is alarm status then the buzzer will beep. LED indicator will flash when receiver is in use. 8. Operational Description: 433.92MHz

ISO/IEC17025 Accredited Lab. Report No: FCC 1003005 File reference No: 2010-03-31 Applicant: Grand Hall Enterprise Co., Ltd. Product: Test thermostat Brand Name: grandhall Model No: N/A Test Standards: FCC Part 15 Subpart B: 2008 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 regulations for the evaluation of electromagnetic compatibility Approved By Terry Tong Manager Dated: March 31, 2010 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD East 5/Block 4, Anhua Industrial Zone, No.8, Tairan Rd. Chegongmiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1003005 Page 2 of 19 Date: 2010-03-31 TEST REPORT "The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate." Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-01. VCCI- Registration No.: R-3015 and C-3332 The EMC Laboratory has been registered and fully described in a report filed with the (VCCI) Voluntary Control Council for Interference. The acceptance letter from the VCCI is maintained in our files. Registration IC No.: R-3015 and C-3332 Report No: 1003005 Page 3 of 19 Date: 2010-03-31 TEST REPORT "The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate." Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ............................................................................................4 1.4 Test Uncertainty................................................................................................ 4 1.5 Submitted Sample............................................................................................. 4 1.6 Test Duration.................................................................................................. 4 2.0 List of Measurement Equipment........................................................................ 5 2.1 Conducted Emission Test..................................................................................... 5 2.2 Radiated electromagnetic disturbance test................................................................. 5 3.0 Technical Details............................................................................................. 5 3.1 Investigations Requested..................................................................................... 5 3.2 Test Standards.................................................................................................. 5 4.0 Power line Conducted Emission Test..................................................................... 6 5.0 Radiated Disturbance Test................................................................................... 8 6.0 FCC ID Label…
