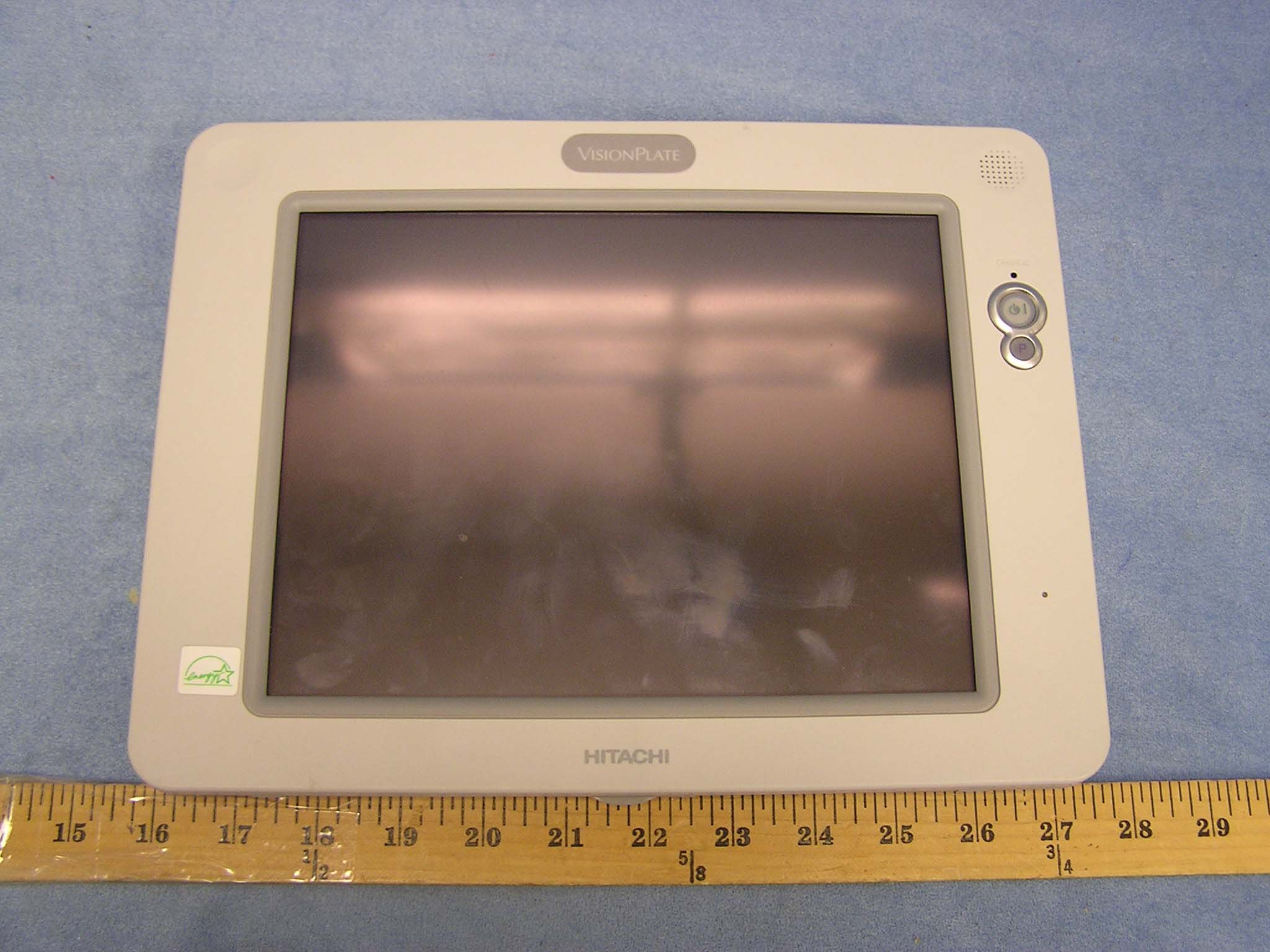

Q9Z-PC5NR3-J2Wireless Tablet PC with 802.11b/g

VisionPlate ™ USER MANUAL Copyright © 2003 Hitachi Data Systems. All rights reserved. This publication contains information that is protected by copyright. No part of it may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without permission from Hitachi Data Systems. Trademarks Crusoe is a trademark of Transmeta Corporation. Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corporation. IBM and PS/2 are trademarks of International Business Machines Corporation. All trademarks, trade names and service marks used herein are the rightful property of their respective owners. 2 Table of Contents Disclaimer.......................................................................5 Chapter 1 Safety Information.....................................................6 1.1 Introduction................................................................6 1.2 Tips for Safe Operation.......................................................6 Things to Keep in Mind..........................................................6 1.3 Vision Risk Factors..........................................................7 Things to Keep in Mind..........................................................7 1.4 Hand and Wrist Motor Risk Factors.............................................8 Things to Keep in Mind..........................................................8 1.5 Body Support Risk Factors....................................................9 Things to Keep in Mind..........................................................9 1.6 Product Safety Guidelines.....................................................9 Things to Keep in Mind..........................................................9 1.7 Main Battery Pack Guidelines................................................10 Things to Keep in Mind.........................................................10 1.8 Power Cord Guidelines......................................................10 Things to Keep in Mind.........................................................10 1.9 AC Adapter Guidelines......................................................11 Things to Keep in Mind.........................................................11 1.10 Restrictions for AC Adapters.................................................11 1.11 Liquid Crystal Display (LCD) Guidelines.......................................11 Things to Keep in Mind.........................................................11 1.12 Proper Treatment of Your Hitachi Product.......................................12 Things to Keep in Mind.........................................................12 1.13 Safety and Regulatory Compliance............................................13 FCC Part 15 Compliance Statement................................................13 Canadian EMI Compliance Statement..............................................13 FCC Warning.................................................................13 UL1604 Compliance Statement...................................................14 1.14 General Safety Guidelines...................................................15 1.15 Battery Safety Guidelines....................................................16 1.16 Operating Safety Guidelines..................................................16 Chapter 2 Getting Started.......................................................17 2.1 Identifying Components.....................................................17 Buttons and Lamps.............................................................17 Left Side Connectors...........................................................18 Right Side Connectors..........................................................19 3 Cradle (optional) ...............................................................20 2.2 Setting up the VisionPlate....................................................21 Direct to Outlet Connection......................................................21 Desktop Use (with optional Cradle)................................................22 2.3 Mobile Use...............................................................25 2.4 Powering the VisionPlate On and Off...........................................27 Powering the VisionPlate On.....................................................27 Powering the VisionPlate Off.....................................................28 Chapter 3 Using Your VisionPlate................................................29 3.1 Using the Stylus...........................................................29 3.2 Touchscreen Calibration.....................................................31 3.3 Adjusting the Brightness of the LCD...........................................32 3.4 Adjusting the Volume.......................................................33 3.5 Battery Pack..............................................................34 Charging the Battery Pack.......................................................34 The Charge Lamp..............................................................34 Battery Charging Time..........................................................34 Battery Life...................................................................35 Battery Maintenance............................................................35 General Precautions............................................................36 Entering the Power Saving Mode..................................................37 Exiting Power Saving Mode......................................................37 Low Battery Notification........................................................38 Chapter 4 Section 4. Expandability...............................................38 4.1 PC Cards.................................................................38 Installing a PC Card............................................................38 Removing a PC Card...........................................................39 4.2 CF Cards.................…

Text truncated - open the document above for the full version.

1 Helen Zhao Subject:FW: Hitachi Keiyo Engineering and Systems, Ltd, FCC ID: Q9Z-PC5NR3-J2, Assessment NO.: AN04T4237, Notice#1 From: Claire Hoque Sent:Friday, October 08, 2004 9:41 AM To:Helen Zhao Subject:RE: Hitachi Keiyo Engineering and Systems, Ltd, FCC ID: Q9Z-PC5NR3-J2, Assessment NO.: AN04T4237, Notice#1 Hi Helen, Here are the answers. Question #1: The Theory of Operation indicated that the mini-PCI card has 802.11a/b/g capability. But either EMC test report or SAR report does not include 802.11a testing data. Please explain. If 802.11a portion of radio is not disabled via firmware but by removing 802.11a related components, then all EMC / SAR tests have to be redone. If it is firmware disabled by the applicant at the factory, then they have to ensure the end user has no access to enable / disable 802.11a function. <answer>Client Uses the Firmware/Utility to disable the 802.11a portion. Client also indicates existing antenna does not support 802.11a. Question #2: Please provide Functional Block Diagram for entire Tablet PC since the EUT is Tablet PC with 802.11 b/g mini- PCI card, as shown on the test report. <answer>Here is the Functional Block Diagram. Functional Block Diagram .pdf Question #3: The Specification on the user manual indicated the device has an interface of an IEEE 802.11b compliant wireless LAN card, which is not the case, please explain. <answer>User manual has been revised from 802.11b to 802.11g. Revised_User Manual.pdf Question #4: There are two sets of antenna specification in the filing. One is for Hitachi SAM-F24016A1TL with max. gain 1.6 dBi, the other is for NR3_Horizontal with max. gain -0.03dBi. But page 30 of EMC test report indicated that the max. antenna gain is 0.9 dBi, page 5 of SAR report indicated that the max. antenna gain is -0.4 dBi. Please explain. <answer>Both reports have been revised. 04U2959 FCC REPORT(revised).pd... 04U2959-2 SAR Report(revised).... Question #5: The test plot on page 51 of EMC test report is not a Low CH Bandedge, as suggested. Actually this is a High CH bandedge plot. Please correct. <answer>pls see revised report, same as Q4. Question #6: Please remove MPE estimate in EMC test report, this device is classified as portable device and MPE estimate does not apply. <answer>pls see revised report, same as Q4. Question #7: Page 7 of SAR plots does not show the hot spot, please submit revised SAR plots. <answer>Page 7 only shows z-scanned location for this measurement and the hot spot show in page 6. 2 Question #8: The max SAR value listed on page 3 of the SAR report is incorrect. Please correct. <answer>It's a typo, SAR Report is revised. Question #9: The SAR report indicated the EUT is the 802.11b/g mini-PCI card, not the tablet PC, which contridicts to the rest of documents in the filing. <answer>EUT description is changed, pls see revised SAR Report. Thanks, Claire

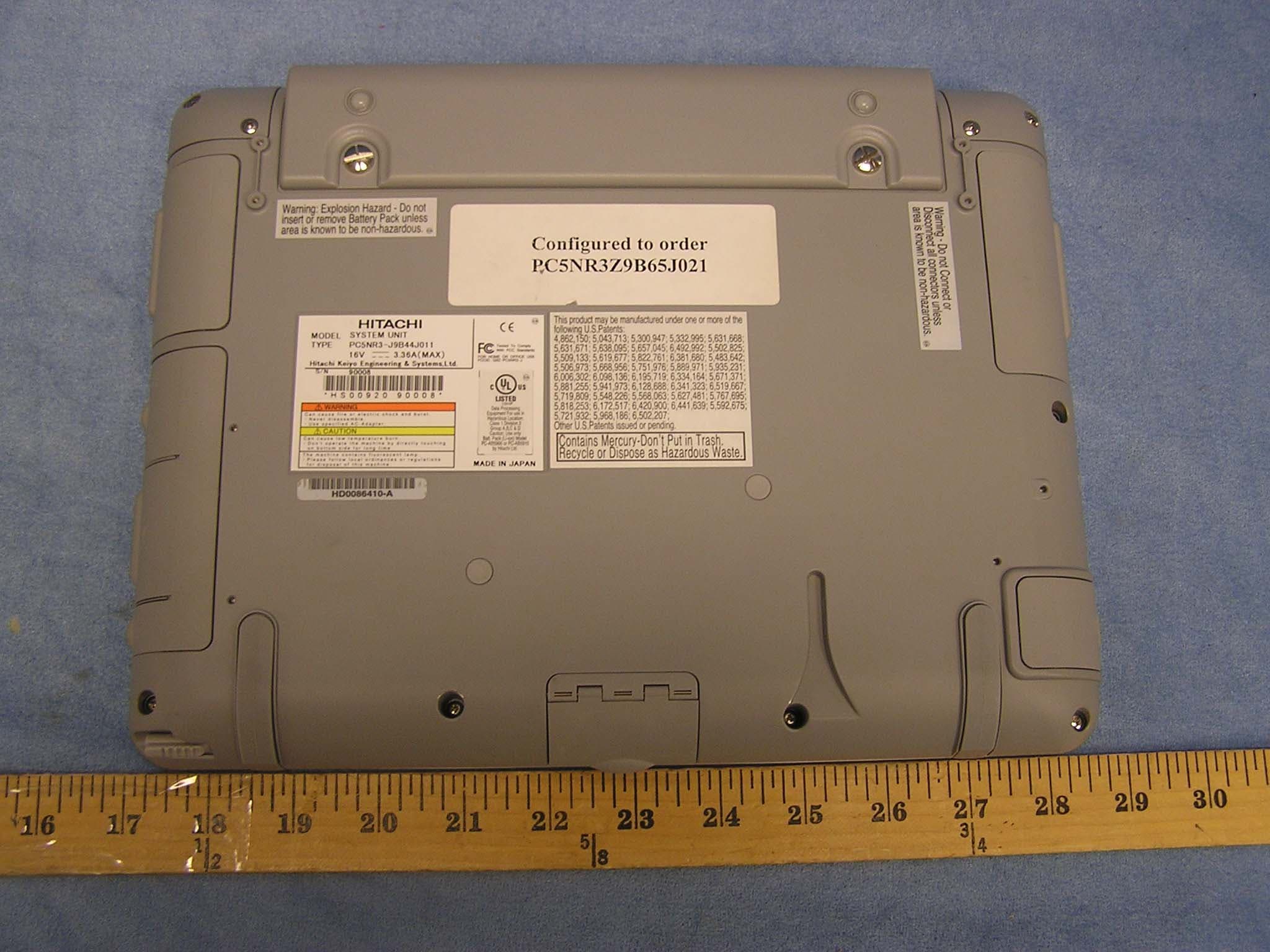

PROPOSED FCC ID LABEL AND LOCATION HITACHI KEIYO ENGINEERING AND SYSTEMS, LTD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: Q9Z-PC5NR3-J2 FCC ID LABEL LOCATION

Small Ceramic Chip Antenna Small Ceramic Chip Antenna for for Bluetooth Bluetooth Hitachi Metals, Ltd. Tottori Works R&D Department http://www.hitachi-metals.co.jp Page. 1/4 SMA-F24016A1TL 3.Specifications Hitachi Metals, Ltd. Tottori Works Page. 2/4 1. Feature Omni-directional Wide Bandwidth High Gain Small & SMD Easy to use (adjustment free) 2. Dimensions 10mm x 3mm x 2mm Frequency Range2400 -2484MHz Band Width160MHz (Typical Value) VSWR2.0 Max. Gain-4dBi Input Impedance50 Ohm 4.Foot Pattern Unit:mm 2 1 10 2 3 22 1 3 . 5 4 . 5 (1) Signal (2) NC (Mount Point) (3) GND 0.5 1.5 0.5 (2) (1) (3) 5. Application Note 5mm Back Side Circuit Board (Evaluation) Ceramic Antenna Need Blank Space 5mm Need 1mm Space from Grand Plane 1mm 7. Measurement Data 7-1. VSWR vs. Frequency Hitachi Metals, Ltd. Tottori Works Page. 3/4 24502250 2650 Frequency (MHz) VSWR 1 2 3 Z X Y 270 180 90 Hitachi Metals, Ltd. Tottori Works Page. 4/4 7-2. Radiation Pattern and Gain HorizontalVerticalH/V Ave.HorizontalVerticalH/V Ave.HorizontalVerticalH/V Ave. Ave.[dBi]-3.1-4.7-3.8Ave.[dBi]-1.7-12.1-4.3Ave.[dBi]-6.2-2.5-4.0 Max.[dBi]0.9-1.7-0.2Max.[dBi]1.6-8.3-1.0Max.[dBi]-2.4-1.1-1.7 -35 -25 -15 -5 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -25 -15 -5 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -25 -15 -5 5 0 30 60 90 120 150 180 210 240 270 300 330 Horizontal Vertical Horizontal Vertical Horizontal Vertical X-Y Plane Y-Z PlaneZ-X Plane 0

HorizontalVertical HorizontalVertical HorizontalVertical

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Wireless Tablet w/802.11bg Model: PC5NR3-XXXXXXXXX and PCNR-3XXXXXXXXX FCC ID: Q9Z-PC5NR3-J2 October 6, 2004 REPORT NO: 04U2959-2 Prepared for Hitachi Keiyo Engineering and Systems, Ltd 7chome-1-1 Higashinarashino Narashino-shi, Chiba-ken, 275-0001 Japan Prepared by Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 04U2959-2 DATE: October 6, 2004 FCC ID: Q9Z-PC5NR3-J2 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 29 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Revision History Rev. Revisions Revised By A 1. Max SAR changed from 3.08 to 0.308 (typo) 2. Changed EUT description. Sunny Shih REPORT NO: 04U2959-2 DATE: October 6, 2004 FCC ID: Q9Z-PC5NR3-J2 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 29 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: September 16-17, 2004 APPLICANT: Hitachi Keiyo Engineering and Systems, Ltd 7chome-1-1 Higashinarashino Narashino-shi, Chiba-ken, 275-0001 Japan MODEL: PC5NR3-XXXXXXXXX and PCNR-3XXXXXXXXX FCC ID: Q9Z-PC5NR3-J2 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) for 802.11b Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g Tx Frequency: 2412 to 2462 MHz Max. O/P Power: (Conducted/Average) 20.2 dBm for 802.11b 17.2 dBm for 802.11g Max. SAR (1g): 0.308 mW/g for 8.2. 11b 0.136 mW/g for 8.2. 11g Equipment Class: Digital Transmission System (DTS) FCC Rule Part(s): 15C This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT NO: 04U2959-2 DATE: October 6, 2004 FCC ID: Q9Z-PC5NR3-J2 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 29 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION................................................................................. 5 2. R EQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................................................. 5 3. D OSIMETRIC ASSESSMENT SYSTEM................................................................................................. 5 3.1. M EASUREMENT SYSTEM DIAGRAM......................................................................................... 6 3.2. S YSTEM COMPONENTS......................................................................................................... 7 3.3. DASY4 M EASUREMENT SERVER........................................................................................... 7 3.4. D ATA ACQUISITION ELECTRONICS (DAE) ............................................................................... 7 3.5. EX3DV3 I SOTROPIC E-FIELD PROBE FOR DOSIMETRIC MEASUREMENTS................................ 7 3.6. SAM P HANTOM (V4.0)......................................................................................................... 8 3.7. D EVICE HOLDER FOR SAM TWIN PHANTOM........................................................................... 8 3.8. S YSTEM VALIDATION KITS..................................................................................................... 8 4. E VALUATION PROCEDURES............................................................................................................. 9 5. M EASUREMENT UNCERTAINTY....................................................................................................... 13 6. E XPOSURE LIMIT........................................................................................................................... 14 7. P ROCEDURES USED TO ESTABLISH TEST SIGNALS......................................................................... 15 7.1.1. C ONDUCTED OUTPUT POWER................................................................................. 15 8. M EASUREMENT RESULTS.............................................................................................................. 16 8.1. S IMULATING LIQUIDS PARAMETER CHECK............................................................................ 16 8.2. S YSTEM PERFORMANCE CHECK.......................................................................................... 19 8.3. SAR M EASUREMENTS RESULTS.......................................................................................... 20 8.3.1. T EST POSITION 1 (ANTENNA A) ............................................................................... 20 8.3.2. T EST POSITION 2 (ANTENNA B) ............................................................................... 21 8.3.3. T EST POSITION 3 (ANTENNA B, THICKER BATTERY PACK – PC-AB5910…

Text truncated - open the document above for the full version.

Date/Time: 09/16/04 10:42:34 Test Laboratory: Compliance Certification Services 6_System Performance Check @ 2450MHz (Body Tissue)_091604 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Phantom section: Flat Section Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.98 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 2.0 dB (58.35%) z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 18.7 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 99.7 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 24.8 W/kg SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.82 mW/g Maximum value of SAR (measured) = 18.8 mW/g 0 dB = 18.8mW/g Date/Time: 09/16/04 11:37:40 Test Laboratory: Compliance Certification Services 6_System Performance Check @ 2450MHz (Body Tissue)_091604 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 24.4 mW/g Date/Time: 09/17/04 10:40:28 Test Laboratory: Compliance Certification Services 6_System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Phantom section: Flat Section Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 2.0 dB (58.35%) z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 17.6 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 96.8 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 25.2 W/kg SAR(1 g) = 12.6 mW/g; SAR(10 g) = 5.88 mW/g Maximum value of SAR (measured) = 17.3 mW/g 0 dB = 17.3mW/g Date/Time: 09/17/04 10:40:28 Test Laboratory: Compliance Certification Services 6_System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 20.6 mW/g

Date/Time: 09/16/04 11:55:54 Test Laboratory: Compliance Certification Services 1_Test Position 1 (Antenna A) DUT: Hitachi Keiyo Engineering and Systems, Ltd; Type: PC5NR3-XXXXXXXXX; Serial: N/A Phantom section: Flat Section Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.96 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 2.0 dB (58.35%) z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 M-ch/Area Scan (7x8x1): Measurement grid: dx=18mm, dy=18mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.272 mW/g M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.21 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 0.375 W/kg SAR(1 g) = 0.212 mW/g; SAR(10 g) = 0.123 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.269 mW/g Date/Time: 09/16/04 11:55:54 Test Laboratory: Compliance Certification Services 1_Test Position 1 (Antenna A) DUT: Hitachi Keiyo Engineering and Systems, Ltd; Type: PC5NR3-XXXXXXXXX; Serial: N/A Phantom section: Flat Section Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.96 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 2.0 dB (58.35%) z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 802.11 g M-ch/Area Scan (7x8x1): Measurement grid: dx=18mm, dy=18mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.122 mW/g 802.11 g M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 3.71 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.178 W/kg SAR(1 g) = 0.100 mW/g; SAR(10 g) = 0.059 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.128 mW/g Date/Time: 09/16/04 11:55:54 Test Laboratory: Compliance Certification Services 1_Test Position 1 (Antenna A) DUT: Hitachi Keiyo Engineering and Systems, Ltd; Type: PC5NR3-XXXXXXXXX; Serial: N/A Phantom section: Flat Section Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.96 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 2.0 dB (58.35%) z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 802.11 g_Turbo/Area Scan (7x8x1): Measurement grid: dx=18mm, dy=18mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.142 mW/g 802.11 g_Turbo/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 3.88 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.209 W/kg SAR(1 g) = 0.116 mW/g; SAR(10 g) = 0.068 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.149 mW/g Date/Time: 09/17/04 16:32:16 Test Laboratory: Compliance Certification Services 2_Test Position 2 - Antenna B DUT: Hitachi Keiyo Engineering and Systems, Ltd; Type: PC5NR3-XXXXXXXXX; Serial: N/A Phantom section: Flat Section Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 2.0 dB (58.35%) z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 802.11b_L-ch/Area Scan (7x8x1): Measurement grid: dx=18mm, dy=18mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.219 mW/g 802.11b_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 2.03 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.425 W/kg SAR(1 g) = 0.221 mW/g; SAR(10 g) = 0.113 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.292 mW/g Date/Time: 09/17/04 16:32:16 Test Laboratory: Compliance Certification Services 2_Test Position 2 - Antenna B DUT: Hitachi Keiyo Engineering and Systems, Ltd; Type: PC5NR3-XXXXXXXXX; Serial: N/A Phantom section: Flat Section Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.95 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 2.0 dB (58.35%) z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Elect…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR WIRELESS TABLET with 802.11 b/g MODEL NUMBER: PC5NR3-XXXXXXXXX and PCNR-3XXXXXXXXX BRAND NAME: VisionPlate FCC ID: R8Q-PC5NR3-J2 REPORT NUMBER: 04U2959-1 ISSUE DATE: SEPTEMBER 28, 2004 Prepared for HITACHI KEIYO ENGINEERING AND SYSTEMS, LTD 7CHOME-1-1 HIGASHINARASHINO NARASHINO-SHI, CHIBA-KEN JAPAN, 275-0001 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2959-1 DATE: SEPTEMBER 28, 2004 EUT: WIRELESS TABLET with 802.11b/g FCC ID: Q9Z-PC5NR3-J2 Page 2 of 121 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Revision History Rev. Revisions Revised By REPORT NO: 04U2959-1 DATE: SEPTEMBER 28, 2004 EUT: WIRELESS TABLET with 802.11b/g FCC ID: Q9Z-PC5NR3-J2 Page 3 of 121 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT DECLARATION .................................................................................................... 4 2. EUT DESCRIPTION.......................................................................................................................... 5 3. MANUFACTURER’S STATEMENT .............................................................................................. 5 4. TEST METHODOLOGY .................................................................................................................. 6 5. FACILITIES AND ACCREDITATION .......................................................................................... 6 6. CALIBRATION AND UNCERTAINTY.......................................................................................... 7 6.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 7 6.2. MEASUREMENT UNCERTAINTY ............................................................................................... 7 6.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 8 7. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 9 8. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 12 8.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 12 8.1.1. 6 dB BANDWIDTH ........................................................................................................... 12 8.1.2. 99% BANDWIDTH............................................................................................................ 21 8.1.3. PEAK OUTPUT POWER .................................................................................................. 29 8.1.4. AVERAGE POWER........................................................................................................... 38 8.1.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 39 8.1.6. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 47 8.2. RADIATED EMISSIONS.............................................................................................................62 8.2.1. TRANSMITTER RADIATED SPUR…
