User’s Manual PM FBT T5002 Application and performance specification Electronic ballast for 14Wx2, 21Wx2, 24Wx2, 39Wx2, 54Wx2, Description Active power factor correction. PF≧0.99 Low harmonic distortion . THD≦10% Low lamp current crest factor. CF≦1.6 Warn (Rapid) start. Long Life De-active lamp protection Model Line Volts Lamp type Input watts Normal Line amps Power factor Total Harmonic distortion Crest factor PMFBTT514x2 120V/60Hz T5 14W 33W 0.28A ＞0.99 <10% <1.6 PMFBTT521x2 120V/60Hz T5 21W 50W 0.42A ＞0.99 <10% <1.6 PMFBTT524x2 120V/60Hz T5 24W 63W 0.52A ＞0.99 <10% <1.6 PMFBTT539x2 120V/60Hz T5 39W 91W 0.78A ＞0.99 <10% <1.6 PMFBTT554x2 120V/60Hz T5 54W 125W 1.05A ＞0.99 <10% <1.6 Performance Safety Meets FCC Part 18 (Class A) For EMI UL listed Non-consumer limits Application: Physical parameters Minimum starting temperature -18°C Mounting length 416mm Maximum ambient temperature 40°C (center to center) Maximum case temperature 75°C Overall length 430mm Width 30mm Height 26mm This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1. Use only on 120 volt, 60 hertz. 2. Never disassemble or modify - any changes could void the user's authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock - do not use where directly exposed to water. 5. This device is not intended for use with emergency exit fixtures or emergency exit lights. 6. This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications equipment operating between 0.45-30 MHz. If interference should occur, move the lamp away from the appliance a distance into a different outlet. 7. To prevent burns, do not touch the bulb during operation or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. Warranty Universal lighting technologies warrants to the purchaser that each electronics ballast will be marched with the lamp (14Wx2, 21Wx2, 24Wx2, 39Wx2, 54Wx2) and free from defects in material or workmanshop for a period of 5 years from date of manufacture when properly installed and under normal condition of use.

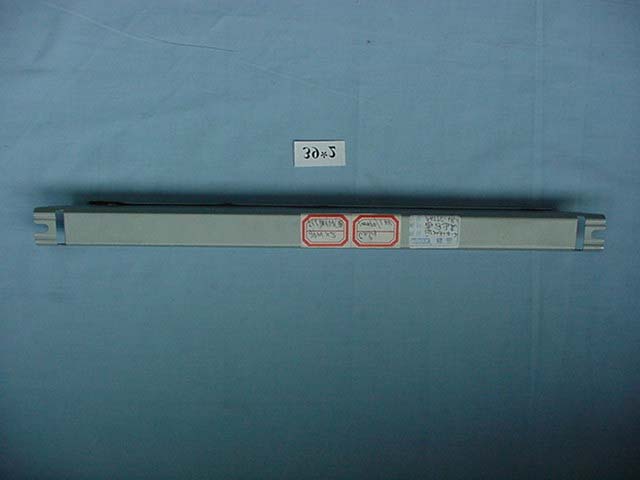

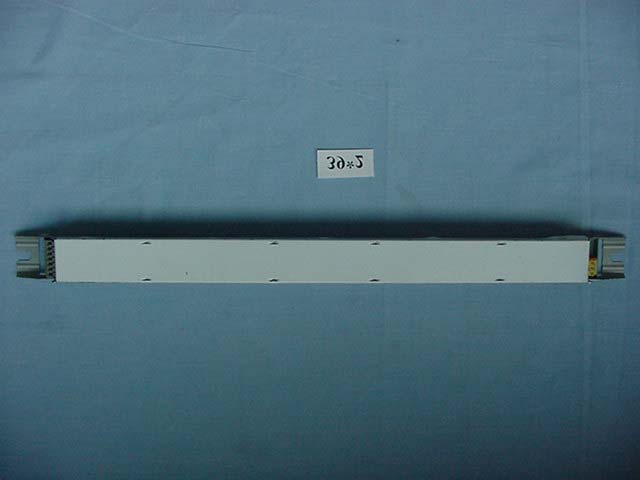

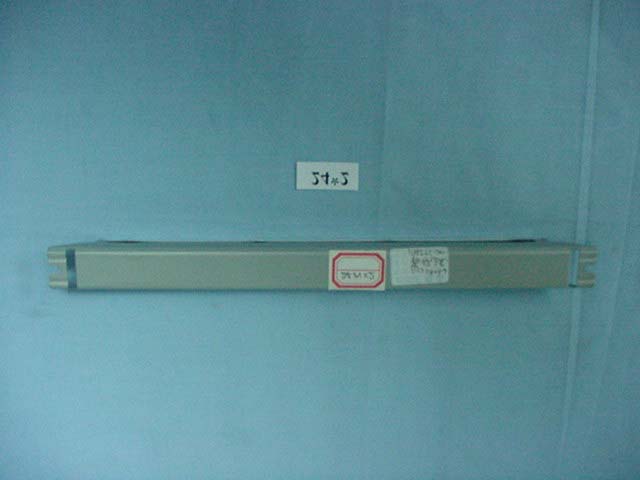

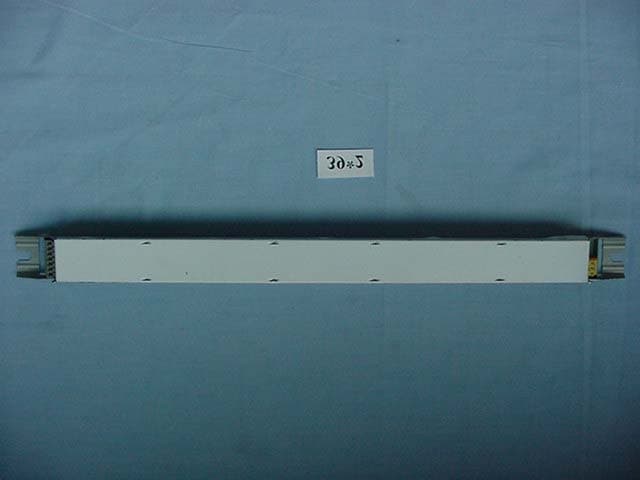

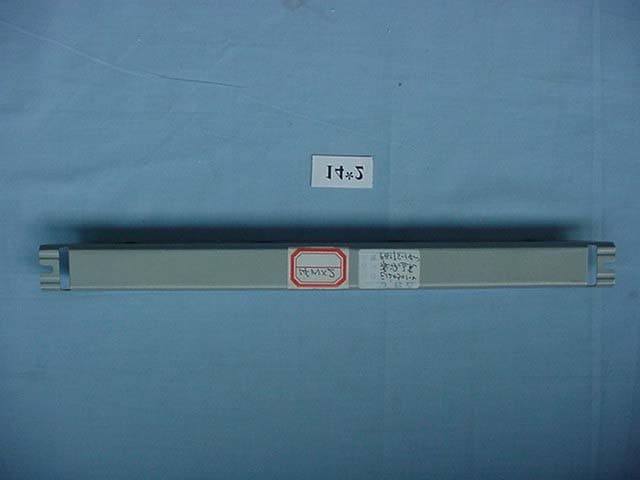

F IGURE 1 B ALLAST (M/N: FBT T5 14X2) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 2 B ALLAST (M/N: FBT T5 14X2) G ENERAL A PPEARANCE (B ACK V IEW ) Figure 3 B ALLAST (M/N: FBT T5 21X2) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 4 B ALLAST (M/N: FBT T5 21X2) G ENERAL A PPEARANCE (B ACK V IEW ) F IGURE 5 B ALLAST (M/N: FBT T5 24X2) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 6 B ALLAST (M/N: FBT T5 24X2) G ENERAL A PPEARANCE (B ACK V IEW ) F IGURE 7 B ALLAST (M/N: FBT T5 39X2) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 8 B ALLAST (M/N: FBT T5 39X2) G ENERAL A PPEARANCE (B ACK V IEW ) F IGURE 9 B ALLAST (M/N: FBT T5 54X2) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 10 B ALLAST (M/N: FBT T5 54X2) G ENERAL A PPEARANCE (B ACK V IEW )

Label Drawing QA7FBTT5002 33 W QA7FBTT5002 Q A7FBTT5002 0.52 ( A ) 63 W 91 W 0.78 (A) Q A7FBTT5002 Q A7FBTT5002 1.05 (A) 125 W

Label Location Information Refer to the below red arrow: (For example)

F IGURE 1 B ALLAST (M/N: FBT T5 14X2) C OVER R EMOVED F IGURE 2 B ALLAST (M/N: FBT T5 14X2) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 B ALLAST (M/N: FBT T5 14X2) M AIN B OARD (S OLDERED S IDE ) F IGURE 4 B ALLAST (M/N: FBT T5 21X2) C OVER R EMOVED F IGURE 5 B ALLAST (M/N: FBT T5 21X2) M AIN B OARD (C OMPONENT S IDE ) F IGURE 6 B ALLAST (M/N: FBT T5 21X2) M AIN B OARD (S OLDERED S IDE ) F IGURE 7 B ALLAST (M/N: FBT T5 24X2) C OVER R EMOVED F IGURE 8 B ALLAST (M/N: FBT T5 24X2) M AIN B OARD (C OMPONENT S IDE ) F IGURE 9 B ALLAST (M/N: FBT T5 24X2) M AIN B OARD (S OLDERED S IDE ) F IGURE 10 B ALLAST (M/N: FBT T5 39X2) C OVER R EMOVED F IGURE 11 B ALLAST (M/N: FBT T5 39X2) M AIN B OARD (C OMPONENT S IDE ) F IGURE 12 B ALLAST (M/N: FBT T5 39X2) M AIN B OARD (S OLDERED S IDE ) Figure 13 B ALLAST (M/N: FBT T5 54X2) C OVER R EMOVED F IGURE 14 B ALLAST (M/N: FBT T5 54X2) M AIN B OARD (C OMPONENT S IDE ) F IGURE 15 B ALLAST (M/N: FBT T5 54X2) M AIN B OARD (S OLDERED S IDE )

Schematics

SGEG N.A. INC FCC ID: QA7FBTT5002 Page 1 of 28 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03004 Application for FCC Certificate On Behalf of SGEG N.A. INC Ballast Model No.: FBT T5 14x2, FBT T5 21x2, FBT T5 24x2, FBT T5 39x2, FBT T5 54x2 FCC ID: QA7FBTT5002 Prepared For : SGEG N.A. INC 159 LAS TUNAS DRIVE, ARCADIA, CA91007.USA Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F03004 Date of Test : Dec 4~Dec 16, 2002 Date of Report : Dec 30, 2002 SGEG N.A. INC FCC ID: QA7FBTT5002 Page 2 of 28 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03004 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELD STRENGTH TEST ........................................................................................................... 12 3.1 Test Equipment......................................................................................................................... 12 3.2 Block Diagram of Test Setup ................................................................................................... 12 3.3 Test Configuration.................................................................................................................... 12 3.4 Operating Condition of EUT .................................................................................................... 12 3.5 Test Procedure .......................................................................................................................... 13 3.6 Test Result ................................................................................................................................ 13 SGEG N.A. INC FCC ID: QA7FBTT5002 Page 3 of 28 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03004 TEST REPORT FOR FCC CERTIFICATE Applicant : SGEG N.A. INC Manufacturer : POWER Mag (SuZhou) ELECTRONIC CO., LTD. EUT Description : Ballast (A) Model No.: FBT T5 14x2, FBT T5 21x2, FBT T5 24x2, FBT T5 39x2, FBT T5 54x2 (B) Serial No.: E120301-2, E120302-2, E120303-2, E120304-2, E120305-2, (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 NON-CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Dec 4~Dec 10, 2002 Prepared by : Test Engineer : Jean Liu (Assistant) SAMMY CHEN (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ARRON SU (Senior Manager) SGEG N.A. INC FCC ID: QA7FBTT5002 Page 4 of 28 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03004 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Ballast Type of EUT : ; Production … Pre-product … Pro-type Model Number : FBT T5 14x2, FBT T5 21x2, FBT T5 24x2, FBT T5 39x2, FBT T5 54x2 Applicant : SGEG N.A. INC 159 LAS TUNAS DRIVE, ARCADIA, CA91007.USA Manufacturer : POWER Mag (SuZhou) ELECTRONIC CO., LTD. Suzhou industrial Park Dong Xing Road No.10 Test Model Apparent Power (V ̇ A) Real Power (W) FBT T5 14x2 32.61 32.38 FBT T5 21x2 51.6 51.6 FBT T5 24x2 55.5 55.5 FBT T5 39x2 82.7 82.6 FBT T5 54x2 127.9 124.5 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Federal Communications Commission FCC Engineering Laboratory 7435 Oakland Mills Road Columbia, MD 21046, USA Name of Firm : Audix Technology (Shanghai) Co., Ltd. Site Location : 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. NVLAP Lab Code : 200371-0 1.3 Measurement Uncertainty Conducted Emission Uncertainty : U = ±2.66dB SGEG N.A. INC F…
