QA7FBTT5003Ballast

User’s Manual PM FBT T5 SERIES Application and performance specification Electronic ballast for T5 14x3, T5 21x3, Description Active power factor correction. PF≧0.99 Low harmonic distortion . THD≦10% Low lamp current crest factor. CF≦1.6 Warn (Rapid) start. Long Life De-active lamp protection Model Line Volts Lamp type Input watts Normal Line amps Power factor Total Harmonic distortion Crest factor PMFBTT514x3 120V/60Hz T5 14W 55W 0.46A ＞0.99 <10% <1.6 PMFBTT521x3 120V/60Hz T5 21W 80W 0.67A ＞0.99 <10% <1.6 Performance Safety Meets FCC Part 18 (Class A) For EMI UL listed Non-consumer limits Application: Physical parameters Minimum starting temperature -18°C Mounting length 414mm Maximum ambient temperature 40°C (center to center) Maximum case temperature 75°C Overall length 424mm Width 30mm Height 26mm This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1. Use only on 120 volt, 60 hertz. 2. Never disassemble or modify - any changes could void the user's authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock - do not use where directly exposed to water. 5. This device is not intended for use with emergency exit fixtures or emergency exit lights. 6. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. 7. To prevent burns, do not touch the bulb during operation or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. 9. This device is intended to be professionally installed for Industrial or Commercial use. Warranty Universal lighting technologies warrants to the purchaser that each electronics ballast will be marched with the lamp (T5 14x3, T5 21x3) and free from defects in material or workmanship for a period of 5 years from date of manufacture when properly installed and under normal condition of use.

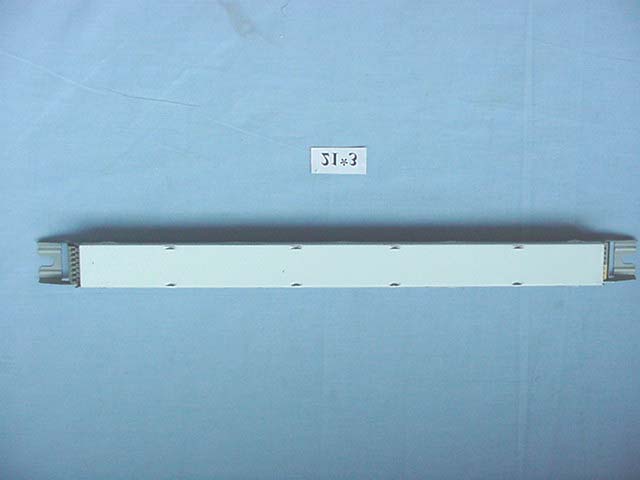

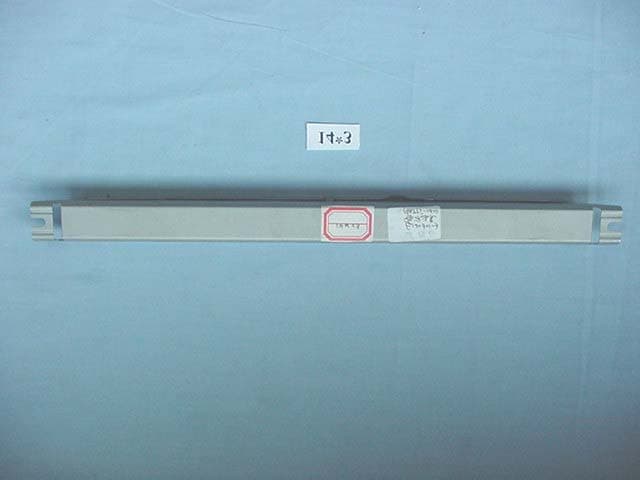

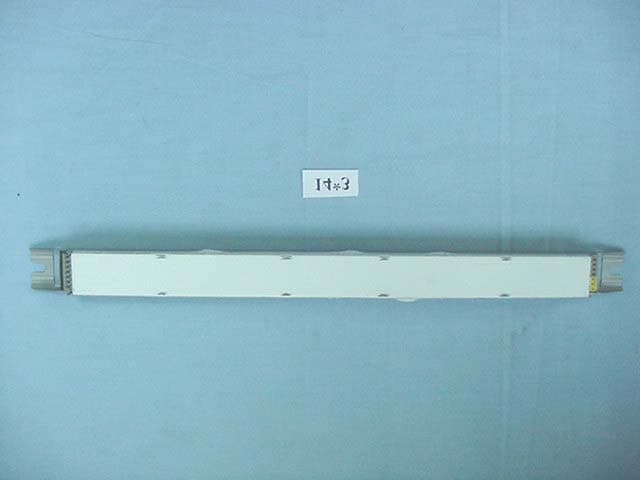

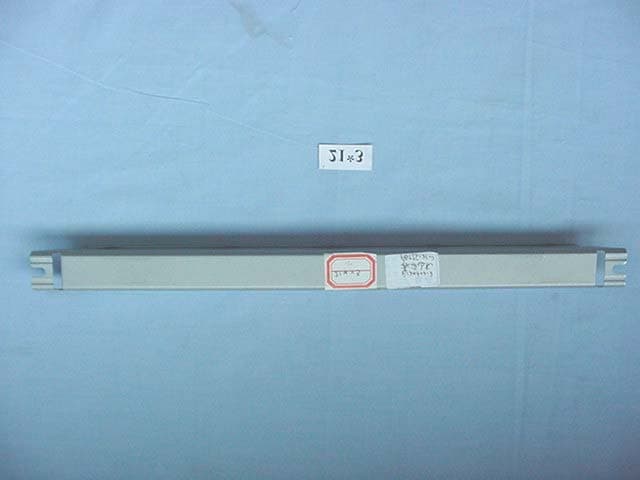

F IGURE 1 B ALLAST (M/N: FBT T5 14 X 3) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 2 B ALLAST (M/N: FBT T5 14 X 3) G ENERAL A PPEARANCE (B ACK V IEW ) Figure 3 B ALLAST (M/N: FBT T5 21 X 3) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 4 B ALLAST (M/N: FBT T5 21 X 3) G ENERAL A PPEARANCE (B ACK V IEW )

Label Drawing Q A7FBTT5003 0.46 ( A ) 55 W FBTT5 14X3 Q A7FBTT5003 0.67 ( A ) 80 W 3 LAMPT5 14W

Label Location Information Refer to the below red arrow: (For example)

F IGURE 1 B ALLAST (M/N: FBT T5 14 X 3) C OVER R EMOVED F IGURE 2 B ALLAST (M/N: FBT T5 14 X 3) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 B ALLAST (M/N: FBT T5 14 X 3) M AIN B OARD (S OLDERED S IDE ) F IGURE 4 B ALLAST (M/N: FBT T5 21 X 3) C OVER R EMOVED F IGURE 5 B ALLAST (M/N: FBT T5 21 X 3) M AIN B OARD (C OMPONENT S IDE ) F IGURE 6 B ALLAST (M/N: FBT T5 21 X 3) M AIN B OARD (S OLDERED S IDE )

Schematics

SGEG N.A. INC FCC ID: QA7FBTT5003 Page 1 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03005 Application for FCC Certificate On Behalf of SGEG N.A. INC Ballast Model No.: FBT T5 14x3, FBT T5 21x3 FCC ID: QA7FBTT5003 Prepared For : SGEG N.A. INC 159 LAS TUNAS DRIVE, ARCADIA, CA91007.USA Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F03005 Date of Test : Dec 04~16, 2002 Date of Report : Jan 15, 2003 SGEG N.A. INC FCC ID: QA7FBTT5003 Page 2 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03005 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELD STRENGTH TEST .............................................................................................................9 3.1 Test Equipment........................................................................................................................... 9 3.2 Block Diagram of Test Setup ..................................................................................................... 9 3.3 Test Configuration...................................................................................................................... 9 3.4 Operating Condition of EUT ...................................................................................................... 9 3.5 Test Procedure .......................................................................................................................... 10 3.6 Test Result ................................................................................................................................ 10 SGEG N.A. INC FCC ID: QA7FBTT5003 Page 3 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03005 TEST REPORT FOR FCC CERTIFICATE Applicant : SGEG N.A. INC Manufacturer : POWER Mag (SuZhou) ELECTRONIC CO., LTD. EUT Description : Ballast (A) Model No.: FBT T5 14x3, FBT T5 21x3 (B) Serial No.: E120301-3, E120302-3 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 NON-CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Dec 04~16, 2002 Prepared by : Test Engineer : CATHRIN YIN (Assistant) SAMMY CHEN (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) AARON SU (Senior Manager) SGEG N.A. INC FCC ID: QA7FBTT5003 Page 4 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03005 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Ballast Type of EUT : ; Production … Pre-product … Pro-type Model Number : FBT T5 14x3, FBT T5 21x3 Applicant : SGEG N.A. INC 159 LAS TUNAS DRIVE, ARCADIA, CA91007.USA Manufacturer : POWER Mag (SuZhou) ELECTRONIC CO., LTD. Suzhou industrial Park Dong Xing Road No.10 Test Model Apparent Power (V ̇ A) Real Power (W) FBT T5 14x3 52.3 52.2 FBT T5 21x3 97.1 94.9 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Federal Communications Commission FCC Engineering Laboratory 7435 Oakland Mills Road Columbia, MD 21046, USA Name of Firm : Audix Technology (Shanghai) Co., Ltd. Site Location : 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. NVLAP Lab Code : 200371-0 1.3 Measurement Uncertainty Conducted Emission Uncertainty : U = ±2.66dB SGEG N.A. INC FCC ID: QA7FBTT5003 Page 5 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03005 2 AC POWERLINE CONDUCTED EMISSION TEST 2.1 Test Equipment The following test equipment are used during the powerline conducted e…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test (M/N: FBT T5 14 X3) (M/N: FBT T5 21 X3) 2. Field strength Test (M/N: FBT T5 14 X3) (M/N: FBT T5 21 X3)
