QA7FBTT528Electronic Ballast

User’s Manual PM FBT T5 28 Application and performance specification Electronic ballast for T5 28W Description Active power factor correction. PF≧0.99 Low harmonic distortion . THD≦10% Low lamp current crest factor. CF≦1.6 Warn (Rapid) start. Long Life De-active lamp protection Model Line Volts Lamp type Input watts Nominal Lineamps Power factor Harmonic total Crest factor PMFBTT528 120V/60Hz T528W 33W 0.28A 0.99 <10% <1.6 Performance Safety Meets FCC Part 18 (Class A) for EMI UL listed Non-consumer limits Application: Physical parameters Minimum starting temperature -18°C Mounting length 226mm Maximum ambient temperature 40°C (center to center) Maximum case temperature 75°C Overall length 240mm Wight 42mm Height 30mm This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1. Use only on 120 volt, 60 hertz. 2. Never disassemble or modify - any changes could void the user's authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock - do not use where directly exposed to water. 5. This device is not intended for use with emergency exit fixtures or emergency exit lights. 6. This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or, plug the lamp or the appliance into a different outlet. 7. To prevent burns, do not touch the bulb during operation or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. Warranty Universal lighting technologies warrants to the purchaser that each electronics ballast will be marched with the lamp (T5 28W) and free from defects in material or workmanshop for a period of 5 years from date of manufacture when properly installed and under normal condition of use.

Block Diagram Rectifier PFC EMC Filter Converter Protect Circuit Lamp

Label Drawing SVA-LUX FBT T5 128 FLUORESCENT LAMP ELECTRONIC BALLAST T5 28W Input voltage 120v Input frequency 60Hz Input power 35W Power factor ≥0.99 THD ≤10% tc ( °C ) 65Max UL EMI FCC 18A PREHEAT START DISCOUNNECT LINE BEFOR SERVICING ! Lamp BALLAST RED RED BLUE BLUE BLACK WHITE FCC ID: QA7FBTT528

Label Location Information Refer to the below red arrow: (for example)

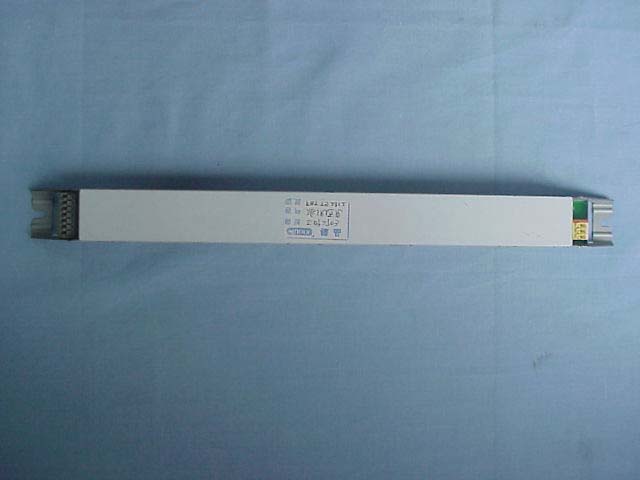

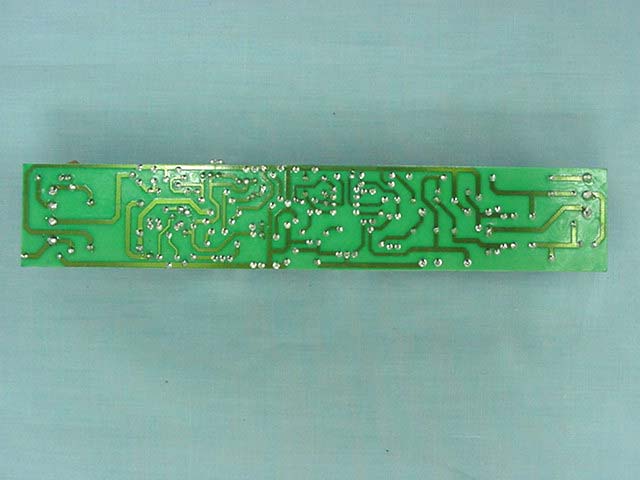

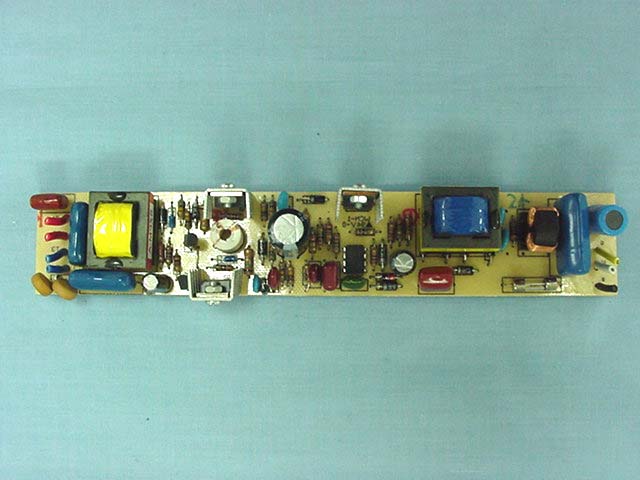

F IGURE 1 E LECTRONIC B ALLAST (M/N: FBT T5 28) C OVER R EMOVED F IGURE 2 E LECTRONIC B ALLAST (M/N: FBT T5 28) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 E LECTRONIC B ALLAST (M/N: FBT T5 28) M AIN B OARD (S OLDERED S IDE )

Schematics

SGEG N.A. INC FCC ID: QA7FBTT528 Page 1 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02039 Application for FCC Certificate On Behalf of SGEG N.A. INC Electronic Ballast Model No.: FBT T5 28 FCC ID: QA7FBTT528 Prepared For : SGEG N.A. INC 159 LAS TUNAS DRIVE, ARCADIA, CA 91007, USA Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F02039 Date of Test : Apr 08, 2002 Date of Report : Apr 08, 2002 SGEG N.A. INC FCC ID: QA7FBTT528 Page 2 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02039 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELD STRENGTH TEST .............................................................................................................8 3.1 Test Equipment........................................................................................................................... 8 3.2 Block Diagram of Test Setup ..................................................................................................... 8 3.3 Test Configuration...................................................................................................................... 8 3.4 Operating Condition of EUT ...................................................................................................... 8 3.5 Test Procedure ............................................................................................................................ 9 3.6 Test Result .................................................................................................................................. 9 SGEG N.A. INC FCC ID: QA7FBTT528 Page 3 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02039 TEST REPORT FOR FCC CERTIFICATE Applicant : SGEG N.A. INC Manufacturer : Power Mag (Suzhou) Electronic Co., LTD EUT Description : Electronic Ballast (A) Model No.: FBT T5 28 (B) Serial No.: E040702 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 NON-CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Apr 08, 2002 Prepared by : Test Engineer : STELLA TANG (Assistant) LORENZO CHEN (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) SGEG N.A. INC FCC ID: QA7FBTT528 Page 4 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02039 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Electronic Ballast Type of EUT : ; Production … Pre-product … Pro-type Model Number : FBT T5 28 Applicant : SGEG N.A. INC 159 LAS TUNAS DRIVE, ARCADIA, CA 91007, USA Manufacturer : Power Mag (Suzhou) Electronic Co., LTD Suzhou Industrial Park, Zhong Xing Road N010 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Federal Communications Commission FCC Engineering Laboratory 7435 Oakland Mills Road Columbia, MD 21046, USA Name of Firm : Audix Technology (Shanghai) Co., Ltd. Site Location : 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 NVLAP Lab Code : 200371-0 1.3 Measurement Uncertainty Conducted Emission Uncertainty : U = ±2.66dB Test Model Apparent Power (V ̇ A) Real Power (W) FBT T5 28 34.7 34.5 SGEG N.A. INC FCC ID: QA7FBTT528 Page 5 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02039 2 AC POWERLINE CONDUCTED EMISSION TEST 2.1 Test Equipment The following test equipment are used during the powerline conducted emission test in a shielded room: Item Type Manufactu…
