QB8HC-24ULHorizon Compact, CUSP24UFC

Horizon COMPACT TM Wireless Ethernet Release 1.01.01 Product Manual - Volume 1 Version 1.4 Horizon Compact Release 1.01.01 Wireless Ethernet Product User Manual – Volume 1 NOTICE This document contains confidential information, which is proprietary to DragonWave. No part of its contents can be used, copied, disclosed, or conveyed to any party in any manner whatsoever without prior written permission from DragonWave Inc. Copyright © 2001-2008 DragonWave Inc. Horizon Compact Release 1.01.01 Wireless Ethernet Product User Manual – Volume 1 Table of Contents 1.0 USER MANUAL STRUCTURE............................................................................1 2.0 INTRODUCTION TO HORIZON COMPACT..............................................................1 2.1 APPLICATIONS..........................................................................................................................2 2.1.1 WIMAX...........................................................................................................................2 2.1.2 3G CELLULAR BACKHAUL / ETHERNET EVOLUTION.................................................................2 2.1.3 LEASED LINE REPLACEMENT..............................................................................................2 2.1.4 LAST MILE FIBRE EXTENSION.............................................................................................2 2.2 TECHNICAL SPECIFICATIONS.......................................................................................................3 3.0 PHYSICAL DESCRIPTION.................................................................................5 3.1 CABLING.................................................................................................................................6 3.1.1 COPPER INTERFACE..........................................................................................................6 3.1.2 OPTICAL INTERFACE..........................................................................................................6 3.2 LIGHTNING PROTECTION............................................................................................................7 3.3 DUAL POLARITY RADIO MOUNT (DPRM)......................................................................................7 3.4 POWER SWITCH RADIO MOUNT (PSRM)......................................................................................8 4.0 INSTALLATION REQUIREMENTS........................................................................9 4.1 HOISTING LUG........................................................................................................................10 4.2 ETHERNET CABLING FROM HORIZON TO ETHERNET SWITCH..........................................................11 4.3 ASSEMBLING THE RJ-45 CONNECTOR........................................................................................12 4.3.1 “SNAP FIT” STYLE............................................................................................................12 4.3.2 “PUSH FIT” STYLE............................................................................................................13 5.0 POWERING THE HORIZON COMPACT...............................................................15 5.1 COPPER INTERFACE................................................................................................................15 5.2 OPTICAL INTERFACE................................................................................................................16 6.0 INITIAL CONFIGURATION...............................................................................19 6.1 LOGGING ON..........................................................................................................................19 6.1.1 USING TELNET...............................................................................................................19 6.1.2 CONTEXT SENSITIVE HELP...............................................................................................19 6.1.3 USING THE WEB INTERFACE.............................................................................................20 6.2 CONFIGURING RADIO BAND AND FREQUENCY CHANNELS..............................................................20 6.2.1 USING TELNET...............................................................................................................20 6.2.2 USING THE WEB INTERFACE.............................................................................................21 6.3 CONFIGURING IP ADDRESS VALUES..........................................................................................22 6.3.1 USING TELNET...............................................................................................................22 6.3.2 USING THE WEB INTERFACE.............................................................................................22 6.4 RECOVERY OF IP ADDRESS AND SERIAL NUMBERS......................................................................23 6.5 CHANGING AND ADDING USER NAMES AND PASSWORDS...............................................................23 6.5.1 CHANGING THE SUPER USER NAME AND PASSWORD............................................................23 Table of Contents iii Horizon Compact Release 1.01.01 Wireless Ethernet Product User Manual – Volume 1 6.5.2 ADDING OR CHANGING NOC USER ACCOUNTS.....................................................................24 6.5.3 ADDING OR CHANGING ADMIN USER ACCOUNTS..................................................................26 6.6 LOGGING OUT........................................................................................................................27 6.6.1 SESSION TIME OUT.........................................................................................................27 7.0 ANTENNA MOUNTING AND TOWER SPECIFICATIONS............................................29 7.1 POLARITY..............................…

Text truncated - open the document above for the full version.

DATE Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with DragonWave Inc. 600-411 Legget Dr., Ottawa, ON K2K 3C9, Canada. Dated this 08 Day of Feb. 20 O8 Agency agreement expiration date: Usually Give 8 - 12 Months By: Glen Westwell Signature Printed Title: Regulatory Approvals On behalf of : DragonWave Inc. Telephone: 613-599-9991, x2231

DATE 11 Feb.2008 Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QB8HC-24UL Product Name: Horizon Compact, CUSP24UFC Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram · Parts list • Operational description • Internal Photos (permanently mounted /sealed, not generally publicly accessible These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11 Day of Feb. 20 08 By: Glen Westwell Signature Printed Title: Regulatory Approvals On behalf of : DragonWave Inc. Telephone: 613-599-9991, x2231

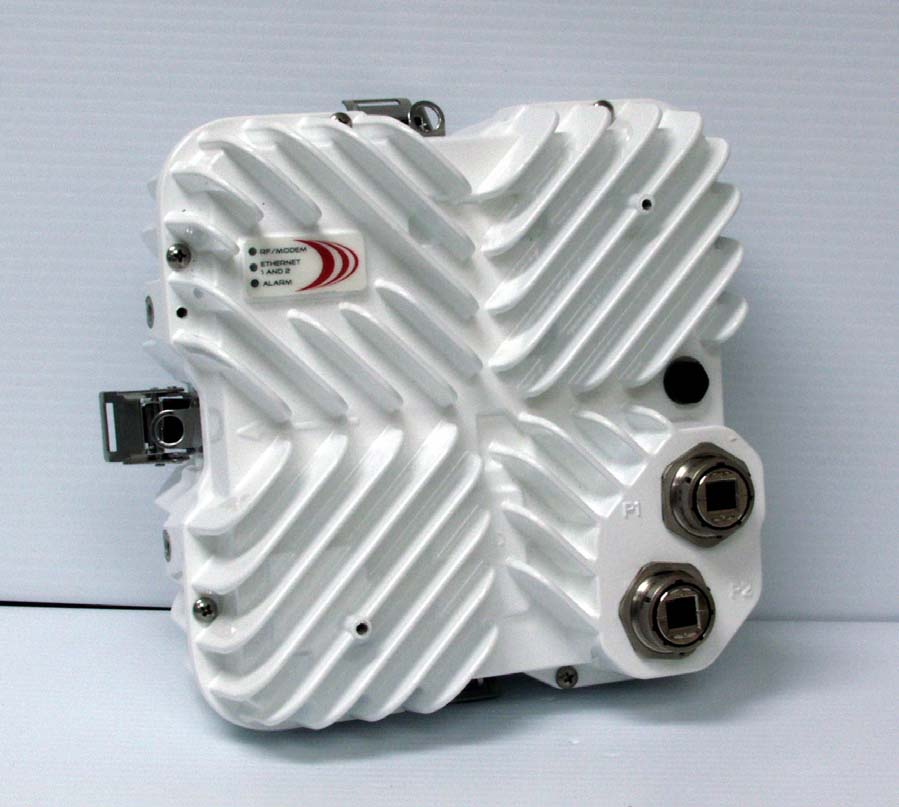

Horizon Compact 24GHz Unlicensed Radio – Product Configuration The part number for unlicensed FCC/IC will be: CUSP24UF”X” Where “X” can be either “C”, “F”, “I”, ‘L”, OR “M” DEPENDING ON THE TYPE OF INTERCONNECT q CUSP24UFC – Copper interface, dual RJ45 connector q CUSP24UFF – Fiber interface, single LC connector, MultiMode, plus single Mil circular connector. q CUSP24UFI – Copper interface, single RJ45 connector, Inband mgt. q CUSP24UFL - Fiber interface, single LC connector, SingleMode, plus single Mil circular connector. q CUSP24UFM- Copper interface, single Mil Circular connector. Glen Westwell Regulatory Approvals DragonWave Inc.

www.nemko.com FCC Part 15 Subpart C, 15.249 : October 2006 Test Report: 101189-1TRFWL Applicant: DragonWave Inc. 600-411 Legget Drive Ottawa, Ontario K2K 3C9 Apparatus: Horizon Compact CUSP24UFC FCC ID: QB8HC-24UL In Accordance With: FCC Part 15 Subpart C, 15.249 Operation in the 902-928MHz, 2400 - 2483.5 MHz, 5725-5875MHz and 24.0-24.25 GHz Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Heng Lin EMC/Wireless Specialist Date: February 21, 2008 Total Number of Pages: 31 Nemko Canada Inc. REPORT SUMMARY Report Number: 101189-1TRFWL FCC ID: QB8HC-24UL Specification: FCC Part 15 Subpart C, 15.249 Page 2 of 31 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: Horizon Compact CUSP24UFC Specification: FCC Part 15 Subpart C, 15.249 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Jason Nixon, Wireless/Telecom Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 101189-1TRFWL FCC ID: QB8HC-24UL Specification: FCC Part 15 Subpart C, 15.249 Page 3 of 31 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 1.5 Block Diagram of the EUT.........................................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Measurement Uncertainty...........................................................................................................................6 2.5 Test Equipment...........................................................................................................................................7 Section 3 : Observations ............................................................................................................................. 8 3.1 Modifications Performed During Assessment ............................................................................................8 3.2 Record Of Technical Judgements ...............................................................................................................8 3.3 EUT Parameters Affecting Compliance .....................................................................................................8 3.4 Test Deleted................................................................................................................................................8 3.5 Additional Observations .............................................................................................................................8 Section 4 : Results Summary ..................................................................................................................... 9 4.1 FCC Part 15 Subpart C : Test Results ......................................................................................................10 Appendix A : Test Results ........................................................................................................................ 11 Clause 15.207(a) Powerline Conducted Emissions .............................................................................................11 Clause 15.209(a) Radiated Emissions within Restricted Bands ..........................................................................14 Clause 15.215(c) 20dB Bandwidth ......................................................................................................................15 Clause 15.249(b) Fixed Point-to-Point operation in the 24.0-24.25 GHz Band .....…

Text truncated - open the document above for the full version.

Conducted Emissions Setup: Spurious Emissions Setup:
