QBTLT-2004AALPHA PAGER

ALPHA PAGER(LT-2004A) USER MANUAL LEE TECHNOLOGIES KOREA CO.,LTD FCC ID : QBTLT-2004A Trade Name : ALPHA PAGER Model No. : LT-2004A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 1. Description 2. To Turn Pager ON 1) Press the button for more than 5 seconds at the side of pager 2) Then, pager will “demo” page while LCD display is on (Demo page type : Vibe, Flash, Beep) 3. To Turn pager Off 1) Press the button for more than 5 seconds at the side of pager 2) Then, LCD display will be turned off 4. To Stop page alert 1) Press the button shortly at the side of pager 2) Then, page alert will stop 5. Receiving the signal The message will be display with the page alert when receiving the signal as described below 6. Programmining page alert mode Pager will light up to tell you that they have receive new code and pager will alert with the programmed page alert type when receive the signal Alert Type Description 4 LEDs Button Charging LED 8989 Beep Only 8787 Beep & Vibe 9292 Set pager alert to vibe only 9797 Flash only 9898 Vibe, Flash and Beep 9696 Vibe and Flash 9595 Flash and Beep 9393 Turn out of range OFF 9494 Turn out of range ON 99 Set pager to sleep 9090 30sec (alert time)-flash once 9191 60sec (alert time)-flash two times 9192 120sec(alert time)-flash three times 9193 8 sec (alert time) )-flash once 9194 15sec(alert time) )-flash once 7. To send a distinctive individual message With this feature you have the option of receiving different message as described below Message Type Description No Message or Tone Only Display will show " Your table is ready, please proceed to the Host Station” 31 Display "Please come or call nursery coordinator". 41 Display "Please come to the receptionist desk" 51 Display "Please see nurse attendant" 61 Display " Your order is ready.“ 11,22,33,44 The programmable messages can be displayed Function code A,B,C,D The programmable messages can be displayed Alpha Messages “ # Text character ” Message will be displayed with the pager alerts depending on the preset alert setting. (Code #) Alpha Messages “ * Text character ” Message will appear with the chirp sound and stay on for 30sec. without the alert and then disappear Message should be erased when you put it back to the charger Alert (vibe, lights or beep) should be off while this message is displaying. (Code *) 8. Other features Pager has the following features additionally as described below 9. Charging Pagers The pager shall be charged for 8 hours prior to use 1) Insert your pagers into the charger, which is the same as that of crystalcall pager 2) Red light should come in front of each pager indicating that it is charged properly 3) If no light comes on, check your wires and be sure the charger are plugged in using the included Message Type Description Standby Streaming message group Alpha Messages “ *1 Text character ” Pager will "Chirp" once and display the text messages Max. 64 characters/digits per message can be displayed Word wrap function works in two consecutive pages Initial message setting Alpha Messages “ *8 Text character ” This message is displayed when the pagers are pulled out from the charger base. The programmable messages can be displayed up to max. 64 characters/digits 11 The coaster will beep and flash for 3min. when it receives this CAPCODE. Useful in locating any missing coasters at the end of the shift. WARRANTY LEETEK warrants this product against any defects that are due to faulty material or workmanship for a one-year period after the original date of consumer purchase. This warranty does not include damage to the product resulting from accident, misuse or improper electrical connection. Power supplies are warranted for 60 days. We recommend the use of a surge protector with all equipment. If this product should become defective within the warranty period, we will repair or replace with equivalent product, free of charge. We will return your product, transportation charges prepaid standard shipping mode, provided the product is shipped prepaid to: LEETEK, 3 rd FL #449-2 Sang3dong, Wonmigu, Puchon-city, Kyunggi-do, Korea No return will be received without prior authorization and the proper RMA # posted to the outside of the shipping container. This warranty gives you specific legal rights and you may also have rights which vary from state to state. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. I need to send some Coasters / Pagers in for repair - What do I do? Within warranty period / Covered by our Coaster-Care Program: Ship malfunctioning components to the following address: 3 rd FL #499-2 Sang3-dong, wonmi-gu, Puchon-city,Kyunggi-do, Korea 82-32-324-9838 www.leetek.org 1. Pack the components securely 2. Enclose a note with a brief description of the problem 3. Include a business card 4. Ship the equipment in a traceable manner for your protection. (ie UPS Ground Track). 5. Insure the shipment for replacement value. There are no charges for repaired equipment within the warranty period other than your shipping costs. We will pay shipping (EMS) one way back to you. * the higher rate shipping than EMS is available at an additional charge. Out of warranty items will be repaired and sent back with the repair charge. Guest Paging Hints and Tips Only give out pagers to guests waiting less than 1 hour. If the wait is longer than this, request that the guest check back at the host stand in 30 to 45 minutes and give them a pager at that point. Our studies have shown the “ditch rate” is higher the longer the wait time quoted and a guest will decide not to wait within the first ten minutes of being quoted. …

Text truncated - open the document above for the full version.

’

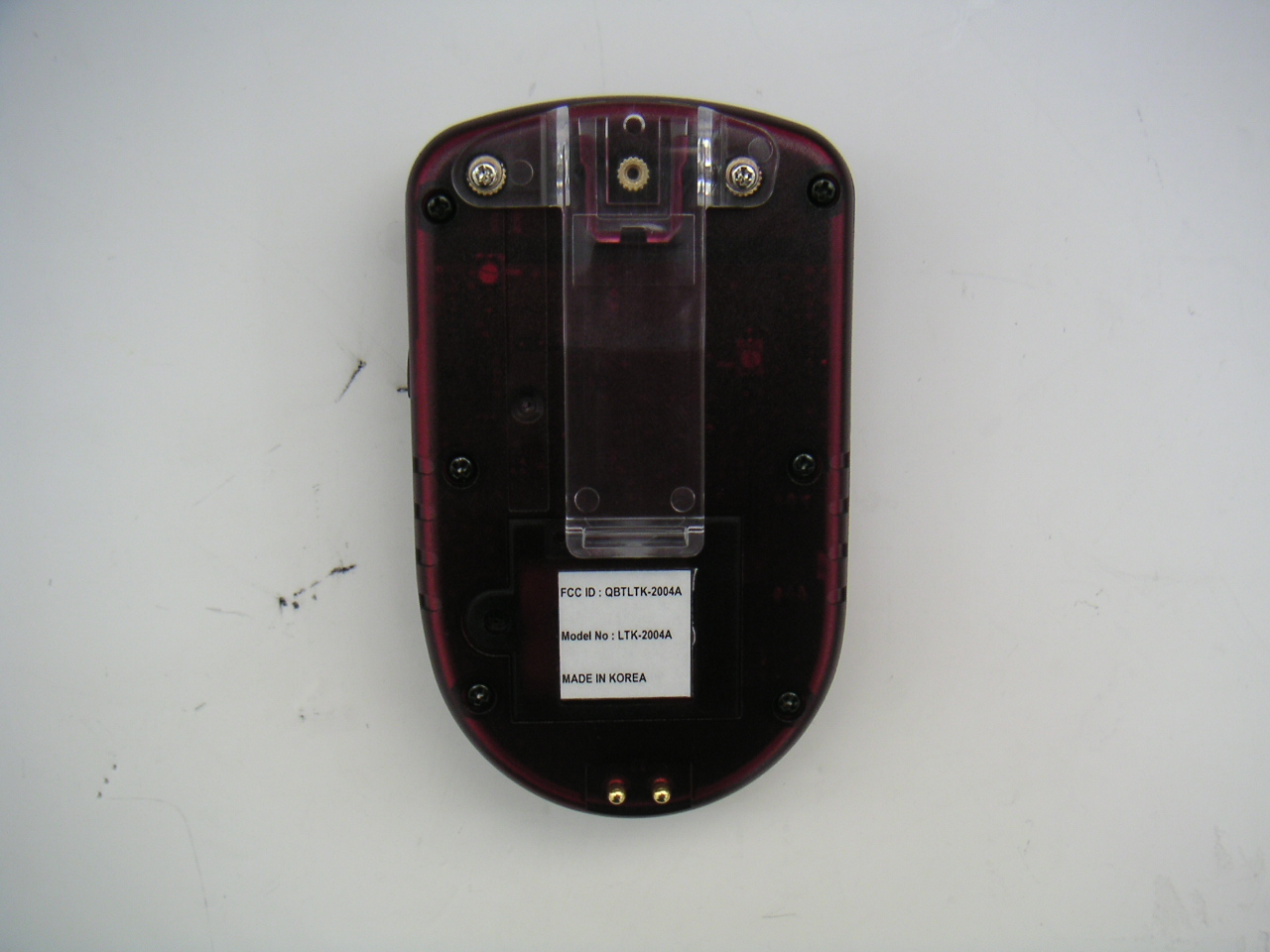

* copy of marking plate ※ FCC LABEL LEETEK Model No : LT-2004A FCC ID : QBTLT-2004A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN KOREA FCC LABEL POSITION

* copy of marking plate ※ FCC LABEL LEETEK Model No : LT-2004A FCC ID : QBTLT-2004A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN KOREA FCC LABEL POSITION

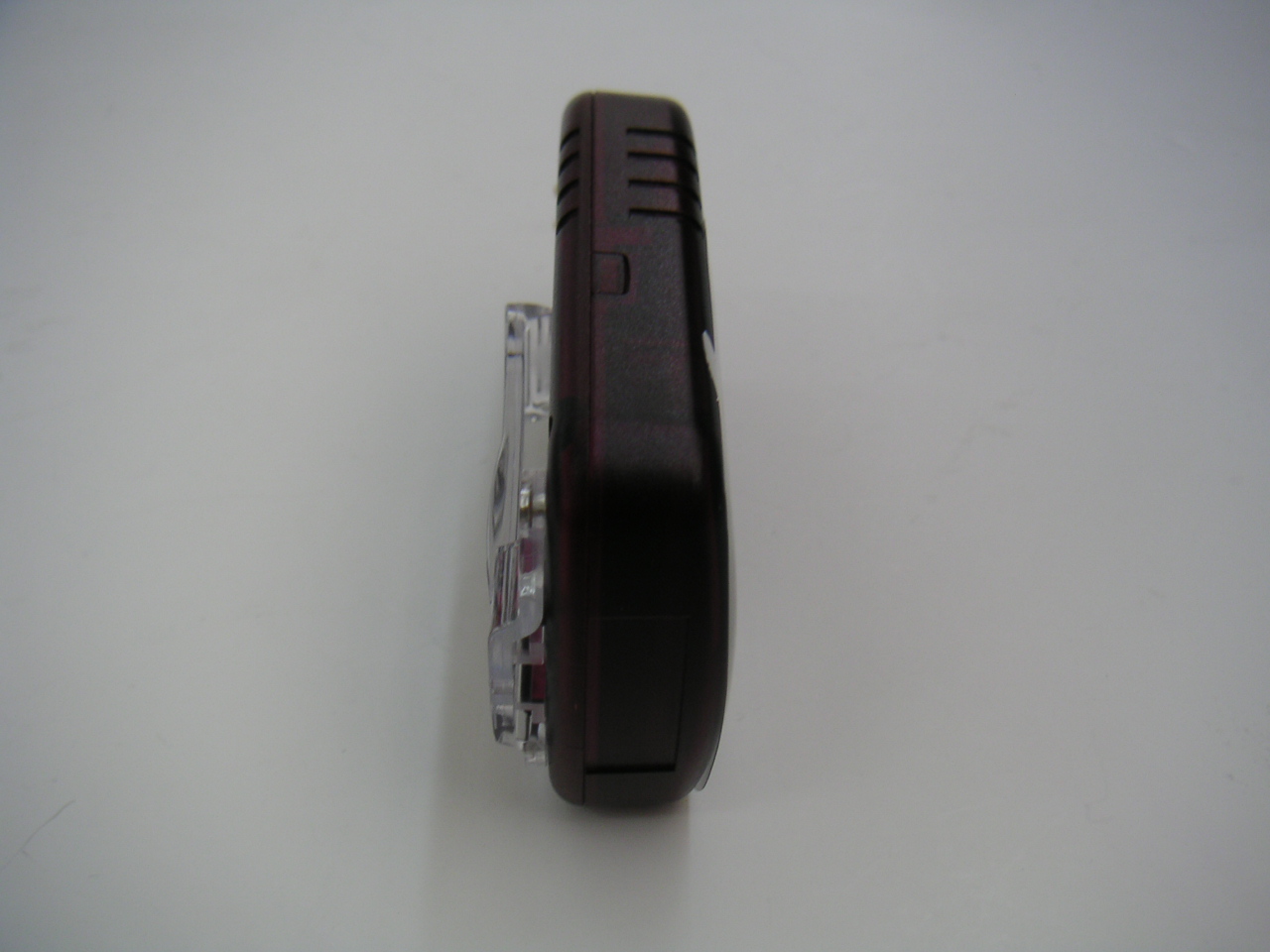

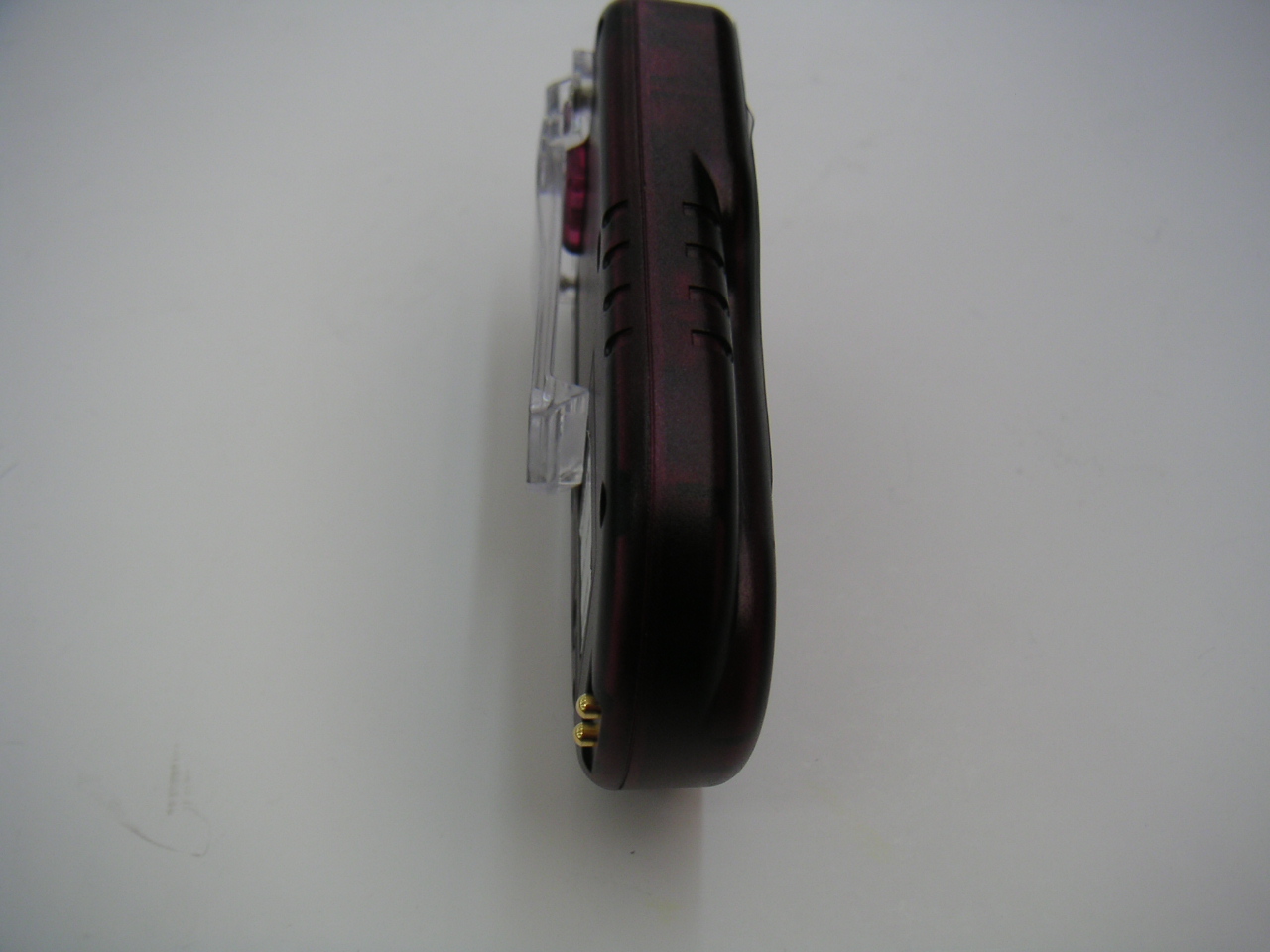

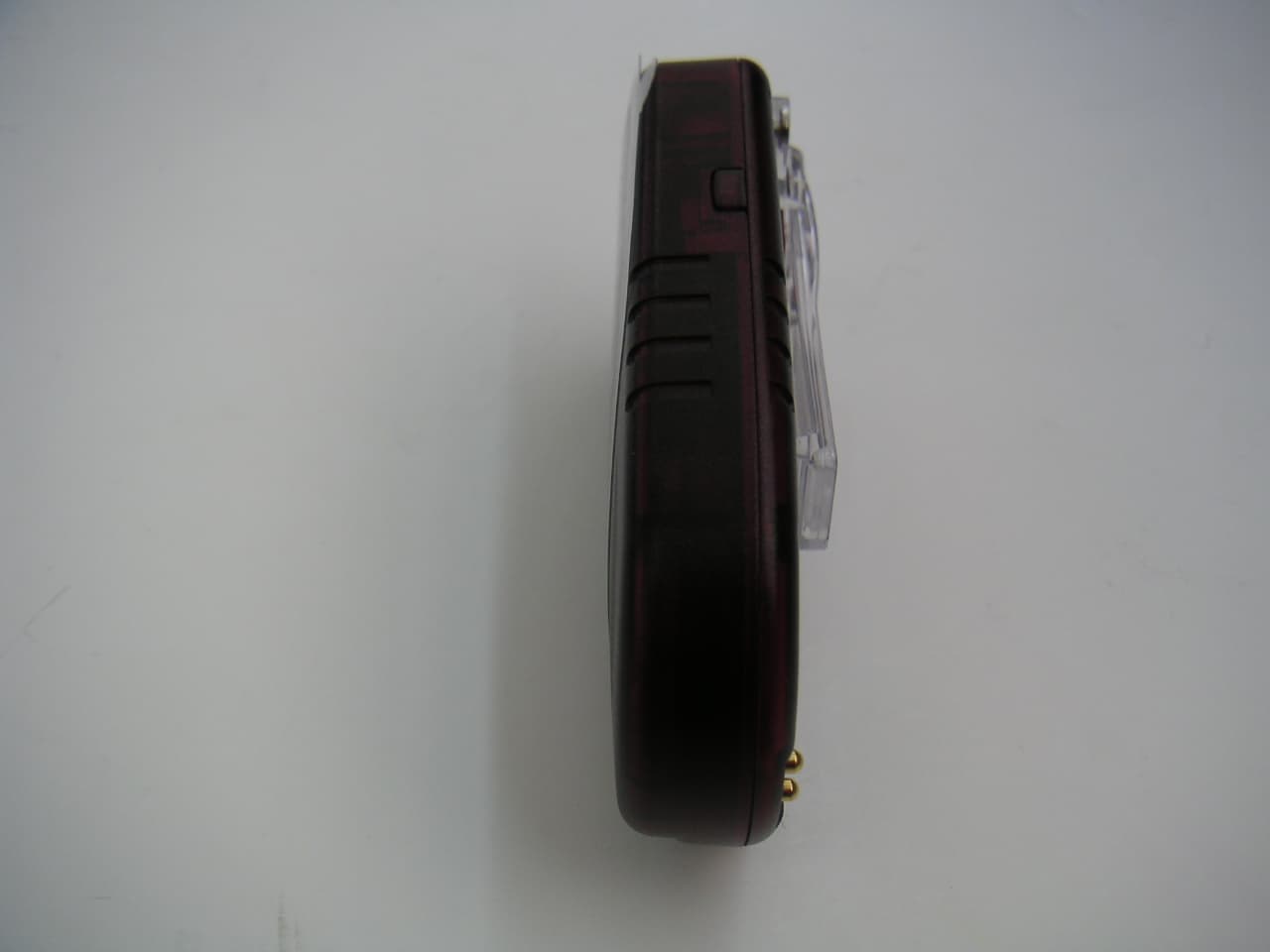

THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A REPORT :THRU-510005 COVER SHEET Test Report Product Name: ALPHA PAGER FCC ID: QBTLT-2004A Applicant: LEE TECHNOLOGY KOREA CO., LTD. 3 rd FL #499-2, Sang 3-dong, Wonmi-gu, Bucheon-city, Kyungki-do, KOREA Date Receipt: 10/21/2005 Date Tested: 10/26/2005 THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A REPORT :THRU-510005 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3...............RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A REPORT :THRU-510005 Page 1 of 3 APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A TEST EQUIPMENT LIST DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2006.04.23. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2006.04.23 Spectrum Display 85662A Hewlett Packard 2542A12429 2006.04.23. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2006.04.23. RF Preselector 85685A Hewlett Packard 2648A00504 2006.04.23 Pre-Amplifier 8449B Hewlett Packard 3008A00375 2006.04.23. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2006.04.23. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2006.04.23. Bico-Antenna 94455-1 Eaton 977 2007.04.01. Log-Periodic Antenna 3146 EMCO 2051 2007.04.01. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2007.04.01. Horn Antenna SAS-571 A.H Systems 414 2007.04.01. Spectrum Analyzer R3261C Advantest 71720189 2006.04.23 LISN KNW-242 Kyoritsu 8-923-2 2007.04.25. LISN 8012-50-R- 24 Solar 8379121 2007.04.25.. Loop Ant 6507 EMCO 1435 2005.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2006.04.23. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2006.04.23. Frequency Counter CMC251 Tektronic CMC-251TW52489 2006.04.23. THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A REPORT :THRU-510005 Page 2 of 3 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of ThruLab & Engineering. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHZ with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHZ and the video bandwidth was 300KHZ. The ambient temperature of the UUT was 20ºC with a humidity of 50%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003. MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-2003 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A REPORT :THRU-510005 Page 3 of 3 APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: No Emission Frequency (MHz) Meter Reading dBuV/m Ant. Polaritry Correction Factor dB Cable Loss dB Field Strength (dBuv/m) Margin (dBuv) Limit (dBuv/m) 1 59.96 8.4 V 7.4 1.1 16.9 -23.1 40.0 2 66.12 3.9 H 6.2 1.2 11.3 -28.7 40.0 3 109.23 4.5 V 11.0 1.7 17.2 -26.3 43.5 4 220.84 6.1 V 10.7 2.8 19.6 -26.4 46.0 5 261.24 5.7 H 13.2 3.2 22.0 -24.0 46.0 6 331.42 3.6 V 16.5 3.7 23.8 -22.2 46.0 7 382.45 4.7 H 15.1 4.1 23.9 -22.1 46.0 8 463.74 2.6 V 18.9 4.7 26.1 -19.9 46.0 9 567.42 4.7 H 18.4 5.3 28.5 -17.5 46.0 10 619.14 9.7 V 20.4 5.7 35.7 -10.3 46.0 11 718.01 8.1 H 21.3 6.3 35.7 -10.3 46.0 SAMPLE CALCULATION:…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A REPORT :THRU-510005 THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A REPORT :THRU-510005 THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD. FCC ID: QBTLT-2004A REPORT :THRU-510005
