LTK-1100 transmitter User’s manual Thank you for purchasing LeeTek’s LTK-1100 transmitter” paging system. We are confident our cutting edge products and first rate service will satisfy your needs for years to come.Please read this “Welcome Pack” thoroughly to familiarize yourself with the procedures for proper care of your system. System Programming: To enter programming mode, press the “SETUP” button and enter the password “1379” followed by “enter”. If the password is accepted, the display will show “use * to scroll to menu options”. (Use the “ ∗ / Menu” key to scroll through the different menu options or press “CANCEL” to exit the system programming menu.) 1. Set the Current Time • At the “Set Current Time” menu, set the hour then press “ENTER” key. • Set the minutes and press “ENTER” key. • Use the “# /Select” key to select AM or PM. • After the correct time is set, press the “ENTER” or “∗ / Menu” key to return to the main menu or press the “CANCEL” key 2 times to exit the system programming menu. . 2. Set the Sleep Shutdown Time (Factory Default : ON – 1 AM) This system has an “ALL SLEEP” function that turns off all battery pagers (for example, manager pagers)at once automatically. To turn this feature off: • Press “#/Select” key to turn the sleep shutdown “OFF” • Press enter to go back to the main menu. To change the shutdown time: • Press “#/Select” key to turn the sleep shutdown “OFF” • Set the hour then press “ENTER” key. • Set the minutes and press “ENTER” key. • Use the “# /Select” key to select AM or PM. • After the correct time is set, press the “ENTER” or “∗ / Menu” key to return to the main menu or press the “CANCEL” key 2 times to exit the system programming menu. 3. Range Test (Factory Default : OFF) With this feature you can determine what distance your transmitter will cover. • Remove a couple of coasters from the charging stack. • At the range test menu, press “#/Select” key to turn range test “ON”. • Press “ENTER” to start the range test. As soon as range test is activated you’ll notice the coasters flash once every 10 seconds (if you use pagers they will vibrate). Walk around your property. When you reach the point where the coasters do not flash consistently, this is your maximum range. If you would like to increase or decrease your power level, exit range test and call 800-919-9903. We can walk you through changing the power level of your transmitter. • Press the “CANCEL” key to stop the range test. Press the “CANCEL” key again to exit the system programming menu. NOTE : The transmitter has an auto shut off feature that will stop the range test after 15 minutes. 4. Set Pager Alert (Factory Default: Flash & Vibe) With this feature you have the option of changing the way your coasters alert the guest. Be sure that all coasters are returned before performing this procedure. To change the alert mode of your coasters follow these instructions: • Remove all the coasters from the charging unit or unplug the power supply that is connected to the charging bases. • At the “Set Pager Alert ” menu, press the “#/Select” key to scroll through the different alert options. • After making a selection, press the “enter” key 3 times. After sending the code, the coasters will now respond with your new selection. • Press “CANCEL” key to exit the system programming menu • Return all the coasters to the charging base or plug the power supply. The coasters are ready to receive the page with the new alert. 5. Setting the Duty Alert (Factory Default: OFF) This feature enables your transmitter to send a page, at a preset time, to a certain pager to remind them of a duty required of them. For example, a busser can receive a page every 60 minutes to remind him to check the restrooms. You can assign up to 3 different pagers to be duty alert pagers. PROGRAMMING THE DUTY PAGER • At the “Duty Alert” menu, press “#/Select” key to turn the duty cycle “ON” and press the “ENTER” key. • Enter the duty pager number and press “ENTER” key. • Enter the cycle time (in minutes) and press the “ENTER” key. • Enter the numeric message. **If you are using a numeric pager as a duty pager, the numeric message will appear on the pager display. With this feature you make up your own numeric codes telling the patron what each code means. (Example: “201” message may mean clean kitchen; “123” message may mean check bar food etc.) **If you are using a vibration only pager, you have the option of sending a distinctive vibration to a pager by sending different messages. Message 11:2 ea. 2 second vibrations Message 22:3 ea. 3 second vibrations Message 33:4 ea. 2 second vibrations Message 44:1 ea. 2 second vibration Message 55:2 ea. 1.5 second vibrationsMessage 66:3 ea. 1 second vibrations Message 911:6 ea 1 second vibrations • After setting the duty alert function, press “enter”. Display will show “Duty _ _ saved”. • Press “CANCEL” to exit or press “ENTER” to continue entering the next duty pager information. 6. Setting the “Out of Range” (for coasters only) (Factory Default: OFF) With this feature, the coasters will play a melody when taken out of range of the transmitter to inform the guest that they are out of range and will miss their page. The melody will only stop, when they return back within range. Be sure that all coasters are returned before turning out of range on or off. TURNING THE OUT OF RANGE ON • Remove all the coasters from the charging unit or unplug the power supply that is connected to the charging base • At the “Out of Range” menu, press the “#/Select” key to turn the out of range ON. • Press the “ENTER” key 3 times. After sending the signal, all the coasters will light up once to tell you that they received the new code. • Press “CANCEL” key to exit the system programming menu. To test the coasters with out of range on, unplug the power supply, that is connected to the transmitter. After 45 – 60 seconds, all the coasters will play a melody since they are not receiving a signal from the transmitter. P…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 37 (45) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 38 (45) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 44 (45) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 45 (45) Photographs of the equipment

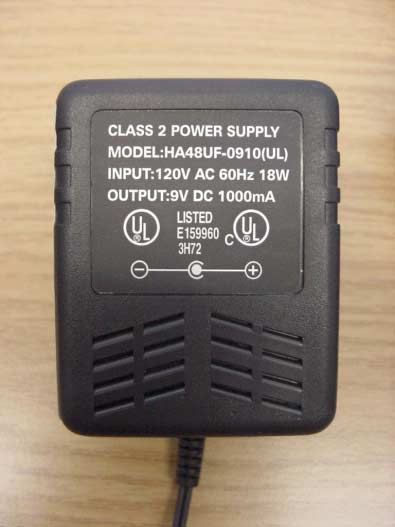

*copy of marking plate Model Name:LTK-1100 Product:transmitter Voltage:DC 9V Manufacturer:Lee Technology Korea.Co.,Ltd FCC ID:QBTLTK-1100 MADE IN KOREA This device complies with Part 90 of the FCC Rules Tested To Comply With FCC Standards FOR HOME OR OFFICE USE LTK-1100 Transmitter FCC Label Position Transmitter rear LTK-1100 transmitter Front

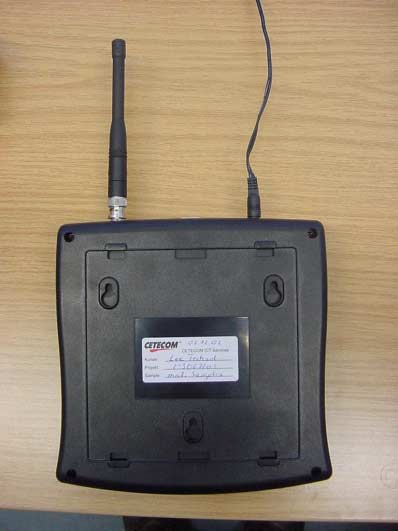

CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 39 (45) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 40 (45) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 41 (45) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 42 (45) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 43 (45) Photographs of the equipment

Guest Paging System LTK-1100 Operating Instructions Questions? Comments? Call 82-32-678-8605 lee technology korea.co.,ltd(LEETEK) #24-2 Samjeong-dong, Ojeong-gu, Puchon-city,Kyunggi-do, Korea www.leetek.org Please read these instructions carefully before setting up your Guest Paging System! GuestCall Coaster Paging System Instructions(LTK-1100) Thank you for purchasing the GuestCall Paging System. The most advanced coaster paging system on the market! EQUIPMENT SET_UP LTK-1100/ AC Adapter/Internal Antenna/manual Keypad Sending Unit: Unwrap all sending unit components. Lock the antenna into the hole in the upper right hand corner of the sending unit. Plug the power supply with the large tip into a standard 110 outlet and plug it into the back of the sending unit. We recommend some type of surge suppressor on the power supply for protection. Power surges are not covered under system warranty! Coaster Setup: Locate the black charging base in a sturdy, out of the way location. Connect the charger bases together using the included jumper wires. Use the power supply with the small tip and plug it into a standard 110 outlet and into either open plug on the charger base. Be sure to plug the jumpers & power supply jacks in all the way. Stack the coasters on the black charging base. The coaster number will always face front and the red charge indicator light will be on the left. We recommend that you do not stack coasters more than 15 high. You should see a red light appear on each coaster. This light indicates proper charging is taking place. NOTE: A wall mountable coaster holder is available for this system. Coaster Numbers: On the front of each coaster is your coaster number. Surge Protection Recommended!!! Power Supply Jumper W ire Charge Light 1 2 3 4 5 6 12v AC 1.5 amp You should stack a maximum of 15 coasters per charger. LeetekTransmitter Coaster Power Supply (Use 1 power supply per 60 coasters) Transmitter Power Supply Jumper wire PLACEMENT & MOUNTING INSTRUCTIONS DESKTOP: You can use your transmitter with the 20 degree wedge attached or remove the wedge and lay the transmitter flat. WALL MOUNT To mount your transmitter on a wall: • Remove the plastic bracket (included) under the transmitter unit by unlocking the 2 latches. • Place the plastic bracket against the wall and with the aid of a pencil, mark the position of the mounting holes. (Refer to figure below). Mount the transmitter in a convenient location where a power outlet is available. • Drill a hole on the marked position. Install the 3 mounting screws (and use anchors where necessary). Ensure that the screws are not fully tightened so that the unit can be easily removed from the wall. • Place the transmitter onto the wall (without the plastic bracket). Plug the 2-amp wall transformer into any suitable AC outlet. Plug the power connector into the power jack on the top left hand side of the unit. Transmitter is now ready for use. Be certain to mount the transmitter away from phones, heat, moisture and exposed power circuits. These items can damage your system and shorten transmission range. System Configuration: Your system was set at the factory and will function as soon as it is powered up. Default setup is as follows: Current time is set Sleep shutdown on (battery operated pagers will be put to sleep at 1 am everyday) Range Test is off. (Testing range is only necessary for very large properties) Coasters are set to Flash & Vibrate when paged. Duty Alert is off Out of Range alert is off *Some major points to remember when installing the equipment: -Never install aerials near to overhead power lines or adjacent to telephone or public address or Data communication lines. -Avoid,where possible, running aerial feeder cables alongside other cables e.g.:telephone and mains. -Avoid mounting the transmitter in the immediate vicinity of telephones, exchanges or computer equipment . WALL Mark these 3 holes on to the wall Operation Procedure LTK-1100 allows and PC RS-232C control. Step 1. Power on and entering Address Connect the power Adaptor to AC outlet, and DC out put connector of the Adaptor to LTK-1100 Rear panel DC input connector. When the power is connected to LTK-1100 the system will display the following. Step 2.Sending Message After entering the Pager Number (Message), press SEND to send the message. The call will Now be transmitted to the receiver unit. Following display will appear on screen during the Message transmission Key Stroke Display Pager # “28” “Send” This stay on for less than 1 sec Display go back to default display After the page Step 3. To enter programming mode, press the “SETUP” button and enter the password “1379” followed by “enter”. If the password is accepted, the display will show “use * to scroll to menu options” 1. Set the Current Time HOUR DIGIT BLINKING Press Numeric Hour, Press ENTER , automatically go to minutes mode Press Numeric Minutes Press Enter, automatically go to AM/PM mode INITIALIZING READING SETUP TRANSMITTER DUT ROM VER: V1.00 A ENTER PAGER NO.: > 9:00 AM ENTER PAGER NO.: > 28 9:00 AM Sending Message Please Wait ENTER PAGER NO.: > 9:00 AM SET CURRENT TIME 88 :88 AM SET CURRENT TIME 88:88 AM . Press “# “ to change (AM to PM) Press ENTER 2. Set the Sleep Shutdown Time (Factory Default : ON – 1 AM) This system has an “ALL SLEEP” function that turns off all battery pagers (for example, manager pagers)at once automatically. To turn this feature off: • Press “#/Select” key to turn the sleep shutdown “OFF” • Press enter to go back to the main menu. To change the shutdown time: • Press “#/Select” key to turn the sleep shutdown “OFF” • Set the hour then press “ENTER” key. • Set the minutes and press “ENTER” key. • Use the “# /Select” key to select AM or PM. • After the correct time is set, press the “ENTER” or “∗ / Menu” key to return to the main menu or press the “CANCEL” key 2 times to exit the system programming menu. 3. Range Test (Factory Default : OFF) With this feature you can determine wha…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of 45 PagesPage 1 (45) Recognized by the Federal Communications Commission FCCñIdentification Number: 90462 TCB ID: DE 001 Accredited by the German Accreditation Council DARñRegistration Number TTIñPñG 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_3067-01-01/02 FCC Part 2, 15, 90 LTK-1100 FCC ID: QBTLTK-1100 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2_3067-01-01/02Issue date: 2002-11-06Page 2 (45) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory: The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Accredited Bluetoothô Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2_3067-01-01/02Issue date: 2002-11-06Page 3 (45) 1.3Details of applicant Name : Leetek Co., Ltd. Street : 24-2 Samjeong-dong, Ojeong-gu City : Puchon-city, Kyunggi-do Country : Korea Telephone : +82 32 678 8605-6 Telefax : +82 32 682 8605 Contact : Mr. Sung Sao Lee Telephone : +82 32 678 8605-6 1.4Application details Date of receipt of application : 2002-10-21 Date of receipt of test item : 2002-11-05 Date of test : 2002-11-05/06 and 2002-12-05/09 1.5Test item Type of equipment : Pager Transmitter Type designation: LTK-1100 Manufacturer: applicant Street: City: Country: Serial number: -.- Additional informations: : Frequency: 457.5750 MHz Type of modulation: 10K2F1D FM-Deviation: 4.5 KHz Number of channels : 1 Antenna: Helical antenna LTK-1100 / 50 Ohms / VSWR: better than 1.5:1 Gain: 0 ± 0,5 dBi; Connector : BNC (Male) Power supply: 120V AC / 9V DC 1000mA Adapter (HA48UF-0910(UL)) Output power: 355 mW ERP FCC ID: QBTLTK-1100 Temperature range : -30°C - +50°C 1.6Test standards: FCC Part 2, 15, 90 CETECOM ICT Services GmbH Test report nr.:2_3067-01-01/02Issue date: 2002-11-06Page 4 (45) 2 Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Final verdict : PASS Technical responsibility for area of testing : 11.12.02RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 11.12.02RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:2_3067-01-01/02Issue date: 2002-11-06Page 5 (45) 2.2Testreport TEST REPORT Testreport no. : 2_3067-01-01/02 CETECOM ICT Services GmbH Test report nr.:2_3067-01-01/02Issue date: 2002-11-06Page 6 (45) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASUREDPAGE §90.205- POWER LIMIT7 §90.207- TYPE OF EMISSION7 §90.209- BANDDWIDTH LIMITATION8 §90.210 EMISSIONS MASK10 §90.213- FREQUENCY STABILITY19 §90.214- TRANSIENT FREQUENCY BEHAVIOR22 TRANSIENT FREQUENCY BEHAVIOR24 § 15.209 SPURIOUS RADIATION26 § 15.107/207 Conducted emissions29 § 2.1091 RF Exposure calculation31 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS32 Photographs of the equipment34 CETECOM ICT Services GmbH Test report nr.:2_3067-01-01/02Issue date: 2002-11-06Page 7 (45) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 ñ 24, 64 ß90.205- POWER LIMIT According to 90.205(g) 450–470 MHz. The maximum allowable station effective radiated power (ERP) is dependent upon the station’s antenna HAAT and required service area and will be authorized in accordance with table 2. (I.e. 2W for service area less than 3 km.) Table 2-450-470 MHz-Maximum ERP/Reference HAAT for a Specific Service Area Radius Service area radius (km) 381316243240486480 Max. ERP(W) 1 2100500500500500500500500500 Up to reference HAAT (m) 3 15151527631252504109502700 1 Maximum ERP indicated provides for a 39 dBu signal strength at the edge of the service area per FCC Report R-6602, Fig. 29 (See Sec. 73.699, Fig. 10 b). 3 When the actual antenna HAAT is greater than the reference HAAT, the allowable ERP will be reduced in accordance with the following equation: ERP allow = ER Pmax X (HAATref / HAATactual) . Specification Limit: 2 Watts MAXIMUM PEAK OUTPUT POWER (RADIATED) TEST CONDITIONSMAXIMUM PEAK OUTPUT POWER (mW) ERP Frequency (MHz)457.575 MHz T nom ( 23.8 )° °° °C V nom ( 115 )V 355 mW (25.5 dBm) (513 mW / 27.10 dBm conducted ) Measurement uncertainty±3dB RBW/VBW : 1 MHz Measured at a distance of 3m ß90.207- TYPE OF EMISSION According to 90.207(e) for non-voice paging operations, only A1A, A1D, A2B, A2D, F1B, F1D, F2B, F2D, G1B, G1D, G2B, or G2D emissions will be authorized. LTK-1100 : F1D CETECOM ICT Services GmbH Test report nr.:2_3067-01-01/02Issue date: 2002-11-06Page 8 (45) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 34 (45) Photographs of the equipment Test site CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 35 (45) Test site CETECOM ICT Services GmbH Test report nr..: 2_3067-01-01/02Issue Date:05.03.01Page 36 (45) Test site
