QBTLTK-1300HRPAGING TRANSMITTER

OPERATIONAL MANUAL (LTK-1300HR) LEE TECHNOLOGY KOREA CO., LTD. FCC ID : QBTLTK-1300HR Trade Name : Pager Transmitter Model No. : LTK-1300HR THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. IMPORTANT SAFETY INFORMATION RF EXPOSURE STATEMENT Your Pager Transmitter contains a radio frequency transmitter. When the button is pushed the transmitter sends our RF signals. CAUTION : To comply with FCC RF exposure compliance requirements, a separation distance of at least 25mm must be maintained between the antenna of this transmitter and all persons, during normal operation. The antenna used for this transmitter must not be co- located or operating in conjunction with any other antenna of transmitter. Unauthorized antennas, modifications, of attachments could damage the transceiver and may violate FCC regulations. SPECIFICATION z Pocsag Code z Frequency Range: 450.0000MHz ~ 470.0000MHz z FM modulation & FSK (frequency shift keying) z Deviation: 4.5KHz z FM Accuracy : +/-5% 4.275< 4.5 < 4.725 z Date Rate: 512 BPS, 1200BPS, 600Hz +/-5Hz z Message: Numeric: Max. 12 digits z Address Range: 0001 to 1249 Please read this manual thoroughly to familiarize yourself with the procedures for proper care of your system. We are confident our cutting edge products and first rate service will satisfy your needs for years to come. Troubleshooting Charge light will not come on a. Make sure there is power to the outlet b. Try changing the position of the Transmitter on the charger base. c. Check all connections on charger bases. Transmitter will not display anything a. Make sure there is power to the outlet b. Check all connections. If you try all this and the transmitter still wont power up your power supply may be bad. If display is still blank, call us Before you call, try some of the following suggestions... *Remember that the capability of your system will be affected by: Foil backed wallboard, Metal mesh, wire reinforced glass, metal sheeting, large mirrors, suspended ceilings, lift shafts etc. These can all reflect and thereby reduce the signaling capability of the transmitter. A little forethought prior to installation, coupled with a few tests, can normally avoid most of these problems. 1.Read through the manual. Answers to most questions can be found there. A trouble shooting section further assists you in diagnosing the problem. 2. IMPORTANT NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help . Warning: Changes or modifications made to this equipment not expressly approved by LEETEK may void the FCC authorization to operate this equipment. 3. CAUTION : Never use any cleaner other than alcohol for the maintenance of this equipment. Organic solvent such as benzene, toluene or acetone may spoil the plastic parts of this equipment. 4.RF Radiation Exposure This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated with a minimum distance of 25mm between the radiator and your body. 5.Do not subject this equipment to: 1)Mechanical shock 2)Excessive humidity or moisture 3)Extremes of temperature 4)Corrosive liquids 6.Warning ! No user serviceable parts Alteration or modification to any part of this equipment, without the prior written consent of the manufacturer, will invalidate all manufacturer approvals and warranty. No adjustments can be undertaken except by qualified and licensed persons as defined by the FCC Rules and Regulations. Operation of altered equipment can result in fines, imprisonment, and /or confiscation of such equipment. I need to send some transmitter in for repair - What do I do? Within warranty period / Covered by our Product-Care Program: Ship malfunctioning components to the following address: 3 rd FL, #499-2 Sang 3-dong, Wonmi-gu, Puchon-city, Kyunggi-do, Korea Tel: 82-32-678-8605 Fax: 82-32-324-9840 1. Pack the components securely 2. Enclose a note with a brief description of the problem 3. Include a business card 4. Ship the equipment in a traceable manner for your protection. (ie UPS, EMS, Fedex, etc). 5. Insure the shipment for replacement value. There are no charges for repaired equipment within the warranty period, or if covered by WARRANTY LeeTek warrants this product against any defects that are due to faulty material or workmanship for a one- year period after the original date of consumer purchase. This warranty does not include damage to the product resulting from accident, misuse or improper electrical connection. Power supplies are warranted for 60 days. We recommend the use of a surge protector with all equipment. If this product should become defective within the warranty period, we will repair or replace with equivalent product, free of charge. We will return…

Text truncated - open the document above for the full version.

Tel. : 82-32-324-9838 Fax. : 82-32-324-9840 Mar 23, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QBTLTK-1300HR Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List QBTLTK-1300HR - Part List.PDF Schematics Diagram(s) QBTLTK-1300HR - Schemetics.PDF PCB Layout QBTLTK-1300HR - PCB Layout.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, LEETEK(Lee Technology Korea.,Co. Ltd)/Director

Model Name : LTK-1300HR FCC ID : QBTLTK-1300HR Voltage Input: DC2.4V MADE IN KOREA FCC Label Position ’ THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. (copy of marking place)

Model Name : LTK-1300HR FCC ID : QBTLTK-1300HR Voltage Input: DC2.4V MADE IN KOREA FCC Label Position ’ THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. (copy of marking place)

Circuit Description * Model : LTK-1300HR * Product : TRANSMITTER 1. SPECIFICATION z Pocsag Code z Carrier frequency : 457.5750MHz +/- 200Hz z Frequency Range: 450.0000 ~ 467.8500MHz z FM modulation & FSK (frequency shift keying) z Deviation: 4.5KHz z FM Accuracy : +/-5% 4.275< 4.5 < 4.725 z Date Rate: 1200BPS, 600Hz +/-5Hz z Output power : 500mW z Message: Numeric: Max. 12 digits z Address Range: 0001 to 1249 2. CIRCUIT DESCRIPTION Hand Transmitter uses 2.4V 600mA Battery as its Power supply. If the power is supplied into the CPU, the time is displayed on the LCD running by the real time clock IC. Max.12 digits numeric numbers are able to be entered and 0000 up to 1249 are available with this system in the address range. If push the Enter button after inputting, CPU(microcontroller) will interface to CC1070 via the 4 wires serial configuration interface(PDI, PDO, PCLK and PSEL). Optionally, the microcontroller can do data encoding and the microcontroller can monitor the LOCK pin for frequency lock status or other status information. 3. Reference CC1070, Single chip low power RF transmitter for Narrow band systems 1) Programmable frequency make crystal temperature drift compensation possible without TCXO. 2) Suitable for frequency hopping systems 3) Complies with EN 300 220, FCC CFR47 part 15 and ARIB STD T-67

Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 25mm 25mm Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

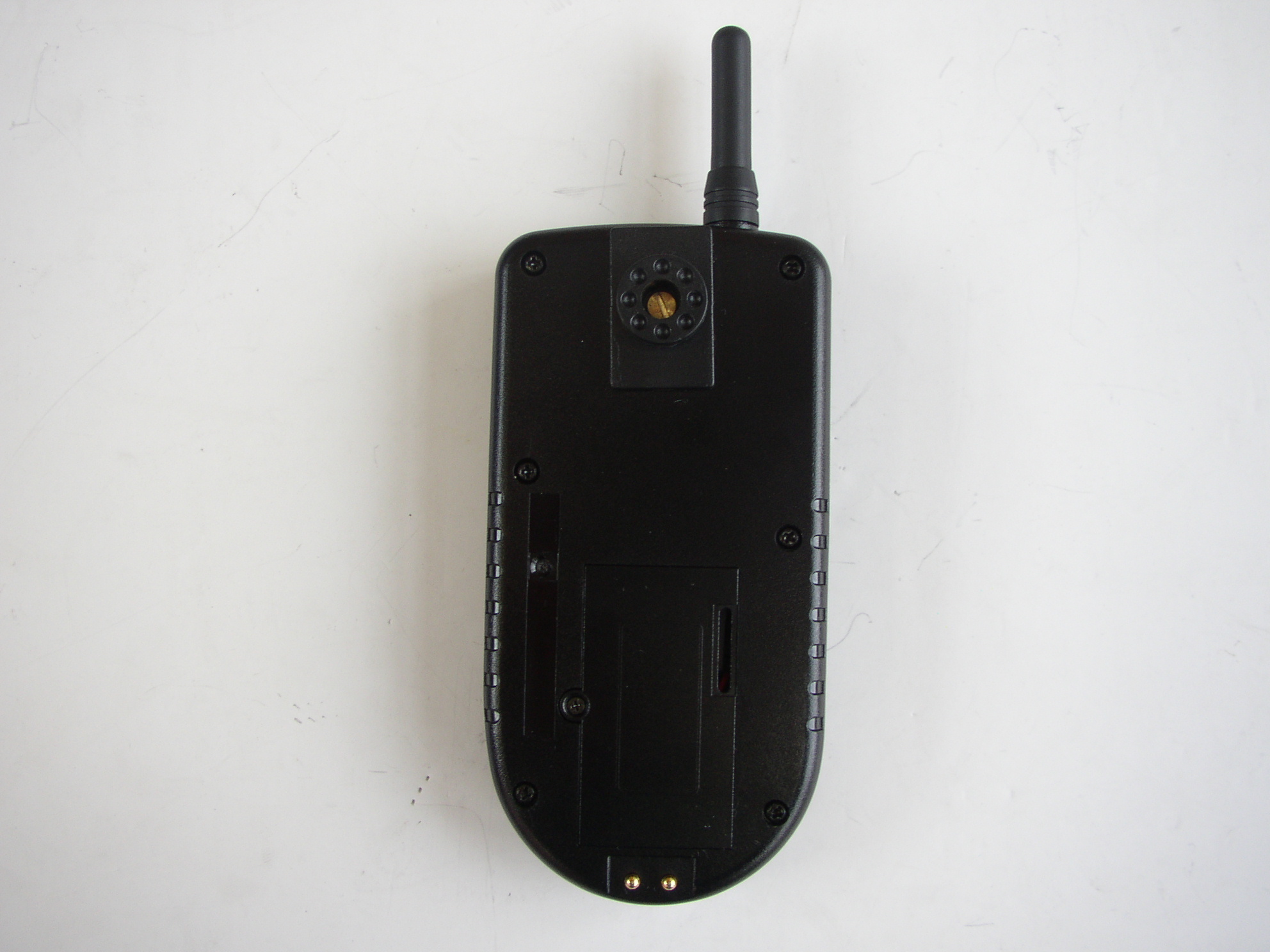

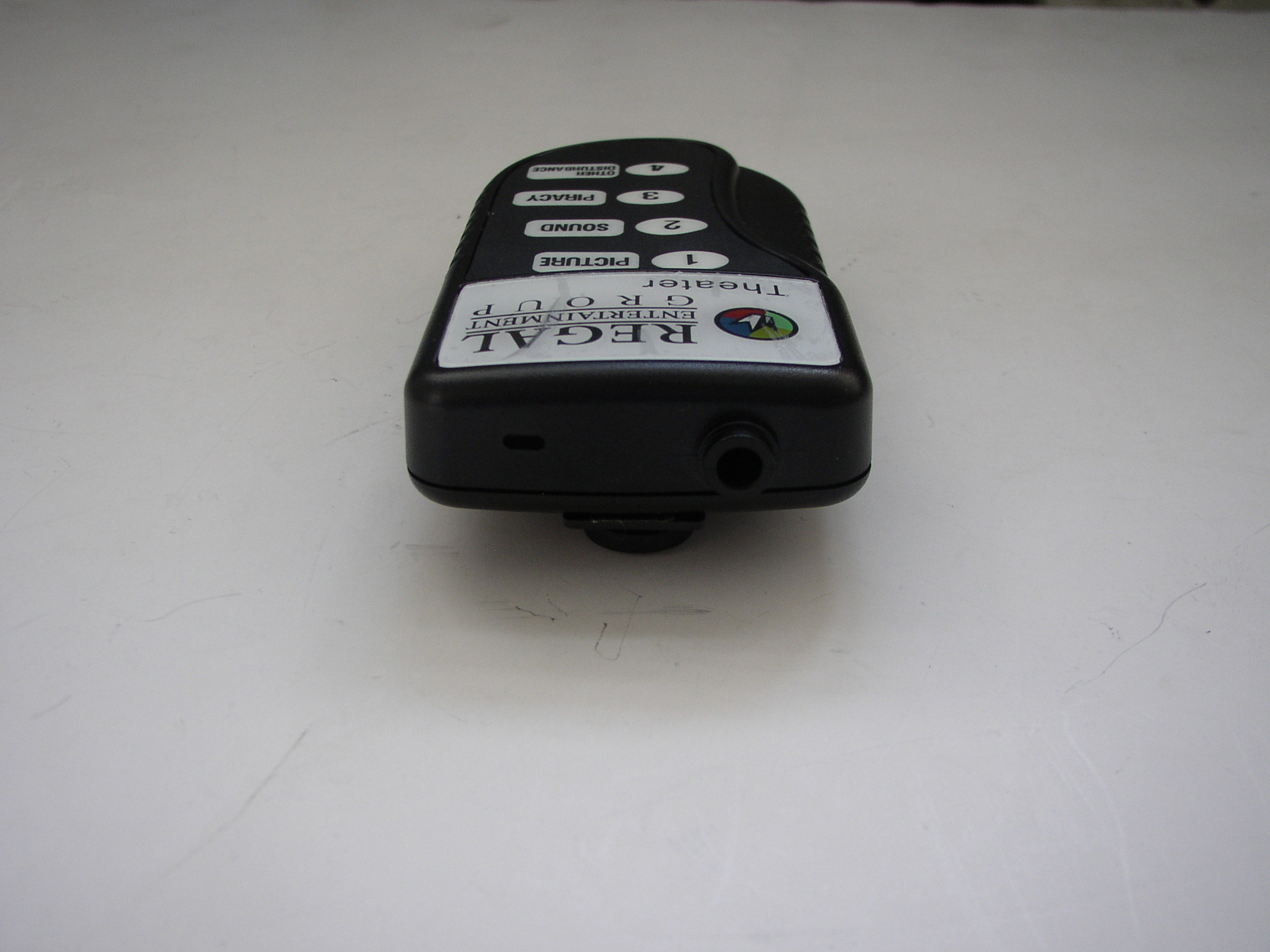

Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX F – DIPOLE CALIBRATION DATA Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: PAGER TRANSMITTER Model(s): LTK-1300HR Tx Frequency: 450.3250 MHz – 462.5750 MHz Max. SAR Measurement(s): 0.532 mW/g(1g) Conducted Power: 0.7 W (28.50dBm) Emission Designator: 10K2F1D Channel Capacity: 3 Application Type: Certification Trade Name(s): PAGER TRANSMITTER FCC Rule Part(s): 95(A)(B), 2(J) ANSI/ IEEE Std. C95.1- 2005 and had been tested in accordance with the measurement procedures specified in ANSI FCC/OET Bulletin 65 Supplement C and IEEE Std. 1528-2003. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Manufacture; Lee Technology Korea Co., Ltd. 3 rd FL #499-2, Sang 3-dong, Wonmi-gu, Bucheon-city, Kyungki-do, KOREA FRN : 0006883333 Date of Issue: March 28, 2007 Test Report No.: HCT-SAR07-0311 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN : 0005866421 FCC ID : APPLICANT : QBTLTK-1300HR Lee Technology Korea Co., Ltd. Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 7.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 8.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 9.1 ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS -------------------------------------------------------- 10.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13.1 CONCLUSION ------------------------------------------------------------------------------------------------ 14.1 REFERENCES -------------------------------------------------------------------------------------------- APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA 3 4 5 6-7 8 9 10 11 12 13 14 15-16 17 18 Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency(RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant 2. • FCC ID: QBTLTK-1300HR • EUT Type: PAGER TRANSMITTER • Trade Name: Lee Technology • Model(s): LTK-1300HR • Tx Frequency: 450.3250 MHz – 462.5750 MHz • Application Type: Certification • Modulation(s): FM • Max SAR Measurement: 0.532 mW/g(1g) • Conducted Power: 0.7 W (28.50dBm) • Power Supply: Ni-MH Rechargeable Battery (2.4 V, 600mAh, AAA) • Place of Test(s): Hyundai C- TECH. EMC Lab. • Date(s) of Tests: March 27, 2007 • Report No.: HCT-SAR07-0311 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62 Company Name : Lee Technology Korea Co., Ltd. Address : 3 rd FL #499-2, Sang 3-dong, Wonmi-gu, Bucheon-city, Kyungki-do, KOREA Attention : S. H. Jang / Sales Manager Tel. / Fax : +82-32-324-9838 / +82-32-324-9840 E-Mail : [email protected] Report No.: HCT-SAR07-0311 FCC ID: LTK-1300HR DATE: March 28, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radia…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1300HR REPORT #: THRU-703005 COVER SHEET THRU Test Report Product Name: PAGER TRANSMITTER FCC ID: QBTLTK-1300HR Applicant: LEE TECHNOLOGY KOREA CO.,LTD. 3 rd FL #499-2, Sang 3-dong, Wonmi-gu, Bucheon-city, Kyungki-do, KOREA Date Receipt:03/20/2007 Date Tested: 03/23/2007 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1300HR REPORT #: THRU-703005 TABLE OF CONTENTS TABLE OF CONTENTS LIST FOR PART 90 UHF DEVICE APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1300HR TEST REPORT CONTAINING: PAGE 1.............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2.............TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3-5...........RF POWER OUTPUT PLOT PAGE 6-12..........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 13-16.........UNWANTED RADIATION PAGE 17............BANDWIDTH LIMITATION PAGE 18-21.........OCCUPIED BANDWIDTH PAGE 22............FREQUENCY STABILITY PAGE 23-25.........POWERLINE CONDUCTED INTERFERENCE PAGE 26-28.........TRANSIENT FREQUENCY BEHAVIOR PAGE 29-30.........LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1............FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 2............SCHEMATIC EXHIBIT 3............BLOCK DIAGRAM EXHIBIT 4............EXTERNAL PHOTOGRAPHS EXHIBIT 5............INTERNAL PHOTOGRAPHS EXHIBIT 6............USERS MANUAL EXHIBIT 7............OPERATIONAL DESCRIPTION EXHIBIT 8............PARTS LIST EXHIBIT 9............TUNING PROCEDURE EXHIBIT 10...........TEST SETUP PHOTOGRAPH THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1300HR REPORT #: THRU-703005 1 of 30 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033 LEE TECHNOLOGY KOREA CO.,LTD.. will sell the (c)(1)(2) FCC ID: QBTLTK-1300HR UHF transceiver in quantity, for use under FCC RULES PART 90 . 2.1033 (C) TECHNICAL DESCRIPTION 2.1033 (3) User Manual See Exhibit 6 2.1033 (4) Type of Emission: 10K2F1D FOR 25kHz Bn = 2M + 2DK M = 1,200 Bits per second D = 4.5 kHz (Peak Deviation) K = 1 Bn = 2(1,200bps/2) + 2(4500)(1) = 10.2k ALLOWED AUTHORIZED BANDWIDTH = 10.2 kHz. 90.209(b) (5) 2.1033 (5) Frequency Range: 450,0000 ~ 462,5750 MHz 2.1034 (6) Power Range and Controls: There are NO user Power controls. (7) Maximum Output Power Rating: see Next Page. (8) DC Voltages and Current into Final Amplifier: POWER INPUT FIANL AMPLIFIER ONLY Vce = 5 Volts IC = 180 mA (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT 9. 2.1033 (10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 2. The block diagram is included as EXHIBIT 3. (11) Function of each electron tube or semiconductor device or other active circuit device: - SEE EXHIBIT 8. THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1300HR REPORT #: THRU-703005 2 of 30 (8) Instruction book. The instruction manual is included as EXHIBIT 6. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in Exhibit #7. 2.1033(c)(11) A photograph or drawing of the equipment identification label is shown in Exhibit 1. 2.1033(c)(12) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are shown in Exhibit 4-5. 2.1033(c)(13) For equipment employing digital modulation, a detail description of the modulation technique. This UUT uses FSK to modulate the transmitter. 2.1033(c)(14) Data required for 2.1046 to 2.1057 See Below 2.1046(a) RF power output. & 90.205 MAXIMUM PEAK OUTPUT POWER(CONDUCTED) Maximum peak output power(W) Low Mid Hi 0.6W 0.7W 0.5W 28.1dBm 28.5dBm 27.5dBm THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1300HR REPORT #: THRU-703005 3 of 30 PLOT LOW THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1300HR REPORT #: THRU-703005 4 of 30 Mid THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1300HR REPORT #: THRU-703005 5 of 30 High THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: …
