QBTLTK-1400AHPaging Transmitter

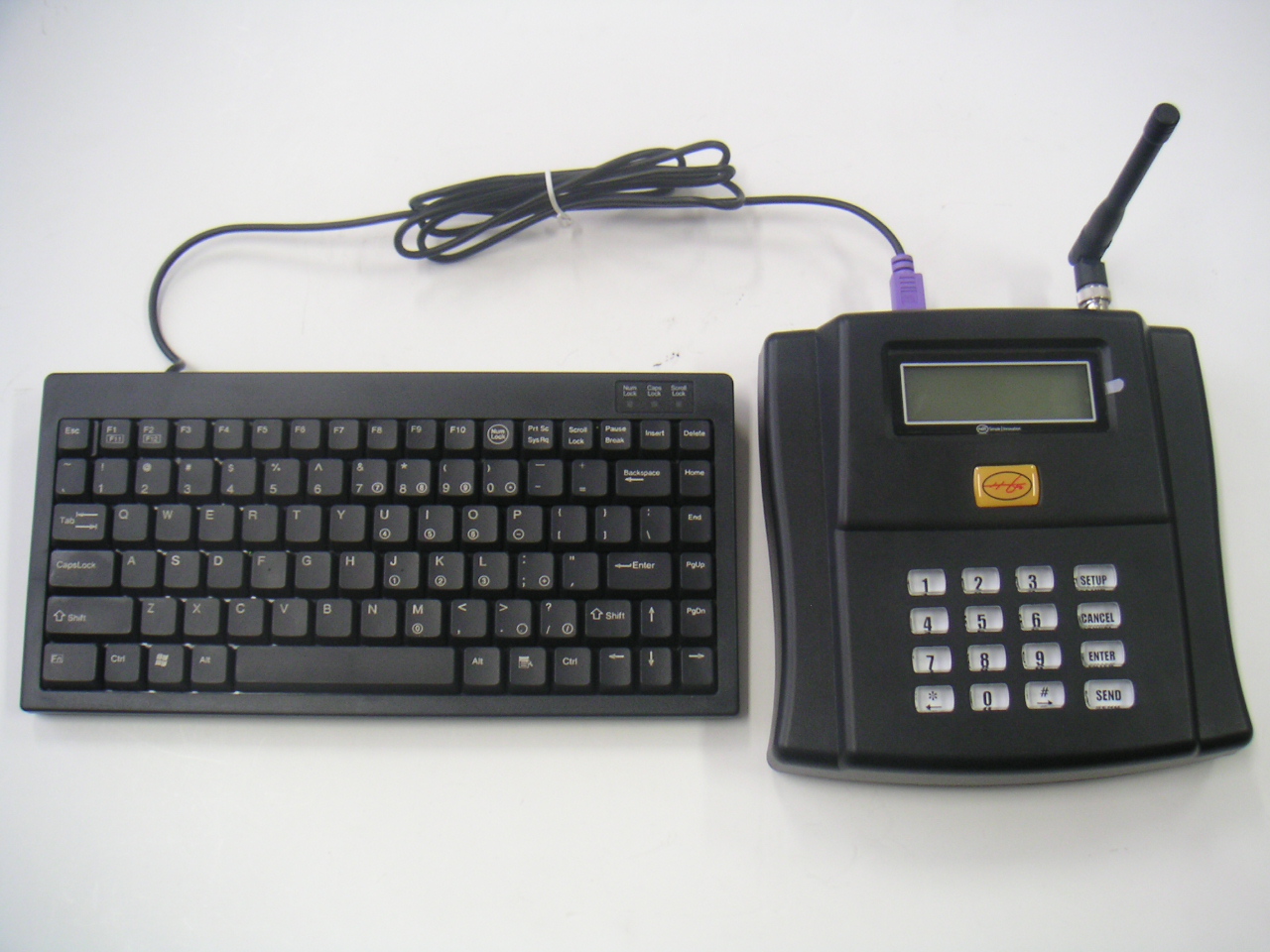

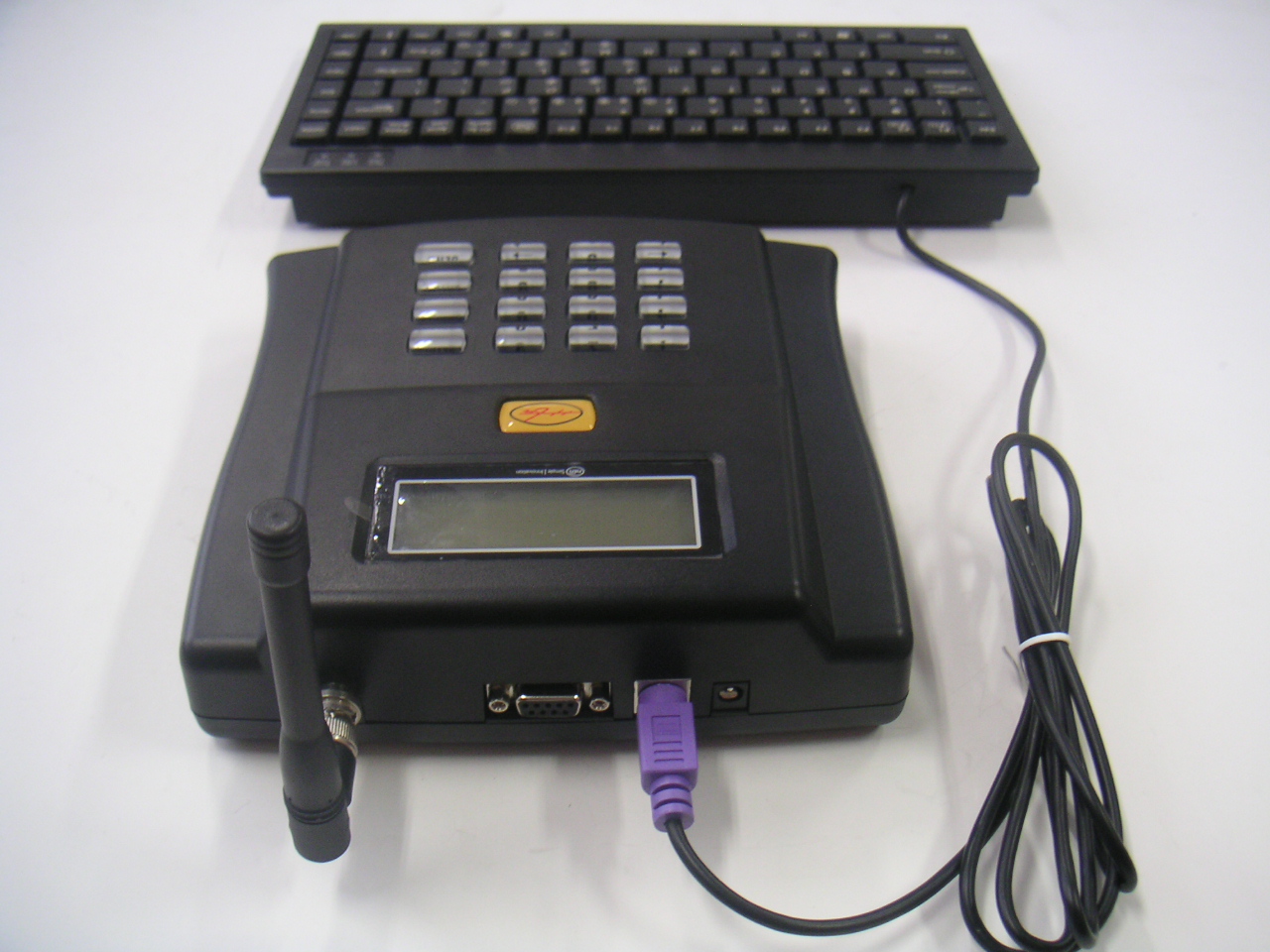

FCC ID :QBTLTK-1400AHTrade Name : ALPHA TRANSMITTERModel No. :LTK-1400AHTHIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. RF EXPOSURE STATEMENTY our Pager Transmitter contains a radio frequenc y transmitter. When the button is pushed thetransmitter sends our RF signals.CAUTION: To comply with FCC RF exposurecompliance requirements, a separation distance of atleast 8 inches (20 cm) must be maintained betweenthe antenna of this trasmitter and all persons, duringnormal operation.The antenna uesd for this transmitter must not beco-located or operating in conjunction with any otherantenna of transmitter.Unauthorized antennas, modifications, ofattachments could damage the transceiver and mayviolate FCC regulations. . PREFACE Pager transmitter, LTK-1400A is the desktop paging system capable of addressing more than 1000 pagers with Alpha message or Numeric message. It consists of a fully featured encoder with a large 4 line by 64 chara -cter LCD display. .TURNING THE TX ON/OFF * Plug the Pager Transmitter A/C Adaptor into the Pager Transmitter and then into a standard 110 outlet. * And the initial LCD screen is as below. > 1/1 1/2 1/3(Initial screen) SEND A PAGE 1. NUMERIC MESSAGE (1) Input "1" in initial screen and then press ENTER.(2) Go to 1.NUMERIC TYPE using *( ) and #( ) Key and then press ENTER. (3) Input message in ENTER MESSAGE(Maximum available up to 16 characters) and then press ENTER.(4) Transmit message and return to initial screen. (Sending Message Please Wait) To return to an initial screen(1/3) on the process, input CANCEL. 2. ALPHA MESSAGE (1) Input "1" in initial screen and then press ENTER.(2) Go to 2.ALPHA TYPE using *( ) and #( ) Key and then press ENTER. (3) Input message in ENTER MESSAGE (Maximum available up to 128 characters) and then press ENTER.(4) Transmit message and return to initial screen. (Sending Message Please Wait) INITIALIZING ENTER PAGER NUMBER: SETUP:ESC Alpha Transmitter ROM Ver.: V1.00 Reading Setup 12:00AM To return to an initial screen(1/3) on the process, input CANCEL. 3. PRE-SET MESSAGE(ON) 1) To send the preset default message Before this process, Make the Pre-Set Msg ON. (1) Input "1" in initial screen and then press ENTER.(2) Go to 1.NUMERIC TYPE using *( ) and #( ) Key and then press ENTER. (3) When "Enter Pre-Set Message(1-4):" is displayed, input nothing and then press ENTER.(4) When "ENTER MESSAGE:" is displayed, input no message and then press ENTER.(5) "Sending Message Please Wait" is displayed and transmit Pre-Set Default Message. To return an initial screen(1/3) on the process, input CANCEL. 2) To send the preset message desired Before this process, Make the Pre-Set Msg ON. (1) Input "1" in initial screen and then press ENTER.(2) Go to 1.NUMERIC TYPE using *( ) and #( ) Key and then press ENTER. (3) When "Enter Pre-Set Message(1-4):" is displayed, input number among 1-4 and then press ENTER.(4) When "ENTER MESSAGE:" is displayed, input no message and then press ENTER.(5) "Sending Message Please Wait" is displayed and transmit selected Pre-Set Message(1-4). To return an initial screen(1/3) on the process, input CANCEL. 4. ALPHA MESSAGE(ON) (1) Input "1" and then press ENTER.(2) Go to 2.ALPHA TYPE using *( ) and #( ) Key and then press ENTER. (3) Input 1 and Message which is saved in Menu Options is displayed. And then press ENTER.(4) "ENTER MESSAGE:" is displayed and press ENTER without any input.(5) "Sending Message Please Wait" is displayed and transmit message which is set in Alpha Message. To return an initial screen(1/3) on the process, input CANCEL. 5. TRANSMIT INDIVIDUAL PAGER NUMBER 1) Set Default Msg:OFF in Menu Options * In initial screen(1/3), input "1" and push SEND then No Message is transmitted. 2) Set Default Msg:ON in Menu Options * In initial screen(1/3), input "1" and push SEND then Message which is set in Set Default Msg is transmitted. 6. ERROR MODE(1) In initial screen, input number which is over 1249 and then press ENTER.(2) "Extension Number Is Invalid" is displayed with transmit nothing and then return to initial screen.(1/3) . SETUP MENU 1. MENU OPTIONS * Current Time Setup * Sleep Time Setup * Range Test Setup * Preset Message Setup * Pager Alert Setup * Duty Alert Setup * Out of Range Setup * Alpha Message Setup 2. MENU SETUP(1) To enter menu setup mode, press SETUP in initial screen.(2) "ENTER PASSWORD?" Is displayed.(3) Input password and then Menu Options is displayed. * USER PASSWORD? : 1379 (4) Can move Menu No.1-8 by Number Key. To return an initial screen(1/3) on the process, input CANCEL. 1) CURRENT TIME SETUP(1) In Menu Options, Go to 1.Set Current Time Setting using *( ) and #( ) Key and press ENTER. (2) "Set Current Time" is displayed and default time is 12:00 AM.(3) Set hour(1-12) and then press ENTER.(4) Set minute(0-60) and then press ENTER. (5) Set AM/PM using *( ) and #( ) Key. (6) Press ENTER, and then return to Menu Options screen. If hour(1-12) or minute(00-59) is set by other number, it moves to default time. 2) SLEEP TIME SETUP (1) Go to 2.Sleep Time Setting using *( ) and #( ) Key and then press ENTER. (2) Select 1.ON or 2.OFF using *( ) and #( ) Key and then press ENTER. (3) Sleep Time is displayed and default Sleep Time is 12:00 AM.(4) Input hour(1-12) and then press ENTER.(5) Input minute(00-59) and then press ENTER.(6) Select AM/PM using *( ) and #( ) Key and then press ENTER. (7) The screen moves to Menu Options screen.3) RANGE TEST SETUP(1) Go to 3.Range Test using *( ) and #( ) Key and then press ENTER. (2) Using *( ) and #( ) Key, select 1.ON & 2.OFF and then press ENTER. (3) Testing Range is displayed and transmit the range test signal.(4) The screen moves to Menu Options screen. To return to Menu Options on the process, input CANCEL. 4) Pre-Set Message SETUP (1) Go…

Text truncated - open the document above for the full version.

Tel. : 82-32-324-9838 Fax. : 82-32-324-9840 Feb 26, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QBTLTK-1400AH Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List QBTLTK-1400AH - Part List.PDF Schematics Diagram(s) QBTLTK-1400AH – Schemetics.PDF PCB Layout QBTLTK-1400AH –PCB Layout.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, LEETEK(Lee Technology Korea.,Co. Ltd)/Director

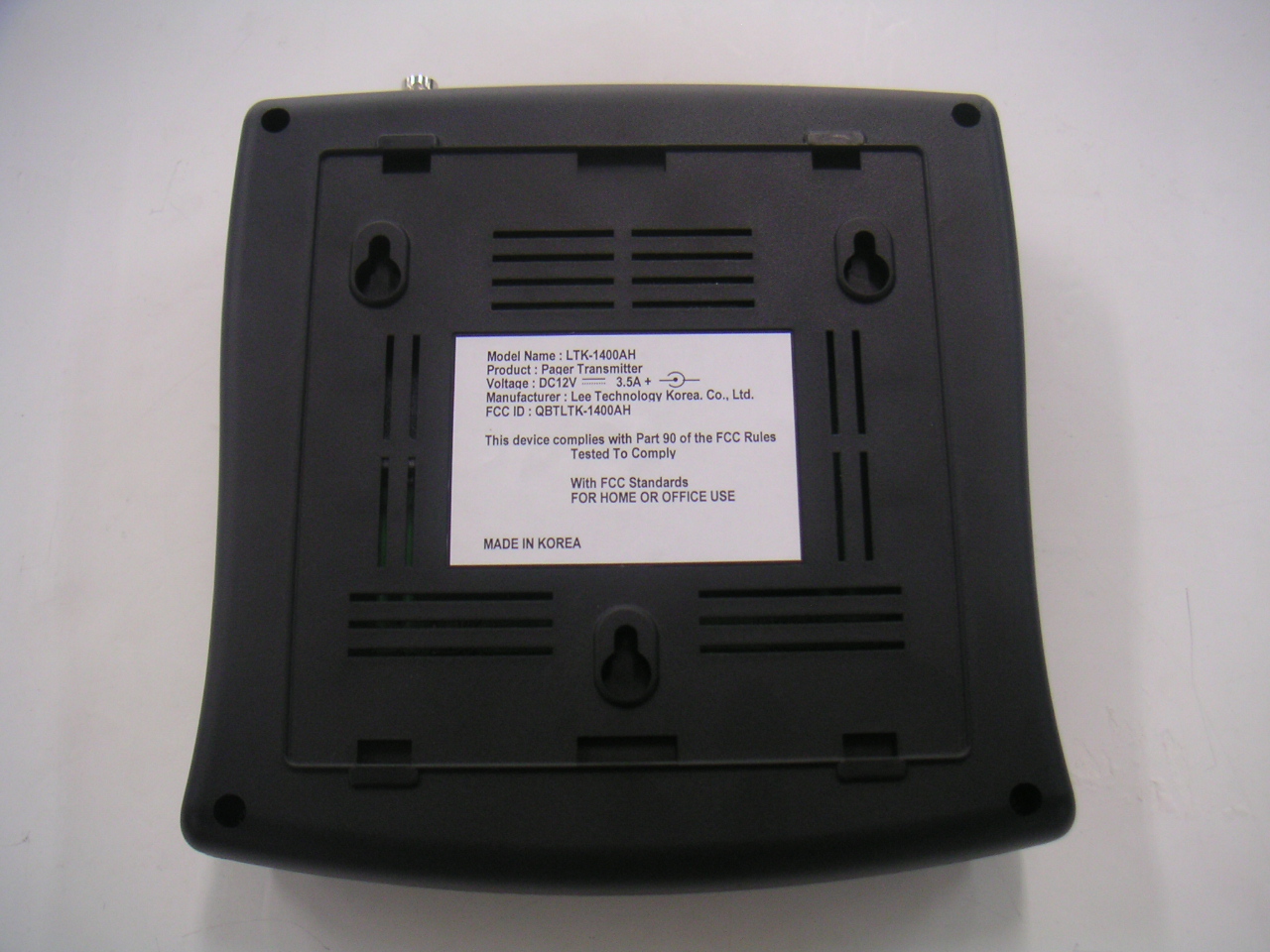

* copy of marking place Model Name : LTK-1400AH Product : Pa ger Transmitter Voltage : DC12V 3.5A + Manufacturer : Lee Technolo gy Korea. Co., Ltd. FCC ID : QBTLTK-1400AH This device complies with Part 90 of the FCC Rules Tested To Comply With FCC Standards FOR HOME OR OFFICE USE MADE IN KORE A LTK-1400AH Transmitter FCC Label Transmitter Rear LTK-1400AH Transmitter Front Case

* copy of marking place Model Name : LTK-1400AH Product : Pa ger Transmitter Voltage : DC12V 3.5A + Manufacturer : Lee Technolo gy Korea. Co., Ltd. FCC ID : QBTLTK-1400AH This device complies with Part 90 of the FCC Rules Tested To Comply With FCC Standards FOR HOME OR OFFICE USE MADE IN KORE A LTK-1400AH Transmitter FCC Label Transmitter Rear LTK-1400AH Transmitter Front Case

Circuit Description *Model : LTK – 1400AH *Product : Pager Transmitter 1. SPECIFICATION z Pocsag Code z Frequency Range : 450.3250 ~ 467.8500MHz z FM modulation & FSK (frequency shift keying) z Deviation : 4.5 KHz z FM Accuracy : +/-5% 4.275 < 4.5 < 4.725 z Date Rate : 1200BPS, 600Hz +/-5Hz z Output power : 33.0dBm z Message : Numeric - Max. 16 digits Alpha – Max. 128 characters z Address Range : 0001 to 1249 z Dimension : W(185) X D(190) X H(51.5) 2. CIRCUIT DESCRIPTION LTK-1400A uses 12V 2.5A DC Power Supply as its Power supply. If the power is supplied into the DC Jack, it supplies the power to CPU and LCD by U5(7805) which converts the power to +5V, and it also supplies the power to RF(Q9MRF1518T1) by U14(7810) which converts the power to +10V. Input message by use of Keypad and press ENTER, and then CPU(RD0-RD3 / RE4-RE7) sends the data. With sending a data, it makes the TX On S/W work and supplies the power to RF module. Max. 16 digits numeric numbers are able to be entered and 0000 up to 1249 are available with this system in the address range. If push the Enter button after inputting, CPU(microcontroller) will interface to CC1070 via the 4 wires serial configuration interface(PDI, PDO, PCLK and PSEL). Optionally, the microcontroller can do data encoding and the microcontroller can monitor the LOCK pin for frequency lock status or other status information. This frequency is filtered by way of BPF (L1, L2, L3) and then amplified by Q4, Q5, Q6, Q7, Q8 and then filtered by LPF(L10, L11, L12, L13) and then amplified by FET Q9(MRF1518T1) and then filtered by LPF(L18, L17, L16) and transmitted to BNC connector.

LTK-1400AH ANTENNA

2/28/2007 Page 1 of 2 FCCID: QBTLTK-1400AH RF exposure exhibit FCC RF Exposure Requirements General information : FCCID: QBTLTK-1400AH Modulation: Device category: Mobile per Part 2.1091 Environment: General Population/Uncontrolled Exposure Otherwise, compliance with the power density limits of 1.1310 is required. Antenna: The device has a portable antenna to be used for the purpose of reading tags Configuration Antenna p/n Type Max. Gain (dBi) Indoor None Helical 0.5 Operating configuration and exposure conditions: The conducted output power is 2 W MPE Calculation : The minimum separation distance is calculated as follows: The limit for general population/uncontrolled exposure environment is 0.31 mW/cm2* for a Channel Frequency: 457.5750 MHz (A) Antenna Gain (dBi) Separation Distance 0.5 Power Conducted (W) Duty Cycle (%) (in) (cm) 2 100 14.3 - - - - 2/28/2007 Page 2 of 2 FCCID: QBTLTK-1400AH Conclusion: The device complies with the MPE requirements by providing a safe separation distance of 20 cm between the antenna, including any radiating structure, and any persons when normally operated . *

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1400AH REPORT #: THRU-702010 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1400AH REPORT #: THRU-702010 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1400AH REPORT #: THRU-702010 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1400AH REPORT #: THRU-702010 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO.,LTD. FCC ID: QBTLTK-1400AH REPORT #: THRU-702010
