QBTLTK-2003Rechargeable Paging System

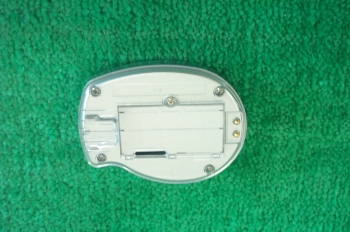

LTK-2003 Paging System User manual Thank you for purchasing the “LTK-2003Rechargeable Pager & LeeTek Transmitter” On Premise Paging System. Your pagers were set at the factory and will function as soon as they are turned on. Keypad Sending Unit: Unwrap all controller components. Lock the antenna into the hole in the upper left hand corner of the controller and slip on the antenna locking cover. Plug the power supply into a standard 110 outlet and plug it into the back of the controller. We recommend some type of surge suppressor on the power supply for protection. If using a telephone interconnect model please refer to the “Telephone Interconnect Operation” sheet enclosed. Pager Numbers: On the clip of each pager is your pager number. Press the pager number and send (“11 send”) and that pager will vibrate& flash for 3 minutes. Remember to make a note of the pager number next to the name on the pager sign out sheet. To Send a Distinctive Vibration With this feature you have the option of sending different alerts to a pager. Handing out the Pagers: Give the guest a Pager. Note their name and Pager number on the sign out sheet(Included). Tell the guest the Pager will signal when their table(or Food) is ready. The default page for this system is for the coaster to flash and vibrate for 3 minutes. After the Pager is finished vibrating it automatically goes back into standby mode waiting for the next page. You can hand the Pagers out right from the charging Base (They will “demo” Page each time they are removed from the Charging base) or you can simply store them in a basket and hand them out. A fully Charged Pager will function without being recharged for 8 – 12 hours. Paging the Guest: When the guest’s table( or food) is ready simply press the Pager number on the transmitter Keypad followed by the “send” key. For example. Press “11, send” and Paser # 11 will signal. Out of range Feature(Alert 2 Type) With this feature, the pager will play a Beep (or Blinking YELLOW Light & Fast Vibe Mode)to inform your customer that they are out of range and will miss their page. The melody will only stop if they are within range. The Out of Range Molody will play for 10minutes only. Default from the factory is Out of Range Off Message Code Out of Range On “9494” Melody for 10minutes only “9191” Blinking Yellow light & Fast Vibration Mode for 10minutes. Out of Range OFF “9393” To turn the Out of range feature an follow these procedures: Remove all the Pagers from the charging base or simply unplug the power supply that is connected to the charging unit. Press “911-enter- 9494-send ”. or “911-enter- 9191-send”. All the Pagers will light up to tell you that they have received the new code. To test the Pagers, unplug the power supply that is connected to the LEETEK transmitter. After 45 seconds, all the Pagers will play a melody since they are not receiving a signal from the transmitter (Alert will 10minutes only). Return all the Pagers to the charging base or plug in the power supply. The Pagers are ready to receive a page with the out of range feature turned on. Follow the same procedure to turn the out of range feature off, but use the code “9393” With this feature you have the option of changing the way your coasters alert the guest. Group Message Code Vibrate Only “9292” Flash & Beep “9595” Note.:the beep alert will only sound for the first 5second of the 3 minute alert. Flash & Vibrate “9696” Flash only “9797” Beep, Flash & Vibrate “9898” Sleep Mode “99” Out of range On “9494” Note.:the beep alert will only sound for 10minutes. Out of range On “9191” Note.:the yellow light will blink & fast vibration for 10 minutes. Out of Range OFF “9393” To change the page mode of your Pagers follow these instructions: Remove all the Pagers from the charging unit or unplug the power supply that is connected to the charging base. press “911-enter” . For the message, enter the code (see above) that corresponds to the alert that you want. For example, if you want the coasters to Flash Only, Press “911- enter – 9797-send” . After sending the code, the lights on all the Pagers will flash. Return all the Pagers to the charging base or plug in the power supply. The Pagers are ready to receive the page with the new alert. After the pager is finished vibrating it automatically goes back into standby mode waiting for the next page. To Send a Distinctive Individual Alert With this feature you have the option of sending different Alert to a pager Individual message code: Message 11: 1 times Vibe &charger light (Green) will stay on for 2 secs. Message 22: 2 times Vibe & charger light (Yellow) will stay on for 4 secs Message 33: 3 times Vibe & charger light (Red) will stay on for 6 secs . Message 66: 6 times Vibe & charger light will change color (From Green to Yellow to Red) for 8 secs. Example: “2, enter, 33 send” Pager # 2 will vibrate 3 times & Red Light will stay on for 6 secs.. *Note: No Message or any other message than above alert will play for 3minutes. (Pager will Play by canned Message) Note: Pagers must be a minimum of 3 feet away from the keypad controller to send a page. The transmitter may cause interference with certain phones and electronic equipment. Place the keypad controller away from these devices. All Page Feature All pagers have a second identity of 911. To page every pager at once press “911 – send”. Follow the same procedures above to send messages to all pagers. 6 times vibration(1 sec On, 1sec Off) Turn Pagers Off: This system has an “ALL SLEEP” function that turns off all the pagers at once. From the transmitter press “911 – enter – 99 – send” This will put all pagers to sleep. The pager uses 2 – AAA Nimh battery. Battery life averages 2000 hours. When you replace the battery the pager is turned on. The red light will flash when the battery needs to be changed. Note: Pagers must be a minimum of 3 feet away from the keypad controller to send a page. The transmitter may cause interference with certain phone…
