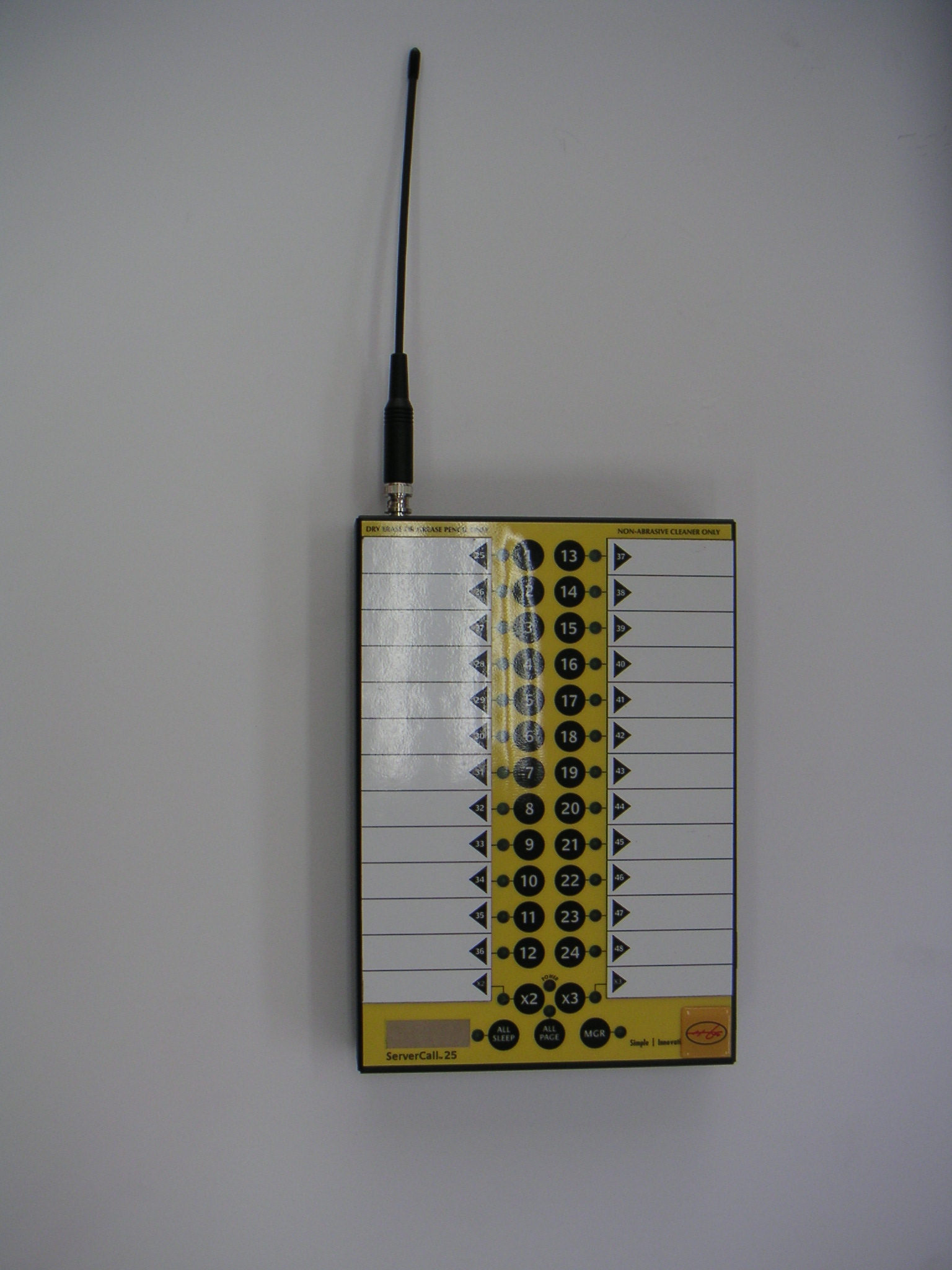

QBTLTK-PSCPaging Transmitter

Lee Technology Korea Co., Ltd.
Paging Transmitter - FCC ID QBTLTK-PSC - Lee Technology Korea Co., Ltd.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
May 11, 2005
Application Purpose
Original Equipment
Date of Application
May 11, 2005
Equipment Note
Paging Transmitter
Frequency Range
26.99500000 - 26.99500000
Company
Lee Technology Korea Co., Ltd.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Parts List/Tune Up Info

↗

Schematics

↗

Test Report

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Pilot ServerCall Transmitter USER’S MANUAL LEETEK (LEE TECHNOLOGY KOREA.CO.,LTD) 3 rd FL #499-2 Sang 3-dong Wonmi-gu Pucheon –city Kyunggi-do Korea Pilot Servercall Transmitter FCC NOTICE WARNING : The antenna must be installed in a manner that ensures a minimum separation distance of 30 centimeters between the antenna and human beings. Thank you for purchasing LEETEK’s Pilot Servercall paging system. Your system has been Pre-programmed at the factory and will function once mounted and plugged in. 1. To page To page the particular number of pager, Press its button and then Green light is On. For example) If you want to page the number 7 pager, Press the number 7 button, then Green light is on and the pager with its number will be paged. 2. To cancel Press its number button once again and then Green light is Off and the pager will not stop being paged. 3. To page the manger Press the button MGR, Green light is On and Light will stay On for 3 seconds and then turn off. # Reference: Manager’s pager shall be assigned to #91, Message-blank. 4. To sleep all pagers. Press and hold the button “ALL SLEEP” for 3 sec. Green light will turn on and beep will sound. After 3 seconds, transmitter will send the signal and light will turn off. # Reference: Pager # assigned Group“0911” ; Message – “99” 5. To page all pagers Press and hold the button “ ALL PAGE” for 3 sec. Green light will turn on and beep will sound. After 3 seconds, transmitter will send the signal and light will turn off. # Reference: Pager# assigned Group“0911” ; Message – blank 6. To page with the message “22” Press the button “X2” and press the pager number, transmitter will send the signal with message “22” (Vibe 2 times) 7. To page with the message “33” Press the button “X3” and press the pager number, transmitter will send signal with message “33”. (vibe 3 times) 8. To set the pager out of range On/Off The transmitter Power ON. Press and hold the MGR button for 5 seconds. Button 1 & 2 will light up and MGR light will be blinking to show that you’re in the pager out of range menu. 1) To turn the out of range “ON”. Press button # 1 to turn the light to green and then send the “0911” with message “55” 3 times 2) To turn the out of range “OFF”. Press button # 1 to turn the light to green and send the “0911” with message “44” 3 times To get out of this function press “MGR” button again. To go to programming configuration, TX power ON. Press & hold X3 button for 5seconds. and then beep will sound. Light # 1-3 will blinking green. (initial menu) Button # 1 – When this button is pressed, will be Beep sound and LED turn ON. If this button pressed again, LED turns OFF.(LED Blinking) Button # 3 – Transmitter Out of Range ON/OFF. If you press the #3, out of range ON. Press the #3 again , out of range OFF (every 10seconds signal sending) To save and get out of programming mode, press X3 again. Button # 2 - If this button is pressed, button #1 and #3 is OFF, Button # 4, 5, 6 is lights up and blinking. On this mode , if you select the following button : Button 1- Transition time is set to 30 seconds(LED 10sec ON-LED10sec slow blinking-LED fast blinking) Button 2 - Transition time is set to 1 minute(LED 20sec ON-LED20sec slow blinking-LED fast blinking) Button 3 -Transition time is set to 1 ½ minutes((LED 30sec ON-LED30sec slow blinking-LED fast blinking) To save and get out of programming mode, press X3 again.

Cover Letter(s)

’

ID Label/Location Info

Label sample

ID Label/Location Info

Label Location QBTLTK-PSC Pilot Servercall Transmitter FCC Label Position Transmitter rear Antenna

Schematics

THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 COVER SHEET Test Report Product Name: Pilot Servercall Transmitter FCC ID: QBTLTK-PSC Applicant: LEE TECHNOLOGY KOREA CO., LTD 3FL #499-2, Sang 3-Dong, Wonmi-Gu Bucheon-City, Kyungki-Do KOREA Date Receipt:04/21/2005 Date Tested: 05/06/2005 THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 TABLE OF CONTENTS TABLE OF CONTENTS LIST FOR PART 90 UHF DEVICE APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC TEST REPORT CONTAINING: PAGE 1.............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2-3...........TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 4-5...........CONDUCTED SPURIOUS EMISSIONS PAGE 6-7...........UNWANTED RADIATION PAGE 8.............RADAITION INTERFERENCE 90.210(C)(3) PAGE 9-10..........BANDWIDTH LIMITATION PAGE 11-12.........OCCUPIED BANDWIDTH PAGE 13............FREQUENCY STABILITY PAGE 14-15.........POWER LINE CONDUCTED INTERFERENCE PAGE 16............RADIATION INTERFERENCE(15.109) PAGE 17............LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1............FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 2............SCHEMATIC EXHIBIT 3............BLOCK DIAGRAM EXHIBIT 4............EXTERNAL PHOTOGRAPHS EXHIBIT 5............INTERNAL PHOTOGRAPHS EXHIBIT 6............USERS MANUAL EXHIBIT 7............OPERATIONAL DESCRIPTION EXHIBIT 8............PARTS LIST EXHIBIT 9............TUNING PROCEDURE EXHIBIT 10...........TEST SETUP PHOTOGRAPH THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 1 of 17 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033 LEE TECHNOLOGY KOREA CO., LTD. will sell the (c)(1)(2) FCC ID: QBTLTK-PSC VHF transceiver in quantity, for use under FCC RULES PART 90 2.1033 (C) TECHNICAL DESCRIPTION 2.1033 (3) User Manual See Exhibit 6 2.1033 (4) Type of Emission: 10K2F2D FOR 25kHz Bn = 2M + 2DK M = 1,200 Bits per second D = 4.5 kHz (Peak Deviation) K = 1 Bn = 2(1,200bps/2) + 2(4500)(1) = 10.2k ALLOWED AUTHORIZED BANDWIDTH = 10.2 kHz. 90.209(b) (5) 2.1033 (5) Frequency Range: 26.995 MHz 2.1034 (6) Power Range and Controls: There are NO user Power controls. (7) Maximum Output Power Rating: see Next Page. (8) DC Voltages and Current into Final Amplifier: POWER INPUT FIANL AMPLIFIER ONLY Vce = 12 Volts IC = 1.2A (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT 9. 2.1033 (10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 2. The block diagram is included as EXHIBIT 3. (11) Function of each electron tube or semiconductor device or other active circuit device: - SEE EXHIBIT 8. THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 2 of 17 (8) Instruction book. The instruction manual is included as EXHIBIT 6. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in Exhibit #7. 2.1033(c)(11) A photograph or drawing of the equipment identification label is shown in Exhibit 1. 2.1033(c)(12) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are shown in Exhibit 4-5. 2.1033(c)(13) For equipment employing digital modulation, a detail description of the modulation technique. This UUT uses FSK to modulate the transmitter. 2.1033(c)(14) Data required for 2.1046 to 2.1057 See Below 2.1046(a) RF power output. & 90.205 MAXIMUM PEAK OUTPUT POWER(conducted) Maximum peak output power(W) 26.995MHz 35.7 dbm(3.7w) THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 3 of 17 PLOT THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 4 of 17 SPURIOUS EMISSIONS (conducted) 2.1057 SPECTRUM RANGE TO BE INVESTIGATED Lowest radio frequency signal generated in the equipment, without going below 9kHz, up to at least the frequency shown below: (1) If the equipment operates below 10 GHz: to the tenth harmonic of the highest fundamental frequency or to 40GHz, whichever is lower. (2) If the equipment operates at or above 10GHz and below 30GHz: to the fifth harmonic of the highest fundamental frequency or to 100 GHz, whichever is lower. (3) If the equipment operates at or above 30GHz: to the fifth harmonic of the highest fundamental frequency or to 200GHz, whichever is lower. (b) Particular attention should be paid to harmonics and sub-harmonics of the carrier frequency as well as to those frequencies removed from the carrier by multiples of the oscillator frequency. Radiation at the frequencies of multiplier stages should also be checked. (c) The amplitude of spurious emissions, which are attenuated more than 20dB below the permissible value, need not be reported. (d) Unless otherwise specified,measurements above 40GHz shall be performed using a minimum resolution bandwidth of 1MHz. THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 5 of 17 PLOT THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 8…

Text truncated - open the document above for the full version.

Test Report

THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 COVER SHEET Test Report Product Name: Pilot Servercall Transmitter FCC ID: QBTLTK-PSC Applicant: LEE TECHNOLOGY KOREA CO., LTD 3FL #499-2, Sang 3-Dong, Wonmi-Gu Bucheon-City, Kyungki-Do KOREA Date Receipt:04/21/2005 Date Tested: 05/06/2005 THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 TABLE OF CONTENTS TABLE OF CONTENTS LIST FOR PART 90 UHF DEVICE APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC TEST REPORT CONTAINING: PAGE 1.............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2-3...........TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 4-5...........CONDUCTED SPURIOUS EMISSIONS PAGE 6-7...........UNWANTED RADIATION PAGE 8.............RADAITION INTERFERENCE 90.210(C)(3) PAGE 9-10..........BANDWIDTH LIMITATION PAGE 11-12.........OCCUPIED BANDWIDTH PAGE 13............FREQUENCY STABILITY PAGE 14-15.........POWER LINE CONDUCTED INTERFERENCE PAGE 16............RADIATION INTERFERENCE(15.109) PAGE 17............LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1............FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 2............SCHEMATIC EXHIBIT 3............BLOCK DIAGRAM EXHIBIT 4............EXTERNAL PHOTOGRAPHS EXHIBIT 5............INTERNAL PHOTOGRAPHS EXHIBIT 6............USERS MANUAL EXHIBIT 7............OPERATIONAL DESCRIPTION EXHIBIT 8............PARTS LIST EXHIBIT 9............TUNING PROCEDURE EXHIBIT 10...........TEST SETUP PHOTOGRAPH THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 1 of 17 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033 LEE TECHNOLOGY KOREA CO., LTD. will sell the (c)(1)(2) FCC ID: QBTLTK-PSC VHF transceiver in quantity, for use under FCC RULES PART 90 2.1033 (C) TECHNICAL DESCRIPTION 2.1033 (3) User Manual See Exhibit 6 2.1033 (4) Type of Emission: 10K2F2D FOR 25kHz Bn = 2M + 2DK M = 1,200 Bits per second D = 4.5 kHz (Peak Deviation) K = 1 Bn = 2(1,200bps/2) + 2(4500)(1) = 10.2k ALLOWED AUTHORIZED BANDWIDTH = 10.2 kHz. 90.209(b) (5) 2.1033 (5) Frequency Range: 26.995 MHz 2.1034 (6) Power Range and Controls: There are NO user Power controls. (7) Maximum Output Power Rating: see Next Page. (8) DC Voltages and Current into Final Amplifier: POWER INPUT FIANL AMPLIFIER ONLY Vce = 12 Volts IC = 1.2A (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT 9. 2.1033 (10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 2. The block diagram is included as EXHIBIT 3. (11) Function of each electron tube or semiconductor device or other active circuit device: - SEE EXHIBIT 8. THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 2 of 17 (8) Instruction book. The instruction manual is included as EXHIBIT 6. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in Exhibit #7. 2.1033(c)(11) A photograph or drawing of the equipment identification label is shown in Exhibit 1. 2.1033(c)(12) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are shown in Exhibit 4-5. 2.1033(c)(13) For equipment employing digital modulation, a detail description of the modulation technique. This UUT uses FSK to modulate the transmitter. 2.1033(c)(14) Data required for 2.1046 to 2.1057 See Below 2.1046(a) RF power output. & 90.205 MAXIMUM PEAK OUTPUT POWER(conducted) Maximum peak output power(W) 26.995MHz 35.7 dbm(3.7w) THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 3 of 17 PLOT THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 4 of 17 SPURIOUS EMISSIONS (conducted) 2.1057 SPECTRUM RANGE TO BE INVESTIGATED Lowest radio frequency signal generated in the equipment, without going below 9kHz, up to at least the frequency shown below: (1) If the equipment operates below 10 GHz: to the tenth harmonic of the highest fundamental frequency or to 40GHz, whichever is lower. (2) If the equipment operates at or above 10GHz and below 30GHz: to the fifth harmonic of the highest fundamental frequency or to 100 GHz, whichever is lower. (3) If the equipment operates at or above 30GHz: to the fifth harmonic of the highest fundamental frequency or to 200GHz, whichever is lower. (b) Particular attention should be paid to harmonics and sub-harmonics of the carrier frequency as well as to those frequencies removed from the carrier by multiples of the oscillator frequency. Radiation at the frequencies of multiplier stages should also be checked. (c) The amplitude of spurious emissions, which are attenuated more than 20dB below the permissible value, need not be reported. (d) Unless otherwise specified,measurements above 40GHz shall be performed using a minimum resolution bandwidth of 1MHz. THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: LEE TECHNOLOGY KOREA CO., LTD FCC ID: QBTLTK-PSC REPORT #: THRU-505005 5 of 17 PLOT THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 8…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jongchul Lee(President)
[email protected]82-32-324-9838Fax: 82-32-324-9840

Test Firm

Thru Lab & EngineeringK. Kang
[email protected]82-2-846-5002Fax: 82-2-834-0969

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
19026.995 MHz - 26.995 MHz3.7 W10K2F2D20.0000000000 ppm
Confidentiality
Long Term
Grant Notes
Power is Conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 24 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance
