SMART Technologies ULC Suite 600, 214 11 Ave SW Calgary, AB T2R 0K1 CANADA Phone 403.245.0333 Fax 403.228.2500 [email protected] www.smarttech.com 2024-09-12 Module Integration Instructions FCC ID: QCI-CRXMOD1, IC: 4302A-CRXMOD1 Dear Application Examiner: SMART Technologies is seeking limited modular approval for SMART CRX Cube BLE radio module Model: CRXMOD1, FCC ID: QCI-CRXMOD1, IC: 4302A-CRXMOD1. Per KDB 996369, the integration instructions for the radio module within the host product are described below: 2.2 List of Applicable Rules: The radio module complies with FCC Part 15.247 and RSS-247 2.3 Summarize the specific operational use conditions: The CRXMOD1 radio module is specifically designed and intended only for portable application within the host product: SMART RX Series Cube, Model: CRX-1, which is a battery powered handheld accessory used in conjunction with SMART QX-V2/RX Series Interactive Flat Panel (IFP) displays. The CRXMOD1 radio module is not intended for sale as a stand-alone product. 2.4 Limited Module Procedures: The CRXMOD1 radio module does not include its own RF shielding. To demonstrate compliance, testing was performed with the radio in a stand- alone configuration in accordance with the test plan outlined below:  Duty Cycle: KDB 558074 -6.0 / RSS-Gen 3.2  DTS Bandwidth (6 dB): FCC 15.247(a)(2), KDB 558074 -8.2 / RSS-247 5.2(a)  Occupied Bandwidth (99%): KDB 558074 -2.1 / RSS-Gen 6.7  Output Power: FCC 15.247(b)(3), KDB 558074 -8.3.1 / RSS-247 5.4(d, f), RSS-Gen 6.12  EIRP: FCC 15.247, KDB 558074 -8.3.1 / RSS-247 5.4(d, f), RSS-Gen 6.12  Power Spectral Density: FCC 15.247(e), KDB 558074 -8.4 / RSS-Gen 5.2(b)  Band Edge Compliance: FCC 15.247(d), KDB 558074 -8.5 / RSS-247 5.5  Spurious Conducted Emissions: FCC 15.247(d), KDB 558074 -8.5 / RSS-247 5.5  Spurious Radiated Emissions: FCC 15.247(d), KDB 558074 -8.6, 8.7 / RSS-247 5.5, RSS- Gen 6.13, 8.10  RF Exposure Assessment: FCC 1.1310, 2.1093, KDB 447498 / RSS-102 The test results demonstrate compliance with FCC Part 15.247 and RSS-247 for the CRXMOD1 radio module to support integration within the host, Model: CRX-1, for which the CRXMOD1 was specifically designed. Spurious radiated emissions testing of the CRXMOD1 integrated into the CRX-1 was completed. Integration of the CRXMOD1 radio within a new host product requires testing according to the plan outlined below: Conducted Testing:  Output Power: FCC 15.247(b)(3), KDB 558074 -8.3.1 / RSS-247 5.4(d, f), RSS-Gen 6.12  Band Edge Compliance: FCC 15.247(d), KDB 558074 -8.5 / RSS-247 5.5 Radiated Testing:  Spurious Radiated Emissions: FCC 15.247(d), KDB 558074 -8.6, 8.7 / RSS-247 5.5, RSS- Gen 6.13, 8.10 When compliance is demonstrated, a C2PC is required to authorize the integration of the CRXMOD1 within the new host product. 2.5 Trace Antenna Designs: Not applicable. 2.6 RF Exposure Considerations: 1) The CRXMOD1 radio is intended for handheld use and meets the portable use condition with 5 mm separation distance between the antenna and user’s hand and having the maximum operational duty cycle of 9.02% coded into the firmware for the radio module. An RF exposure assessment was completed for the CRXMOD1 radio to demonstrate compliance with FCC 2.1093 by applying the exemption defined in FCC 1.1307. A separate RF exposure assessment was completed to demonstrate compliance with RSS-102. 2) This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. Further RF exposure assessment of the CRXMOD1 is not required for integration in new portable host products, provided there are no changes to the radio module and/or other radios are collocated within the host. A new RF exposure assessment will be required in the event the radio is modified, integrated in a mobile host, or collocated with other radios within a host. Collocation conditions shall be assessed following the FCC guidelines for collocated transmitters. 2.7 Antennas: Type Gain Impedance Application Multilayer Chip Antenna (MCA) 3.0 dBi 50 Ω Fixed When integrated within the host product, the antenna is permanently attached and cannot be replaced. 2.8 Label and Compliance Information:  The radio module is labeled with radio identifiers. Host products must be labeled with the following statements: Contains FCC ID: QCI-CRXMOD1 Contains IC: 4302A-CRXMOD1 E-labeling is also permitted for host products that are intended to operate in conjunction with devices having a built-in display. Additionally, the radio identifiers shall be applied to the host product packaging.  The following statements apply to the radio module and must be included in the user documentation for the host product: Contains FCC ID: QCI-CRXMOD1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Contains IC: 4302A-CRXMOD1 This device complies with RSS-247 of the Innovation, Science and Economic Development Canada Rules. Operation is subject to the follo…

Text truncated - open the document above for the full version.

SMART Technologies ULC Suite 600, 214 11 Ave SW Calgary, AB T2R 0K1 CANADA Phone 403.245.0333 Fax 403.228.2500 [email protected] www.smarttech.com Federal Communications Commission 2024-07-18 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: CFR 47 §2.911(d)(7) filing FCC ID: QCI-CRXMOD1 To Whom It May Concern: This letter is to confirm that Sean MacKellar has accepted responsibility to act as the agent for service of process as acknowledged by the applicant, SMART Technologies Inc. The U.S. Agent further agrees to the obligations defined in the current version of FCC guidance document, KDB 986446. U.S. Agent: Sean MacKellar Title: Sr. Regulatory Specialist Company Name: SMART Technologies (Seattle) Inc. Address: 2401 4 th Ave, 3 rd Floor, Seattle, WA 98121 Telephone No: 360-201-8932 Email: [email protected] FRN (FCC Registration Number for applicant) 0006983860 FRN (FCC Registration Number for U.S. Agent (if available): 0033599457 The applicant accepts and acknowledges the obligation to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Sean MacKellar confirms he is not associated with or part of any TCB or test lab. Signature of Applicant (must be signed by the contact of record in the FCC database for the applicant grantee code): Signature of U.S. Agent (if different from applicant): Name: Nicole McMillan Name: Sean MacKellar Date: 7/22/2023 Date: 7/17/2023

SMART Technologies ULC Suite 600, 214 11 Ave SW Calgary, AB T2R 0K1 CANADA Phone 403.245.0333 Fax 403.228.2500 [email protected] www.smarttech.com Federal Communications Commission 2024-09-12 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: Attestation regarding ‘covered’ equipment and the Covered List FCC ID: QCI-CRXMOD1 Grantee’s FRN: 0006983860 To Whom It May Concern: Per 2.911(d)(5)(i), SMART Technologies Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Per 2.911(d)(5)(ii), SMART Technologies Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Per KDB 986446 D01 v03 section B, 2a, SMART Technologies Inc. certifies that the equipment for this application does not contain Kaspersky cybersecurity or anti-virus software. Sincerely, Nicole McMillan / Manager, System Design, Regulatory and Compliance SMART Technologies Inc.

SMART Technologies ULC Suite 600, 214 11 Ave SW Calgary, AB T2R 0K1 CANADA Phone 403.245.0333 Fax 403.228.2500 [email protected] www.smarttech.com Federal Communications Commission 2024-09-16 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Grant of Original Certification, FCC ID: QCI-CRXMOD1 Dear Application Examiner: SMART Technologies Inc. is submitting this application for Original Certification for the SMART CRX Cube BLE radio module Model: CRXMOD1, FCC ID: QCI-CRXMOD1. The CRXMOD1 radio operates as a Bluetooth Low Energy (BLE) transmitter at 3.15 dBm conducted output power with permanently attached 3 dBi chip antenna in the 2402 – 2480 MHz band under FCC Part 15.247. The CRXMOD1 radio module is intended for integration on the main board contained within the SMART RX Series Cube, Model: CRX-1. The CRX-1 cube is a handheld accessory (Tool) used in conjunction with SMART QX-V2/RX Series Interactive Flat Panel display, Models: IDQR65-A, IDQR75-A, and IDQR86-A, which are intended for indoor use only in commercial and educational environments. The CRXMOD1 radio module is not intended for sale as a stand-alone product or for use by OEM integrators other than SMART Technologies. This application requests the CRXMOD1 BLE radio module be granted “Limited Modular Approval” according to FCC Part 15.212(b). The CRXMOD1 does not include its own RF shielding. The CRXMOD1 has been demonstrated to comply with FCC Part 15.247 in both stand- alone configuration and contained within the host product. The module integration instructions describe the regulatory obligations for integration within the CRX-1 host product. Integration includes verification that the transmitter characteristics remain as documented in this application, and the host product complies with all FCC regulations. Integration testing will be reported under Certification, Declaration of Conformity or Verification rules defined by 47 CFR Parts 2 and 15. Your efforts in reviewing this application are greatly appreciated. Please contact me if there are any questions or additional information needed concerning this request. Sincerely, Sean MacKellar / Sr. Regulatory Specialist SMART Technologies Inc.

SMART Technologies ULC Suite 600, 214 11 Ave SW Calgary, AB T2R 0K1 CANADA Phone 403.245.0333 Fax 403.228.2500 [email protected] www.smarttech.com Federal Communications Commission 2024-07-23 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Request for confidentiality, FCC ID: QCI-CRXMOD1 To whom it may concern, SMART Technologies Inc. hereby respectfully request that, under the provision of 47 CFR 0.459 and 0.457(d), the documents listed below and attached with this application for certification be provided with confidential status. • Bill of Materials • Schematics • Frequency Block Diagrams • Operational Description Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Sean MacKellar / Sr. Regulatory Specialist SMART Technologies Inc.

SMART Technologies ULC 3636 Research Road NW Calgary, AB T2L 1Y1 CANADA Phone 403.245.0333 Fax 403.228.2500 [email protected] www.smarttech.com 2024-07-18 Subject: Agent Authorization Letter To Whom It May Concern: We, the undersigned, hereby authorize Sean MacKellar to act on our behalf, as our agent, in the following matters related to the FCC and/or Industry Canada approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Sean MacKellar within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. Sincerely, Nicole McMillan / Manager, System Design, Regulatory and Compliance SMART Technologies Inc.

SMART Technologies ULC Suite 600, 214 11 Ave SW Calgary, AB T2R 0K1 CANADA Phone 403.245.0333 Fax 403.228.2500 [email protected] www.smarttech.com Federal Communications Commission 2024-07-22 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Limited Modular Approval Letter, FCC ID: QCI-CRXMOD1 Dear Application Examiner: SMART Technologies Inc. is seeking limited modular approval for SMART CRX Pen BLE radio module Model: CRXMOD1, FCC ID: QCI-CRXMOD1. The radio meets the requirements for limited modular approval as detailed in FCC 15.212(b). Compliance to each of the requirements is described below: Item FCC 15.212 Requirement Y/N Comments 1 The radio elements of the modular transmitter must have their own shielding. N The radio module does not include its own shielding. 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Y The radio module utilizes buffered modulation/data inputs. 3 The modular transmitter must have its own power supply regulation. Y The radio module includes its own power supply regulation. 4 The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). Y The radio module complies with the antenna and transmission system requirements. 5 The modular transmitter must be tested in a stand- alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Y The radio module has been tested in a stand-alone configuration. 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Y The FCC ID is permanently affixed to the radio module. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Y The radio module complies with all applicable FCC rules. Detailed instructions for maintaining compliance are given in the host integration instructions. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y The radio module complies with all applicable RF exposure requirements in its final configuration. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Sean MacKellar / Sr. Regulatory Specialist SMART Technologies Inc.

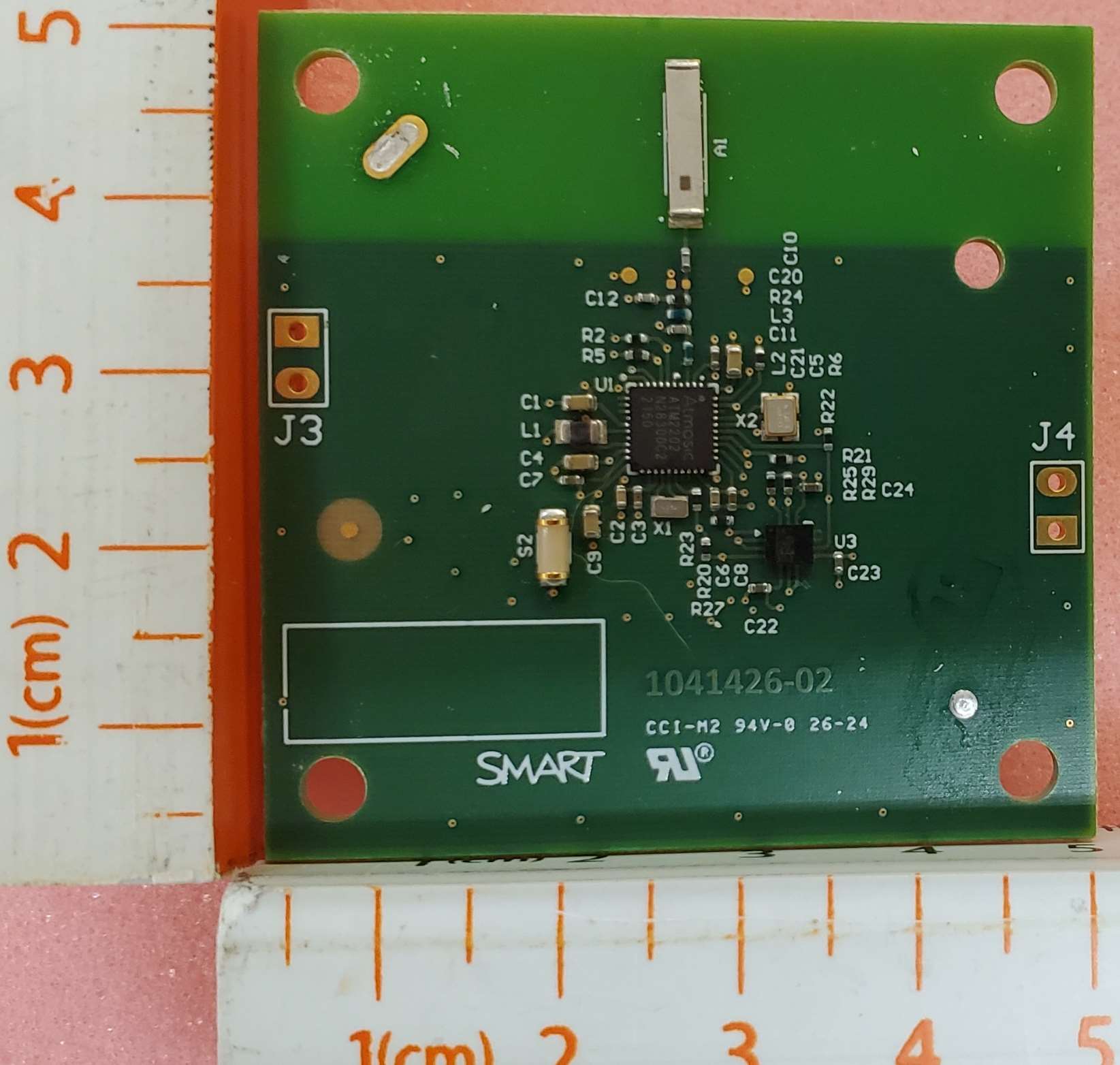

CRXMOD1 External / Internal Photos Top BoƩom Antenna ATM2202 BLE chipset

CRXMOD1 Label and LocaƟon CRXMOD1 (BoƩom) SMART Logo CRXMOD1 (Top) Model and Radio IdenƟfiers

CRXMOD1 External / Internal Photos Top BoƩom Antenna ATM2202 BLE chipset

This report must not be used to claim product certification, approval, or endorsement by A2LA, NIST, or any agency of the U.S. Government. This Report shall not be reproduced, except in full without written approval of the laboratory. SMART Technologies ULC CRXMOD1 FCC 1.1307:2024 Bluetooth Low Energy Report: SMTE0015.4 Rev. 1, Issue Date: September 4, 2024 TABLE OF CONTENTS 2023.04.17 Section Page Number Certificate of Evaluation .................................................................................. 3 Revision History .............................................................................................. 4 Accreditations .................................................................................................. 5 Facilities .......................................................................................................... 6 Product Description ......................................................................................... 7 Exposure Condition ......................................................................................... 8 Exemption from RF Exposure Evaluation ....................................................... 9 End of Report .................................................................................................. 12 Report No. SMTE0015.4 Rev. 12/12 CERTIFICATE OF EVALUATION 2018-09-14 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. This report reflects only those tests from the referenced standards shown in the certificate of test. It does not include inspection or verification of labels, identification, marking or user information. As indicated in the Statement of Work sent with the quotation, Element’s standard process is to always use the latest published version of the test methods even when earlier versions are cited in the test specification. Issuance of a purchase order was de facto acceptance of this approach. Otherwise, the client would have advised Element in writing of the specific version of the test methods they wanted applied to the subject testing Last Date of Evaluation: September 4, 2024 SMART Technologies ULC EUT: CRXMOD1 RF Exposure Evaluation Standards Specification Method FCC 1.1307:2024 FCC 1.1307:2024 Results Method Clause Description Applied Results Comments (b)(3)(i)(B) Exemption From RF Exposure Evaluation Yes Pass None Deviations From Evaluation Standards None Approved By: Donald Facteau, Process Architect Report No. SMTE0015.4 Rev. 13/12 REVISION HISTORY 2018.07.17 Revision Number Description Date (yyyy-mm-dd) Page Number 01 Changed EUT name 2024-09-04 1, 3, 7, 8 Updated company address 2024-09-04 7 Referenced Rev. 1 transmitter report 2024-09-24 9-11 Report No. SMTE0015.4 Rev. 14/12 ACCREDITATIONS AND AUTHORIZATIONS 2021.09.01 United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Each laboratory is accredited by A2LA to ISO / IEC 17025, and as a product certifier to ISO / IEC 17065 which allows Element to certify transmitters to FCC and IC specifications. Canada ISED - Recognized by Innovation, Science and Economic Development Canada as a Certification Body (CB) and as a CAB for the acceptance of test data. European Union European Commission – Recognized as an EU Notified Body validated for the EMCD and RED Directives. United Kingdom BEIS – Recognized by the UK as an Approved Body under the UK Radio Equipment and UK EMC Regulations. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIT / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFCA – Recognized by OFCA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: California Minnesota Oregon Texas Washington Report No. SMTE0015.4 Rev. 15/12 FACILITIES 2024.08.21 Testing was performed at the following location(s) Location Labs (1) Address A2LA (2) ISED (3) BSMI (4) VCCI (5) CAB (6) FDA (7) ☐ California OC01-17 41 Tesla Irvine, CA 92618 (949) 861-8918 3310.04 2834B SL2-IN-E-1154R A-0029 US0158 TL-55 ☐ Minnesota MN01-11 9349 W Broadway Ave. Brooklyn Park, MN 55445 (612) 638-5136 3310.05 2834E SL2-IN-E-1152R A-0109 US0175 TL-57 ☐ Oregon EV01-12 6775 NE Evergreen Pkwy #400 Hillsboro, OR 97124 (503) 844-4066 3310.02 2834D SL2-IN-E-1017 A-0108 US0017 TL-56 ☐ Plano Texas PT01-15 1701 E Plano Pkwy, Ste 150 Plano, TX 75074 (972) 509-2566 214.19 32637 SL2-IN-E-057R A-0426 US0054 N/A ☐ Texas TX01-09 3801 E Plano Pkwy Plano, TX 75074 (469) 304-5255 3310.03 2834G SL2-IN-E-1158R N/A US0191 TL-54 ☐ Washington NC01-05 19201 120th Ave NE Bothell, WA 98011 (425) 984-6600 3310.06 2834F SL2-IN-E-1153R A-0110 US0157 TL-67 ☐ Offsite N/A See Product Description N/A N/A N/A N/A N/A N/A See data sheets for specific labs (1) The lab designations denote individual rooms within each location. (OC01, OC02, OC03, etc.) (2) A2LA Certificate No. (3) ISED Company No. (4) BSMI No. (5) VCCI Site Filing No. (6) CAB Identifier. Recognized Phase I CAB for ISED, ACMA, BSMI, IDA, KCC/RRA, MIC, MOC, NCC, OFCA (7) FDA …

Text truncated - open the document above for the full version.

Dimensions: [mm] 2,0 ±0,21,2 +0,1 -0,2 0,5 ±0,3 9,5 ±0,2 1 2 Scale - 5:1 Recommended Land Pattern: [mm] 1,5 10,5 Scale - 5:1 Schematic: Electrical Properties: PropertiesTest conditionsValueUnitTol. Frequency Range Min & Max2400-2500MHz VSWR2400 - 2500 MHz2max. ImpedanceZ50Ωtyp. Peak Gain G peak 2400 - 2500 MHz3dBityp. Certification: RoHS ApprovalCompliant [2011/65/EU&2015/863] REACh ApprovalConform or declared [(EC)1907/2006] Halogen FreeConform [JEDEC JS709B] Halogen FreeConform [IEC 61249-2-21] General Information: It is recommended that the temperature of the component does not exceed +85°C under worst case conditions Operating Temperature-40 up to +85 °C Storage Conditions (in original packaging) < 40 °C ; < 75 % RH Moisture Sensitivity Level (MSL)1 Test Board7488910EB Test conditions of Electrical Properties: +20 °C, 33 % RH if not specified differently Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com [email protected] CHECKEDREVISIONDATE (YYYY-MM-DD)GENERAL TOLERANCEPROJECTION METHOD MuK002.0002021-07-06DIN ISO 2768-1m DESCRIPTION WE-MCA Multilayer Chip Antenna ORDER CODE 7488910245 SIZE/TYPEBUSINESS UNITSTATUSPAGE 9.5 x 2.0 mmeiSosValid1/10 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Recommended Matching Circuit: [mm] With Matching Circuit: 7,5 10,5 1,8 1,0 1,2 pF WE-MK 3,9 nH The matching circuit shown has been designed based on the Würth Elektronik evaluation board and cannot be reused. It is recommended to leave a 'Pi' or 'T' type matching circuit space for antenna matching circuit for other boards. Feeding Point NC Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com [email protected] CHECKEDREVISIONDATE (YYYY-MM-DD)GENERAL TOLERANCEPROJECTION METHOD MuK002.0002021-07-06DIN ISO 2768-1m DESCRIPTION WE-MCA Multilayer Chip Antenna ORDER CODE 7488910245 SIZE/TYPEBUSINESS UNITSTATUSPAGE 9.5 x 2.0 mmeiSosValid2/10 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Evaluation Board: [mm] PAJ1010J1 PAJ10101 COJ101 PAU$15010102 PAU$15010101 COU$150101 Typical Return Loss: -25 -20 -15 -10 -5 0 1234 Return Loss [dB ] Frequency [GHz] S11 Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com [email protected] CHECKEDREVISIONDATE (YYYY-MM-DD)GENERAL TOLERANCEPROJECTION METHOD MuK002.0002021-07-06DIN ISO 2768-1m DESCRIPTION WE-MCA Multilayer Chip Antenna ORDER CODE 7488910245 SIZE/TYPEBUSINESS UNITSTATUSPAGE 9.5 x 2.0 mmeiSosValid3/10 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. XY-cut scanning direction: 180 ° 270 ° 90 ° 0 ° x y z Radiation Pattern @ 2.45 GHz: +5 -5 -15 -25 0 -10 -20 1 5 9 13 17 21 25 29 33 37 41 45 49 53 57 61 65 69 73 77 81 85 89 93 97 101 105 109 113 117 121 125 129 133 137 1…
