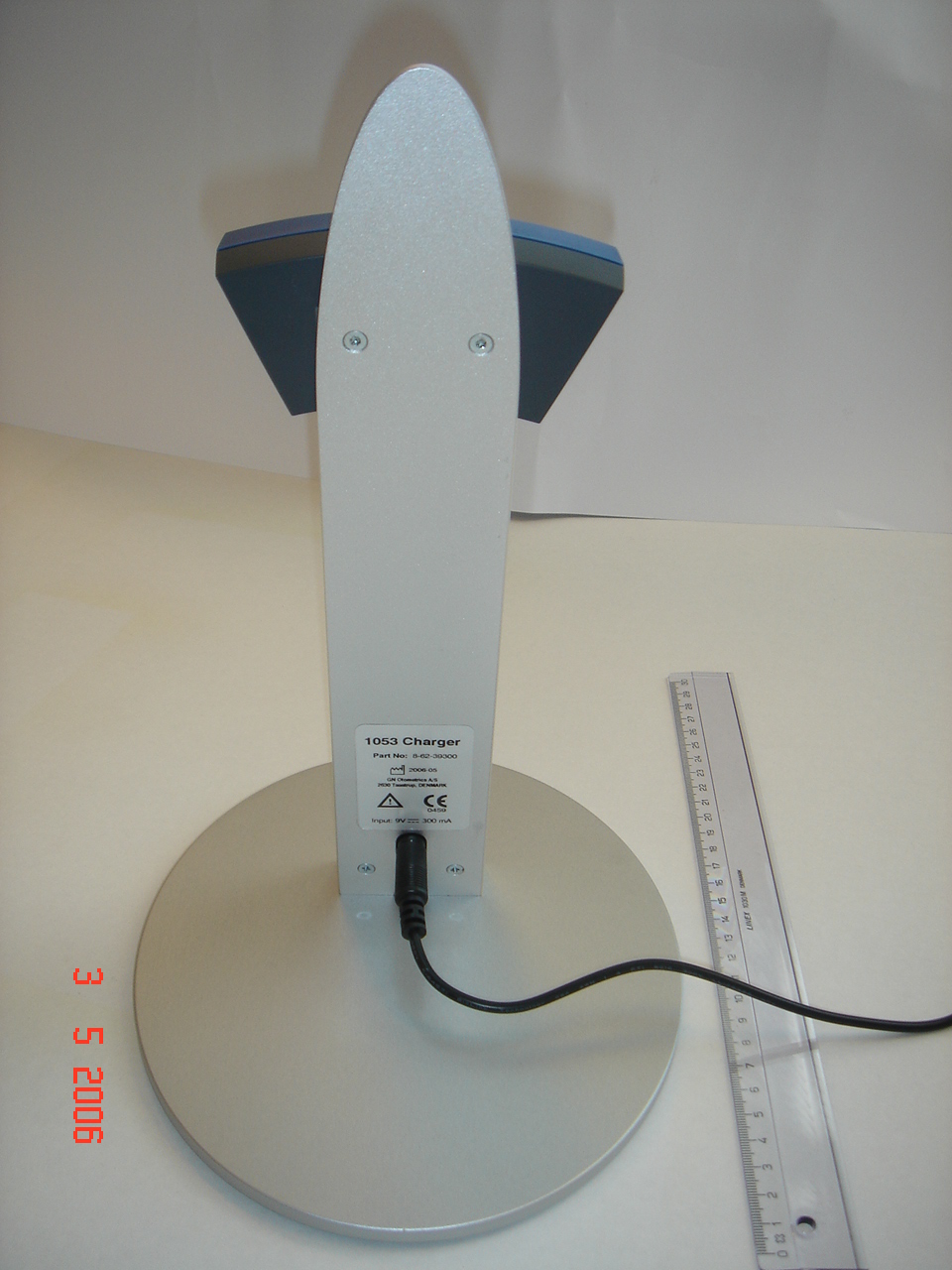

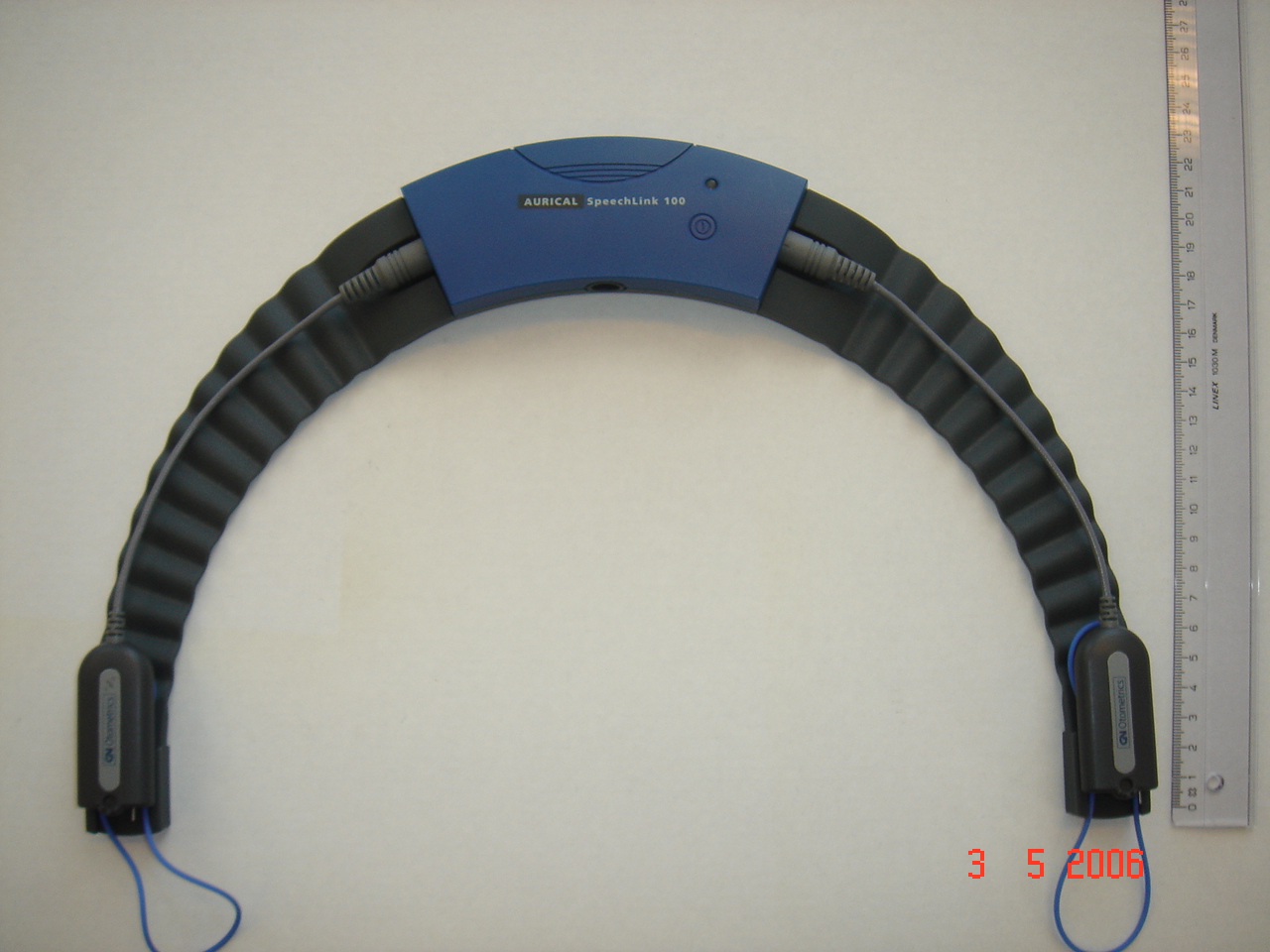

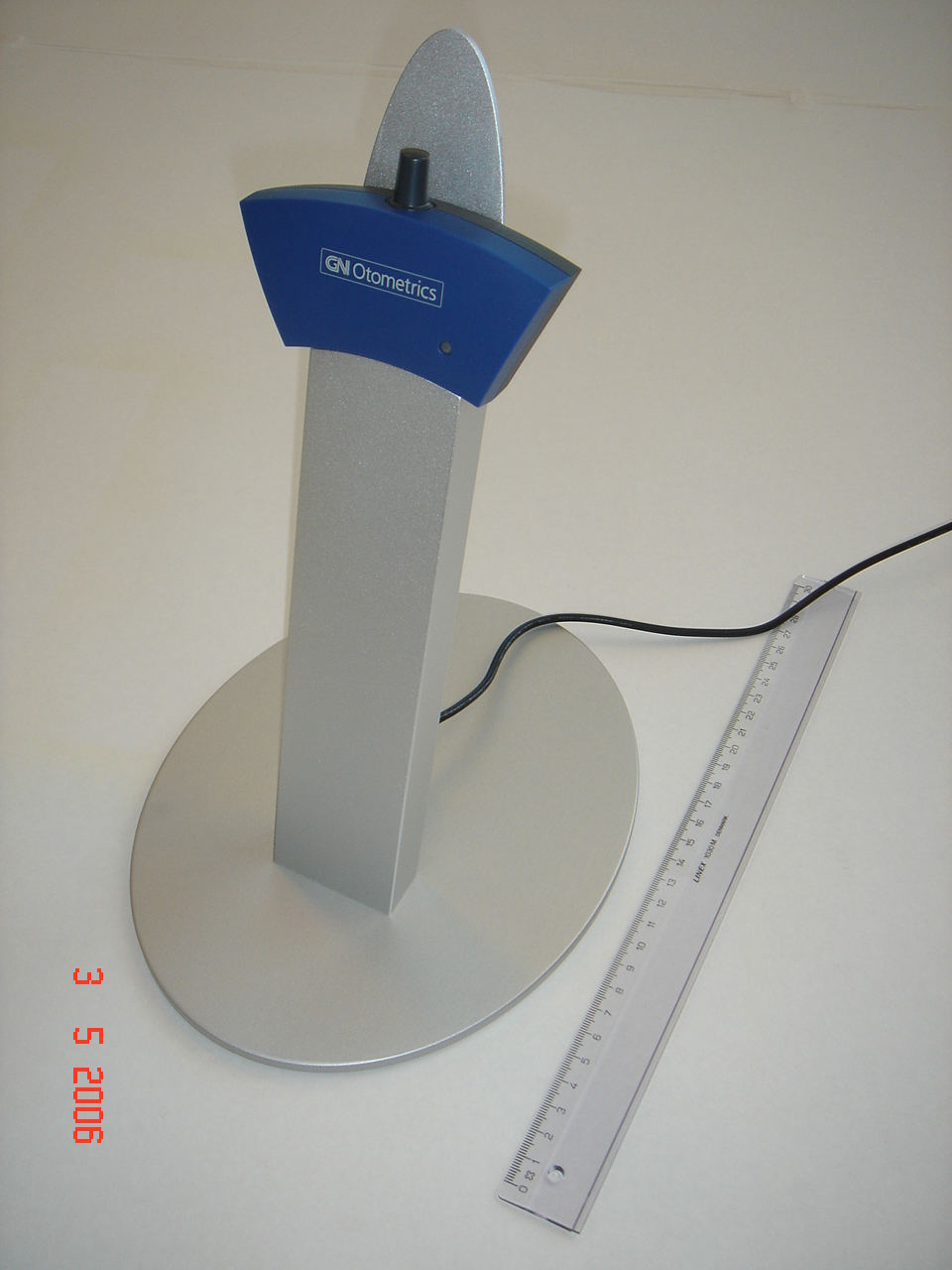

QCN-1053Medical Bluetooth Device

AURICAL SpeechLink 100 Reference Manual Part No. 7-60-04800 Doc. No. 7-60-0480/01 Copyright notice No part of this Online Help or program may be reproduced, stored in a retrieval system, or trans- mitted, in any form or by any means, electronic, mechanical, photocopying, recording, or other- wise, without the prior written consent of GN Otometrics A/S. Copyright © 2006, GN Otometrics A/S Printed in Denmark by GN Otometrics A/S, Denmark All information, illustrations, and specifications in this manual are based on the latest product in- formation available at the time of publication. GN Otometrics A/S reserves the right to make changes at any time without notice. Technical support Please contact your supplier. GN Otometrics A/Siii Contents 1 Introduction to AURICAL SpeechLink 100 1.1AURICAL SpeechLink 100 ............................................................................................................ 7 1.1.1Intended use................................................................................................................. 8 1.1.2AURICAL SpeechLink 100 interfacing with OTOsuite Visible Speech Module ......... 8 1.1.3Bluetooth...................................................................................................................... 8 1.2About this manual....................................................................................................................... 8 1.2.1Installation.................................................................................................................... 9 1.2.2Safety ............................................................................................................................ 9 1.2.3Training......................................................................................................................... 9 1.3Typographical conventions ......................................................................................................... 9 1.3.1Navigation .................................................................................................................. 10 2 When you receive AURICAL SpeechLink 100 2.1Unpacking .................................................................................................................................. 11 2.2Storing SpeechLink 100 ............................................................................................................. 11 2.3Views of SpeechLink 100 and charger ..................................................................................... 12 2.3.1Front view................................................................................................................... 13 2.3.2Reverse side view ....................................................................................................... 14 2.3.3The charger................................................................................................................. 15 2.3.4The probes .................................................................................................................. 16 2.4Assembly and installation ......................................................................................................... 16 2.4.1Location ...................................................................................................................... 17 2.4.2Charger assembly ....................................................................................................... 17 2.4.3Mounting the NOAHlink charger on the AURICAL SpeechLink 100 charger base plate19 2.4.4SpeechLink and probe assembly ............................................................................... 20 2.4.5Fitting SpeechLink 100 with NOAHlink .................................................................... 23 2.4.6Fitting SpeechLink 100 with counterweights ........................................................... 25 2.5Powering .................................................................................................................................... 25 2.5.1Powering AURICAL SpeechLink 100.......................................................................... 26 2.5.2Powering the charger ................................................................................................ 26 2.5.3Batteries...................................................................................................................... 27 2.5.4Inserting the battery .................................................................................................. 27 Reference ManualOTOsuite ivGN Otometrics A/S 2.5.5Switching on SpeechLink 100 .................................................................................... 28 2.5.6Switching off SpeechLink 100 ................................................................................... 29 2.5.7Charging SpeechLink 100 .......................................................................................... 29 2.5.8Powering status.......................................................................................................... 30 2.6Communication with the OTOsuite Visible Speech Module via Bluetooth ........................... 31 3 Preparing AURICAL SpeechLink 100 for testing 3.1Preparing AURICAL SpeechLink 100......................................................................................... 33 3.2Preparing for tube calibration.................................................................................................. 33 4 Service and Maintenance - AURICAL SpeechLink 100 4.1Equipment failure ..................................................................................................................... 35 4.2Service and repair ...................................................................................................................... 35 4.3Maintenance ....................................................................................................................…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: GN Otometrics A/S SPEECHLINK 100 (Transceiver) To: FCC Part 15.247: 2004 (Subpart C) Test Report Serial No: RFI\MPTE2\RP47584JD04A Supersedes Test Report Serial No: RFI\MPTE1\RP47584JD04A This Test Report Is Issued Under The Authority Of Andrew Brown, Operations Manager: Tested By: Fara Razally pp Checked By: Steven Wong Report Copy No: PDF01 Issue Date: 25 July 2006 Test Dates: 26 October 2005 to 24 January 2006 The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI\MPTE2\RP47584JD04A Page 2 of 54 Issue Date: 25 July 2006 Test of: GN Otometrics A/S SPEECHLINK 100 (Transceiver) To: FCC Part 15.247: 2004 (Subpart C) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI\MPTE2\RP47584JD04A Page 3 of 54 Issue Date: 25 July 2006 Test of: GN Otometrics A/S SPEECHLINK 100 (Transceiver) To: FCC Part 15.247: 2004 (Subpart C) Table of Contents 1. Client Information .............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Test Results.......................................................................................................................7 4. Deviations from the Test Specification...........................................................................8 5. Operation of the EUT during Testing ..............................................................................9 6. Summary of Test Results ...............................................................................................10 7. Measurements, Examinations and Derived Results ....................................................11 8. Measurement Uncertainty ..............................................................................................40 9. Measurement Methods ...................................................................................................41 Appendix 1. Test Equipment Used ....................................................................................50 Appendix 2. Test Configuration Drawings........................................................................52 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI\MPTE2\RP47584JD04A Page 4 of 54 Issue Date: 25 July 2006 Test of: GN Otometrics A/S SPEECHLINK 100 (Transceiver) To: FCC Part 15.247: 2004 (Subpart C) 1. Client Information Company Name: GN Otometrics A/S Address: Dybendalsvaenget 2 PO Box 119 Taastrup Denmark DK-2630 Contact Name: Mr P. Thomsen RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI\MPTE2\RP47584JD04A Page 5 of 54 Issue Date: 25 July 2006 Test of: GN Otometrics A/S SPEECHLINK 100 (Transceiver) To: FCC Part 15.247: 2004 (Subpart C) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Brand Name: GN Otometrics Model Name or Number: SPEECHLINK 100 Unique Type Identification: Type 1053 Serial Number: P10 Hardware Version: 1.0 Software Version: 1.0 FCC ID Number: QCN-1053 Country of Manufacture: Denmark Date of Receipt: 06 October 2005 2.2. Description of EUT The equipment under test is a medical Bluetooth device that provides a wireless link for transfer of data to/from a PC. SPEECHLINK 100 is used to improve the process of hearing instrument fitting. 2.3. Modifications Incorporated in EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI\MPTE2\RP47584JD04A Page 6 of 54 Issue Date: 25 July 2006 Test of: GN Otometrics A/S SPEECHLINK 100 (Transceiver) To: FCC Part 15.247: 2004 (Subpart C) 2.4. Additional Information Related to Testing Power Supply Requirement: Internal battery supply of 1.2V Intended Operating Environment: Within Bluetooth Coverage. Equipment Category: Short Range (Low Power) Type of Unit: Portable (Standalone battery powered device) Transmit Frequency Range: 2402 MHz to 2480 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 2402 Middle 40 2441 Transmit Channels Tested: Top 79 2480 Receive Frequency Range: 2402 MHz to 2480 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 2402 Middle 40 2441 Receive Channels Tested: Top 79 2480 Maximum Power Output (ERP) -5.3 dBm EIRP 2.5. Port Identification Port Description 1 AC Charger Port 2 Optical Port 2.6. Support Equipment No support equipment was used to exercise the EUT during testing. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI\MPTE2\RP47584JD04A Page 7 of 54 Issue Date: 25 July 2006 Test of: GN Otometrics A/S SPEECHLINK 100 (Transceiver) To: FCC Part 15.247: 2004 (Subpart C) 3. Test Results Reference: FCC Part 15.247: 2004 Subpart C Title: Code of Federal Regulations, Part 15.247 (47CFR22) (Intentional Radiators operating within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz) 3.1. Methods and Procedures The methods and procedures used were as detailed in: ANSI/TIA-603-B-2003 Land Mobile Communications Equipment, Measurements and performance Standards ANSI C63.2 (1987) Title: American National Standard for Instrumentation - Electromagnetic noise and field strength. ANSI C63.4 (2003) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Elect…
