QD8TW-100Wireless Communicator

ATTACHMENT F. - USER’S MANUAL 1 TW-100 OWNER'S MANUAL 2 Federal Communications Commission Requirements Warning : Changes or modifications not expressly approved by the party responsible for compliance with the FCC’S rules could void the user's authority to operate the equipment. THIS DEVICE COMPLIES WITH PARTS 15 OF FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 3 Content 1. Introduction - - - - - - - - - - - - - - - - Page 4 2. Features- - - - - - - - - - - - - - - - - - - - Page 5 3. Technical Specification - - - - - - - - - - - - Page 6 4. Front Side - - - - - - - - - - - - - - - - - Page 7 5. Charging Part - - - - - - - - - - - - - - - - Page 11 6. Installation & Connection (Print, RS232)- - - - Page 12 7. Method of Channel change - - - - - - - - - - - Page 12 8. Set Mode - - - - - - - - - - - - - - - - - - Page 13 9. Test Mode - - - - - - - - - - - - - - - - - Page 14 10. Explanation for Error Message - - - - - - - - - Page 16 4 1. Introduction Thanks for purchasing TW-100. This goods has held excellent performance and splendid properties through strike tests as well as devoting ourselves under severe quality management. Before using TW-100, It is recommended to read this manual carefully and to use TW-100 completely. Cautions Do not press the keys hard, for it will operate with soft touch. Do not use ignitable materials for cleaning. Avoid sudden temperature change. Keep it in a dry place. Do not use under the direct sunshine and on the dust place for a long time. Shift power switch to "ON" position, when you use it. (Power switch is located on right-top corner.) Shift power switch to "OFF" position, when you don't use it for a long time. 5 2. FEATURES OF TW-100 (1) Features It is connected with CASTON(crane scale) by use of wireless communication. Simple operation. WATCHDOG circuitry (system restoration) Adapting high capacity rechargeable battery( DC7.2V, 720mA) (2) Main Function RS232C serial communication(standard) Connectable with serial print. Auto power off Manual/Auto hold, peak hold It is possible to set tare weight with keys Storing up to the 100th of weight, date and time, and printing total weight. Key operation by use of wireless communication 6 3. TECHNICAL SPECIFICATION Display LCD (5 digit) Size of letter 12 mm (Height) Display below zero “ - ” displayed Status lamp Zero, Tare, Gross, Net, Hold, Stable, Print Power TW-100 : Rechargeable DC Battery 7.2V 720mA Charger: AC220V/60Hz Power consumption 0.5 W Operation tt -10 to +40 Frequency 903Mhz < 918.5Mhz Channel 32 channels Channel interval 500Khz Generating power(comm.) Maximum 10mW Communication th d FSK(Frequency Shift Keying fsk) Comm. speed 9600bps Comm. distance Maximum (50M~100M) 7 4. FRONT DISPLAY VIEW (1) Display lamp Lamp: Weight is stable. ZERO Lamp: Current weight is 0 kg. GROSS Lamp: Current weight is GROSS. NET Lamp: Current weight is NET. TARE Lamp: TARE weight is stored. PRINT Lamp: On printing. HOLD Lamp: Lamp is on when weighing a moving object. L amp: Charged to 80%~100%. Lamp: Charged to 50%~80%. Lamp: Charged to 0%~50%. Lamp: Discharged completely. It should be charged. TX Lamp: Sending the data to CASTON RX Lamp: Receiving the data from CASTON 8 (2) KEYBOARD Υ PRT : Printing the list of weights Displayed on the screen like this "Print", on pressing PRT key. Print format Υ SET : When you complete the set-mode or setting a key tare value . It is used to enter the set-mode. 1 11 1 7 77 7 4 44 4 2 22 2 Ι∆ Ι∆Ι∆ Ι∆ 8 88 8 5 55 5 3 33 3 9 99 9 6 66 6 0 00 0 NO 001 2000 kg ID:20 00.03.01 12:12:12 NO 002 1000 kg ID:16 00.03.01 12:22:12 NO 003 3000 kg ID:35 00.03.01 12:32:12 ------------------- TOTAL : 6000 kg 9 Υ : It means the number "0" in the set-mode. Return to 0(zero) weight Υ : When you enter test-mode. It means the number "1" in the set-mode. Υ : It is used to TARE key in the normal status. It means the number “ 2 ” in the set-mode Υ : Hold the we It m Υ : Peak hold function in the normal status. It means the number “ 4 ” in the set-mode Υ : Gross weigh It m Υ : Net weight function. It means the number “ 6 ” in the set-mode Υ : When you wa It me ! How to enter " " Υ : When you wa It me ! How to enter 0 * 1 ZERO 2 TARE 3 HOLD 4 P.HOLD 5 GROSS 6 NET 7 K . T 7 TARE SET NUMBER 8 DATE 8 DATE NUMBER SET 10 Υ : When you want to change the time. It means the number “ 9 ” in the set-mode ! How to enter " " Υ : Used to correct a mistake. Υ : Entering the product-id. ! How to enter " " Υ : storing the data of current weight, date, time and ID (caution) 1. store up to the 100th-ID 2. When the weight is 0(zero), the weight an't be stored Υ : Power on/off key (χαυτιον) Ωηεν ψου δο νοτ υσε ιτ φορ α λονγ τιμε, τυρν οφφ τηε μαιν ποωερ σωιτχη 9 TIME 9 TIME NUMBER SET CLR ID ID NUMBER SET SUM ON OFF 11 5.RECHARGER ≤ Insert a TW-100 to a charger and then plug-in as you can see in the picture. ≤ Power lamp : Power lamp(red) is on, when you plug in ≤ Charger lamp : When TW-100 is charged completely, the lamp color is changed from red to green ≤ Charging time : It takes about 1~2 hours, but It depends on discharging state. 9 0 7 8 5 4 6 3 2 1 0 8 6 4 5 9 7 12 6.Print & RS232 port connection ≤ Print & RS 232 port connection 1) Connect rs232 port of the charger to print. (RS 232port is located on the rear of the charger) 2) ΡΞ∆ Γ Γ3 Τρανσμιτ ∆ατα ΤΞ∆ Γ Γ2 Ρεχειπε ∆ατα ΓΝ∆ Γ Γ7 Σιγναλ Γρουνδ 9 pin port (Female) TW-100 charger RS-232C port Print port 7. Method to change channel € Open the case and separate RF Module PCB. € Perform a change channel as shown in the below figure ΡΦ ΜοδυλεΠΧΒ ND-T102,ND-192,YS-360S print Channel Jump DIP 1 4 8 12 16 20 24 28 32 13 8. SET MODE (1) How to enter € Turn on the power with pressing the SET key It will be displayed on the screen like this "SET". (2) SET MENU " "" " Setting Number key : change number. SE…

Text truncated - open the document above for the full version.

REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT C. - BLOCK DIAGRAM REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr TW-100 Block Diagram EEPROM WATCH DOGDISPALY LCD DC5V POWER MAIN MPU RF MPU 3.3V POWER RF ONE-CHIP PLL FILTER Antenna Matching Antenna Matching POWER RF PART RF MODULE KEY, LAMP KEY PART U1(24C164)U2(606015) U5(UPD7225) U6(89C55WD) IC1(89C2051) RFB IC2(78R33) U3(2951) CLOCK U12(DS1302) Channel JP1

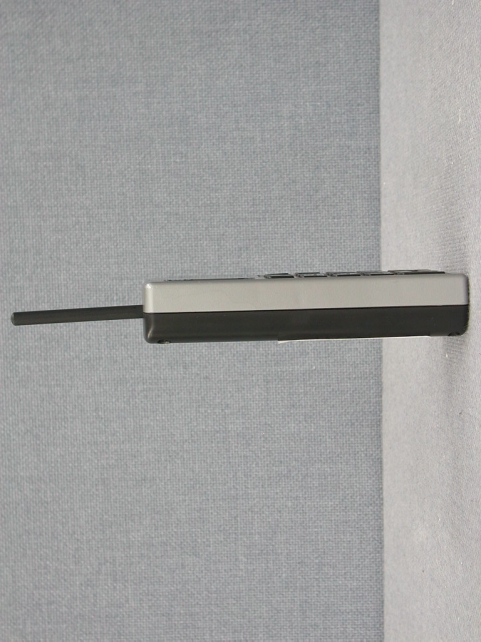

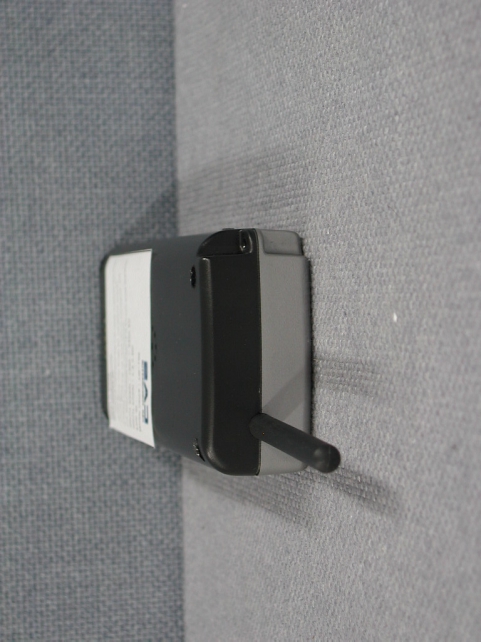

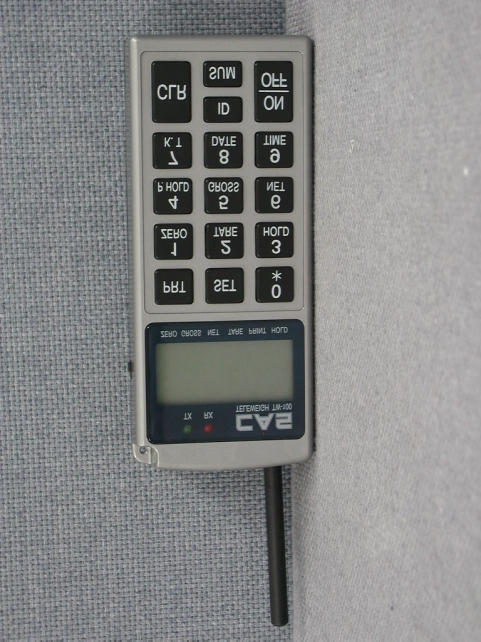

REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 ATTACHMENT B. - EXTERNAL PHOTOS REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

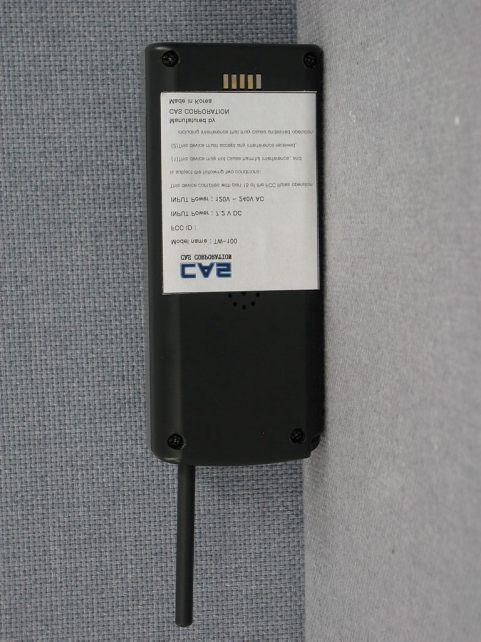

REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 1.1 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) (SEE NEXT PAGE) REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CAS Model NO : TW-100 POWER : DC 7.2V FCC ID : QD8TW-100 Serial No : This device complies with part 15 of the FCC Rules Operation is subject the following two conditions : (1) This device may not cause harmful interference , and (2) This device must accept any interference received, Including interference that may cause undesired operation. MANUFACTURED BY CAS Corporation MADE IN KOREA

REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 ATTACHMENT G. - INTERNAL PHOTOS REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

ΡΕΠΟΡΤ ΝΟ : ΗΧΤ−Φ02−0508 ΦΧΧ Ι∆ : Θ∆8ΤΩ−100 ∆ΑΤΕ : ΜΑΨ 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. ΣΑΝ 136−1, ΑΜΙ−ΡΙ , ΒΥΒΑΛ−ΕΥΠ, ΙΧΗΕΟΝ−ΣΙ,ΚΨΟΥΝΚΙ−∆Ο, 467−701,ΚΟΡΕΑ ΤΕΛ : +82 31 639 8518 ΦΑΞ : +82 31 639 8525 ωωω.ηχτεχ.χο.κρ ATTACHMENT J OPERATIONAL DESCRIPTION OF TW-100 TRANSCEIVER TW-100 is a device that transmits the key data value and displays the received weighing data which received from outside by using the FSK(Frequency Shift Keying) method. It consists of WATCH DOG(U2) which produces reset signal of MP U(U6), EEPROM(U1) which saves the weighing data, U12 which has a function of CLOCK of Date and Time, display driver(U5) which displays in the LCD screen and RF PART which has a function of communication by using FSK(Frequency Shift Keying) method. The following description is about the simple operation. When the power is on by POWER ON SWITCH then MPU(IC1) of RF Part sets the Channel SET(JP1) as the frequency by which it becomes receiving mode after setting the PLL of RFB. When the data is received from the outside, this is moved into MPU(U6) which it transmits the present key data value into RF Part. Then RF Part is converted into receiving mode. It is again converted into receiving mode after transmitting key data value with the method of FSK.

ATTACHMENT D. FCC ID : QD8TW-100 TW-100 CIRCUIT

REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E. - TEST SETUP PHOTOS REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr RADIATED MEASUREMENT PHOTOS [RADIATED MEASUREMENT PHOTO] – 30MHz-300MHz REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr [RADIATED MEASUREMENT PHOTO] – 300MHz-1000MHz REPORT NO : HCT-F02-0508 FCC ID : QD8TW-100 DATE : MAY 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr RADIATED MEASUREMENT PHOTO] – 1GHz-10GHz
