QDBLT-15KMF15" LCD TV/MONITOR

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification APPENDIX H : USER’S MANUAL Owner’s Manual Model:LT-15KMF 15" TFT LCD TV/MONITOR 3 Warnings TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THE SET TO RAIN OR MOISTURE. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. REGULATORY INFORMATION: This equipment has been tested and found to comply with the limits for a Class B DIGITAL device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential Installation. This equipment generates, uses and can radiate radio frequency energy and, if Not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Do not attempt to modify this product in any way without written authorization. Unauthorized modification could void the user’s authority to operate this product. WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN. WARNING : To reduce the risk of electric shock do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 4 IMPORTANT SAFETY INSTRUCTIONS Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference. Observing the simple precautions discussed in this operating guide can help you get many years of enjoyment and safe operation that are built into your new product. This product complies with all applicable U.S. Federal regulations and voluntary safety standards. 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2. Follow Instructions All operating and use instructions should e followed. 3. Retain Instructions The safety and operating instructions should be retained for future reference. 4. Heed Warnings All warnings on the product and in the operating instructions should be adhered to. 5. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6. Water and Moisture Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. 7. Accessories, Carts, and Stands Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. 8. Transporting Product A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 9. Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be locked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer ’s instructions have been adhered to. 11. Power Sources This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 12. Power Cord Polarization This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin This plug will only fit into a grounding-type power outlet. . This is a safety feature. If you are unable to insert the plug into the outlet, conta…

Text truncated - open the document above for the full version.

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification APPENDIX A : ATTESTATION STATEMENT April 25, 2003 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Jae-Min Cho, Director SEVIT Co., Ltd.

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM D-sub Component Sound L/R S-VHS A/V IN T UN E R VCTI AD9883 480p720p 1080i LA4282 BA7657F MVRL Front Control RGBH/V C YLR CVBS SPK-L SPK-R IF RGBH/V LCD Panel IR Key YUV (4:2:2) RGBH/V CrCbY H/P L R I2C VCTI Block Diagram LR PC-Audio LVDSScaler(12MHz) ADC U-com Text/Caption (20.25MHz) Video ProcessorSound ProcessorIF Processor 12V 1.8V/3.3V5V/8V 3.3V 5V LR LED 17” IPS : 12V 2.5V/3.3V 5V/33V 3.3V Regulator 17” SS : 3.3V 15” CMO : 3.3V 15” SS : 3.3V

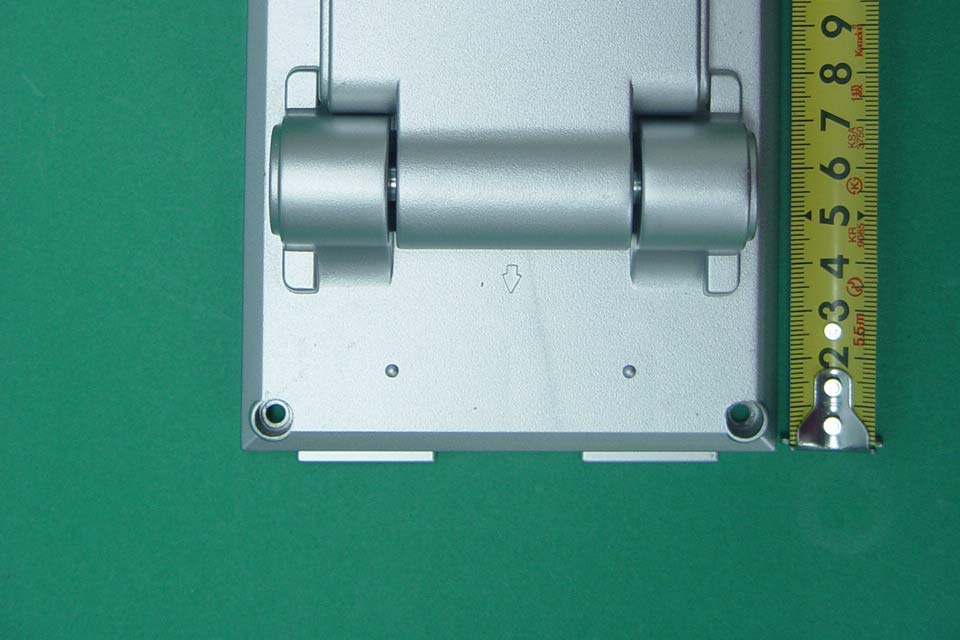

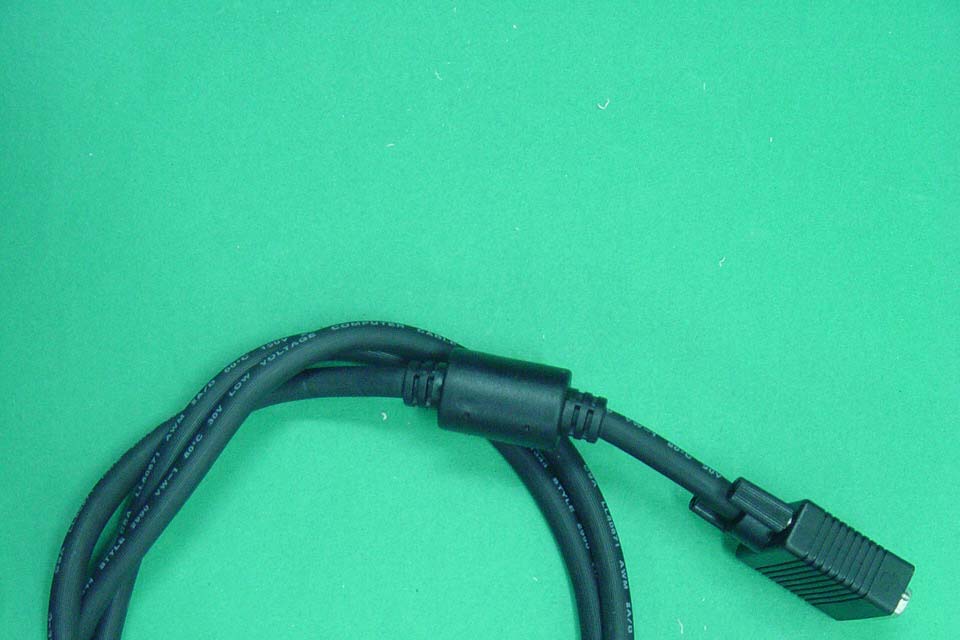

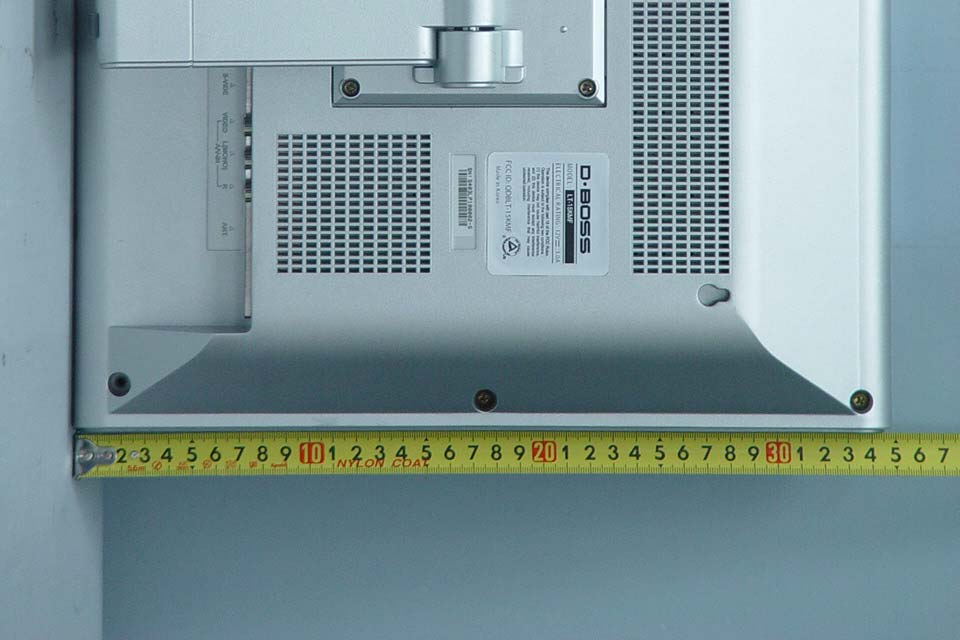

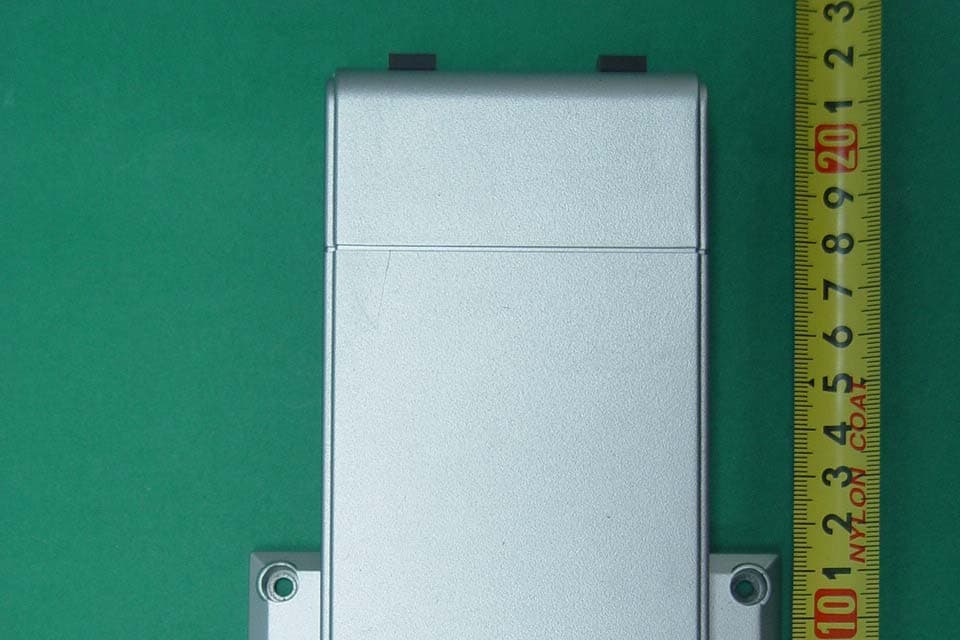

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15K MF Test Report No.: GETEC-E3-04-012 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15K MF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15K MF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15K MF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15K MF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15K MF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15K MF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15K MF Test Report No.: GETEC-E3-04-012 FCC Class B Certification

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Page 2 of 28 Test Report No.: GETEC-E3-04-012 FCC Class B Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 CONDUCTED EMISSION............................................................................................................................................7 4.2 RADIATED EMISSION................................................................................................................................................8 5. CONDUCTED EMISSION..........................................................................................................................................9 5.1 OPERATING ENVIRONMENT.....................................................................................................................................9 5.2 TEST SET-UP..............................................................................................................................................................9 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................9 5.4 LIMIT......................................................................................................................................................................10 5.5 TEST EQUIPMENT USED..........................................................................................................................................10 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................ 11 6. RADIATED EMISSION ............................................................................................................................................14 6.1 OPERATING ENVIRONMENT...................................................................................................................................14 6.2 TEST SET-UP............................................................................................................................................................14 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................14 6.4 LIMIT......................................................................................................................................................................15 6.5 TEST EQUIPMENT USED..........................................................................................................................................15 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................16 7. ANTENNA POWER CONDUCTION ......................................................................................................................21 7.1 OPERATING ENVIRONMENT...................................................................................................................................21 7.2 TEST SET-UP............................................................................................................................................................21 7.3 TEST EQUIPMENT USED..........................................................................................................................................21 7.4 TEST DATA FOR ANTENNA POWER CONDUCTION...................................................................................................22 8. NOISE FIGURE .........................................................................................................................................................26 8.1 OPERATING ENVIRONMENT...................................................................................................................................26 8.2 TEST SET-UP............................................................................................................................................................26 8.3 TEST EQUIPMENT USED..........................................................................................................................................26 8.4 TEST DATA FOR NOISE FIGURE..............................................................................................................................26 9. SAMPLE CALCULATIONS.....................................................................................................................................27 9.1 EXAMPLE 1 : ...........................................................................................................................................................27 9.2 EXAMPLE 2 : ...........................................................................................................................................................27 10. RECOMMENDATION & CONCLUSION............................................................................................................28 AP…

Text truncated - open the document above for the full version.

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification -. PC Mode „ Test Mode: 1024*768 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification „ Test Mode: 800*600 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification „ Test Mode: 640*480 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification -. TV Mode < Hot line > < Neutral line > EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification -. DVD Mode < Hot line > < Neutral line > EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification -. FM Radio Mode < Hot line > < Neutral line >

EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification -. PC Mode „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear) EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification -. TV Mode „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear) EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification -. DVD Mode „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear) EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification -. FM Radio Mode „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 15” LCD TV/Monitor FCC ID : QDBLT-15KMF Test Report No.: GETEC-E3-04-012 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
