QDBLT-17FMF17" LCD TV/MONITOR

EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification APPENDIX A : ATTESTATION STATEMENT April 25, 2003 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Jae-Min Cho, Director SEVIT Co., Ltd.

EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM D-sub Component Sound L/R S-VHS A/V IN T U N E R VCTI (20.25MHz) AD9883 480p720p 1080i LA4282 BA7657F MVRL (12MHz) Front Control RGBH/V C YLR CVBS SPK-L SPK-R IF RGBH/V LCD Panel IR Key YUV (4:2:2) RGBH/V CrCbY H/P L R I2C Block Diagram LR PC-Audio LVDSScaler ADC U-com Text/Caption Video ProcessorSound ProcessorIF Processor 12V 1.8V/3.3V/5V/8V 3.3V 5V LR LED 12V 2.5V/3.3V 5V/33V

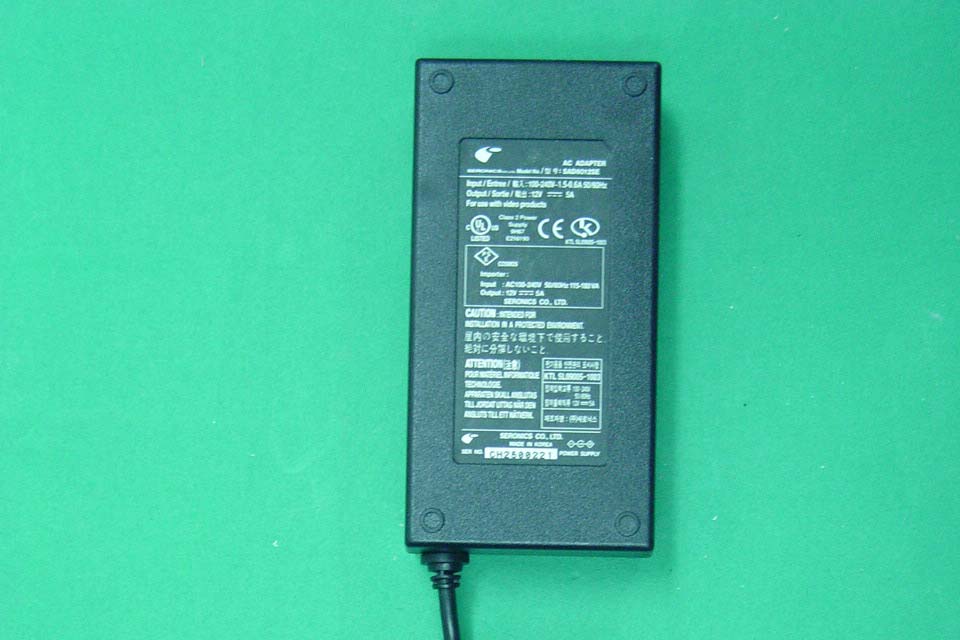

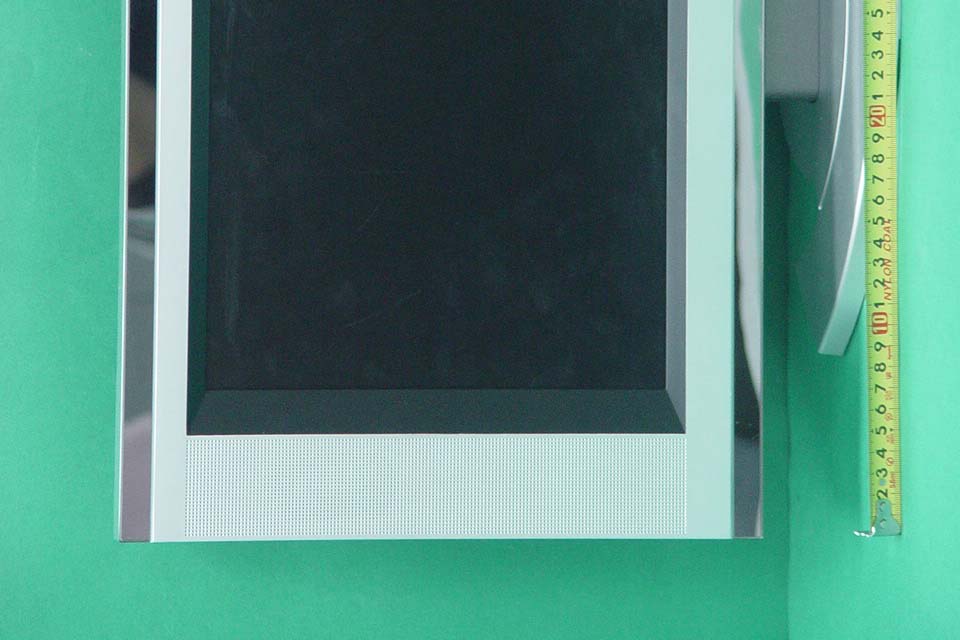

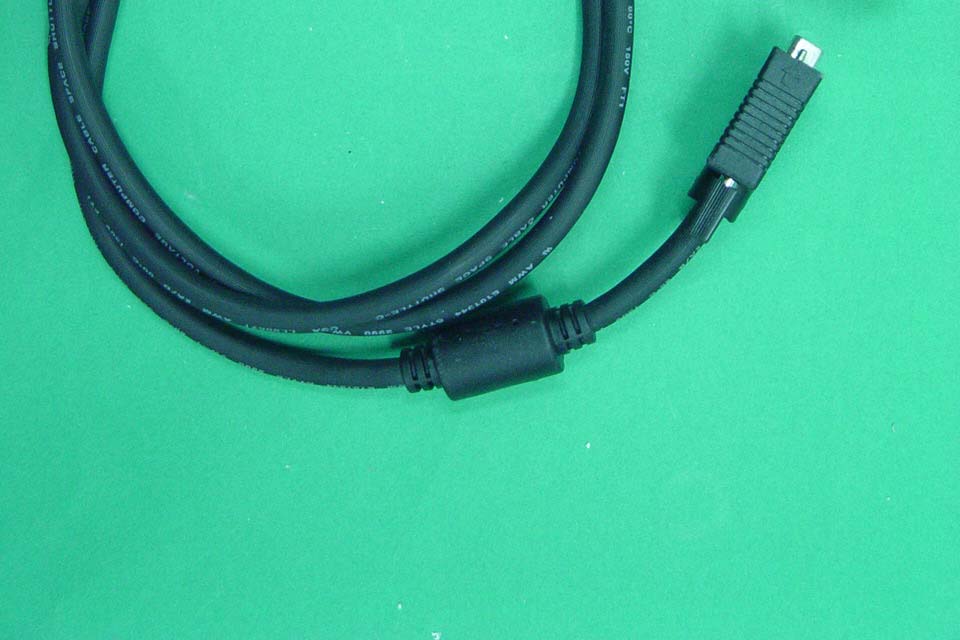

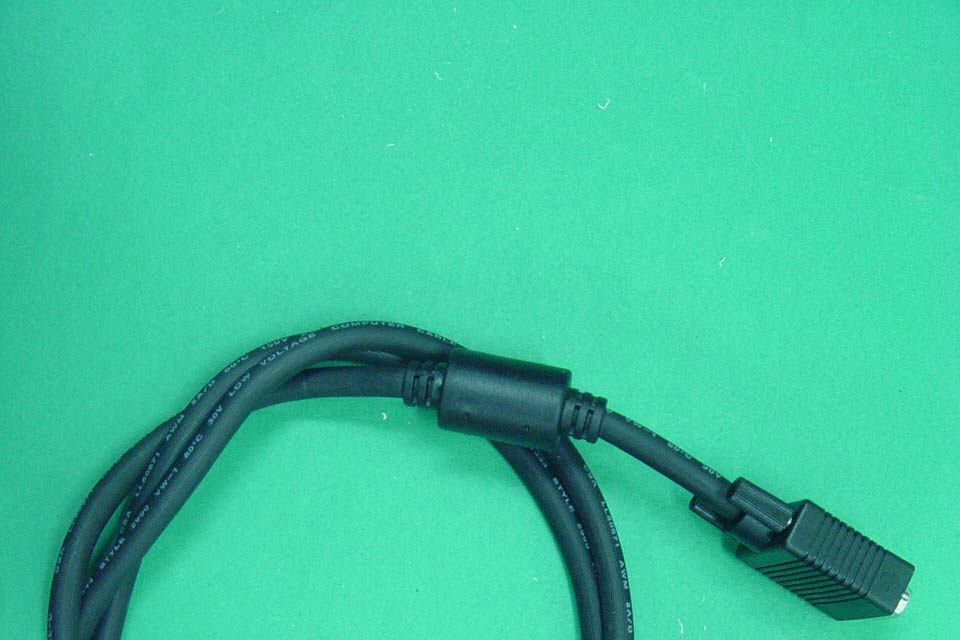

EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification

EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification

EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification -. PC Mode „ Test Mode: 1280*768 / 60Hz (Analog) < Hot line > < Neutral line > EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification „ Test Mode: 1024*768 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification „ Test Mode: 800*600 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification „ Test Mode: 640*480 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification -. TV Mode < Hot line > < Neutral line > EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification -. DVD Mode < Hot line > < Neutral line > EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification -. FM Radio Mode < Hot line > < Neutral line >

EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Page 2 of 28 Test Report No.: GETEC-E3-04-008 FCC Class B Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 CONDUCTED EMISSION............................................................................................................................................7 4.2 RADIATED EMISSION................................................................................................................................................8 5. CONDUCTED EMISSION..........................................................................................................................................9 5.1 OPERATING ENVIRONMENT.....................................................................................................................................9 5.2 TEST SET-UP..............................................................................................................................................................9 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................9 5.4 LIMIT......................................................................................................................................................................10 5.5 TEST EQUIPMENT USED..........................................................................................................................................10 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................ 11 6. RADIATED EMISSION ............................................................................................................................................15 6.1 OPERATING ENVIRONMENT...................................................................................................................................15 6.2 TEST SET-UP............................................................................................................................................................15 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................15 6.4 LIMIT......................................................................................................................................................................16 6.5 TEST EQUIPMENT USED..........................................................................................................................................16 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................17 7. ANTENNA POWER CONDUCTION ......................................................................................................................22 7.1 OPERATING ENVIRONMENT...................................................................................................................................22 7.2 TEST SET-UP............................................................................................................................................................22 7.3 TEST EQUIPMENT USED..........................................................................................................................................22 7.4 TEST DATA FOR ANTENNA POWER CONDUCTION...................................................................................................23 8. NOISE FIGURE .........................................................................................................................................................26 8.1 OPERATING ENVIRONMENT...................................................................................................................................26 8.2 TEST SET-UP............................................................................................................................................................26 8.3 TEST EQUIPMENT USED..........................................................................................................................................26 8.4 TEST DATA FOR NOISE FIGURE..............................................................................................................................26 9. SAMPLE CALCULATIONS.....................................................................................................................................27 9.1 EXAMPLE 1 : ...........................................................................................................................................................27 9.2 EXAMPLE 2 : ...........................................................................................................................................................27 10. RECOMMENDATION & CONCLUSION............................................................................................................28 AP…

Text truncated - open the document above for the full version.

EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification -. PC Mode „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear) EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification -. TV Mode „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear) EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification -. DVD Mode „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear) EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification -. FM Radio Mode „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 17” LCD TV/Monitor FCC ID : QDBLT-17FMF Test Report No.: GETEC-E3-04-008 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
