QDWWN113SH18802.11b WLAN PCMCIA Card W/Detachable Antenna

8 8 0 0 2 2 . . 1 1 1 1 b b W W i i r r e e l l e e s s s s L L A A N N P P 3 3 D D e e t t a a c c h h a a b b l l e e A A n n t t e e n n n n a a P P C C M M C C I I A A C C a a r r d d W W N N - - 1 1 1 1 3 3 S S H H 1 1 8 8 User Manual Version 1.0 No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assume no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to overcome the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment is for home or office use. IMPORTANT NOTE Following RF exposure info shall be supplied in end-users manual depends on the application. For mobile configuration of RF Exposure Information: To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter For Laptop Configuration of RF Exposure information: This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers with side mounted PCMCIA slots. This device cannot be used with handheld PDAs (personal digital assistants). This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 1 R&TTE Compliance Statement This equipment complies with all the requirements of the Directive 1999/5/EC of the European parliament and the council of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity(R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000. T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s INTRODUCTION.................................................................................................................................1 1.1 FEATURES..................................................................................................................................1 1.2 PRODUCT PACKAGE..................................................................................................................1 1.3 SYSTEM REQUIREMENTS.........................................................................................................2 INSTALLATION..................................................................................................................................3 2.1 INSTALLATION PROCEDURES..................................................................................................3 2.2 INSTALLATION NOTES- WINDOWS XP....................................................................................6 2.3 VERIFYING A SUCCESSFUL INSTALLATION...........................................................................8 CONFIGURATION FOR WINDOWS XP..........................................................................................10 3.1 TO CONNECT AN AVAILABLE NETWORK VIA WIRELESS ZERO CONFIGURATION...........10 3.2 TO CONFIGURE THE WIRELESS NETWORKS PROPERTIES..................................................11 3.3 TO ACCESS TO CERTAIN WIRELESS NETWORK TYPE.........................................................14 WIRELESS 11Mbps CONFIGURATION TOOL BASICS.................................................................16 4.1 TRAY ICON...............................................................................................................................16 4.2 RIGHT-CLICK MENU OF THE TRAY ICON..............................................................................16 Wireless Radio On.…

Text truncated - open the document above for the full version.

8 8 0 0 2 2 . . 1 1 1 1 b b W W i i r r e e l l e e s s s s L L A A N N P P 3 3 D D e e t t a a c c h h a a b b l l e e A A n n t t e e n n n n a a P P C C M M C C I I A A C C a a r r d d OEM installation guide WN-113SH18 STATEMENT FOR MODUAL APPROVAL For OEM integrators, the manual for the OEM integrators must include some instructions to be followed by the end users in the user manual. For example: The OEM integrators must be instructed to ensure that the end user has no manual instructions to remove or install the device. The OEM integrators must be instructed about the end product labeling ("Contains TX FCC ID: QDWWN113SH18") This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example, access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: QDWWN113SH18 ". Notice for OEM integrator Following RF exposure info shall be supplied in end-users manual depends on the application. For mobile configuration of RF Exposure Information: IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter For Laptop Configuration of RF Exposure information: This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers with side mounted PCMCIA slots. This device cannot be used with handheld PDAs (personal digital assistants). This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter.

Mike Kuo From: [email protected] Sent: March11 2004 Thursday 6:06 PM To: Mike Kuo Cc: [email protected]; [email protected]; [email protected] Subject: Airvast Technology Inc., FCC ID:QDWWN113SH18, AN04T3738 3/12/2004 ----- ting/ccsemc 2004/03/10 10:36 AM ----- -----Original Message----- From: CERTADM Sent: Tuesday, March 09, 2004 5:15 PM To: Mike Kuo Subject: Airvast Technology Inc., FCC ID:QDWWN113SH18, AN04T3738 Notice_content ------------- Question #1: The information contains in the user manual is misleading. Based upon the user manual, this device is sold to OEM integrator only and require this device with detachable antenna to maintain at least 20 cm separation distance. This device when use with Laptop computer, end user will not be able to maintain at least 20 cm separation distance. Please re-write the information contain in the user manual. Please provide clear Mike Kuo <[email protected]> 2004/03/10 09:16 AM "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> instruction to the OEM and to the end user in case of portable configuration and mobile configuration. Question #2; Output power in mW listed in the section 7.2 of test report is wrong. Please make necessary correction. Question #3: Please provide test setup photo for portable configuration during radiated spurious emission tests. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 3/12/2004

Compliance Certification Services Inc. Report No: B40218203 Date of Issue: March 3, 2004 Page 1 of 6 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40218203 Date of Issue: March 3, 2004 Page 2

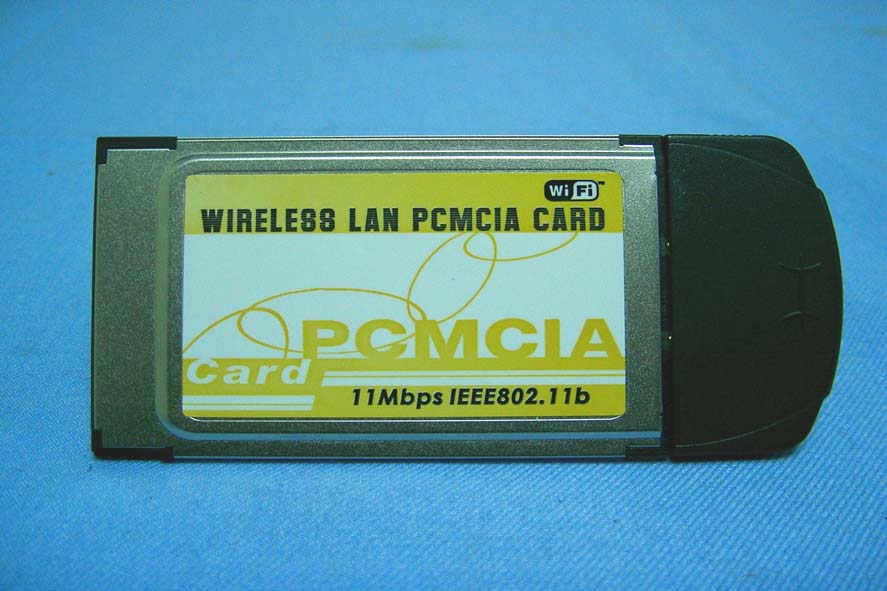

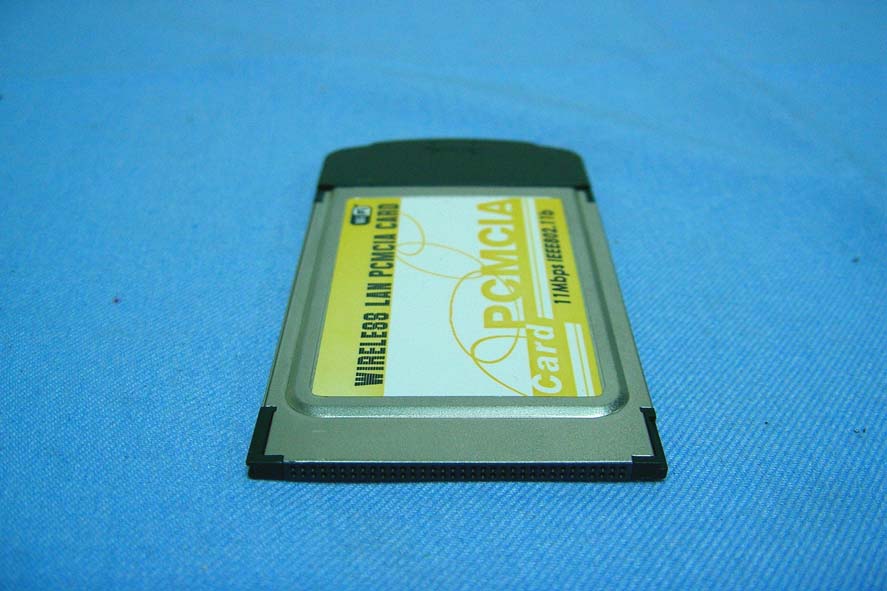

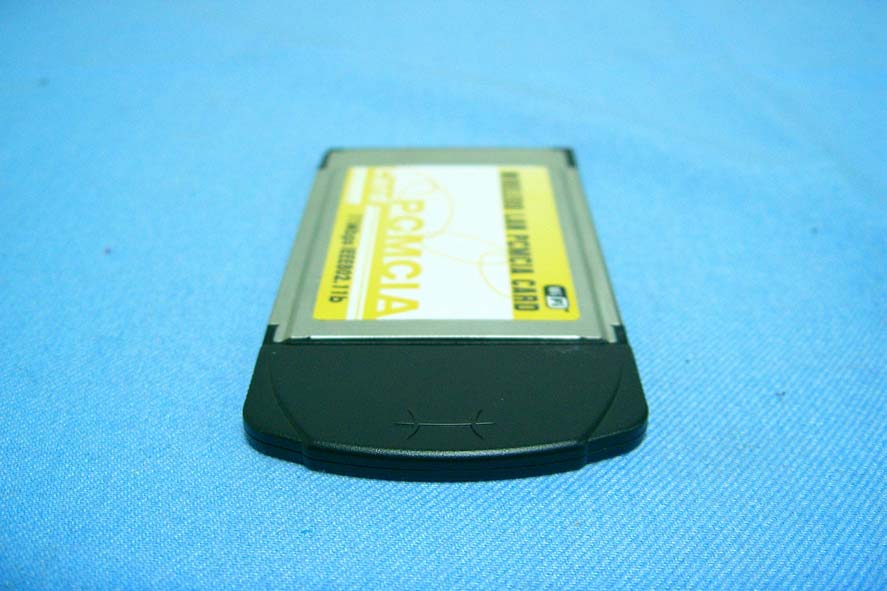

802.11b Wireless LAN P3 Detachable Antenna PCMCIA Card FCC ID: QDWWN113SH18 Model: WN-113SH18 DC 3.3V

Compliance Certification Services Inc. Report No: B40218203 Date of Issue: March 3, 2004 Page 3 of 6 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40218203 Date of Issue: March 3, 2004 Page 4 of 6 Compliance Certification Services Inc. Report No: B40218203 Date of Issue: March 3, 2004 Page 5 of 6 Compliance Certification Services Inc. Report No: B40218203 Date of Issue: March 3, 2004 Page 6 of 6

Antenna test report WN-113SH18 ANTENNA TEST REPORT WN-113SH18 Antenna test report WN-113SH18 1-1. GENERAL DESCRIPTION OF EUT & SPEC MANUFACTURER: AirVast MODEL ON: WN-113SH18 FREQUENCY RANGE: 2.4G~2.5GHz, IMPEDANCE: 50 ANTENNA GIAN: 0 dBi ANTENNA MODEL: Printed Antenna Layer 1 Inner Layer 2 Inner Layer 3 Layer 4 Antenna test report WN-113SH18 1-2. MEASURE RESULT: 2.42-E.ant 2.42-H.ant 2.45-E.ant Antenna test report WN-113SH18 2.45-H.ant 2.48-E.ant Antenna test report WN-113SH18 2.48-H.ant

Compliance Certification Services Inc. Report No: B40218203-SFDate of Issue: March 02, 2004 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C TEST REPORT For AirVast Technology Inc. 802.11b Wireless LAN P3 Detachable Antenna PCMCIA Card Model: WN-113SH18 Trade Name: AirVast Prepared for AirVast Technology Inc. 4F, No.1, Ln.21, Hsin Hua Rd., Kueishan Industria Park, Taoyuan 330, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of22 Compliance Certification Services Inc. Report No: B40218203-SFDate of Issue: March 02, 2004 TABLE OF CONTENTS 1.EUT DESCRIPTION ..................................................................................................... 4 2.REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .... 5 3.DOSIMETRIC ASSESSMENT SYSTEM ................................................................... 5 3.1MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2SYSTEM COMPONENTS.................................................................................................7 DASY4 Measurement Server.............................................................................................7 Data Acquisition Electronics (DAE)..................................................................................7 ET3DV6 Isotropic E-Field Probe for Dosimetric Measurements ......................................7 SAM Phantom (V4.0) ........................................................................................................8 Device Holder for SAM Twin Phantom ............................................................................8 System Validation Kits ......................................................................................................8 4.EVALUATION PROCEDURES................................................................................... 9 5.MEASUREMENT UNCERTAINTY ......................................................................... 12 6.EXPOSURE LIMIT ..................................................................................................... 13 7.MEASUREMENT RESULTS ..................................................................................... 14 7.1SYSTEM PERFORMANCE CHECK..............................................................................14 7.2TEST LIQUID CONFIRMATION...................................................................................15 7.3EUT TUNE-UPPROCEDURES......................................................................................16 7.4SAR MEASUREMENTS RESULTS...............................................................................17 8.EUT PHOTOS .............................................................................................................. 19 9.EQUIPMENT LIST & CALIBRATION STATUS ................................................... 20 10.REFERENCES ............................................................................................................. 21 11.ATTACHMENTS ......................................................................................................... 22 Page 3 Compliance Certification Services Inc. Report No: B40218203-SFDate of Issue: March 02, 2004 1. EUT DESCRIPTION Applicant: AirVast Technology Inc. 4F, No.1, Ln.21, Hsin Hua Rd., Kueishan Industria Park, Taoyuan 330, Taiwan, R.O.C. Model Number: WN-113SH18 FCC ID: QDWWN113SH18ʳ Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 19.00dBm Max. SAR (1g): 0.427W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: Printed Ant. Test Host: Compaq P/N: PP2150 S/N:1V31LDL23407 Page 4 Compliance Certification Services Inc. Report No: B40218203-SFDate of Issue: March 02, 2004 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistiv…
