QDWWN500802.11b WLAN CF card

- 1 - 802.11b WLAN CF Card WN-500 Quick Start Guide - 2 - 802.11b WLAN CF Card For OEM Installation Guide STATEMENT FOR MODUAL APPROVAL This product is sold to OEM integrators only. The manual for the OEM integrators must include some instructions to be followed by the end users in the user manual. For example: - The OEM integrators must be instructed to ensure that the end user has no manual instructions to remove or install the device. - The OEM integrators must be instructed about the end product labeling ("Contains TX FCC ID: QDWWN500"). This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example, access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: QDWWN500". Manual Information for End Users The end user must not have manual instructions to remove or install the device. The user manual for end users must include the following information in a prominent location. This device cannot be used with handheld PDAs (personal digital assistants) or portable 1 radio equipment. - 3 - “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." 1 .Portable radios equipment are herein defined as radios that have their radiating elements normally operating 20 cm or less from the body of the user or of nearby persons. - 4 - No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assumes no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - 5 - --Consult the dealer or an experienced radio/TV technician for help. The equipment is for home or office use. R&TTE Compliance Statement This equipment complies with all the requirements of the Directive 1999/5/EC of the European parliament and the council of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity(R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000. IMPORTANT NOTE FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the antenna and your body and must not be co-located or operating in conjunction with any other antenna or transmitter. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - 6 - The 802.11b WLAN CF…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40218204 Date of Issue: March 3, 2004 Page 1 EXTERNAL PHOTOGRPHS OF EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: AirVast Technology Inc. FCC ID: QDWWN500 802.11b WLAN CF Card FCC ID: QDWWN500 Model:WN-500

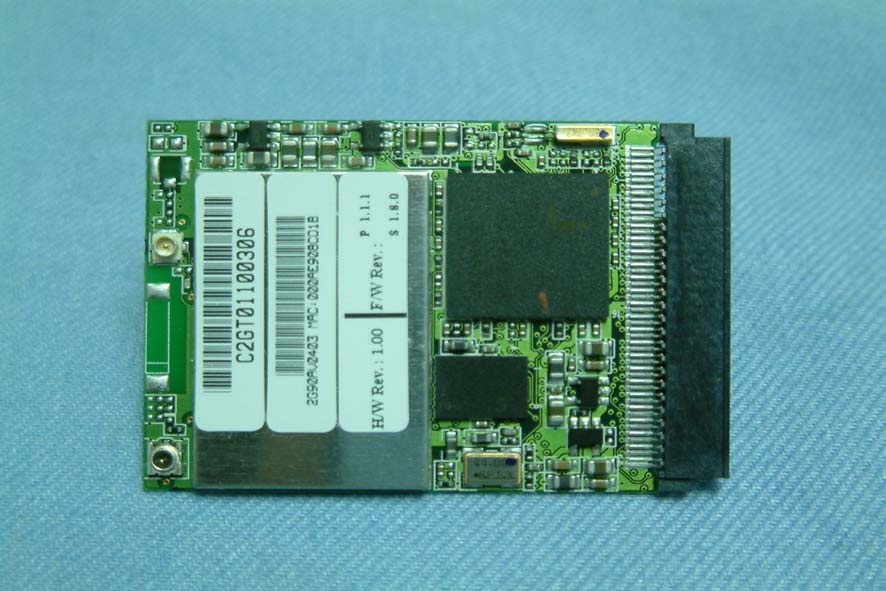

Compliance Certification Services Inc. Report No: B40218204 Date of Issue: March 3, 2004 Page 2 INTERNAL PHOTOGRPHS OF EUT

SPECIFICATION FOR APPROVAL Customer : Description : 2.4GHz DIPOLE ANTENNA Model No.: RB-001 Date.: 2003/10/15 337 31 TEL: 03 3858288 FAX: 03 3858289 SPECIFICATION FOR APPROVAL ELECTRICAL SPECIFICATIONS ANTENNA TYPE : DIPOLE ANTENNA MODEL NO.: RB-001 REQUENCYRANGE: 2.4~2.4835GHz V.S.W.R: 2.0 IMPEDANCE : 50 5 GAIN: 1.3dBi WITH STANDING POWER: MAX 1W RADIATION: OMNI POLARIZATION: VERTICAL WEIGHT: CONNECT TYPE: ELECTRICAL WAVE 1/2 COLOR: APPROVAL: CHECK: 337 31 TEL: 03 3858288 FAX: 03 3858289 MODE NO.:RB-001 TEST REPORT RETURN LOSS SWR SMITH CHART 2003/10/07 DIPOLE ANTENNA IVEY RB-001 TOM ANTENNA SOLDER DRAEING 2003/10/07 ANTENNA ASSM’ IVEY TOM

Compliance Certification Services Inc. Report No: B40218204-RP FCC ID: QDWWN500 Date of Issue: March 1, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 48 FCC 47 CFR PART 15 SUBPART B & Subpart C TEST REPORT For AirVast Technology Inc. 802.11b WLAN CF Card Model: WN-500 Trade Name: AirVast Prepared for AirVast Technology Inc. 4F, No. 1, Ln. 21, Hsin Hua Rd., Kueishan Industrial Park, Taoyuan 330, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40218204-RP FCC ID: QDWWN500 Date of Issue: March 1, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES....................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SUPPORT EQUIPMENT......................................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................14 7.3 BAND EDGES MEASUREMENT ................................................................................................17 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................22 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................25 7.6 SPURIOUS EMISSIONS ................................................................................................................28 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................43 Compliance Certification Services Inc. Report No: B40218204-RP FCC ID: QDWWN500 Date of Issue: March 1, 2004 Page 4 2. EUT DESCRIPTION Product 802.11b WLAN CF Card Trade Name AirVast Model Number WN-500 Model Discrepancy N/A Power Supply Powered from the host device Frequency Range 2412 ~ 2462 MHz Transmit Power 16.49 dBm Modulation Technique DSSS (CCK; DQPSK; DBPSK) Antenna Specification Dipole Antenna Gain: 1.3 dBi (max) Note: This submittal(s) (test report) is intended for FCC ID: QDWWN500 filing to comply with Section 15.107 & 15.109 (FCC Part 15, Subpart B) and Section 15.207, 15.209,15.247 (FCC Part 15, Subpart C Rules.) Compliance Certification Services Inc. Report No: B40218204-RP FCC ID: QDWWN500 Date of Issue: March 1, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.107, 15.109 and 15.207, 15.209,15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.107 and 15.109 under the FCC Rules Part 15 Subpart B and Section 15.207, 15.209,15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40218204-RP FCC ID: QDWWN500 Date of Issue: March 1, 2004 Page 47 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B40218204-RP FCC ID: QDWWN500 Date of Issue: March 1, 2004 Page 48 Conducted Emission Set Up Photos
