QE5HITBTHSHBM001Bluetooth Handset

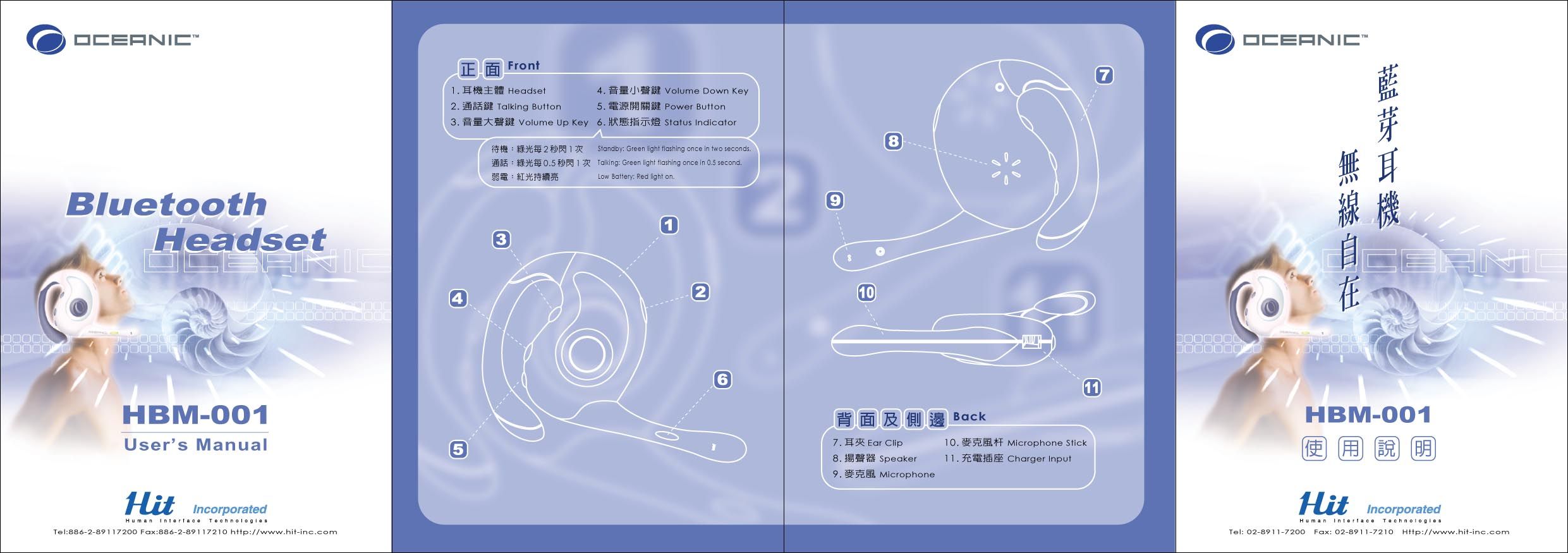

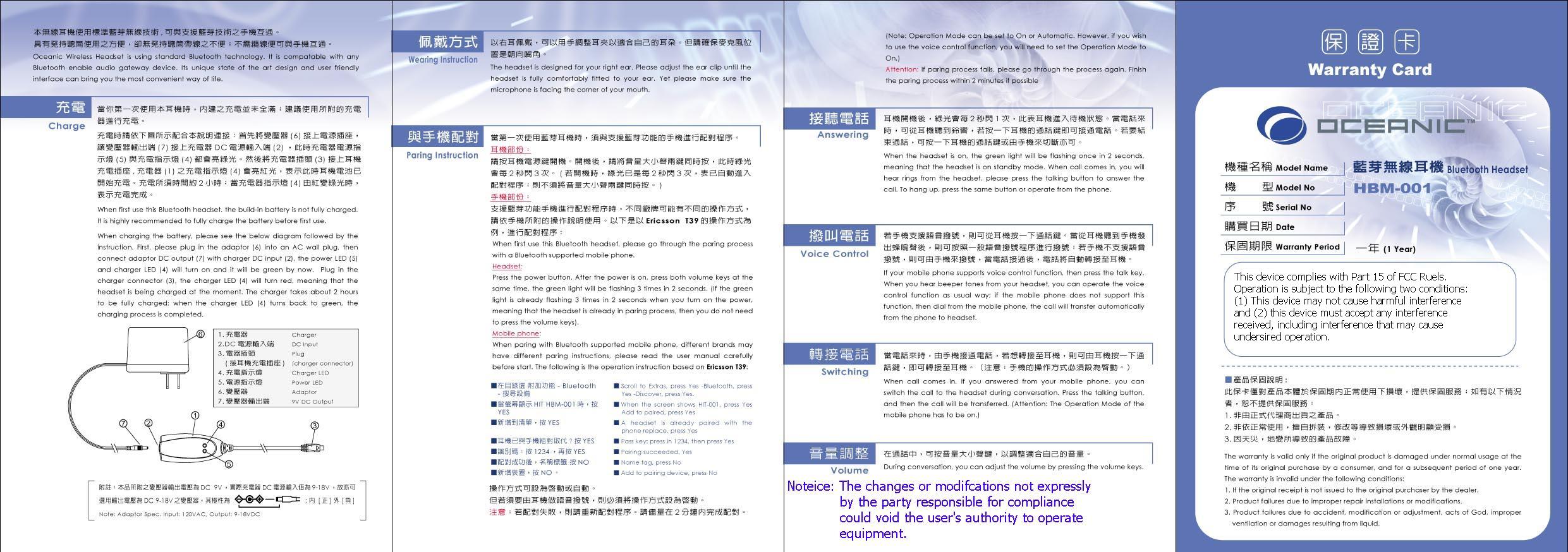

From: ETCEMI [[email protected]] Sent: Sunday, July 14, 2002 9:23 PM To: Mike Kuo Subject: Re: HIT Incorporated, FCC ID:QE5HITBTHSHBM001, AN02T2063 Dear Mike, Thank you for reviewing our test report. The followings are the answers of your questions. Question #1: Please provide fundamental emission field strength per 15.249(a) requirements. Please refer to acched file Appendix 4.pdf. Question #2: As indicated in the test setup photo, EUT was positioned one a wood pole. This is not test configuration specified in ANSI C63.4, please do not use fixture to position the EUT. Since this EUT is handheld device which require to be tested in three axes by placing the EUT on the turn table. Please redo the radiated emission measurement and provide the tesdata and setup photos. Please refer to acched files Appendix 3.pdf and Appendix 5. Question #3: User Manual is not readable. Please provide a clear copy of user manual. Please refer to acched files User Manual 01.jpg and User Manual 02.jpg. Best Regards, Will Yauo Manager ETC/EMC Dept. II ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: <[email protected]> Sent: Thursday, July 11, 2002 3:10 AM Subject: FW: HIT Incorporated, FCC ID:QE5HITBTHSHBM001, AN02T2063 > > > -----Original Message----- > From: CERTADM > Sent: Wednesday, July 10, 2002 11:57 AM > To: '[email protected]' > Subject: HIT Incorporated, FCC ID:QE5HITBTHSHBM001, AN02T2063 > > > Notice_content > ------------- > Question #1: Please provide fundamental emission field strength per > 15.249(a) requirements. > > Question #2: As indicated in the test setup photo, EUT was positioned one a > wood pole. This is not test configuration specified in ANSI C63.4, please > do not use fixture to position the EUT. Since this EUT is handheld device > which require to be tested in three axes by placing the EUT on the turn > table. Please redo the radiated emission measurement and provide the test > data and setup photos. > > Question #3: User Manual is not readable. Please provide a clear copy of > user manual. > > Best Regards > > Mike Kuo / TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

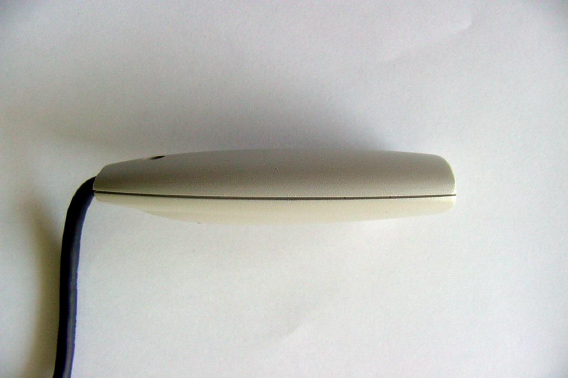

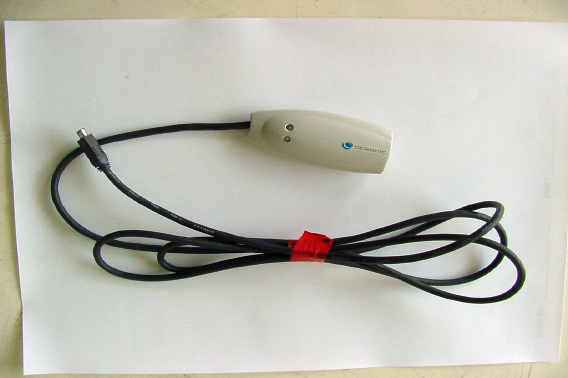

ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of Charger Rear View of Charger ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of Charger

FCC ID Label Rear View of EUT ( 20mm ) This statement will be placed in user’s manual This device complies with Part of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC ID.: QE5HITBTHSHBM001 (3 . 5mm)

ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Charger Component View of Charger’s PCB ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of Charger’s PCB

Oceanic Wireless Headset is using standard Bluetooth technology. It is compatable with any Bluetooth enable audio gateway device. It’s unique stale of the art design and user friendly interface can bring the most convenient way of life.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth Handset MODEL : HBM-001 FCC ID. : QE5HITBTHSHBM001 for APPLICANT : HIT Incorporated ADDRESS : 4F, 8, Lane 235, Pao-Chiao Road, Shi Tien City, Taipei Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, (02)26023052 Fax:(02)26010910 Report Number : ET91R-06-023-02 ETC Report No. : ET91R-06-023-02 FCC ID. : QE5HITBTHSHBM001 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : HIT Incorporated 4F, 8, Lane 235, Pao-Chiao Road, Shi Tien City, Taipei Hsien, Taiwan, R.O.C. Manufacturer : HIT Incorporated 4F, 8, Lane 235, Pao-Chiao Road, Shi Tien City, Taipei Hsien, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Bluetooth Handset b) Trade Name : OCEANIC c) Model No. : HBM-001 d) Power Source : Battery: 4.0Vdc e) Charge : TL-35GD-090300 f) Working Frequency : 2400MHz~2483.5MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Jun. 07, 2002 Test Engineer : (Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-06-023-02 FCC ID. : QE5HITBTHSHBM001 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION .................................................................................................. 1 1.1 Product Description................................................................................................................. 1 1.2 Characteristics of Device ......................................................................................................... 1 1.3 Test Methodology ................................................................................................................... 1 1.4 Test Facility............................................................................................................................. 1 2 PROVISIONS APPLICABLE ................................................................................................. 2 2.1 Definition................................................................................................................................. 2 2.2 Requirement for Compliance.................................................................................................... 3 2.3 Restricted Bands of Operation ................................................................................................. 5 2.4 Labeling Requirement .............................................................................................................. 5 2.5 User Information ..................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION...................................................................................... 7 3.1 Justification ............................................................................................................................. 7 3.2 Devices for Tested System....................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.......................................................................... 8 4.1 Applicable Standard................................................................................................................. 8 4.2 Measurement Procedure .......................................................................................................... 8 4.3 Measuring Instrument ............................................................................................................ 10 4.4 Radiated Emission Data ......................................................................................................... 11 4.4.1 RF Portion ................................................................................................................................... 11 4.4.2 Other Emission............................................................................................................................. 12 4.5 Field Strength Calculation...................................................................................................... 14 4.6 Photos of Radiation Measuring Setup .................................................................................... 15 5 CONDUCTED EMISSION MEASUREMENT.................................................................... 16 5.1 Standard Applicable............................................................................................................... 16 5.2 Measurement Procedure ........................................................................................................ 16 5.3 Conducted Emission Data ...................................................................................................... 17 5.4 Result Data Calculation ......................................................................................................... 17 5.5 Conducted Measurement Equipment...................................................................................... 18 5.6 Photos of Conduction Measuring Setup ................................................................................. 19 6 ANTENNA REQUIREMENT............................................................................................... 20 6.1 Standard Applicable.............................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 Appendix 3: Measurement Procedure A. Preliminary Measurement For Portable Devices For portable devices, the following procedure was performed to determine the maximum emission axis of EUT: 1. With the receiving antenna is H polarization, rotate the EUT in turns with three orthogonal axes to determine the axis of maximum emission. 2. With the receiving antenna is V polarization, rotate the EUT in turns with three orthogonal axes to determine the axis of maximum emission. 3. Compare the results derived from above two steps. So, the axis of maximum emission from EUT was determined and the configuration was used to perform the final measurement. B. Final Measurement 1. Setup the configuration per figure 5 and 6 for frequencies measured below and above 1 GHz respectively. 2. For emission frequencies measured below 1 GHz, a pre-scan is performed in a shielded chamber to determine the accurate frequencies of higher emissions will be checked on a open test site. As the same purpose, for emission frequencies measured above 1 GHz, a pre-scan also be performed with a 1 meter measuring distance before final test. 3. For emission frequencies measured below and above 1 GHz, set the spectrum analyzer on a 100 kHz and 1 MHz resolution bandwidth respectively for each frequency measured in step 2. 4. The search antenna is to be raised and lowered over a range from 1 to 4 meters in horizontally polarized orientation. Position the highness when the highest value is indicated on spectrum analyzer, then change the orientation of EUT on test table over a range from 0 。 to 360 。 with a speed as slow as possible, and keep the azimuth that highest emission is indicated on the spectrum analyzer. Vary the antenna position again and record the highest value as a final reading. Note : A band pass filter was used to avoid pre-amplifier saturated when measure TX operation mode in frequency band above 1 GHz. 5. Repeat step 4 until all frequencies need to be measured were complete. 6. Repeat step 5 with search antenna in vertical polarized orientations. 7. Check the three frequencies of highest emission with varying the placement of cables associated with EUT to obtain the worse case and record the result. ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 Figure 1 : Frequencies measured below 1 GHz configuration RF Test Receiver Search Antenna 3m 4m 1m Turn Table EUT 0.8m Antenna Tower Ground Plane Figure 2 : Frequencies measured above 1 GHz configuration Spectrum Analyzer Horn Antenna 3m 4m 1m Tur n Table EUT 0.8m Antenna Tower Amplifier ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 Appendix 4 : Fundamental Data A. Operation Mode : TX Fundamental Frequency : 2402 MHz Test Date : Jul. 01, 2002 Temperature : 25 °C Humidity : 50 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2402.000 84.4 83.2 92.7 91.5 -3.1 89.6 88.4 114.0 94.0 -5.6 150 1.40 4804.000 44.2 *** 44.8 *** 2.5 47.3 *** 74.0 54.0 -6.7 90 1.30 7206.000 45.8 36.3 46.5 39.2 5.7 52.2 44.9 74.0 54.0 -9.1 90 1.30 9608.000 --- --- --- --- 7.2 --- --- 74.0 54.0 --- --- --- 12010.000 --- --- --- --- 9.2 --- --- 74.0 54.0 --- --- --- 14412.000 --- --- --- --- 11.5 --- --- 74.0 54.0 --- --- --- 16814.000 --- --- --- --- 11.8 --- --- 74.0 54.0 --- --- --- 19216.000 --- --- --- --- 8.9 --- --- 74.0 54.0 --- --- --- 21618.000 --- --- --- --- 9.7 --- --- 74.0 54.0 --- --- --- 24020.000 --- --- --- --- 10.3 --- --- 74.0 54.0 --- --- --- Note : 1. Item of margin shown in above table refer to average limit. 2. Remark “---” means that the emission level is too low to be measured, with a preamplifier of 35 dB. 3. Measuring data showed on above table was derived with peak detector function. 4. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB. ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 B. Operation Mode : TX/RX Fundamental Frequency : 2441 MHz Test Date : Jun. 06, 2002 Temperature : 25 °C Humidity : 67 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2441.000 85.1 83.6 91.8 90.5 -2.9 88.9 87.6 114.0 94.0 -6.4 270 1.10 4882.000 43.8 *** 44.2 *** 2.7 46.9 *** 74.0 54.0 -7.1 270 1.30 7323.000 45.8 39.0 48.2 41.5 5.9 54.1 47.4 74.0 54.0 -6.6 180 1.40 9764.000 --- --- --- --- 7.3 --- --- 74.0 54.0 --- --- --- 12205.000 --- --- --- --- 9.3 --- --- 74.0 54.0 --- --- --- 14646.000 --- --- --- --- 11.6 --- --- 74.0 54.0 --- --- --- 17087.000 --- --- --- --- 13.3 --- --- 74.0 54.0 --- --- --- 19528.000 --- --- --- --- 8.5 --- --- 74.0 54.0 --- --- --- 21969.000 --- --- --- --- 9.9 --- --- 74.0 54.0 --- --- --- 24410.000 --- --- --- --- 10.7 --- --- 74.0 54.0 --- --- --- Note : 1. Item of margin shown in above table refer to average limit. 2. Remark “---” means that the emission level is too low to be measured, with a preamplifier of 35 dB. 3. Measuring data showed on above table was derived with peak detector function. 4. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB. ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 C. Operation Mode : TX/RX Fundamental Frequency : 2480 MHz Test Date : Jun. 06, 2002 Temperature : 25 °C Humidity : 67 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit …

Text truncated - open the document above for the full version.

ETC Report No. : ET91R-06-023-02 FCC ID.: QE5HITBTHSHBM001 Rev. No 1.0 Appendix 5 : Photos of Radiation Measuring
