QE5HITBTUDHBU001Bluetooth USB Dongle

this function, Windows will detect that the device is connected and it will automatically launch the Add New Hardware Wizard. Please refer to “Audio install manual” file on the CD for detailed install process. Input Pin-Code (*2) - You can input the Pin-Code in advance. - Press the ‘Pin-Code select Key’ once. - You will see the digital ‘0’ is flashing. - If you press the ‘Pin-Code select Key’ again, it will change to digital ‘1’ - If the number is what you want, then press the ‘Confirm Key’ once and the number will not flash. Please press ‘Pin-Code select Key’ to select next number you want. - When last number is inputted ok, please press ‘Confirm Key’ again in order to complete the ‘Input Pin-Code’ procedure. - If any number is wrong or you want to update the Pin-Code, You must restart the ‘Input Pin-Code’ procedure again. Pair with Headset (*2) - Please let the headset to be in the pairing mode. - Plug USB cable into the computer (*3) and you will see the Green LED flash every 2 seconds. - Press the ‘Pair Key’ 3 seconds continually, you will see the Green and Red LED are flashing alternately. - When pairing is completed, the device will enter into standby mode & the Green LED will be flashing every 2 seconds. (*3) The pairing procedure can only be done in standby mode. LED status Standby mode Green LED will flash once in 2 seconds Park mode Green LED will flash once in 2 seconds Talk mode Green LED will flash twice in 1 second Pair mode Green & Red LED will flash alternately HBU-001/HBU-001D Bluetooth USB dongle manual Features Ú Embedded Audio Gateway profile (*2) Ú User-friendly interface that can be used with Bluetooth enabled headset devices. Ú Support pin-code input in order to pair with various Bluetooth headsets Ú 100 meter working distance Front panel 1. Data/Audio mode select Key (*2) 2. Status LED 3. USB cable 4. Pin-Code select Key (*2) 5. Pair Key ( also as Confirm Key) (*2) 6. Digital 0~9 number indicated LEDs (*1) (*2) (*1) Digital arrangement 0 1 2 3 4 5 6 7 8 9 (*2) HBU-001D doesn’t have this function. Connect with computer - When you first plug in the USB, it will automatically select AUDIO mode while the HBU-001D only works in the data mode. - Plug the USB connector into an available USB port on your computer (You can plug it in before or after you start your computer). If it’s the first time to use 3 1 2 4 5 6 Select DATA mode Press the ‘Data/Audio mode select Key’ once, you will see the status LED turns OFF (When link succeeds, the LED will be flashing). If you press the ‘Data/Audio mode select Key’ again, it will change to Audio mode. Please refer to “BTW Installation Instructions” file on the CD for detailed install process. HBU-001 With Audio Specification Please refer to “HBU-001 With Audio Specification” file on the CD. HBU-001D Data Only Specification Please refer to “HBU-001D Data Only Specification” file on the CD. FCC Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. IMPORTANT NOTE: TO COMPLY WITH THE FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, A SEPARATION DISTANCE OF AT LEAST 20CM MUST BE MAINTAINED BETWEEN THE ANTENNA OF THIS DEVICE AND ALL PERSONS. NO CHANGE TO THE ANTENNA OR THE DEVICE IS PERMITTED. ANY CHANGE TO THE ANTENNA OR THE DEVICE COULD RESULT IN THE DEVICE EXCEEDING THE RF EXPOSURE REQUIREMENTS AND VOID USER’S AUTHORITY TO OPERATE THIS DEVICE.

Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Bluetooth is fcenter = 75 kHz. This was checked during the Bluetooth Qualification tests (Test Case:…

Text truncated - open the document above for the full version.

From: etcemi-Seednet [[email protected]] Sent: Wednesday, September 04, 2002 6:02 AM To: Mike Kuo Cc: «À ̧g²z Subject: Re: HIT Incorporated, FCC ID:QE5HITBTUDHBU001, AN02T2185 Hi Mike, Please find power spectral density test data in attached file. If you have any further question, please contact me. Thank you very much! Best Regards, S. S. Liou Engineer / ETC ----- Original Message ----- From: Mike Kuo <[email protected]> To: 'etcemi-Seednet' <[email protected]>; Mike Kuo <[email protected]> Cc: «À ̧g²z <[email protected]> Sent: Wednesday, September 04, 2002 5:50 AM Subject: RE: HIT Incorporated, FCC ID:QE5HITBTUDHBU001, AN02T2185 Hi Will: The limits is 8dBm. The plots you submitted are over the limits. M.Kuo -----Original Message----- From: etcemi-Seednet [mailto:[email protected]] Sent: Monday, September 02, 2002 1:28 AM To: Mike Kuo Cc: «À ̧g²z Subject: Re: HIT Incorporated, FCC ID:QE5HITBTUDHBU001, AN02T2185 Hi Mike, Please find power spectral density test data in attached file. If you have any further question, please contact me. Thank you very much! Best Regards, S. S. Liou Engineer / ETC ----- Original Message ----- From: Mike Kuo <[email protected]> To: Mike Kuo <[email protected]>; 'Will Yauo (E-mail)' <[email protected]>; 'Will Yauo-Personal (E-mail)' <[email protected]> Cc: Will Yauo-Personal (E-mail) <[email protected]> Sent: Tuesday, August 20, 2002 8:51 AM Subject: RE: HIT Incorporated, FCC ID:QE5HITBTUDHBU001, AN02T2185 > Question #2: Please provide power spectral density test data at Acquisition > mode. > > Best Regards > > Mike Kuo > > -----Original Message----- > From: Mike Kuo > Sent: Thursday, August 15, 2002 8:13 PM > To: Will Yauo (E-mail); Will Yauo-Personal (E-mail) > Subject: FW: HIT Incorporated, FCC ID:QE5HITBTUDHBU001, AN02T2185 > > > > > -----Original Message----- > From: CERTADM > Sent: Thursday, August 15, 2002 8:12 PM > To: '[email protected]' > Subject: HIT Incorporated, FCC ID:QE5HITBTUDHBU001, AN02T2185 > > > Notice_content > ------------- > Question #1: Page 3 of user manual under FCC statement, please include 20cm > separation distance as one of requirement to comply with RF exposure > requirement. Please provide revised user manual. > > Best Regards > > Mike Kuo/ TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissa l and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

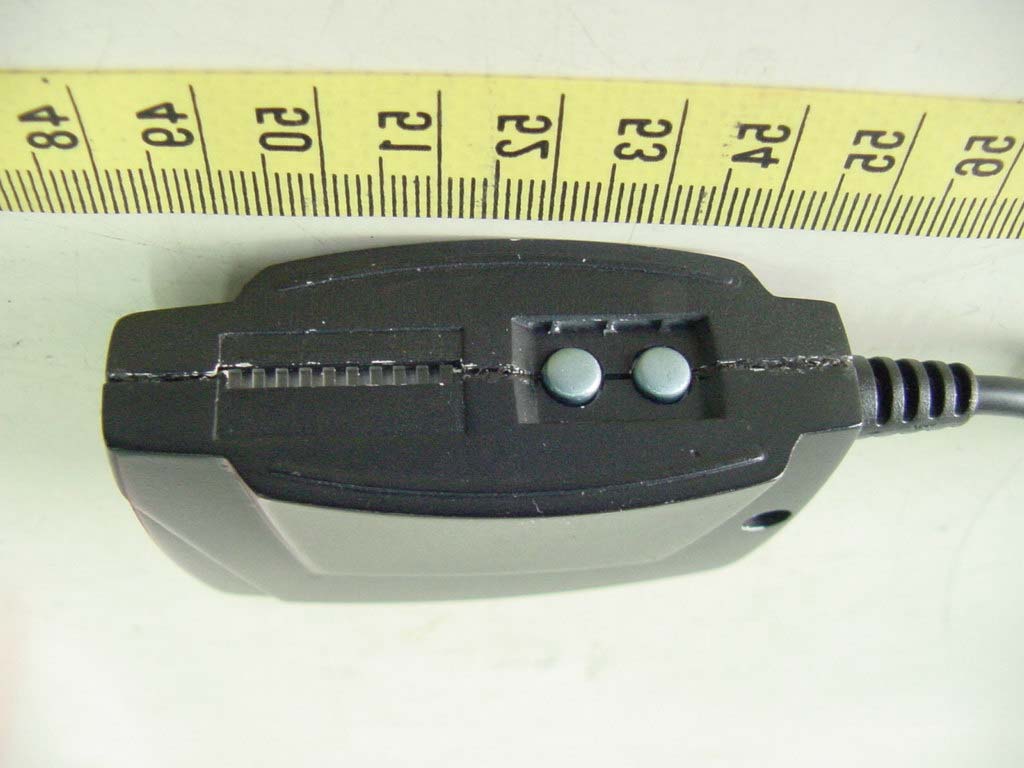

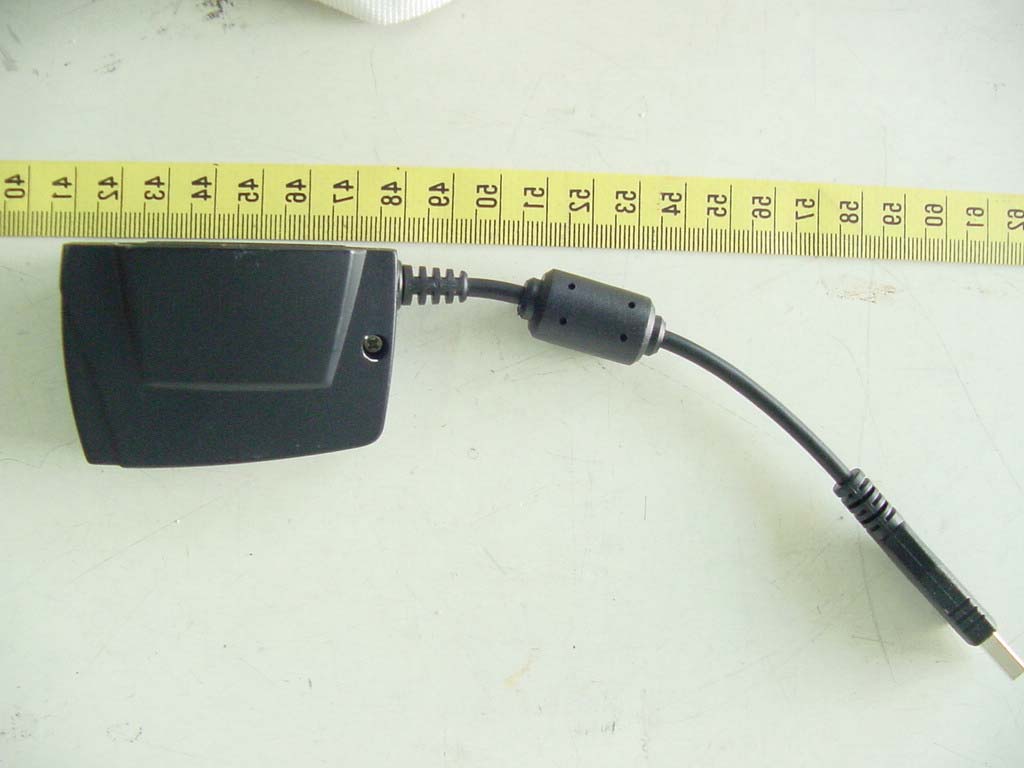

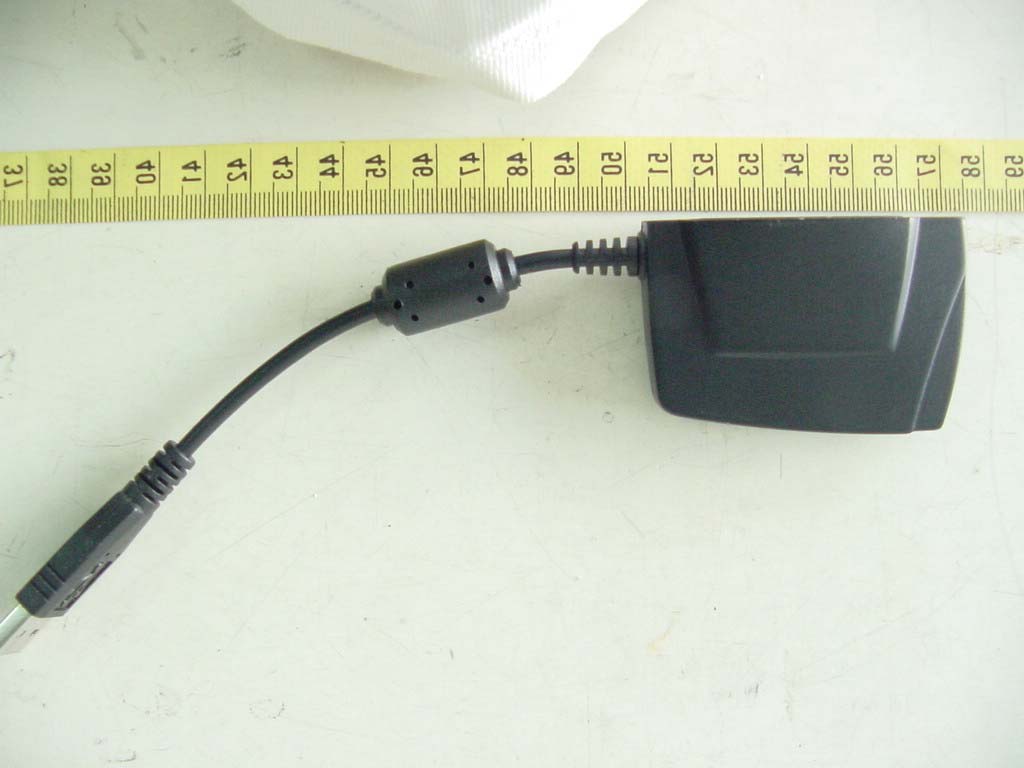

ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Bottom View of EUT ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT

ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of PCB 1 ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB 1 Component View of PCB 2 ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB 2

HBU-001 Bluetooth USB Dongle Purpose explanation & Working principle A. Purpose explanation: HBU-001 USB dongle design is compliant with Bluetooth specification V 1.1 and Compliant with USB General and Audio Class specifications Which works in ISM band 2.402GHZ to 2.480GHZ. This dongle is embedded with Audio Gateway profile. It supports pin-code input in order to pair with various Bluetooth headsets. B. Working principle: This dongle is consisting of Bluetooth module & codec IC, function & working principle are described as below: a. CSR Bluetooth module The module comprises radio, base band & PCM interface: 1. Radio: (1) TX: BC02 (U1of Module) pin TX_A & TX_B feed output power 0 dbm balance ISM band signal, Balun (T1 of Module ) transfers it to unbalance signal (loss 1 db), and then it is connecting with power amplifier ( U4 ) to radiate ISM band signal. (2) RX: Antenna decouples signal from Bluetooth headset or Bluetooth devices, then feeds this signal to the internal LNA of BC02. (3) VCO: VCO comprises 16MHZ crystal circuit & loop filter, Provides signal to TX & RX. 2. Base band: (1) External Memory port: They are also include address lines (A0~A18) and data bus (D0~D15). They are all connected to flash memory. Flash memory functions to provide residence to download Blue stack firmware, audio gateway profile & AP (MMI) via Serial peripheral interface. (2) Serial peripheral interface: Serial peripheral interface comprises SPI_CLK, SPI_CSB, SPI_MOSI, and SPI_MISO. Audio gateway firmware or test program can be downloaded into flash memory via Serial peripheral interface connecting to desktop (laptop) printer port. (3) USB interface: When the dongle would like to transfer data with other Bluetooth device. (4) PIO port: PIO port comprises PIO (0)-PIO (9). PIO port output controls dongle status when key is pressed. 3. PCM interface: PCM interface comprises PCM_CLK, PCM_SYNC, and PCM_IN & PCM_OUT. Audio signal can be processing PCM encoding & decoding via PCM interface connecting to codec IC. b. Codec IC 1. Codec IC (U2) pin TI+, TI-, TIG amplifies the signal from AC97 audio codec IC (U9). The amplified signal will connect to U2 pin DT, encoding it to be PCM signal, and then send the PCM signal to BC02’s PCM_IN. 2. Codec IC (U2) pin DR decodes PCM signal from BC02’s PCM_OUT. The decoded audio signal connects to RO-, and then the audio will send to the AC97 audio codec IC (U9). c. AC97 audio codec IC 1. The AC97 audio codec IC (U9) pin 21 amplifies the signal from codec IC (U2), encoding it to be PCM signal, and then send the PCM signal to USB controller IC (U6). 2. The AC97 audio codec IC (U9) pin 35, 36 decoded audio signals from USB controller IC (U6), then the audio signal send to the codec IC (U2). d. USB controller IC 1. The USB controller IC (U6) is a universal serial bus (USB) peripheral interface device. Which require the streaming of digital audio data between the host PC and the speaker system via the USB connection.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth USB Dongle MODEL : HBU-001 / HBU-001D FCC ID. : QE5HITBTUDHBU001 for APPLICANT : HIT Incorporated ADDRESS : 4F, 8, Lane 235, Pao-Chiao Road, Shin Tien City, Taipei, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-07-041-01 ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.1 TEST REPORT CERTIFICATION Applicant : HIT Incorporated 4F, 8, Lane 235, Pao-Chiao Road, Shin Tien City, Taipei, Taiwan, R.O.C. Manufacturer : HIT Incorporated 4F, 8, Lane 235, Pao-Chiao Road, Shin Tien City, Taipei, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Bluetooth USB Dongle b) Trade Name : ---- c) Model No. : HBU-001 / HBU-001D d) Power Supply : From PC Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2001) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relates only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Aug. 13, 2002 Test Engineer : ( S. S. Liou ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.1 Table of Contents Page 1 GENERAL INFORMATION....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology......................................................................................................................... 1 1.4 Test Facility.................................................................................................................................. 1 1.5 Modist List.................................................................................................................................... 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition...................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information........................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION........................................................................................... 7 3.1 Justification................................................................................................................................... 7 3.2 Devices for Tested System ........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT............................................................................... 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument................................................................................................................. 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 Fundatmental and Harmonics ....................................................................................................11 4.4.2 Other Emissions ......................................................................................................................14 4.5 Field Strength Calculation .......................................................................................................... 14 4.6 Photos of Radiation Measuring Setup ........................................................................................ 15 5 CONDUCTED EMISSION MEASUREMENT........................................................................ 16 5.1 Standard Applicable ................................................................................................................... 16 5.2 Measurement Procedure............................................................................................................. 16 5.3 Conducted Emission Data .......................................................................................................... 17 5.4 Result Data Calculation.............................................................................................................. 18 5.5 Conducted Measurement Equipment ......................................................................................... 18 5.6 Photos of Conduction Measuring Setup ..................................................................................... 19 6 ANTENNA REQUIREMENT...........................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.0 Photos of Radiation Measuring Setup ETC Report No. : ET91R-07-041-01 FCC ID. : QE5HITBTUDHBU001 Rev. No 2.0 Photos of Conduction Measuring Setup
