QE813251Remote control toy, STEALTH (B2)

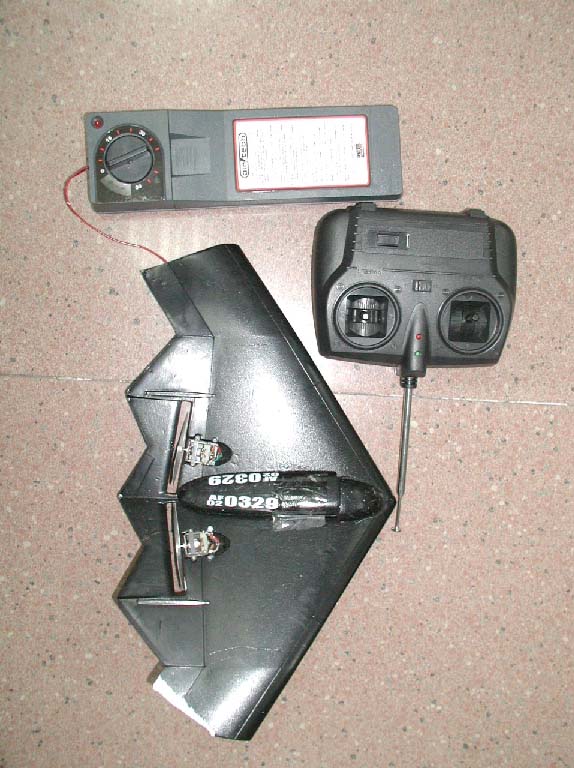

Stealth & Stingray R.T.F. Airplanes Congratulations on the purchase of your Air-Tech aircraft. This manual is written for both the Stealth and the Stingray since these aircraft are identical in terms of design and differ only in their graphics scheme. Your new aircraft is designed to be easy to fly and to survive the learning curve associated with new R/C pilots. But, as with any sophisticated device, you must learn how to operate it and care for it. Please read this manual thoroughly and take the time to watch the instructional CD. Be sure to assemble and fly your aircraft only under adult supervision. • Do not fly near cars, people, pets, overhead wires bodies of water, buildings, trees, etc. • Use common sense when operating your aircraft! • Keep clear of the propeller blades. Copyright © 2002 INTERACTIVE TOY CONCEPTS LTD. - Printed in ChinaUM-13251-20717 • Radio-Controlled. • Quiet, Safe Electric Flight. • Includes NiMH Flight Battery • Requires 8 (AA) Batteries for Transmitter. • Requires 6 (D) Batteries for Portable Charger. Items may differ from images depicted above Glossary: Motors: The Stealth and the Stingray have 2 motors - for main thrust and steering. Electronic Speed Control: Also referred to as an ESC, the speed control sends electric current to the motors causing them to spin the propellers. It also regulates the amount of current sent to the motors when you want to turn the aircraft. Battery Pack: The Stealth and the Stingray come with a 280 mAh NiMH rechargeable battery that is used to power the electric motors and receiver. Flight time is approximately 7 minutes on a full charge. Transmitter: The radio control transmitter allows you to control the aircraft's rate of climb, descent and flight direction. The left stick controls throttle and rate of climb or glide, while the right stick causes the aircraft to turn left or right. Charger: The included portable charger uses 6 "D" size alkaline batteries to charge the NiMH battery pack. Plug in the 280 mAh flight battery pack and set the timer for 30 minutes. Do not allow the battery to get hot. Your Stealth or Stingray package contains the following: Transmitter & antenna Fuselage/Wing assembly Propellers & removal tool Quick charger NiMH battery pack Instructional CD or coupon (or see videos on our website) Install the Propellers 1) If the propellers are not already installed on the motors, locate them and press- fit them onto the motors. 2) Be sure to leave at least a 1/16" gap between the propeller and the rear of the motor covers to prevent binding. The prop should not come into contact with any part of the aircraft. If you need to remove the Propellers 1) If the propellers need to be replaced in the future, use the propeller removal tool to carefully pry the propellers off the motor’s shafts. Prepare the Transmitter 1) Remove the battery cover located at the rear of the transmitter. 2) Install 8 AA alkaline batteries, ensuring that the polarities are correct. 3) Reinstall the battery cover. 4) Turn the transmitter on and make sure that both the red and green LEDs light up. If only the red one is lit, you must replace the batteries with fresh ones prior to flying or your control range will be dangerously limited. 5) Insert the transmitter antenna into the top of the transmitter and thread it into place. Do not overtighten. Remove the Battery Cover 1) Locate the small plastic catch mounted underneath the aircraft, at the rear of the body. 2) Gently push the catch towards the nose of the aircraft while at the same time gently pushing it inwards. 3) Gently pull the rear of the top-mounted cover upwards and slide it towards the back of the aircraft. 4) Installation is simply the reverse of removal. Charge the Onboard Battery 1) Remove the top cover from the charger by sliding it rearward. 2) Insert 6 "D" size alkaline batteries into the charger. Be careful to orient them in the proper directions. 3) Remove the green NiMH battery from the aircraft or the packaging. 4) Connect the output plug of the charger to the input plug of the battery pack. Notice that the plugs can only be connected in one orientation - do not force them. 1 Safety The Stealth and the Stingray are sophisticated model aircraft and should be treated as such. Improper use or assembly could cause damage to you, bystanders and property. Please follow all safety and assembly instructions listed within this manual and on the CD. Assemble and fly your aircraft only under adult supervision. Learning to Fly We strongly recommend that you seek the help of an experienced R/C pilot to help you learn to fly your new plane. While the Stealth and the Stingray are designed as training aircraft with docile flight characteristics, instruction by an experienced pilot will make the learning experience much more enjoyable and lessen the risk of damage to your new aircraft. We suggest that you join a local R/C club – your local hobby shop will be able to help you to find one. Basic Safety Precautions 1) Carefully follow all assembly instructions. Do not modify the aircraft; this will void your warranty and may degrade performance. 2) Test your aircraft before every flight. All systems must function correctly and the aircraft itself must be structurally sound. Ensure that all components are securely attached to the aircraft. 3) The Stealth and the Stingray are designed to fly in low wind conditions only. Do not attempt to fly them when wind speeds exceed 5 mph (8 km/h). 4) Always fly in large open areas only. Do not fly the model near people, cars, buildings, trees, overhead wires or other obstructions. Use common sense! 5) Ensure that the transmitter has fresh batteries and that the onboard battery pack is fully charged before attempting to fly. 6) Always range-check your transmitter prior to every flight. 7) Keep fingers clear of the propellers when the battery is installed in the aircraft. 8) Never turn the plane “On” while the transmitter is off. The receiver may pick up s…

Text truncated - open the document above for the full version.

RX!OPERATIONAL DESCRIPTION! The ANT received the messige though the Super REGENERACY then it will be amplified again. At Cast it will be sent into the DECODER. The left and right DRIVER will work at once. TX!OPERATIONAL DESCRIPTION! The 27.145MH Z messiage though the MODULATION then it will be amplified and to be send out by ANT.

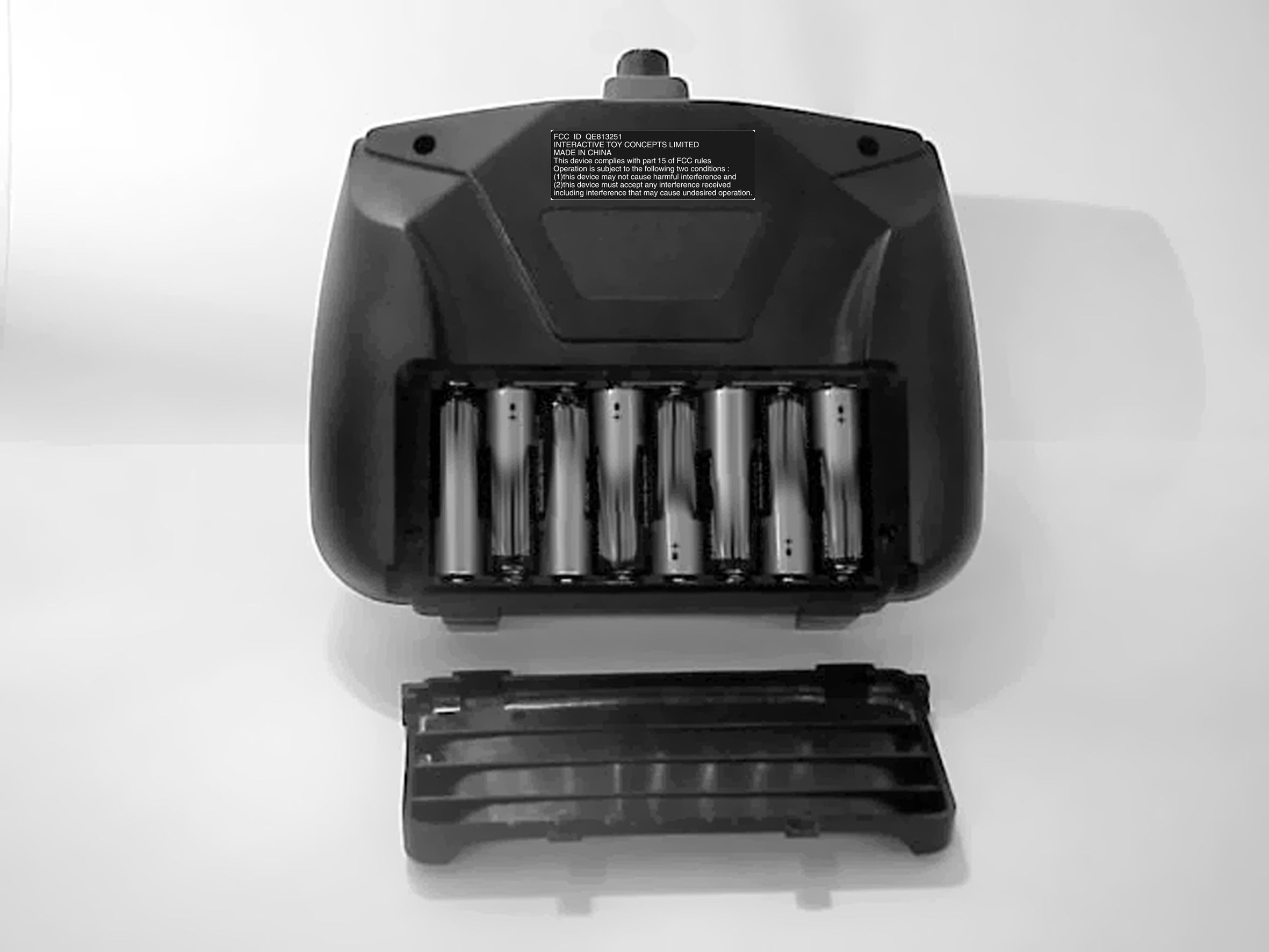

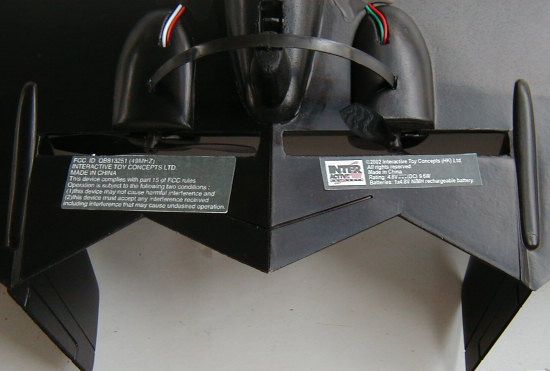

TEST REPORT Guangzhou Testing & Inspection Institute for Household Electrical Appliances ••••••••• GTIHEA •••••••••••••• CETC Add.: 204 Xingang West Road Guangzhou 510302 P.R. China Telephone: 86-20-84451692 Fax: 86-20-84183160 E-mail: EMC@ GTIHEA.COM EUT: EP R/C AIRPLANE MODEL/TYPE : B2-STEALTH CLIENT: Interactive Toy Concepts Limited Classification of Test : COMMISSION TEST Test Report No.: WTS2002-0965-2 Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No.: WTS2002-0965-2 Page 2 of 13 Client name: Interactive Toy Concepts Limited address: Unit 508, Tower B, New-Mandarin Plaza T.S.T. East, Kowloon, HongKong Manufacturer name: Interactive Toy Concepts Limited address: Unit 508, Tower B, New-Mandarin Plaza T.S.T. East, Kowloon, HongKong Equipment under Test Name model/ type trade mark serial no. : EP R/C AIRPLANE : B2-STEALTH : Inter Active Toy : — Date of Receipt. 2002.04.19 Date of Testing 2002.05.12 Test SpecificationTest Result FCC PART 15 Subpart CPASS Evaluation of Test Result This device is conformance with Part 15 of the FCC Rules and Regulations. Operation of this product is subject to the following conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Issue Date: Tested by: Reviewed by:Approved by: Chen Huawen Name Signature Wu Hong Name Signature Yang C hunrong Name Signature Other Aspects: The above mentioned illumination system is applicable to microscope. Abbreviations: OK, Pass= passed Fail = failed N/A= not applicable EUT= equipment, sample(s) under tested This test report relates only to the EUT, and shall not be reproduced except in full, without written approval of GTIHEA . Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No.: WTS2002-0965-2 Page 3 of 13 Contents 1.G ENERAL P RODUCT I NFORMATION ..............................................4 1.1P RODUCT F UNCTION ...........................................................................................................4 1.2R ATINGS AND S YSTEM D ETAILS .........................................................................................4 1.3I NDEPENDENT O PERATION M ODES ...................................................................................4 1.4S UBMITTED D OCUMENTS ....................................................................................................4 2.T EST S ITES ..............................................................................5 2.1T EST F ACILITIES .................................................................................................................5 2.2D ESCRIPTION OF N ON - STANDARD M ETHOD AND D EVIATIONS .........................................5 2.3L IST OF T EST AND M EASUREMENT I NSTRUMENTS ...........................................................5 3.T EST S ET - UP AND O PERATION M ODES .........................................6 3.1P RINCIPLE OF C ONFIGURATION S ELECTION .....................................................................6 3.2P HYSICAL C ONFIGURATION FOR T ESTING .........................................................................6 3.3T EST O PERATION M ODE AND T EST S OFTWARE ................................................................6 3.4S PECIAL A CCESSORIES AND A UXILIARY E QUIPMENT ........................................................6 3.5C OUNTERMEASURES TO A CHIEVE EMC C OMPLIANCE ....................................................6 4.EMISSION T EST R ESULTS .........................................................7 4.1E MISSION IN R ADIO F REQUENCY R ANGE ...........................................................................7 4.1.1Conducted emission (0.15MHz~30MHz)......................................................................................................... 7 4.1.2Radiated emission (30MHz~1GHz) ................................................................................................................. 7 5.P HOTOGRAPHS OF THE EUT ..................................................... 10 6.P HOTOGRAPH OF THE TEST SETUP ............................................. 12 Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No.: WTS2002-0965-2 Page 4 of 13 1. General Product Information 1.1 Product Function Refer to Operating Instructions. 1.2 Ratings and System Details TransmitterReceiver Power supply 8 × 1.5V D.C. 4.8V D.C. NI-MH Rated power —— Frequency 27.145MHz — Protection class IIIIII Power wire NO NENO NE Interconnecting wires NO NENO NE Alternative power levels NO NENO NE External RF connector NO NENO NE 1.3 Independent Operation Modes The basic operation modes are: A. Off B. On 1.4 Submitted Documents Operating Instructions and Installation Manual Structural Parts Rating Label Wiring Diagram Construction Drawing Photographs of EUT Material Bill (Parts List) Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No.: WTS2002-0965-2 Page 5 of 13 2. Test Sites 2.1 Test Facilities The tests and measurements refer to this report were performed by EMC testing Lab. of Guangzhou Testing & Inspection Institute for Household Electrical Appliances. Add.: 204 Xingang West Road Guangzhou 510302 P. R. China Telephone: 86-20-84451692 Fax: 86-20-84183160 The EMC testing laboratory has been recognized by China National Commission for Laboratory Assessment, and authorized by Nemko of Norway since 1997, and authorized by TüV Rheinland of Germany since 1998, and registered by FCC since 2001. 2.2 Description of Non-standard Method and Deviations The testing and measurement method used in this report are all the standard method applied, no any non-standard method and deviations from the used standard were used. 2.3 List of Test and Measurement Instruments Refer to Appendix A . Guangzhou Testing & Inspection In…
