QE8332XXTX49F/A-18E R/C Airplane

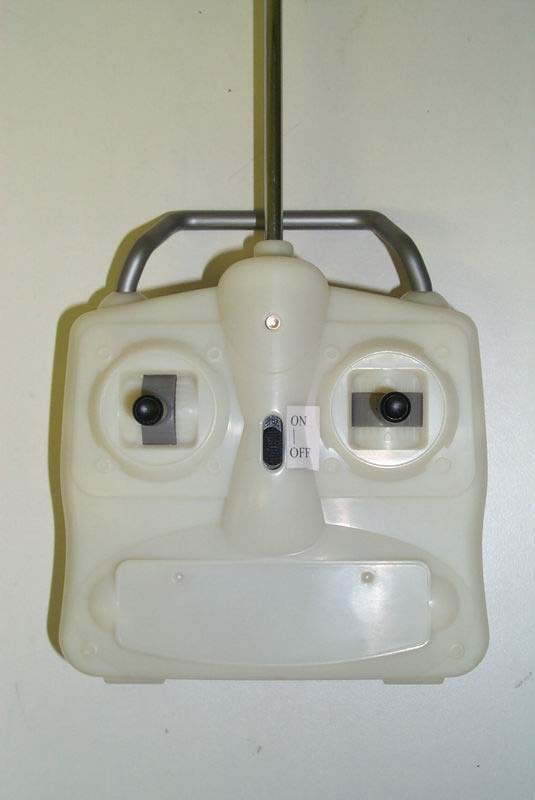

FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 16 Front View FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 17 Rear View

FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING Figure 2.1 FCC ID Label Figure 2.2 Location of Label on the Side of EUT FCC ID: QE8332XXTX49 This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label (FCC Statement may show in User Manual only) FCC Label Figure 2.2 Location of Label on Back of the EUT

FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 18 Open View FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 19 Component Side FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 20 Foil Side

DYNAMIC INDUSTRIES CO LTDITEM NO: UNIT 2205, 22F, 57, HUNG TO RD.KLN .HONG KONG.MODEL NANE:- F/A-18E TEL :-852-2389-8230FREQUENCY :-49.860 MHZ FAX :-852-2790-5521DATE :-31/5/2005 ENGINEERING DEPARTMENTBY:B.LEE REV0 ** (CIRCUIT DESCRIPTION ) **IN TRANSMIT MODE. WHEN THE CONTROL KNOB IS PRESSED, A CW SIGNAL IS TRANSMITTED. THE CRYSTAL CONTROLLED OSCILLATOR Q1 OUTPUT IS COUPLED THROUGH C6 TO THE BASE OF Q3. FROM Q3 THE SIGNAL IS FED THROUGH T-1 . THE LOW PASS FILTER MADE UP OF C10 & T-1 & C142 L-2/L3 & C14 WHICH ARE CONNECTED TO THE ANTENNA. THE 'MODULATION IS PROVIDED BY U-1 . WHEN SWITCH IS PUSHED, THE MODULATION SIGNAL WILL BE SENT TO THE BASE OF Q1 THAT WILL MODULATE THE RF WAVE DIRECTLY. ENERGRY IS SUPPLIED BY 8X1.5V= 12.VDC ALKALINE BATTERY. **IN RECEIVE MODE Q1 IS THE SUPERREGENERATOR & DETECTOR. IC-1 IS THE SIGNAL PRE-AMPLIFIER & DECODER. Q2/Q5/ AND U1-A / U1-B ARE THE MOTOR DRIVERS OF THOTTLE Q3/Q4/Q6/Q7/Q8/AND Q9 ARE THE MOTOR DRIVERS OF STEERING ENERGRY IS SUPPLIED BY FOUR 1.2V 3/5 AAA TYPE NICAB BATTERY. **ANTENNA AND GROUND CIRCUITRY. THIS UNIT MAKES USE OF AN EXTENAL 39 -INCH ANTENNA. THE ANTENNA IS INDUCTIVELY COUPLED. THE UNIT RELIES ON THE GROUND TRACE OF THE PRINTED CIRCUIT BOARD. NO EXTERNAL GROUND IS PROVIDED. ENERGRY IS SUPPLIED BY 8X1.5V= 12.VDC ALKALINE BATTERY. ** BACKGROUND THE DEVICE DESCRIBED HEREIN IS A WIRELES (RF) TOY GAME AEROPLANE CONTROLLER TRANSMITTER FOR USE WITH THE TOY GAME AEROPLANE CONTROLLED RECEIVER. IT HAS ONLY ONE CHANNEL OF OPERATION WHICH THE USER MAY CHOOSE ONLY , AND IS USED TO SEND BUTTON-STATE DATA FROM THE CONTROLLER TO A WIRELESS RECEIVER CONNECTED WITH MOTORS **TYPICAL OPERATION TYPICAL OPERATION WOULD INVOLVE THE USER TURNING ON THE UNIT TO THE TOY GAME. WHEN TURNED ON, THE UNIT COMES UP ON THE DEFAULT CHANNEL AND TRANSMITS A CONTINUOUSLY STEAM DATA. THE USER CAN NOT, AT WILL, CHANGE TO ANY OTHER OF THE PREDEFINED CHANNEL. ** CONFIGURATION THE TRANSMITTED RF CIRCUITRY CONSISTS OF A CRYSTAL CONTROLLED OSCILLATOR, FOLLOWED BY ONE POWER AMPLIFIER, & FINALLY, AN ANTENNA. THE MAIN CHARACTERISTICS OF THIS CONFIGURATION ARE SHOWN BELOW :- ** FREQUENCY RANGES49.860 MHZ OCCUPIED BANDWIDTH (3DB).+/- 2KHZMAX FREQUENCY STABILITY.+/- 20 PPMMAX MODULATION METHODA M100% . OUTPUT POWER80DBUV / MMAX **REFERENCE OSCILLATOR A49.860 MHZ CRYSTAL OSCILLATOR IS USED TO GENERATE THE REFERENCE FREQUENCY. IT HAS A STABILITY OF + / - 20 PPM. **AMPLIFIER THE OSCILLATOR IS FOLLOWED BY ONE AMPLIFIER. THIS ACTS MORE AS BUFFER FOR THE OSCILLATOR THAN AS GAIN STAGE. AND ADD VERY LITTLE POWER TO THE SIGNAL. THE FINAL OUTPUT IS 80DBUV PER METER MAX **ANTENNA THE SYSTEM ANTENNA IS A ANTENNA ROD LINKED TO PCB . ANTENNA CAN BE TURNED OUT OR IN PENDING USER'S WISH. **MICROCONTROLLER * THE TX SYSTEM IS CONTROLLED BY A SMALL MICROCONTROLLER RUNNING WITH A 128KHZ +/- 20% OSCILLATOR * THE RX SYSTEM IS CONTROLLED BY A SMALL MICROCONTROLLER RUNNING WITH A 128KHZ +/- 20% OSCILLATOR

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of F/A-18E R/C AIRPLANETRANSMITTER MODEL: 33211 FCC ID: QE8332XXTX49 June 30, 2005 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: INTERACTIVE TOY CONCEPTS(HK) LTD. Report prepared by: Advanced Compliance Lab Report number: 0048-050620-02 The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page ........................................................................................................ 1 Table of Contents........................................................................................................... 2 Figures ............................................................................................................................ 3 1. GENERAL INFORMATION................................................................................... 4 1.1 Verification of Compliance ......................................................................... 4 1.2 Equipment Modifications ........................................................................... 5 1.3 Product Information ................................................................................... 6 1.4 Test Methodology ........................................................................................ 6 1.5 Test Facility .................................................................................................. 6 1.6 Test Equipment............................................................................................ 6 1.7 Statement of the Document Use ................................................................. 7 2. PRODUCT LABELING ........................................................................................... 8 3. SYSTEM TEST CONFIGURATION...................................................................... 9 3.1 Justification .................................................................................................. 9 3.2 Special Accessories ...................................................................................... 9 3.3 Configuration of Tested System ................................................................. 9 4. SYSTEM SCHEMATICS ......................................................................................... 12 5. RADIATED EMISSION DATA............................................................................... 13 5.1 Field Strength Calculation.......................................................................... 13 5.2 Test Methods and Conditions..................................................................... 13 5.3 Test Data....................................................................................................... 13 6. PHOTOS OF TESTED EUT .................................................................................... 15 FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label .............................................................................................. 8 Figure 2.2 Location of Label on Back of the EUT...................................................... 8 Figure 3.1 Radiated Test Setup, Position 1 ................................................................. 10 Figure 3.2 Radiated Test Setup, Position 2 ................................................................. 10 Figure 3.3 Radiated Test Setup, Position 3 ................................................................. 11 Figure 4.1 EUT Schematics .......................................................................................... 12 Figure 6.1 Front View ................................................................................................... 16 Figure 6.2 Rear View..................................................................................................... 17 Figure 6.2 Inside View, Cover Opened ........................................................................ 18 Figure 6.3 Component Side .......................................................................................... 19 Figure 6.4 Foil Side........................................................................................................ 20 FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: F/A-18E R/C AIRPLANE TRANSMITTER Model: 33211 Applicant: INTERACTIVE TOY CONCEPTS (HK) LTD. 7/F.,EU YAN SANG TOWER,11-15 CHATHAM ROAD S. TSIM SHA TSUI, KOWLOON, HONG KONG Test Type: FCC Part 15C CERTIFICATION Result: PASS Tested by: ADVANCED COMPLIANCE LABORATORY Test Date: June 30, 2005 Report Number: 0048-050620-02 The above equipment was tested by Compliance Laboratory, Advanced Technologies, Inc. for compliance with the requirement set forth in the FCC rules and regulations Part 15 subpart C. This said equipment in the configuration described in the report, shows the maximum emission levels emanating from equipment are within the compliance requirements. …

Text truncated - open the document above for the full version.

FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 10 Figure 3.1 Radiated Test Setup, position 1 Figure 3.2 Radiated Test Setup, position 2 FCC ID: QE8332XXTX49 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 11 Figure 3.3 Radiated Test Setup, position 3
