QE844008RX49i-FLY

VA M P Instruction Manual Item# 44008 Congratulations on the purchase of the iFLY VAMP iFLY VAMP is the world’s smallest radio controlled flying insect in the form of ornithopter (flapping wings). iFLY VAMP also has patented state of the art technology that allows it to fully resembles the true flying behavior of an insect or bird whereby the halteres rotates to achieve stable flight and directional controls. The iFLY VAMP offers digital proportional speed and directional control just like a radio controlled micro airplane except that it propels itself via flapping its wings. The body of the iFLY VAMP is made out of an ultra-light weight and flexible foam which provides structural strength.. The iFLY VAMP measures only 12 inch wing span and 10 inch body (head to tail) and need only one set of wings to propel itself. Opening package and check content 1x iFLY VAMP Flying Insect 1x Transmitter 2x Pair of Spare Wings 1x Detachable Antenna(it has a unique connector) Batteries The iFLY VAMP flying insect itself has a built-in rechargeable battery and the transmitter requires 6x AA alkaline batteries (sold separately). Install the batteries as follows. Attention: Important battery information. Do not mix old and new batteries, different types of batteries, standard carbon zinc, alkaline or rechargeable of different capacities. Rechargeable batteries are only to be charged under adult supervision Please respect the correct polarity (-) or (+) Do not try to recharge non-rechargeable batteries Do no throw batteries into the fire Replace all batteries of the same type/brand at the same time The supply terminals are not the be short-circuited Remove exhausted batteries from the toy Batteries should be replaced by adults Remove batteries if the toy is not going to be played with for some time The packaging should be kep since it contains important information Rechargeable batteries are to be removed from the transmitter before being charged 1. The antenna for the transmitter will need to be attached to the the transmitter. (Note: always operate the transmitter with an antenna extended) 2. Open the battery compartment on the transmitter using a Phillips screwdriver (not included) to remove the screw on the battery compartment door. 3. Insert the batteries according to the picture (as shown). Ensure that the positive and negative polarities match the illustrations inside the battery compartment. 4. Replace the battery compartment door and replace the screw using the screwdriver. Do not overtighten. Charging the iFLY VAMP Before flying the iFLY VAMP for the first time (or if you have depleted a charge on the iFLY VAMP) you will need to recharge it. A typical charge takes about 20 minutes and allows around 7 minutes of flying time. Note: if the charge time begins to exceed 25 minutes, you should replace all the batteries in the controller with fresh batteries. To charge the iFLY VAMP 1. On the transmitter, please lift up the charging adapter on your transmitter (as shown) 2. Ensure the charging adapter is standing upright. fom the compartment (as shown) 3. Hold the iFLY VAMP firmly by its body, and then insert the cord into the socket at the bottom of the VAMP (as shown). Pay close attention to where the adapter should be inserted into the socket of the VAMP 4. Once inserted, you can enabling charging mode by switching on the TX. When charging the VAMP, the LED indicator light (green) should be ON and when the VAMP has been charged, this LED indicator light will be switched off. . Note: Make sure the iFLY VAMP is turned off before you recharge it. Choosing your flying location You can operate the iFLY VAMP on a calm day outdoor and indoor with a 50x50 feet area with a ceiling height of about 20 ft.. For optimal indoor flying performance, we recommend a minimum area of 16 feet x 16 feet (5 meters x 5 meters). For outdoor flying, try to avoid windy areas and keep the VAMP away from rain or other harsh conditions. To operate the iFLY VAMP: 1. Turn the transmitter on by pressing the POWER button. 2. Extend the antenna on the transmitter to ensure there is 3. Turn the VAMP on by setting the switch on the VAMP to ON. Note: if the controller is off, the iFLY VAMP’s eyes will blink 4. On the transmitter, push the left stick upwards to increase the speed or frequency of the wing-flapping. The left stick(throttle) controls how high and fast the VAMP will fly. 5. Launch the VAMP from your hand with a gentle horizontal toss while pushing the left stick forward slowly. As the VAMP starts to flap its wing, it will have generate some motion to thrust and to lift. 6. On the transmitter, push the right stick (directional) to the left, or push the stick to the right to turn right. The patented technology on VAMP allows the body (alteres) of the insect to roll (left and right) on inputs received from the right control stick. Apply the stick control liberally and turning left and right whilst flying also means it will need space and time to correct its flight path. Tips and Tricks 1. The most stable flight one can obtain is to be easy on the throttle input. Sometimes flying the VAMP requires the user to be only applying small input on the throttle (left stick) and let go of it sometimes. 2. To gain altitude in a confined area, it is easier to start climbing in a circle then in straight line. By pushing the throttle (left stick) and applying right stick to either left or right in order for the VAMP to gain altitude in a small confined area 3. The VAMP can also perform gliding once it is in motion and it is good to sometime let go of the throttle (left stick) in order for it to regain its natural flight composure. Even real birds and insects need stops flapping sometimes and keep gliding and save their energy. 4. Always fly the VAMP in a near calm condition if you want to fly outdoor to avoid any wind that may overpower the VAMP itself. Replacing Wings You can replace the original wings on your VAMP if they become damaged. Tw…

Text truncated - open the document above for the full version.

Antenna DC Source &Reset Circuit 44008 I-FLY Rx Block Diagram Left Drive Motor Circuit Right Drive Motor Circuit UP/Down Drive Motor Circuit Receiver RF receiver MCU

EUT - Front View EUT - Back View

FCC ID Label Sample for Model: 44008 FCC ID: QE844008RX49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Top View/ proposed FCC Mark Location FCC ID:QE844008RX49 This device complies with Part 15 of the FCC Rules.Operation is subject to the following

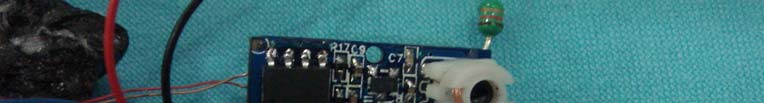

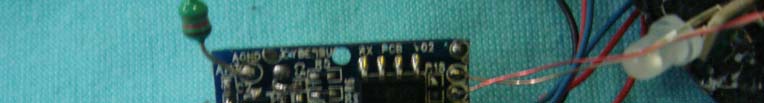

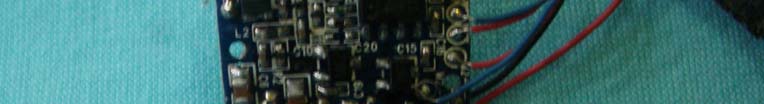

PCB - Front View PCB - Back View

Circuit Description Circuit Description In receive mode Q1 is rf super-regenesis receiver and output encoded signal to q2 for amplifier,Signal to U1 DECODE then output motor driver signal。 U5 is motor driver ic. Antenna and grond circuitry This unit make use an extenal antenna，This antenna is inductively coupled. This unit relies on the ground trace of the printed circuit board.No external ground is provided. energry is supplied by 6pcs aa alkaline battery. Background The device described herein a wirless(RF)TOY AEROPLANE CONTROLLER TRANSMITTER For use with the toy aeroplane controlled receiver.It has only one channel of Operation which the usermay choose only.And is used to send button-status dataform The controller to a wireless receiver connected with motors. Typical opeartion Typical opeartion would innolve the user turning on the unit to the toy game when turned on,The unit comes up on the default channel and transmits a continuously steam data.The user can not，At will .Change to any other of the predefined channel. Configuration The receiver circuit has include one LC oscillator for reference frequency Some signal through antenna let out.Tha main characteristics Of this configuration are shown as below: Frequency ranges 49.860MHZ Occupied bandwidth(-26db) 1MHZ MAX Frequency stability +/- 0.5mhz Modulation method AM Output power 80DBuv/m max Reference oscillator A lc oscillator is used to generate ths reference frequency It has a stability of 0.5mhz Amplifier This RF signal no amplifier to transmit. Microcontroller The rx system is controlled by a small microcontroller running with internal 16mhz

DATE: 14-JUN-07 REV: V00SHEET: 1 OF 1 DATE:DATE: SCHEMATIC CIRCUIT ITEM NAME: CYBERBUG RXITEM NO.:APP. BY:CHECKED: DOCUMENT NO.:DWG. NO.: 01493-01 49.865M KWOK'S WINTY MANUFACTURING LTD. DESIGNED: DEREK SIZE: B4 LED1 R1 180K C1 4.7UF/10V C2 10P R3 4.3K R2 390R Q1 2SC4116(Y) M1 MOTOR U2ME2306A Q2 2SC4116(Y) Q3 2SC4116(Y) L1 9.5T L2 6.8UH C4 33P C5 20P C6 222 ANT C7 472 C8 104 R4 22 C9 103 R5 620K C10103 R6 47K R7 43K C11 224 R8 15K R9 1K L3 10UH R11 100R CHARGEHEAD1 SW1 M2 MOTOR C15104 R17 1K R18 1K C16104 1234 8765 U5 L9110 G D S Q4 FN2314 1234 8765 U1 SN8P2501 + - BAT1 3V7 5 VDD 46 VSS 1 DOUT 3 COUT 2 V- U3 R5402 IC7 PJ2302*2 R12 330 R13 1K C3 104 C14 4.7UF/10V C17 472 C12103 C18104 R14 1K L4 3.3UH C19104 C20 100P GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND

FCC TEST REPORT Page 1 of 14 FCC ID NO. : QE844008RX49 Applicant : Interactive Toy Concepts (HK) Ltd. 7/F.,Eu Yan San Tower,11-15 Chatham Road South, TST, Kowloon, Hong Kong Equipment Under Test (EUT) : Product Name : i-FLY Model No. : 44008 Standards : FCC Part 15 SUBPART B Date of Test : August 15, 2007 Test Engineer : Tiger Su Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 8C,West Tower, Aidi Building, No.5003 Binhe Rd, Futian District, Shenzhen518045, Guangdong, China. Tel: 86-755-83551033 Fax: 86-755-83552400 Interactive Toy Concepts (HK) Ltd. FCC ID: QE844008RX49 Page 2 of 14 2 Test Summary Test Test RequirementTest Method Class / Severity Result Radiated Emission (30MHz to 1GHz) FCC PART 15, SUBPART B: 2003 ANSI C63.4: 2003 Class B PASS Conducted Emission (150KHz to 30MHz) FCC PART 15, SUBPART B: 2003 ANSI C63.4: 2003 Class B N/A Interactive Toy Concepts (HK) Ltd. FCC ID: QE844008RX49 Page 3 of 14 3 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS ..............................................................................................................................................................3 4 GENERAL INFORMATION..................................................................................................................................4 4.1 CLIENT INFORMATION............................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................4 4.3 DETAILS OF E.U.T. .................................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................4 4.5 TEST FACILITY........................................................................................................................................................5 4.6 TEST LOCATION......................................................................................................................................................5 5 EQUIPMENT USED DURING TEST ...................................................................................................................6 5.1 CONDUCTION EMISSIONS, 0.15MHZ TO 30MHZ.....................................................................................................7 5.1.1 E.U.T. Operation..........................................................................................................................................7 5.1.2 Measurement Data .......................................................................................................................................7 5.2 RADIATED EMISSIONS, 30MHZ TO 1GHZ...............................................................................................................8 5.2.1 E.U.T. Operation..........................................................................................................................................8 5.2.2 EUT Setup ....................................................................................................................................................8 5.2.3 Spectrum Analyzer Setup..............................................................................................................................9 5.2.4 Test procedure..............................................................................................................................................9 5.2.5 Summary of Test Results ..............................................................................................................................9 5.2.6 Radiatied Emissions Test Data ..................................................................................................................10 5.3 PHOTOGRAPHS - TEST SETUP................................................................................................................................11 5.3.1 Radiated Emissions Test Setup...................................................................................................................11 5.3.2 EUT - Front View .......................................................................................................................................12 5.3.3 EUT - Back View ........................................................................................................................................12 5.3.4 PCB - Front View .......................................................................................................................................13 5.3.5 PCB - Back View ........................................................................................................................................13 6 FCC ID LABEL .....................................................................................................................................................14 Interactive Toy Concepts (HK) Ltd. FCC ID: QE844008RX49 Page 4 of 14 4 General Information 4.1 Client Information Applicant: Interactive Toy Concepts (HK) Ltd. Address of Applicant: 7/F.,Eu Yan San Tower,11-15 Chatham Road South, TST, Kowloon, Hong Kong Manufacturer: Interactive Toy Concepts (HK) Ltd. Address of Manufacturer: 7/F.,Eu Yan San Tower,11-15 Chatham Road South, TST, Kowloon, Hong Kong 4.2 General Description of E.U.T. Product Name: i-FLY Model No.: 44008 4.3 Details of E.U.T. Power Supply: RX: 3.7 VDC Battery 4.4 Description of Support Units …

Text truncated - open the document above for the full version.

Radiated Emissions Test Setup
