QE844008TX49i-FLY

49.860MHz RF CW OSC Transmit Antenna Circuit DC Source &Indicator CircuitIndicator Circuit 44008 I-FLY Tx Block Diagram MCU RF AMP CHG SWITCH CIRCUIT Function Control

EUT - Front View EUT - Back View

FCC ID Label Sample for Model: 44008 FCC ID: QE844008TX49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location FCC ID:QE844008TX49 This device complies with Part 15 of the

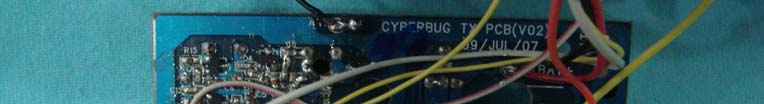

PCB - Front View PCB - Back View

Circuit Description Circuit Description In transmit mode When the control key is pressed,A encode signal is transmitted. Q1 and crystal for osilator,Q3 is rf amp then signal through filter send by antenna。The Q4 is modulation encode signal for rf. Antenna and grond circuitry This unit make use an extenal antenna，This antenna is inductively coupled. This unit relies on the ground trace of the printed circuit board.No external ground is provided. energry is supplied by 6pcs aa alkaline battery. Background The device described herein a wirless(RF)TOY AEROPLANE CONTROLLER TRANSMITTER For use with the toy aeroplane controlled receiver.It has only one channel of Operation which the usermay choose only.And is used to send button-status dataform The controller to a wireless receiver connected with motors. Typical opeartion Typical opeartion would innolve the user turning on the unit to the toy game when turned on,The unit comes up on the default channel and transmits a continuously steam data.The user can not，At will .Change to any other of the predefined channel. Configuration The transmitted rf circutiry consists of a crystal controlled oscillator, Follow by rf amplifier & filter and antenna.Tha main characteristics Of this configuration are shown as below: Frequency ranges 49.860MHZ Occupied bandwidth(-26db) <100KHZ MAX Frequency stability +/- 20PPM Modulation method AM Output power 80DBuv/m Reference oscillator A 49.860MHZ crystal oscillator is used to generate ths reference frequency It has a stability of +/-20ppm Amplifier Ths Oscillator is followed by amplifiers.These final output is 80dbuv/m max Microcontroller The rx system is controlled by a small microcontroller running with internal 16mhz

49.860MHZ KWOK'S WINTY MANUFACTURING LTD. REV: SHEET: 1 OF 1 DATE:DATE: SCHEMATIC CIRCUIT: 44008 TX SCH (49M)ITEM NAME:ITEM NO.:APP. BY:CHECKED:DRAWN:HUANGHUI DATE: 23/JUL/07 VER00 LED1 1 P2.2 2 P2.1 3 P2.0 4 VDD 5 P1.3 6 P1.2 7 P1.1 8 P5.4 9 P1.0 10 P0.0 11 VSS 12 P2.5 13 P2.4 14 P2.3 U1 SOP-SN8P2501 R1 1K C2 22P U2 HE7550 1 2 Y1 4MHZ C3 22P BATT 9V 2 31 S1-A R6 1K R8 680R C1 224 D16.2V R9 1K Q1 9014 R10 10K R11 10K Q2 2714 Q3 2714 C4 6P C5 47P C6 15P R12 47R R13 100R C7 103 R14 22K 1 2 Y2 49.860MHZ L1 1UH R15 33K L2 1UH T1 1.45UH C8 33P C9 10P C10 10P L4 0.68UH ANT C12 103 R17 10k +/-1% R23 1K R24 1K R25 1K R26 1K R27 1K R28 1K E B C Q9 2SC9015 E B C Q102SC8550 R36 6.8R D4 1N4001 1 A 2 K B1 CHARGEHEAD R38 1k E B C Q52SC8550 R31 3.3K R32 100R R33 6.8R C15 104 C16 47UF/16V KA D2 LED R7 1K Q6 8050 K6B K5B K4B K3B K2B K7B K1B R3 1K R4 1K R2 1K R5 1K R20 1K R19 1K K6A K5A K4A K3A K2A K7A K1A R303.3R R29 1K R34 10K Q4 2714 R16 100R R18 1K C11 103 GND GND GND GND GND +9V GND GND GND GND GND GND GND GND GND +5V

FCC TEST REPORT Page 1 of 22 FCC ID : QE844008TX49 Applicant : Interactive Toy Concepts (HK) Ltd. 7/F., Eu Yan San Tower, 11-15 Chatham Road South, TST, Kowloon, Hong Kong Equipment Under Test (EUT) : Product description : i-FLY Model No. : 44008 Standards : FCC 15 Subpart C Paragraph 15.235 Date of Test : August 15, 2007 Test Engineer : Tiger Su Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 8C,West Tower, Aidi Building, No.5003 Binhe Rd, Futian District, Shenzhen518045, Guangdong, China. Tel: 86-755-83551033 Fax: 86-755-83552400 Interactive Toy Concepts(HK) Ltd. FCC ID:QE844008TX49 Page 2 of 22 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................5 4 GENERAL INFORMATION..................................................................................................................................6 4.1 CLIENT INFORMATION............................................................................................................................................6 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................6 4.3 DETAILS OF E.U.T. .................................................................................................................................................6 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................6 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................6 4.6 TEST FACILITY........................................................................................................................................................7 4.7 TEST LOCATION......................................................................................................................................................7 5 EQUIPMENT USED DURING TEST ...................................................................................................................8 6 CONDUCTED EMISSION TEST ..........................................................................................................................9 6.1 TEST EQUIPMENT....................................................................................................................................................9 6.2 TEST PROCEDURE...................................................................................................................................................9 6.3 CONDUCTED TEST SETUP.....................................................................................................................................10 6.4 EUT OPERATING CONDITION...............................................................................................................................10 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................11 6.6 CONDUCTED EMISSION TEST RESULT...................................................................................................................11 7 RADIATION EMISSION TEST...........................................................................................................................12 7.1 TEST EQUIPMENT..................................................................................................................................................12 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................12 7.3 TEST PROCEDURE.................................................................................................................................................12 7.4 RADIATED TEST SETUP.........................................................................................................................................13 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................13 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................14 7.7 SUMMARY OF TEST RESULTS................................................................................................................................14 7.8 EUT OPERATING CONDITION...............................................................................................................................15 7.9 RADIATED EMISSIONS LIMIT.................................................................................................................................15 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................16 8 OCCUPIED BANDWIDTH ..................................................................................................................................18 8.1 REQUIREMENT......................................................................................................................................................18 8.2 METHOD MEASUREMENT: .....................................................................................................................................18 9 PHOTOGRAPHS OF TESTING..................................................................................…

Text truncated - open the document above for the full version.

Radiation Emission Test View
