QE844XXXTX27R/C AIRPLANE

W eb sit e: www .int eractiv e t o y .com 8 2 4 PLEASE! DO NO T RETURN THIS PRODUCT T O ANY RE T AIL S T ORE! For any questions or problems with this product please contact us at: Email: [email protected] Phone: Outside North America: +1 416 444 6873 Inside North America: 1 866 214 2220 Address: Interactive Toy Concepts 1192 Martin Grove Road Toronto, Ontario, Canada 8 FCC NOTE: The manufacturer is not responsible for any radio or TV in terference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Thank you for purchasing the Micro Fighter, the world’s smallest and most progressive digital proportional radio control aircraft. To insure safe and reliable operation, please read the entire contents of this manual before removing the aircraft from its package. M9W 5M9 IMPORTANT! PACKAGE CONTENTS IMPORTANT SAFETY INFORMATION Do not modify your Micro Fighter! Do not point the antenna directly at the plane! Do not use in strong winds, use only in ‘very’ mild conditions! Do not use in rain, snow or around heavy debris! Do not use near electrical lines! Do not use around smoke or flames! Do not use around water! Do not use around electricity! Do not use in crowded areas! Do not use around air conditioning! Do not use around air vents! Do not use around ceiling fans! Do not use around large obstacles! Do not use in very small spaces! Do be conscious of changes in your area! Any changes or modifications to this product are strictly prohibited and will void product warranty. Keep moving propellers away from eyes, hands, hair and loose clothing. Always turn off your Micro Fighter and transmitter when not in use. Always remove batteries from transmitter during storage. Always place transmitter with NEW alkaline batteries for optimal performance. Keep your Pilots manual in a safe place for future use. Only use the Micro Fighter is an advanced aircraft that uses sophisticated onboard technology unlike any found in similar vehicles. Even experienced pilots should read the full contents of this manual carefully to receive the most from your flying experience. Parts Index Do not touch the running propeller! Adult supervision is required! •Micro Fighter •Transmitter •Antenna •Instruction manual •Landing gear •Spare Propeller •Mylar tape 4 1PC 1PC 1PC 1PC 1PC 2PCS 2PCS provided charger included with the Micro Fighter to charge the lithium polymer battery installed in the Micro Fighter. MICRO FIGHTER TRANSMITTER IMPORTANT BATTERY INFORMATION Use only batteries recommended in this instruction manual. Do not mix old and new batteries. Battery installation should be performed by an adult. Be careful to install the batteries with the correct polarity, as indicated. Do not use rechargeable batteries. Do not mix alkaline, standard, lithium, rechargeable, or different types of batteries. 1.Propellers 4 2.Tail stabilize 3.Charge port 4.ON/OFF Switch 3 1. Throttle control 6 7 2. steering control 3. Charging lead compartment 4. Antenna The supply terminals are not to be short-circuited. Exhausted batteries are to be removed as they will hinder performance. Never leave a battery unattended while it is being charged. Never leave a battery unattended in the presence of children. Micro Fighter charging time will increase with usage as the condition of the AA cells diminish. Battery performance may greatly influence flight characteristics. Micro Fighter’s Li-Po rechargeable battery is not replaceable. Micro Fighter takes 6 AA battery (not included). FCC NOTE: U.S. ONLY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These Limits are designed to provide reasonable protection against harmful interference in a residential installation. This generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. Industry Canada Notice: Canada only. This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-310. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Field Strength and measurement distance: 27.195MHz – ???? dB μ V/m at 3 meter. 49.890MHz - ???? dB μ V/m at 3 meter. Avis d'Industrie Canada: Canada seulement Ce dispositif de radiocommunication rencontre toutes les exigences de la norme CNR-310 d'Industrie Canada. Son fonctionnement est sujet aux deux conditions suivantes: 1) ce dispositif ne doit pas causer d'interférences nocives et. 2) ce dispositif doit accepter toutes les interférences reçues, y compris les interférences susceptibles de provoquer un fonctionnement indésirable. Puissance du champ…

Text truncated - open the document above for the full version.

EL190 F22 27.045-27.225MHz AM Transmitter Block Diagram Switch & VR Signal MCU Coder RF Oscillator and Modulator RF Amplifier

EUT - Front View EUT - Back View

FCC ID Label Sample for Model: 44005 FCC ID: QE844XXXTX27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location FCC ID: QE844XXXTX27 This device complies with Part 15 of the FCC

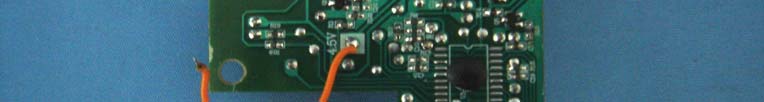

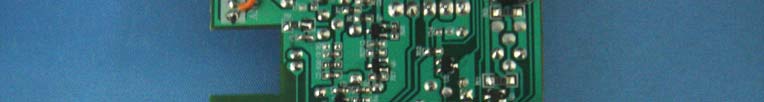

PCB- Front View PCB- Back View

EL190 F22, 27.045 ~ 27.225MHz Transmitter Operation Description Dec. 25, 2006 Confidential Page 1 of 3 The Microprocessor (U1, Figure 1) reads input commands (SW2/SW3/W2/W3, Figure 1), and then encodes them to digital codes. The codes are sent to RF oscillator via pin 6 of U1, Q6, Q7 and then modulates 27.045~27.225MHz carry frequency signal via Q1 (Figure 2) to achieve AM signal. Figure 1 EL190 F22, 27.045 ~ 27.225MHz Transmitter Operation Description Dec. 25, 2006 Confidential Page 2 of 3 The Radio Frequency of the transmitter is based on standard 27MHz AM citizen’s band. It generates low power 27.045~27.225MHz AM carrier frequency via major components of Q1, Y1, L1, C5, C21, R4, R3 and R28 etc. (Figure 2). Please see the attached schematics for more detail. Figure 2 EL190 F22, 27.045 ~ 27.225MHz Transmitter Operation Description Dec. 25, 2006 Confidential Page 3 of 3 The AM signal (via capacitor C3) is passed to RF amplifier (Figure 3, Q2, C8, R9, C9 and L2), which amplifies the signal and then couples the signal into the antenna (ANT1) via components C4, C6, L4, C7 and L3. Figure 3

11 22 33 44 55 66 77 88 DD CCBB AA Title Number Revision Size A3 Date: 12/29/2006 Sheet of File: H:\EED\..\EL190TX_SCH.SchDoc Drawn By: C9102 R34.7k C868P C447P C718p R9100R C347P ANT1 R4 100R Y1 27.045 ~ 27.225MHz R710K C2104 L32.2uH C682P C547P L22.2uH L12.2uH VCC 123456789 101112131415161718 U1 R1610K C11104 Vref C13104W210K R12220R R1339K C15104 VDD R18330R R19220R VDD U2KA431 Vref W310K SW2 R Chg RGND BatV VDD R1100R C1102 BT3 3.7V,LI-PO Q4S8550 Q3 S8550 D11N4007 R112R/1206 Chg Q58050D R15 2.2k R142.2k VCC R8 10K R6100kR10100k C10 104 BatV BT1 4.5V BT2 4.5V VDD VCC 2 31 SW1ON/OFF TxD VDD C19104 C17 100uF/16V C18104 TRIM TRIM R172.2k SW3 L R2 100R Q28050D Q1C380Y R20180 R212R/1206 R2410K R2310K VDD Q68050D C21102 L4 1.5uH Q7S8550 R264.7k R2710k TxD VCC P64 P64 D2Green D3Red C22102 R284.7k Vref

FCC TEST REPORT Page 1 of 21 FCC ID : QE844XXXTX27 Applicant : Interactive Toy Concepts(HK) Ltd. 7/F.,Eu Yan San Tower, 11-15 Chatham Road South, TST, Kowloon, Hong Kong Equipment Under Test (EUT) : Product description : R/C Airplane Model No. : 44005 Standards : FCC 15 Subpart C Paragraph 15.227 Date of Test : January 11, 2007 Test Engineer : Tiger Su Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 8C,West Tower, Aidi Building, No.5003 Binhe Rd, Futian District, Shenzhen518045, Guangdong, China. Tel: 86-755-83551033 Fax: 86-755-83552400 Interactive Toy Concepts(HK) Ltd. FCC ID: QE844XXXTX27 Page 2 of 21 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................5 4 GENERAL INFORMATION..................................................................................................................................6 4.1 CLIENT INFORMATION............................................................................................................................................6 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................6 4.3 DETAILS OF E.U.T. .................................................................................................................................................6 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................6 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................6 4.6 TEST FACILITY........................................................................................................................................................7 4.7 TEST LOCATION......................................................................................................................................................7 5 EQUIPMENT USED DURING TEST ...................................................................................................................8 6 CONDUCTED EMISSION TEST ..........................................................................................................................9 6.1 TEST EQUIPMENT....................................................................................................................................................9 6.2 TEST PROCEDURE...................................................................................................................................................9 6.3 CONDUCTED TEST SETUP.....................................................................................................................................10 6.4 EUT OPERATING CONDITION...............................................................................................................................10 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................11 6.6 CONDUCTED EMISSION TEST RESULT...................................................................................................................11 7 RADIATION EMISSION TEST...........................................................................................................................12 7.1 TEST EQUIPMENT..................................................................................................................................................12 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................12 7.3 TEST PROCEDURE.................................................................................................................................................12 7.4 RADIATED TEST SETUP.........................................................................................................................................13 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................13 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................14 7.7 SUMMARY OF TEST RESULTS................................................................................................................................14 7.8 EUT OPERATING CONDITION...............................................................................................................................15 7.9 RADIATED EMISSIONS LIMIT.................................................................................................................................15 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................16 7.11 RADIATED EMISSION TEST DATA.....................................................................................................................16 8 OCCUPIED BANDWIDTH ..................................................................................................................................17 8.1 TEST PROCEDURE.................................................................................................................................................17 9 PHOTOGRAPHS OF TESTING.....................................................................................…

Text truncated - open the document above for the full version.

Radiation Emission Test View
