QE9LD-6THAIP Tag

Quuppa LD-6T User Guide 1 Contents 1.Introduction................................................................................................3 2.Get started.................................................................................................4 Features......................................................................................................4 Start using Quuppa LD-6T...........................................................................5 Activate Quuppa LD-6T.....................................................................................5 Attach Quuppa LD-6T to a locatable object......................................................5 Reset Factory Settings................................................................................5 3.Product information....................................................................................6 Waterproof casing.......................................................................................6 Battery........................................................................................................6 Technical data.............................................................................................6 4.Care and Maintenance...............................................................................7 Recycle.......................................................................................................7 5.Copyright and other notices.......................................................................8 2 Quuppa LD-6T User Guide© 2013 Quuppa 1.Introduction Quuppa LD-6T (HAIP Tag) is part of the Quuppa HAIP System. Other parts of the Quuppa HAIP System are Quuppa LD-6L (HAIP Locator) and Quuppa Positioning Engine software. The HAIP System allows you to locate and track any objects equipped with HAIP Tags in an environment equipped with HAIP Locators. Watch the Quuppa Site Planner and Quuppa Deployment tutorial videos before starting to use the HAIP system. For the latest guides, additional information, and downloads related to your Quuppa product, go to www.quuppa.com/support. This product may contain small parts. Keep them out of reach of small children. 3 Quuppa LD-6T User Guide© 2013 Quuppa 2.Get started Features 1.Mounting hole 2.Reset button 3.Waterproof casing 4 Quuppa LD-6T User Guide© 2013 Quuppa Start using Quuppa LD-6T Activate Quuppa LD-6T Before using Quuppa LD-6T, you must activate it and configure it for your HAIP System. 1. Press the reset button for one second to activate Quuppa LD-6T 2. Within 30 seconds, send a configuration command to the Quuppa LD-6T. For details, see Quuppa Deployment tutorial video. Attach Quuppa LD-6T to a locatable object Tie Quuppa LD-6T to a locatable object through the mounting holes by using a cable tie. WARNING: Never attach Quuppa LD-6T to hot surfaces. IMPORTANT: For optimal operation do not attach Quuppa LD-6T on to a large metal surface. Reset Factory Settings To reset factory settings, press and hold the reset button for 10 seconds. 5 Quuppa LD-6T User Guide© 2013 Quuppa 3.Product information Waterproof casing Quuppa LD-6T is protected against water until 1 meter of depth for maximum of 30 minutes. Battery Quuppa LD-6T has an in-built CR2032 battery. In normal operation the battery will last for several years. The battery charge level can be monitored using the HAIP system. Once the battery is empty Quuppa LD-6T has to be recycled properly. Do not attempt to open the casing to replace the battery. WARNING: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORIDNG TO THE INSTRUCTIONS. Technical data •Operating frequency range: 2400...2483 MHz •Maximum transmit power: +7 dBm EIRP •Operating temperature range: 0°C...+60°C •Storage temperature range: –30°C...+70°C •IP protection class: IP57 •Dimensions: 44 mm × 31 mm × 8 mm •Weight: 10g 6 Quuppa LD-6T User Guide© 2013 Quuppa 4.Care and Maintenance Quuppa LD-6T is a product of superior design and craftmanship and should be treated with care. The following suggestions will help you protect your warranty coverage. •Do not attempt to open the device. •Do not sink the device in deep water (> 1m). •Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. Only use water and soap or a dry cloth to clean the surface of the device. •Do not paint device. •Keep the device out of reach of small children. Recycle Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials. The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies in the European Union. Do not dispose of these products as unsorted municipal waste. 7 Quuppa LD-6T User Guide© 2013 Quuppa 5.Copyright and other notices DECLARATION OF CONFORMITY Hereby, Quuppa Oy declares that this Quuppa LD-6T product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.quuppa.com/declaration-of-conformity © 2013 Quuppa. All rights reserved. FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio fr…

Text truncated - open the document above for the full version.

Qrrppo Date: July 11, 2013 Federal Communications Commission Authorization and Evaluation Division Subject: Short-term confidentiati§ request regarding application for certiication of FCC lD: QE9LD-67 Pursuant to DA 04-1705 of the Commission's public notice, we request short-term confidential treatment for the fuflowing information untilAug 24,mtg in order to ensure sensitive business information remains confidential until the actual marketing of the device. ErternolPhotas Test setup photos User's Monual lnterndl Photos Sincerely yours, Sincerely yours, Antti Koinuloinen Iitle: Chief Technology Officer E-Moil: [email protected] Tel.: +358 5A 4862746

Qrrppo Dote: July 11,2013 Federol Communicotions Commission Aulhorizotion ond Evoluotion Division Confidentiolity Request FCC ID: QE9ID.6T Pursuont to Sections 0.457 ond 0.459 of the Commission's Rules, the Applicont hereby requests confidentiol treotment of informotion occomponyrng this Applicotion os outlined below: Schemotics Block Diogrom The obove moteriols contoin trode secrets ond proprietory informotion not customorily releosed to the public. The public disclosure of these motters might be hormful to the Applicont ond provide unjustified benefits to its competitors. The Appliconl understonds ihol pursuont to Rule 0.457, disclosure of this Applicotion ond oll qccomponying documentotion will not be mode before the dote of the Gront for this opplicotion. Sincerely yours, Antti Koinuloinen Title: Chief Technology Officer E-Moil: [email protected] Tel.: +358 50 4862746

Qrrppo Power of Attorney Dote: July I 1, 2013 To whom it moy concem: We, the undenigned Quuppa Oy hereby outhorize Bureou Veritos Consumer Products Services (H.K.) Ltd.. Tooyuon Bronch (BV CPS Tooyuon Bronch) of Toiwon to oct on our beholf in oll motters reloling to oll processes required in the FCC Port I5C opprovolond ony communicotion needed with the nolionol outhority. Any ond ollocts conied out by BV CPS Tooyuon Bronch on our beholf sholl hove the some effects os octs of our own. lf you hove ony questions regording the outhorizotion, pleose don't hesitote to contoct us. Thonk you! Sincerely yours, Antli Koinuloinen Title: Chief Technology Officer E-Moil : ontli.kqin uloinen @ouuooo.com Tel.: +358 50 4862746

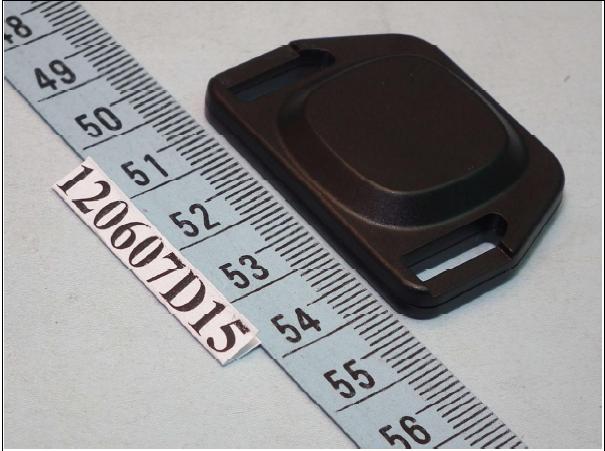

Page: 1

Page: 2 Page: 3

FCC ID: QE9LD-6T Report No.: RF120607D15B Operational Description The transmitter of the EUT (HAIP Tag) is powered by 3Vdc from battery. The type of antenna is Printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No: SA120607D15B 1 of 6 Report Format Version 5.0.0 Reference No.: 130711D06 RF EXPOSURE REPORT REPORT NO.: SA120607D15B MODEL NO.: LD-6T FCC ID: QE9LD-6T RECEIVED: Jul. 11, 2013 TESTED: Jul. 14 ~ 23, 2013 ISSUED: Jul. 24, 2013 APPLICANT: Quuppa Oy ADDRESS: Otaniementie 19, FI-02150 Espoo, FINLAND ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City 244, Taiwan (R.O.C.) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No: SA120607D15B 2 of 6 Report Format Version 5.0.0 Reference No.: 130711D06 TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION .............................................................................................. 4 2. EVALUATION RESULT ................................................................................... 5 3. SAR TEST EXCLUSION THRESHOLDS ......................................................... 6 4. CONCLUSION ................................................................................................. 6 Report No: SA120607D15B 3 of 6 Report Format Version 5.0.0 Reference No.: 130711D06 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120607D15B Original release Jul. 24, 2013 Report No: SA120607D15B 4 of 6 Report Format Version 5.0.0 Reference No.: 130711D06 1. CERTIFICATION PRODUCT: HAIP Tag BRAND NAME: Quuppa MODEL NO.: LD-6T APPLICANT: Quuppa Oy TESTED: Jul. 14 ~ 23, 2013 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Jul. 24, 2013 ( Jessica Cheng / Specialist ) APPROVED BY : , DATE: Jul. 24, 2013 ( Ken Liu / Senior Manager) Report No: SA120607D15B 5 of 6 Report Format Version 5.0.0 Reference No.: 130711D06 2. EVALUATION RESULT Following FCC KDB 447498 D01 “General SAR test exclusion guidance” The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where ÿ f(GHz) is the RF channel transmit frequency in GHz . ÿPower and distance are rounded to the nearest mW and mm before calculation. ÿThe result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2) At 100 MHz to 6 GHz and for test separation distances > 50 mm, the SAR test exclusion threshold is determined according to the following: a) [Threshold at 50 mm in step 1) + (test separation distance - 50mm)·( f(MHz)/150)] mW, at 100MHz to 1500 MHz b) [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz 3) At frequencies below 100 MHz, the following may be considered for SAR test exclusion. a) The threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f(MHz))] for test separation distances > 50 mm and < 200 mm. b) The threshold determined by the equation in a) for 50 mm and 100 MHz is multiplied by ½ for test separation distances ≤ 50 mm. c) SAR measurement procedures are not established below 100 MHz. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any test results to be acceptable. Report No: SA120607D15B 6 of 6 Report Format Version 5.0.0 Reference No.: 130711D06 3. SAR TEST EXCLUSION THRESHOLDS Maximum measured transmitter power: Frequency (GHz) Max. Power (mW) Min. test separation distance (mm) SAR test exclusion calculation value (NOTE 2) 1-g SAR test exclusion thresholds Result 2.401 ~ 2.481 2.6 5 0.806 3 Pass NOTE: 1. The antenna type is Printed antenna with 0 dBi gain. 2. Calculate SAR test exclusion thresholds from condition “1” formulas. 4. CONCLUSION Since Source-base time average power is below SAR test exclusion power thresholds, the SAR evaluation is no…
