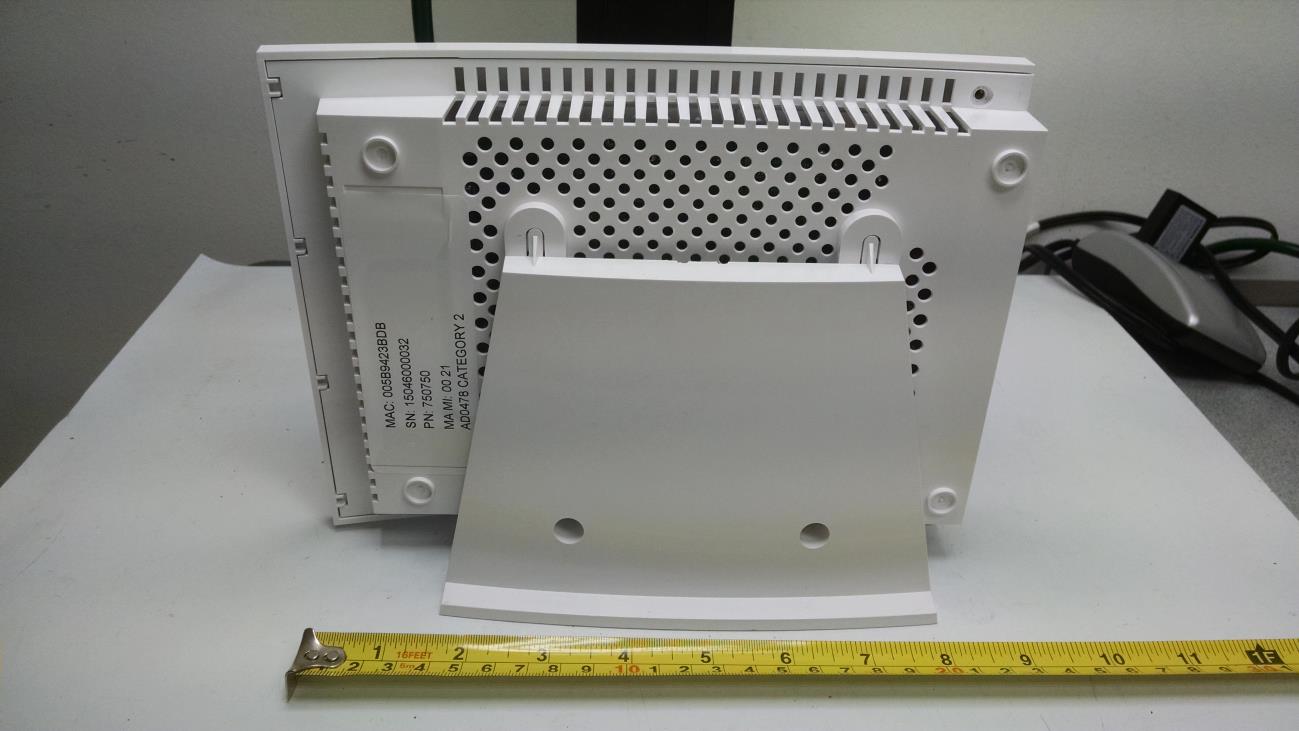

QHY-S1000-RPTD-LTE and Dual-Band Wi-Fi Small Cell

DRAFT User Guide Release 1.0 Document Number: 913109 Document Revision: 10.01 Date: June 2015 S1000 ii913109 10.01 June 2015 D R A F T Copyright 2015 Airvana LP. All rights reserved. Airvana is a registered trademark of Airvana LP (“Airvana”). All other trademarks are trademarks of their respective owners. This document contains information that is the property of Airvana . This document may not be copied, reproduced, reduced to any electronic medium or machine readable form, or otherwise duplicated, and the information herein may not be used, disseminated or otherwise disclosed, except with the prior written consent of Airvana. THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS. THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR AIRVANA SALES REPRESENTATIVE FOR A COPY. S1000 User Guide, Release 1.0 iii D R A F T Contents Introduction Getting Started What’s in the box .......................................................................................................... 2 Setup at a glance ........................................................................................................... 3 Setting up your S1000................................................................................................... 4 External GPS antenna setup.......................................................................................... 7 When is your S1000 ready to use?................................................................................ 9 Setting up optional components PC or LAN Router Setup ............................................................................................ 11 Configuring the S1000 Router .................................................................................... 11 Adding your ISP User Name and Password ............................................................... 12 Using S1000 How the S1000 works ................................................................................................. 15 How data goes over the Internet ................................................................................. 17 Maintenance ................................................................................................................ 17 Troubleshooting Troubleshooting installation problems........................................................................ 18 Resetting the S1000 .................................................................................................... 19 LED quick reference ................................................................................................... 20 Using LEDs................................................................................................................. 21 Using LEDs to diagnose Errors and Faults................................................................. 23 FAQs ...........................................................................................................................25 Why does the S1000 need a GPS antenna? .......................................................... 25 Why does the S1000 need an external GPS antenna? .......................................... 25 What happens to the S1000 if there is a power outage or if you lose Internet  access? .................................................................................................................. 25 Can you move the S1000 to another location?..................................................... 25 I have a DSL modem and cannot connect to the Internet .................................... 25 My Internet connection is slow when my laptop is connected to the S1000 ....... 25 Getting help................................................................................................................. 27 Safety information General precautions .................................................................................................... 28 FCC information ......................................................................................................... 28 ! FCC radiation exposure statement ..................................................................... 28 FCC Part 15 .......................................................................................................... 29 Contents iv913109 10.01 June 2015 D R A F T List of tables Device Management System Software Installation, Release 1.01 D R A F T List of tables Table 1LED color key ....................................................................................... 1 Table 2LED states during S1000 boot sequence ............................................... 9 Table 3LED usage and description ................................................................. 21 Table 4LED error and fault conditions............................................................ 23 List of tables 2913101 10.36 May 2015 D R A F T S1000 User Guide, Release 1.01 DR AFT Introduction This User Guide introduces you to the Airvana S1000 service and all its features. It’s divided into five sections: •Getting Started on page 1-2 •Setting up optional components on page 1-11 •Using S1000 on page 1-15 •Troubleshooting on page 1-18 •Safety information on page 1-28 Throughout this guide, you’ll find tips and techniques that help you make the most of your new device and service. It is important that you read each section and note any special requirements. However, if you’d like to get right to a specific feature, simply locate that section in th…

Text truncated - open the document above for the full version.

Request for Confidentiality for FCC To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB One Distribution Center Circle, #1 Littleton, MA 02702 Re: Confidentiality Request Gentlemen: 06115/2015 This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Airvana LLC requests that the following documents regarding this submission for FCC ID QHY-RP-S1000 be kept confidential: 1. Schematics 2. Block Diagram 3. Circuit/Technical Description 4. Parts List/Bill of Materials The material above contains technical data, which would customarily be guarded from competitors. Pursuant to Public Notice DA 04-1705, Airvana requests SHORT-TERM CONFIDENTIALITY for the following information until < 180> days after the grant date of equipment authorization in order to ensure sensitive business information remains confidential until marketing of the device: External Photos Internal Photos Test Setup Photos User's Manual} The reason for the short term confidentiality is such that photos, user manuals, and other information contain customer specific information that our customer wishes to remain 7E.. entia l. " Sincerely, Kevin Craig Compliance Engineer 06115/2015 250 Apollo Drive, Chelmsford, MA 01824 USA' Phone: 978-250-4455' Fax 978-250-2721 • www.airvana.com

UNLESS OTHERWISE SPECIFIED -INTERPRET PER ASME Y14.5M 1994 -ALL DIMENSIONS IN INCHES -DO NOT SCALE DRAWING THIRD ANGLE PROJECTION LABEL; FCC PART 15; NSC; C5000 THIS DOCUMENT CONTAINS INFORMATION WHICH IS THE EXCLUSIVE PROPERTY OF AIRVANA INC.. DISTRIBUTION, REPRODUCTION OR USE BY OTHERS IS NOT PERMITTED WITHOUT THE EXPRESS WRITTEN CONSENT OF AIRVANA INC. SIZEDRAWN BYPART NUMBERREV AK. CRAIG61016801 SCALE NONE CAD GENERATED DRAWINGSHEET 1 OF 2 TOLERANCES UNLESS OTHERWISE SPECIFIED X.X.XX.XXXANGLES INCHESN/A0.10.03 0.01 5 1° MATERIAL: FINISH: NOTE 1 REV.DESCRIPTIONDATEBY 01INITIAL ENGINEERING RELEASE04-15-2015KEC D C B A 4321 D C B A 4321 AIRVANA 250 Apollo Drive Chelmsford, MA 01824 (978) 250-4455 Notes: 1. Material: Label stock, Brady B483 Ribbon resin, R6007 2. Material and process used for fabrication of this part must be RoHS compliant Actual Size 1.125 0.400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QHY-S1000-RP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QHY-S1000-RP SCALE 2/1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QHY-S1000-RP M o d e l : C 5 0 0 0 R a t i n g : 1 2 V 2 . 5 A M a d e i n M e x i c o , M a r 2 0 1 5 8 0 0 2 3 8 - 0 0 - 0 1 S S I D - S P R I N T N S C - 1 1 B 7 D C N e t w o r k K e y - 1 1 0 2 7 0 0 4 3 0 7 X X X X

2.5–2.69 GHz US-WiMAX Ceramic Chip Antenna Ground cleared under antenna. Pulse Part Number: W3020 © 2006 All Rig hts Reserved. W3020 Datasheet version 1.1. 10/2006 Featur es - Omnidirectional radiation - L ow pr ofile - C ompact size W x L x H (3.2 x 1.6 x 1.1 mm) - L ow weight (33 mg) - F ully SMD compatible - L ead free soldering compatible - T ape and reel packing - R oHS compliant Applications - Devices using WiMAX - 2 .5–2.69 GHz Engineering samples available Q4/2006 Elec trical specifications @ +25 ̊C Note: Electrical charact eristics depend on test board (GP) size and antenna positioning on GP and Ground Clearance area size. -40 to +85 Freq uency Ran ge [MHz] Efficiency [%] / [dB] Return Loss min. [dB] Impedance [Ω] Operating Temperature [°C] 2500 – 2690 80 / -1 (peak) 60 / -2.25 (band edges) -5.550 US-W iMAX 2.5-2.69 G Hz Typical perfo rmance (testboard size 80 x 35 mm, PWB ground clearance area 4.0 x 6.25 mm) Max Gain [dBi] 2.8 (peak) 1 (band edges ) Pulse Antennas Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax:+358 207 935 501 www.pulseeng.com/antennas 2.5–2.69 GHz US-WiMAX Ceramic Chip Antenna Ground cleared under antenna Typical Electric al C har acteristics (T=25 °C) Typical Return Loss S11/ impedance, measured on the test board Free space efficiency and maximum gain 0.0 -1.0 -2.0 -3.0 -4.0 -5.0 -6.0 90 % 80 % 70 % 60 % 50 % 40 % 30 % 20 % Freq [MHz ] Rad Eff [%] Rad Eff [dB] Rad Eff [%] Rad Eff [dB] WiMAX 2.5–2.69 GHz 2470 2500251025202530 2540 255025602570258025902600261026202630 2640 265026602670268026902720 Freq [MHz ] Max Gain Max Ga in [dBi] WiMAX 2.5–2.69 GHz 2470 2500251025202530 2540 255025602570258025902600261026202630 2640 265026602670268026902720 4.0 3.0 2.0 1.0 0.0 -1.0 -2.0 CENTER 2 600.000 000 MHz SPAN 800.000 000 MHz Cor PRm CH1Markers 1.-6.7176 dB2.50000 MHz 2. -17.209 dB 2 600.000 000 MHz 3.-6.7182 dB2.69000 GHz 19 O ct 2006 13:44:11 WiMAX 2.6 GHz 5 d B/REF 0 dB CH1 S11&MLOG 1 2 3 zHM 000 000.008 NAPSzHM 000 000.006 2 RETNEC 1.90.996 Ω56.090 Ω2.50000 GHz 2. 41.742 Ω-9.4199 Ω6.4983 pF 2 600.000 000 MHz 3.18.850 Ω6.4639 Ω2.69000 GHz CH1Markers CH1S11 & M1U FS PRm Del Cor 10 Oct 2006 13:45:54 WiMAX 2.6 GHz 1 2 3 © 2006 All Rig hts Reserved. W3020 Datasheet version 1.1. 10/2006 Pulse Antennas Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax:+358 207 935 501 www.pulseeng.com/antennas XZ-PLANEZY-PLANE XY-PLANE 2.5–2.69 GHz US-WiMAX Ceramic Chip Antenna Ground cleared under antenna, clearance area 4.00 x 6.25 mm Typical Fre e Space Radiation Patterns X+: o (Phi) = 0º Y+: o (Phi) = + 90º Z+: 0 (Theta ) = 0º © 2006 All Rig hts Reserved. W3020 Datasheet version 1.1. 10/2006 Pulse Antennas Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax:+358 207 935 501 www.pulseeng.com/antennas

. Preliminary (06/07) © 2007. All Rights Reserved. Dualband WLAN Ceramic Chip Antenna Groun d c leared under a ntenna 1 1.60 x 6.00 mm. P ul se Part Number: W3006 Pulse Finland Oy Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax: +358 207 935 501 www.pulseeng.com/antennas Featur es - Omnidirectional radiation - Lo w - Compact size WxLxH (10.0 x 3.2 x 1.5 mm) - Lo w w eight (240 mg) - Fully SMD compatible - Lead free soldering compatible - T ape and reel packing - RoHS Compliant Product - Single feed point Applications - IEEE 802.11a/b/g - 5 GHz WLAN - 2.4 GHz WLAN - 2.4 GHz ISM Band Systems - ZigBee IEEE 802.15.4 Note: Electrical characteristics depend on test board (GP) size and antenna positioning on GP and Ground Clearance area size. Dualband WLAN Typical performance (testboard size 80 x 37 mm, PWB ground clearance area 11.60 x 6.00 mm) 1.5nH shunt inductor used for impedance matching. Frequency Range [MHz] 2400–2483.5 5150–5850 Max Gain [dBi] 3.2 (peak) 2.7 (band edges) 4.2 (peak) 3.0 (band edges) [%] / [dB] 70 / -1.55 (peak) 65 / -1.85 (band edges) 80 / -0.95 (peak) 70 / -1.55 (band edges) Return loss min. [dB] -8 -10 Impedance [Ω] 50 50 Operating Temperature [°C] -40 to +85 -40 to +85 © 2007. All Rights Reserved. Dualband WLAN Ceramic Chip Antenna Groun d c leared under a ntenna 1 1.60 x 6.00 mm. P ul se Part Number: W3006 Pulse Finland Oy Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax: +358 207 935 501 www.pulseeng.com/antennas Recommended test board layout for electrical characteristic measurement, test board outline size 80 x 37mm Feed line should be designed to match 50 Ω characteristic impedance, depending on PWB material and thickness. Shunt matching inductor, 1.5nH with presented setup. Exact inductor value depends on application. © 2007. All Rights Reserved. Dualband WLAN Ceramic Chip Antenna Groun d c leared under a ntenna 1 1.60 x 6.00 mm. P ul se Part Number: W3006 Pulse Finland Oy Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax: +358 207 935 501 www.pulseeng.com/antennas Typical Electrical Characteristics (T=25 °C) 2,4 GHz Typical Return Loss S11/ impedance, measured on the test board 5GHz Typical Return Loss S11/ impedance, measured on the test board

© 2007. All Rights Reserved. Dualband WLAN Ceramic Chip Antenna Groun d c leared under a ntenna 1 1.60 x 6.00 mm. P ul se Part Number: W3006 Pulse Finland Oy Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax: +358 207 935 501 www.pulseeng.com/antennas 2,4 GHz free space and maximum gain 5 GHz free space and maximum gain © 2007. All Rights Reserved. Dualband WLAN Ceramic Chip Antenna Groun d c leared under a ntenna 1 1.60 x 6.00 mm. P ul se Part Number: W3006 Pulse Finland Oy Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax: +358 207 935 501 www.pulseeng.com/antennas XY -PLANE XZ-PLANEZY -PLANE 2,4 GHz Typical F ree space Radiation Patterns © 2007. All Rights Reserved. Dualband WLAN Ceramic Chip Antenna Groun d c leared under a ntenna 1 1.60 x 6.00 mm. P ul se Part Number: W3006 Pulse Finland Oy Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax: +358 207 935 501 www.pulseeng.com/antennas XZ-PLANE 5 GHz Typical Free space Radiation Patterns ZY -PLANE XY -PLANE

Airvana NSC Antenna performance report on final PCB May 22 nd , 2015 2 Confidential 22.05.2015 Jouni Lifländer Antenna cabeling and antenna locations B41 antennas WLAN antennas Ant #1 Ant #2 Ant #3 Ant #4 3 Confidential 22.05.2015 Jouni Lifländer Close-up pics on antenna areas 4 Confidential 22.05.2015 Jouni Lifländer Return loss of the WLAN antennas WLAN #1 WLAN #2 5 Confidential 22.05.2015 Jouni Lifländer Return loss of the B41 antennas B41 #3 B41 #4 6 Confidential 22.05.2015 Jouni Lifländer Antenna port isolation S12 S34 7 Confidential 22.05.2015 Jouni Lifländer Antenna port isolation, cont. S13 S14 S23 S24 8 Confidential 22.05.2015 Jouni Lifländer Antenna performance, efficiency 0 % 10 %20 %30 %40 %50 %60 %70 %80 % 2350 2390 2430 2470 2510 2550 2590 2630 2670 2710 5120 5180 5240 5300 5360 5420 5480 5540 5600 5660 5720 5780 5840 5900 Efficiency [%] Frequency [MHz] Total efficiency, WLAN antennas Ant#1 Ant#2 WLAN band 0 % 10 %20 %30 %40 %50 %60 %70 %80 % 2350 2370 2390 2410 2430 2450 2470 2490 2510 2530 2550 2570 2590 2610 2630 2650 2670 2690 2710 2730 Efficiency [%] Frequency [MHz] Total efficiency, B41 antennas Ant#3 Ant#4 B41 9 Confidential 22.05.2015 Jouni Lifländer -5 -4,5 -4 -3,5 -3 -2,5 -2 -1,5 -1 -0,5 0 2350 2370 2390 2410 2430 2450 2470 2490 2510 2530 2550 2570 2590 2610 2630 2650 2670 2690 2710 2730 Efficiency [%] Frequency [MHz] Average 3D gain, B41 antennas Ant#3 Ant#4 B41 Antenna performance, average gain -7 -6,5 -6 -5,5 -5 -4,5 -4 -3,5 -3 -2,5 -2 -1,5 -1 -0,5 0 2350 2390 2430 2470 2510 2550 2590 2630 2670 2710 5120 5180 5240 5300 5360 5420 5480 5540 5600 5660 5720 5780 5840 5900 Efficiency [%] Frequency [MHz] Average 3D gain, WLAN antennas Ant#1 Ant#2 WLAN band 10 Confidential 22.05.2015 Jouni Lifländer Antenna performance, max gain 0 0,5 1 1,5 2 2,5 3 3,5 4 4,5 5 5,5 6 6,5 7 2350 2370 2390 2410 2430 2450 2470 2490 2510 2530 2550 2570 2590 2610 2630 2650 2670 2690 2710 2730 Efficiency [%] Frequency [MHz] Max 3D gain, B41 antennas Ant#3 Ant#4 B41 2 2,5 3 3,5 4 4,5 5 5,5 6 6,5 7 2350 2390 2430 2470 2510 2550 2590 2630 2670 2710 5120 5180 5240 5300 5360 5420 5480 5540 5600 5660 5720 5780 5840 5900 Efficiency [%] Frequency [MHz] Max 3D gain, WLAN antennas Ant#1 Ant#2 WLAN band 11 Confidential 22.05.2015 Jouni Lifländer Radiation patterns, WLAN ant #1 Phi 0° -cut Phi 90° -cut Theta 90° -cut 12 Confidential 22.05.2015 Jouni Lifländer Radiation patterns, WLAN ant #2 Phi 0° -cut Phi 90° -cut Theta 90° -cut 13 Confidential 22.05.2015 Jouni Lifländer Radiation patterns, B41 ant #3 Phi 0° -cut Phi 90° -cut Theta 90° -cut 14 Confidential 22.05.2015 Jouni Lifländer Radiation patterns, B41 ant #4 Phi 0° -cut Phi 90° -cut Theta 90° -cut

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5150-5250 MHz; Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR2 or R = √PG / 4πS where, S = Power Density P = Power Input to antenna=24.46 dBm (279.254 mW) G = Antenna Gain 3.2 dBi (2.09 linear) R = Minimum Distance between User and Antenna (20cm) S = (2.09*279.254 )/(4*3.14*400 ) = 0.116 mW/cm2 Since S < 1 mW/cm2, the minimum distance (R) is 20cm

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5.25-5.35 GHz and 5.47-5.725 GHz; highest conducted power = 23.90dBm (Avg) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (<1 mW/cm 2 ) P = Power Input to antenna (245.47 mW) G = Antenna Gain (3.2 dBi, 2.09 numeric) R = Minimum Distance between User and Antenna (20 cm) S = (245.47*2.09)/ (4*3.14*20 2 ) = 0.102 mW/cm 2 Since S < 1 mW/cm 2 , the minimum distance (R) is 20cm

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz; Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR2 or R = √PG / 4πS where, S = Power Density P = Power Input to antenna =24.40 dBm = 275.42 mW G = Antenna Gain 3.2 dBi (2.09 linear) R = Minimum Distance between User and Antenna (20 cm) S = (275.42*2.09)/(4*3.14*400 ) = 0.114 mW/cm2 Therefore the uncontrolled exposure limit is achieved at 20 cm.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408) 748-3585 ● FAX (510) 489-6372 13501 MCCALLEN PASS ● AUSTIN, TX 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory July 15, 2015 Airvana 250 Apollo Drive Chelmsford, MA 01824 Dear Gary Falk, Enclosed is the EMC Wireless test report for compliance testing of the Airvana, Small Cell Type as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Title 47 of the CFR, Part 15.407, Subpart E (UNII 1) for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Airvana\ EMC85068-FCC407 UNII 1 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408) 748-3585 ● FAX (510) 489-6372 13501 MCCALLEN PASS ● AUSTIN, TX 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 MET Report: EMC85243-FCC407 UNII 1 © 2015, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Airvana Model Small Cell Type Tested under The FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 for Intentional Radiators MET Report: EMC85068-FCC407 UNII 1 Rev. 1 July 15, 2015 Prepared For: Airvana 250 Apollo Drive Chelmsford, MA 01824 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Airvana Introduction Small Cell Type CFR Title 47, Part 15.407 Subpart E (UNII 1) MET Report: EMC85068-FCC407 UNII 1 Rev. 1 © 2015, MET Laboratories, Inc. Page ii of vii Electromagnetic Compatibility Criteria Test Report for the Airvana Model Small Cell Type Tested under The FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 for Intentional Radiators Benjamin Taylor, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15B, 15.407, of the FCC Rules under normal use and maintenance. Asad Bajwa, Director, Electromagnetic Compatibility Lab Electromagnetic Compatibility Airvana Introduction Small Cell Type CFR Title 47, Part 15.407 Subpart E (UNII 1) MET Report: EMC85068-FCC407 UNII 1 Rev. 1 © 2015, MET Laboratories, Inc. Page iii of vii Report Status Sheet Revision Report Date Reason for Revision  June 29, 2015 Initial Issue. 1 July 15, 2015 Revisions based on TCB review. Electromagnetic Compatibility Airvana Table of Contents Small Cell Type CFR Title 47, Part 15.407 Subpart E (UNII 1) MET Report: EMC85068-FCC407 UNII 1 Rev. 1 © 2015, MET Laboratories, Inc. Page iv of vii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................5 E. Equipment Configuration ....................................................................................................................................6 F. Support Equipment .............................................................................................................................................6 G. Ports and Cabling Information ............................................................................................................................7 H. Mode of Operation ..............................................................................................................................................7 I. Method of Monitoring EUT Operation .............................................…
