QHYHUBBUBC1600-RTFemtocell

User Guide Copyright © Airvana, Inc. 2010 User Guide, Release 2.5, 910702, Rev02.04, Draft, January 2010 The Airvana Technical Publication team welcomes your questions and comments about the documentation. Please send your feedback to: [email protected] — 3 — D R A F T Contents How AIRAVE works ................................................. 5 Setting up AIRAVE................................................... 6 Checking AIRAVE’s status ....................................... 8 Troubleshooting ..................................................... 10 Setup at a glance................................................... 11 Configuring the AIRAVE router .............................. 12 FAQ........................................................................ 20 AIRAVE care.......................................................... 21 Safety information .................................................. 22 FCC notices ........................................................... 23 Your broadband connection speed ........................ 24 Product specification.............................................. 25 Need help? ............................................................ 28 — 4 — D R A F T — 5 — D R A F T How AIRAVE works AIRAVE™ is a femtocell, a personal base station with a radio unit that is similar to a cell tower radio. Femtocells use a low-power antenna to transmit voice and data cellular signals in your home or small office. Femtocells give you better cellular coverage, which means a stronger signal and improved voice quality. Also, data applications on smartphones, such as mobile e-mail devices, work faster. AIRAVE connects to your mobile operator’s network through your broadband internet connection. Outgoing calls go from AIRAVE over a secure connection to your mobile operator; incoming calls reverse this route. If you have subscribed to VoIP phone service, you can use the Analog Telephone Adaptor (ATA) component in AIRAVE. This component converts a telephone message to a digital message and sends it over the Internet as Voice over IP (VoIP). How calls go over the internet AIRAVE Wireless devices Te l e p h o n e Broadband router/modem Internet service provider Internet Mobile operator(Cable, DSL, fiber optic) — 6 — D R A F T Setting up AIRAVE NOTE: See the Getting Started poster for detailed illustrations on setting up AIRAVE. 1Place AIRAVE near an exterior window and near your broadband modem/router. NOTE: Do not place AIRAVE: •Within two feet of major electrical appliances. •In direct sunlight. •Within two feet of heat or a heating device. 2Connect one end of the yellow Ethernet cable (supplied) to an open LAN port on your broadband modem/router. Connect the other end of the Ethernet cable to AIRAVE’s yellow WAN port. 3Connect the power adapter (supplied) to AIRAVE’s base, and then plug the power adapter into an electrical outlet. Check what’s in the box: AIRAVEExternal GPS antenna Ethernet cablePower adapter (AC100V) Getting Started & User Guide — 7 — D R A F T 4Observe AIRAVE’s LEDs as it starts up: •All indicators light up. •Broadband, Mobile, and GPS blink and then turn solid green when the component is ready. •VoIP Phone only lights up if you have subscribed for phone service. •Voicemail will light up later when a message is available. 5If the GPS LED does not light up after 30 minutes, use the external GPS antenna. aConnect the external GPS antenna to AIRAVE. bPlace the external GPS antenna horizontally on a flat surface as close to a window as possible. The antenna works best in an open area where it can easily pick up signals. NOTE: Allow up to two hours for AIRAVE to be ready the first time you use it. When Broadband, GPS, and Mobile are solid green, AIRAVE is ready for use. 6Optionally, connect a computer or a home router to the AIRAVE LAN ports. NOTE: Always connect the home router to AIRAVE. Do not connect it to the broadband modem/router. 7Optionally, connect your telephone to the AIRAVE phone port. NOTE: It may take AIRAVE up to 30 minutes to pick up a GPS signal the first time you power it on. Subsequent startups take 10 minutes or less. Broadband GPS Mobile VoIP Phone Voicemail — 8 — D R A F T Checking AIRAVE’s status The following LEDs convey AIRAVE’s status. See “Troubleshooting” on page 10 for other indicator behavior. . IndicatorColorSolid colorSlow blinkFast blinkOff Voicemail GreenN/AMessage waitingN/ANo message Vo I P P h o n e GreenReadyAttempting to access service N/AYou have not subscribed to VoIP phone service Amber Power on self test (POST) failed or hardware problem Service down has lasted 30 minutes Service not available in that location or for that user Service not available Mobile GreenReadyService down or starting up Active; at least one call in progress Service not available AmberPOST failed or hardware problem Service down has lasted 45 minutes N/AService not available GPS GreenGPS location and timing available Acquiring a lockN/AN/A AmberPOST failed or hardware problem N/AN/AN/A — 9 — D R A F T Broadband GreenConnected to the internet Acquiring connectivity or starting up N/AN/A AmberPOST failed or hardware problem Service down has lasted 30 minutes N/ANo power or LED is defective All AmberAIRAVE cannot pass a hardware self test. Call Customer Support as described in “Need help?” on page 28. IndicatorColorSolid colorSlow blinkFast blinkOff — 10 — D R A F T Troubleshooting If this LED...Displays...Take this action... Vo I P P h o n eSlow blink green If this persists, call Customer Support as described in “Need help?” on page 28. Solid amber Plug the telephone line into a cordless phone and restart AIRAVE. You must cancel your land line service to plug AIRAVE directly into a telephone wall socket. If you have not canceled your land line service and you plug a telephone line from AIRAVE directly into a phone socket in the wall, AIRAVE’s phone service will not work. BroadbandSlow blink green Load a new web page on your PC to test for…

Text truncated - open the document above for the full version.

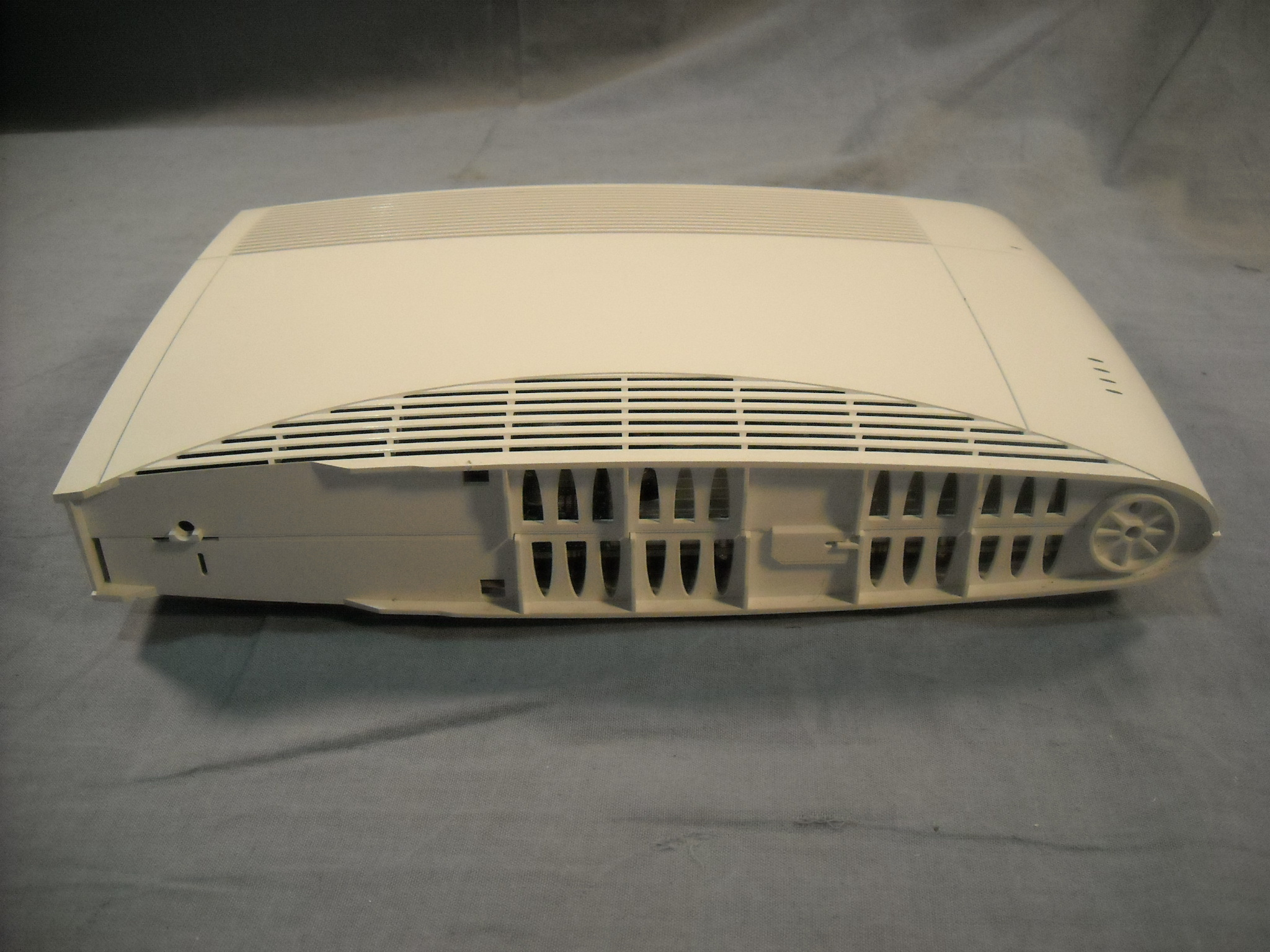

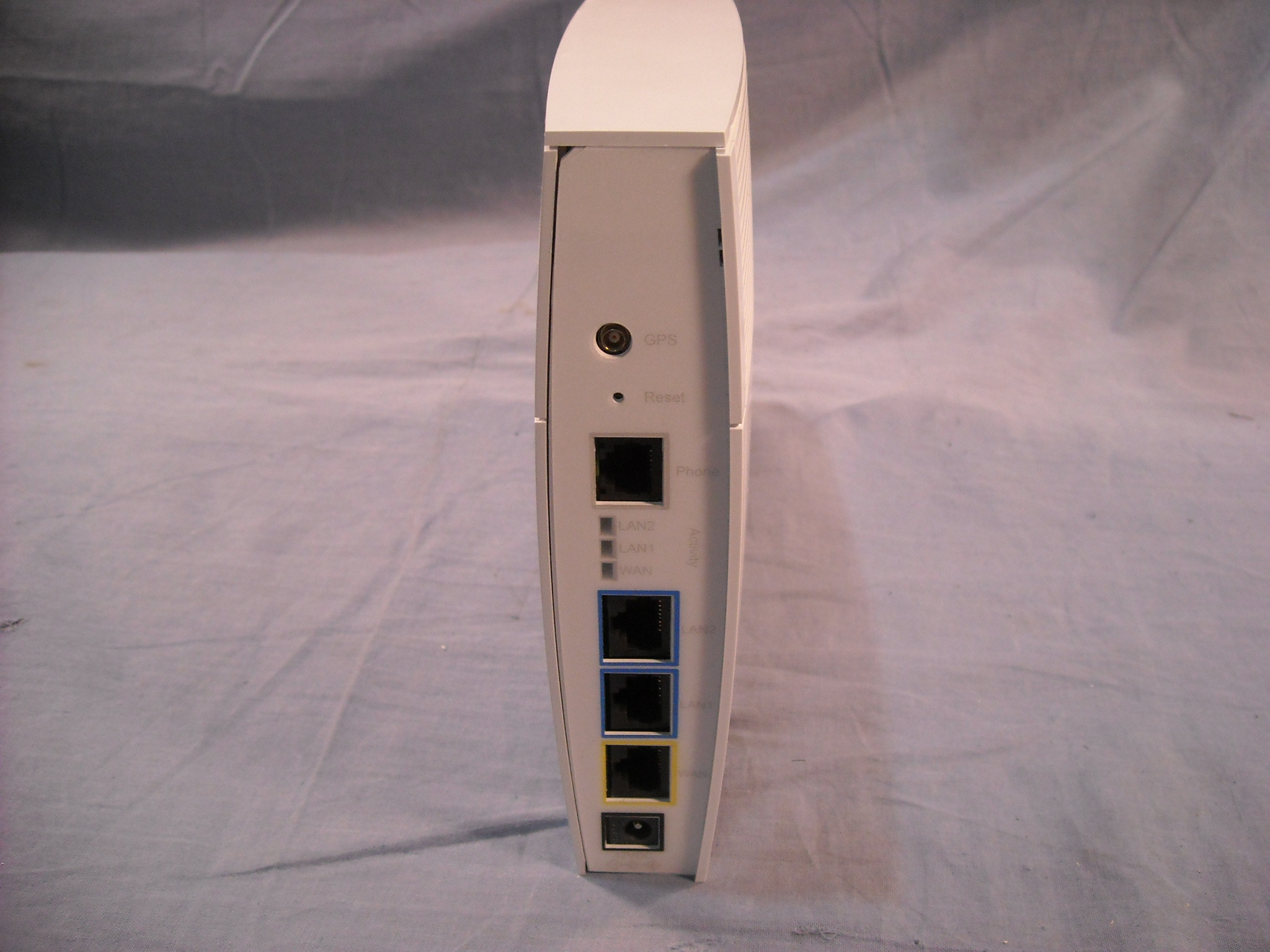

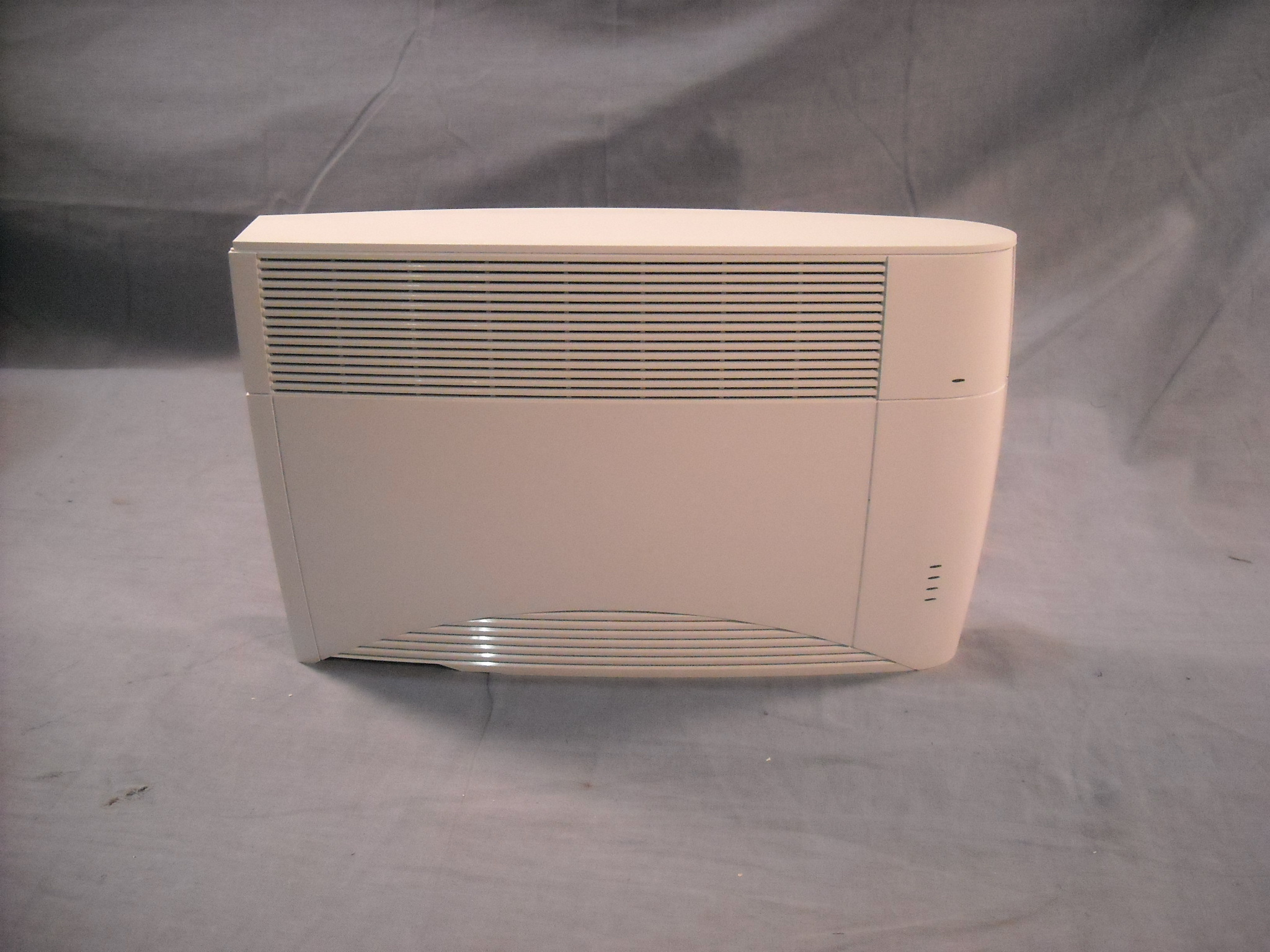

EJ1375-1 Airvana External Pictures EJ1375-1 Airvana External Pictures EJ1375-1 Airvana External Pictures EJ1375-1 Airvana External Pictures

UNLESS OTHERWISE SPECIFIED -INTERPRET PER ASME Y14.5M 1994 -ALL DIMENSIONS IN INCHES -DO NOT SCALE DRAWING THIRD ANGLE PROJECTION LABEL; SERIAL NUMBER AND REGULATORY; CDMA FEMTO W/ ATA ROUTER; SPRINT THIS DOCUMENT CONTAINS INFORMATION WHICH IS THE EXCLUSIVE PROPERTY OF AIRVANA INC.. DISTRIBUTION, REPRODUCTION OR USE BY OTHERS IS NOT PERMITTED WITHOUT THE EXPRESS WRITTEN CONSENT OF AIRVANA INC. SIZEDRAWN BYPART NUMBERREV SCALE NONE CAD GENERATED DRAWINGSHEET 1 OF 1 TOLERANCES UNLESS OTHERWISE SPECIFIED X.X.XX.XXXANGLES INCHESN/A0.10.03 0.01 5 1° MATERIAL: FINISH: NOTE 1 REV.DESCRIPTIONDATEBY 02ADDED FCC-ID & GENERIC AP-ID01-06-2010KEC D C B A 4321 D C B A 4321 AIRVANA INC. 19 Alpha Rd. Chelmsford, MA 01824 (978) 250-4455 2.62 1.191.56 Model: HubBub C1-600-RT Made in the USA Rating: 12V ===== 2A Made in USA, Dec 2009 LRxxxxxC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : QHYHUBBUBC1600-RT Airave PLUS TM WARNING OF 911 LIMITATION: You may not be able to make 911 calls in then event of an electrical power outage, broadband failure, termination of broadband service or other service disruption. 911 or enhanced 911 service may be limited in areas outside of Sprint’s network coverage. Always be prepared to report your location. www.airvana.com

J1375 Airvana Label Location

EJ1375-1 Airvana Internal Pictures EJ1375-1 Airvana Internal Pictures EJ1375-1 Airvana Internal Pictures

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal: 16.47(dBm) Maximum peak output power at the antenna terminal: 44.36086439(mW) Antenna gain(typical): 4 (dBi) Maximum antenna gain: 2.511886432(numeric) Prediction distance: 20(cm) Prediction frequency: 1960 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency:0.022168(mW/cm^2) Device complies with FCC RF radiation exposure limits for general population as a mobile device (d>20cm). 2 4R PG S π =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 18 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EJ1375-1 Client Airvana Address 19 Alpha Road Chelmsford, MA 01824 Phone 978-250-2622 Item tested Airave FCC ID QHYHUBBUBC1600-RT FRN 0007380173 Equipment Type Licensed Base Station for Part 24 Equipment Code PCB Emission Designator 1M25D7D FCC Rule Parts 47 CFR 24.200 Test Dates January 26-27, March 30 2010 Results As detailed within this report Prepared by Matthew Burman – Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date 03/31/2010 REPORT: EJ1375-1 March 31, 2010 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 18 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................4 Statement of Conformity......................................................................................................5 Bandwidth............................................................................................................................6 Peak Output Power – Used to Calculate EIRP.....................................................................8 EIRP..................................................................................................................................10 Band Edge Measurements.................................................................................................11 Radiated Spurious Emissions Measurements....................................................................12 Conducted Spurious Emissions Measurements.................................................................13 AC Line Conducted Emissions...........................................................................................15 Frequency Stability............................................................................................................16 Test Equipment Used ............................................................................................................16 Conditions Of Testing ........................................................................................................17 Form Final Report REV 7-20-07 (DW) REPORT: EJ1375-1 March 31, 2010 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release August 14, 2007 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 18 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 24.200. The product is the Airave. It is a transmitter that operates in the range 1931- 1989MHz. We found that the product met the above requirements without modification. The test sample was received in good condition. The supported modulation types are: BPSK, QPSK and 16QAM. Test Methodology Radiated emission and AC Line conducted testing was performed according to the procedures specified in ANSI C63.4 (2003) and TIA-603-C. Radiated Emissions were maximized by rotating the device around three orthogonal axes as well as varying the test antenna’s height and polarity. Conducted measurements at the antenna port were performed. The EUT operating voltage is 120Vac 60Hz. For peak output power and antenna port spurious emissions, the frequency range investigated as 1931-1990MHz For AC line conducted emissions the frequency range investigated was 150kHz to 30MHz. During line conducted emissions and radiated spurious measurements, the product was removed from the plastic enclosure which should have no effects on EMI results. For antenna port conducted spurious emissions 30MHz to 20GHz was checked. Radiated spurious emissions the frequency range of 30MHz to 20GHz was inspected, along with the digital circuitry. The digital circuitry is compliant to FCC part 15 class B limits for unintentional radiators as issued in work order EJ1641. REPORT: EJ1375-1 March 31, 2010 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 4 of 18 Product Tested - Configuration Documentation EUT Configuration Work Order: J1375 Company: Airvana Company Address: 19 Alpha Road Chelmsford, MA 01824 Contact:Cuong Dao Person Present: Cuong Dao MNPNSN EUT: HubBub C1 600-RT---Sample 1 EUT Description: Airave LEADER ELECTRONICS p/s:NU30-4120250-I3- FCC ID: QHYHUBBUBC1600-RT EUT TX Frequencies: 1931.25 - 1988.75MHz Support Equipment:MNSN Dell Laptop PP1LL--- EUT Ports: Port LabelPort Type No. of ports No. PopulatedCab…

Text truncated - open the document above for the full version.

EJ1375-1 Airvana Setup Pictures AC Line Conducted - Rear EJ1375-1 Airvana Setup Pictures AC Line Conducted - Front Radiated Measurements below 1GHz EJ1375-1 Airvana Setup Pictures Radiated Measurements Above 1GHz Conductive Measurements EJ1375-1 Airvana Setup Pictures Environmental Chamber – Frequency Drift Environmental Chamber - Inside
